The evaporation speed of water is slower than that of solvents, so when switching from solvents to more environmentally friendly paints and coatings, the problem of drying paints needs to be considered in advance. A carbon infrared lamp is an ideal choice.
Features of carbon infrared lamp
1. High-quality quartz glass with good transmission and high-temperature resistance
2. Good heating efficiency with carbon fiber
3. Sturdy ceramic base. good insulation protection and high-temperature resistance

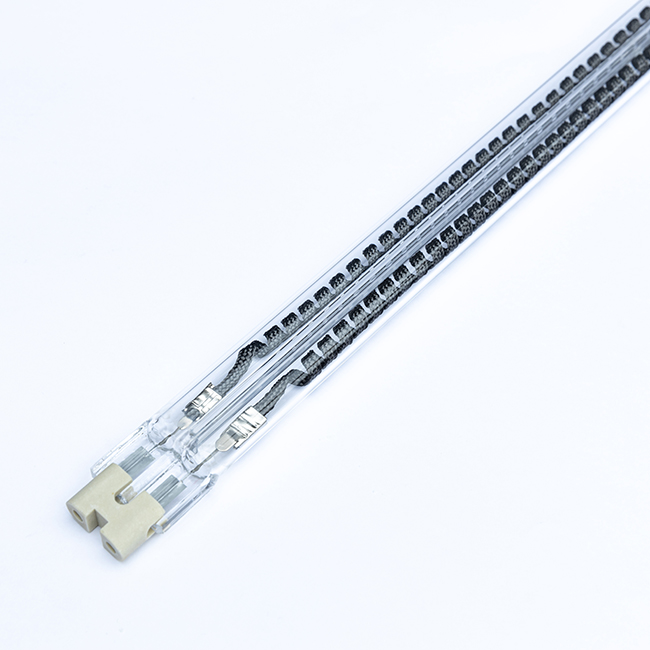

4. Quartz twin tube Very high mechanical stability and double power, customizable in various shapes and sizes upon request
5. Gold plated reflector for directional radiation and higher efficiency
Technical data

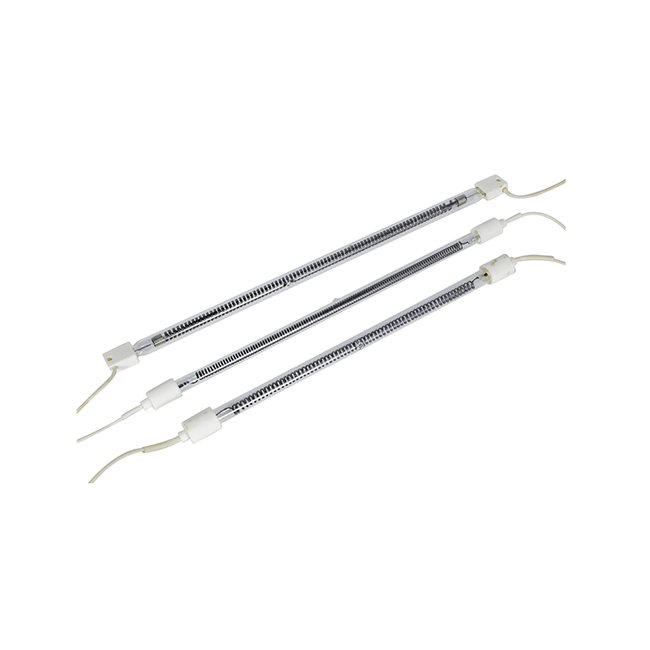

Twin tube carbon infrared lamp | Round tube carbon infrared lamp | |
Power | 60w / cm | 35w / cm |
Heating Length | Max 5000 mm | Max 2000 mm |
Cross-section | 11x23/15x33mm | 10mm/12mm/15mm |
Filament temperature | 1200 ℃ | 1200 ℃ |
Wave length | > 2 um | > 2 um |
Unit Area power | Max 110kw/m² | Max 110kw/m² |
Response | 30 seconds | 30 seconds |
Filament | Carbon fiber | Carbon fiber |
- HZ: 50-60 HZ
- Electricity saving ratio: 30%
- Infrared normal direction radiant ratio: over 94%
- Electric heat transformation ratio: over 98%
- Tube Surface temperature: 500-900C
- Continuous servicing hour: over 5, 000H

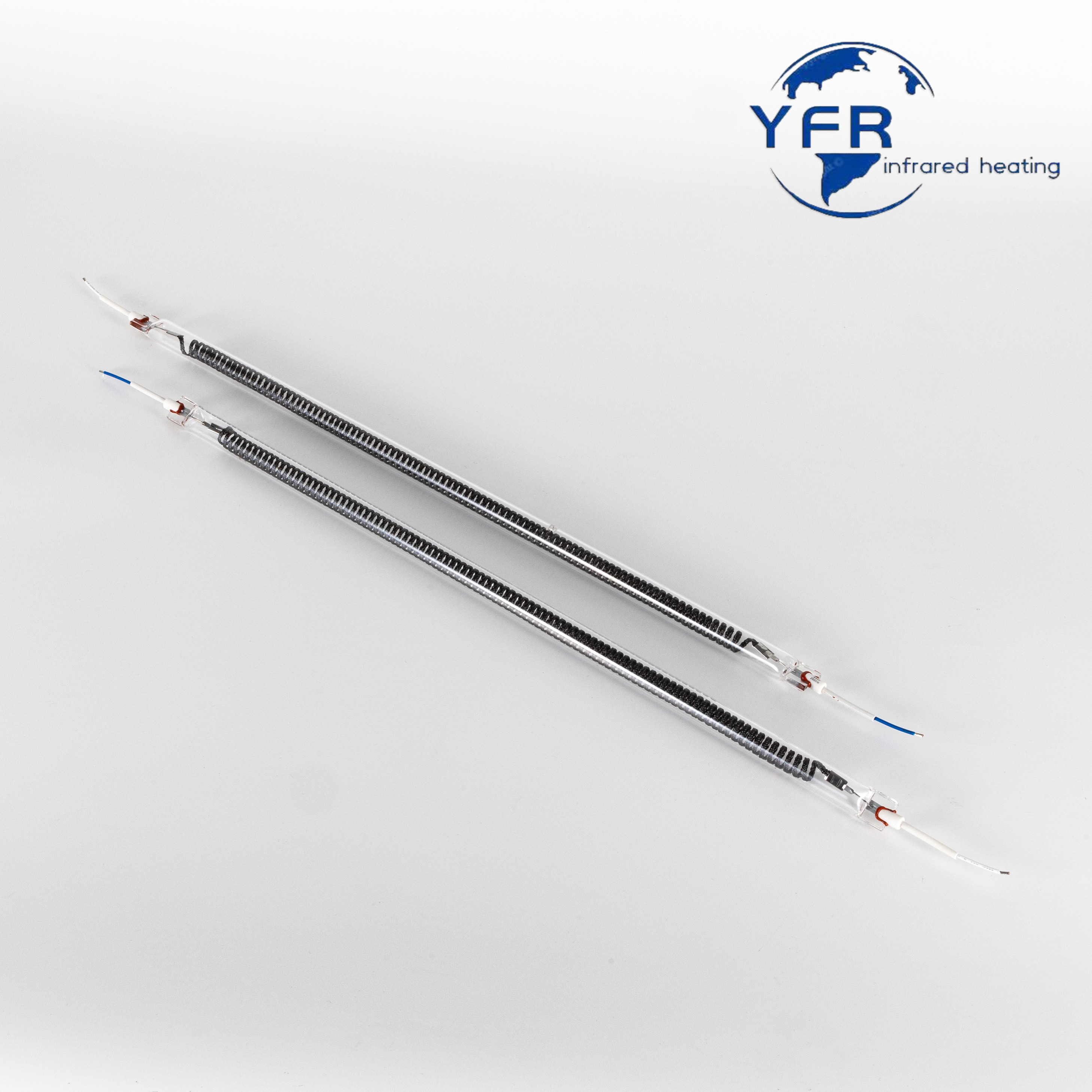

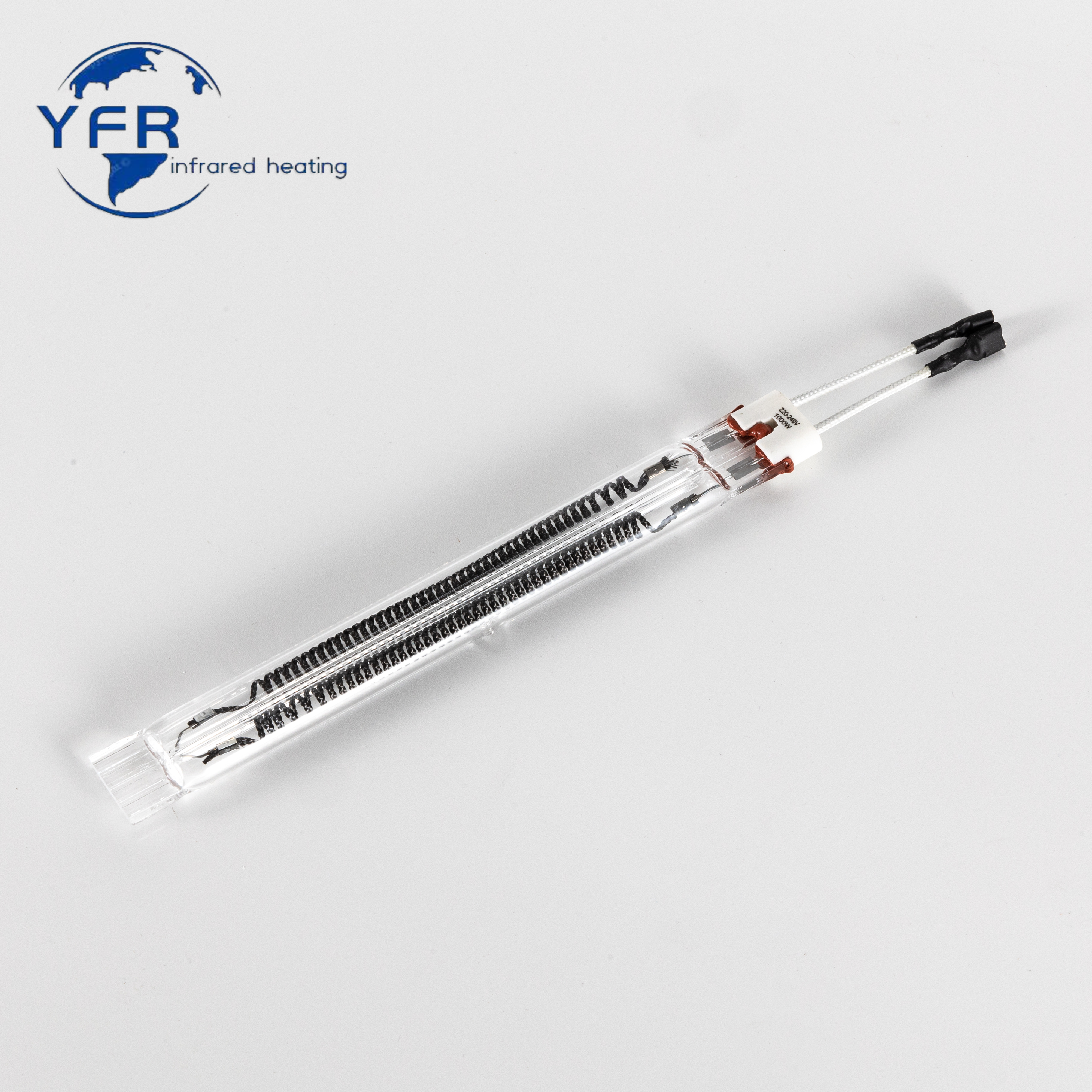

YFR carbon fiber infrared lamps utilize a unique heating filament design, that provides excellent heating efficiency and fast response time. The new double tube carbon infrared emitter can provide excellent mechanical stability and better radiation density.
The carbon infrared heaters can be manufactured as effective heating elements or even as a complete infrared system. We have all the accessories to keep the heating system working smoothly.
The new YFR medium wave carbon infrared lamp is available in heating lengths max 5000 mm and is suitable for an individual heating process. These new emitters are ideal for curing small parts, drying paint, plastic welding, or field that need localized heating. Depending on customer requirements, we can customize carbon fiber infrared heaters with double or single tubes with a gold reflective coating.
The carbon fiber infrared heaters can work in both horizontal and vertical directions and feature energy-efficient heating processes and fast response times. wave length of more than 2.2 um
