Yinfrared Heating Tech can design according to the characteristics of the material to be heated, using the rays that can be absorbed by the material at the peak of the infrared wavelength band to achieve maximum energy absorption for heating of the material, with minimum energy consumption to achieve the best heating effect.

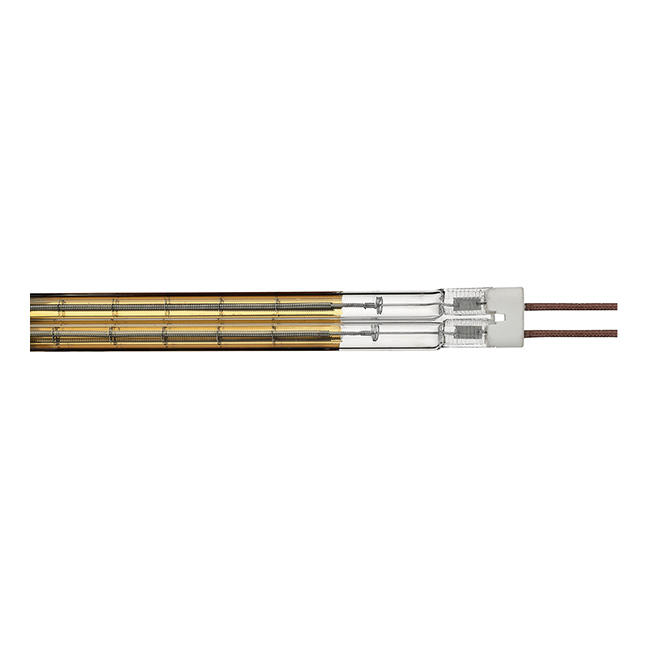

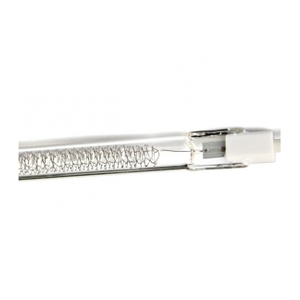

In applications where Fast medium-wave infrared is required and the thermal response of the lamp is critical, Yinfrared Heating Tech manufactures Instant Response Medium-Wave Infrared Lamps. These lamps are available in standard clear quartz or can be made directional with a 24K gold or white oxide reflector. These lamps can be made in virtually any length (under 40”), Wattage, and Voltage combination.
Technical parameters of infrared fast medium wave infrared Emitter .
Power | 200-10000w |
Heating length | Max 5 meters |
Diameter | 11x23mm / 15x33 mm |
Filament Temperature | 1400 - 1800 C |
Wave length | > 1.4 um |
Power per unit area | Max 130kw / m2 |
Response time | 1 - 2 seconds |

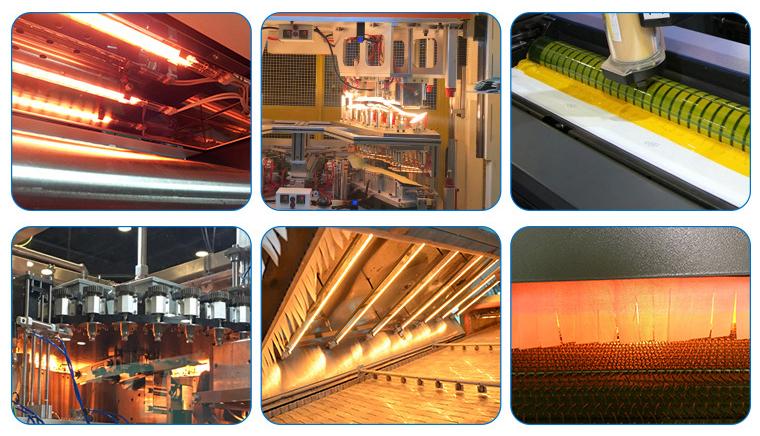

Fast medium wave quartz infrared heaters for a variety of industrial applications:
Water-based coating drying equipment
Furniture water-based paint drying
Carpet infrared thermoforming
Preheat plastic
Cured powder coatings
Drying/heat-setting textiles after dyeing or printing
Embossing before heating
Screen printing curing on T-shirts
Textiles and various such applications
Curing of coatings
Powder Coating
Paint drying
Drying the glaze on the tiles
Textiles
