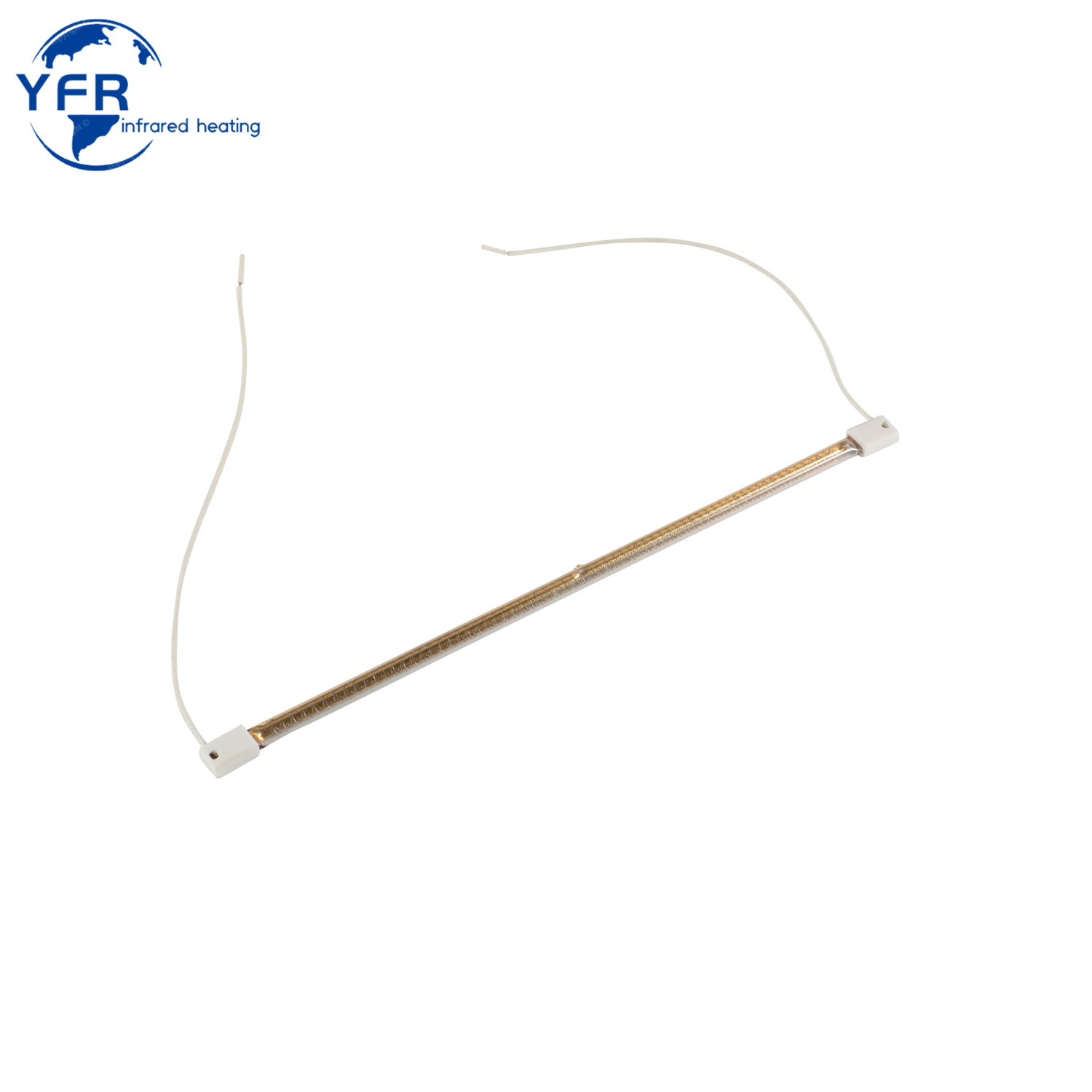

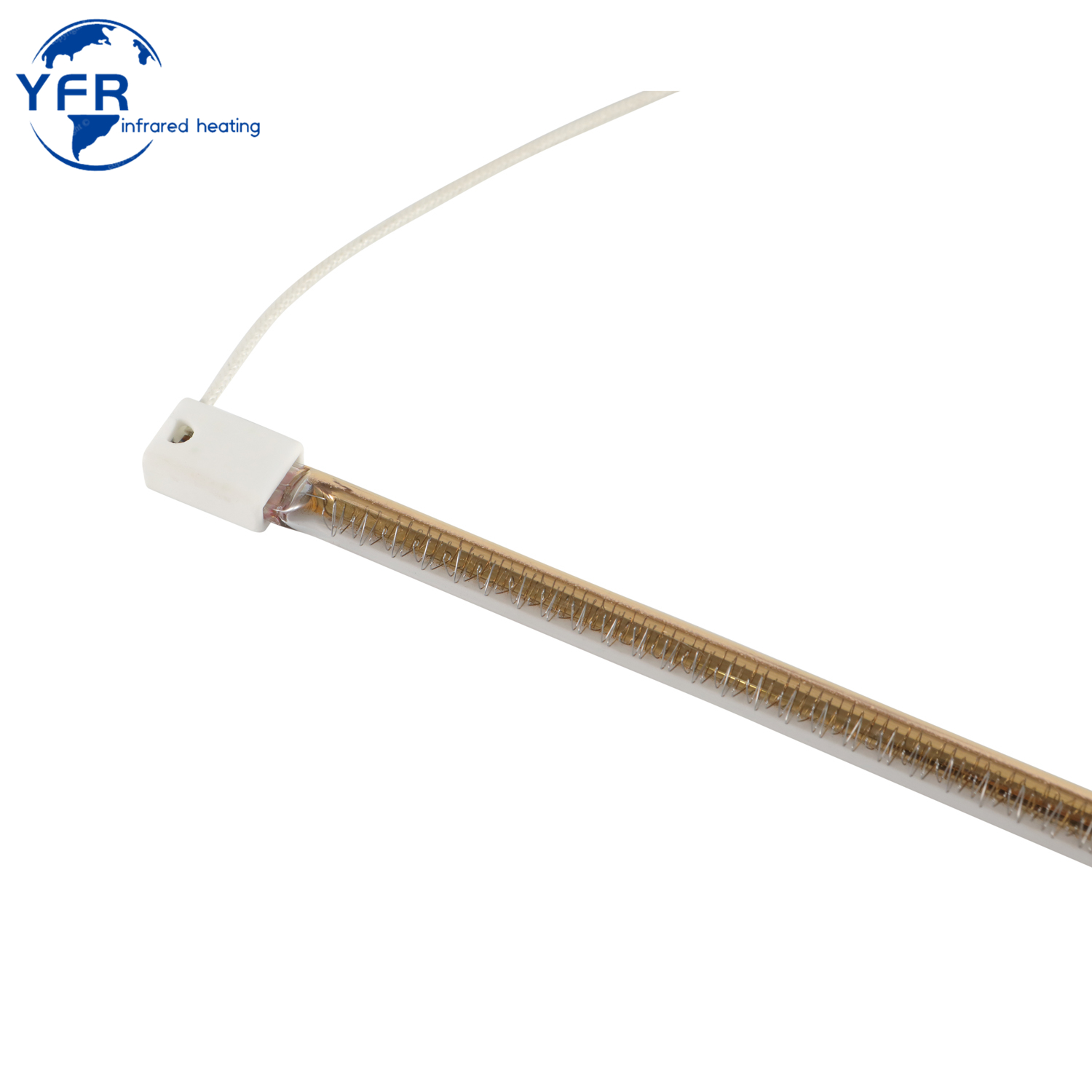

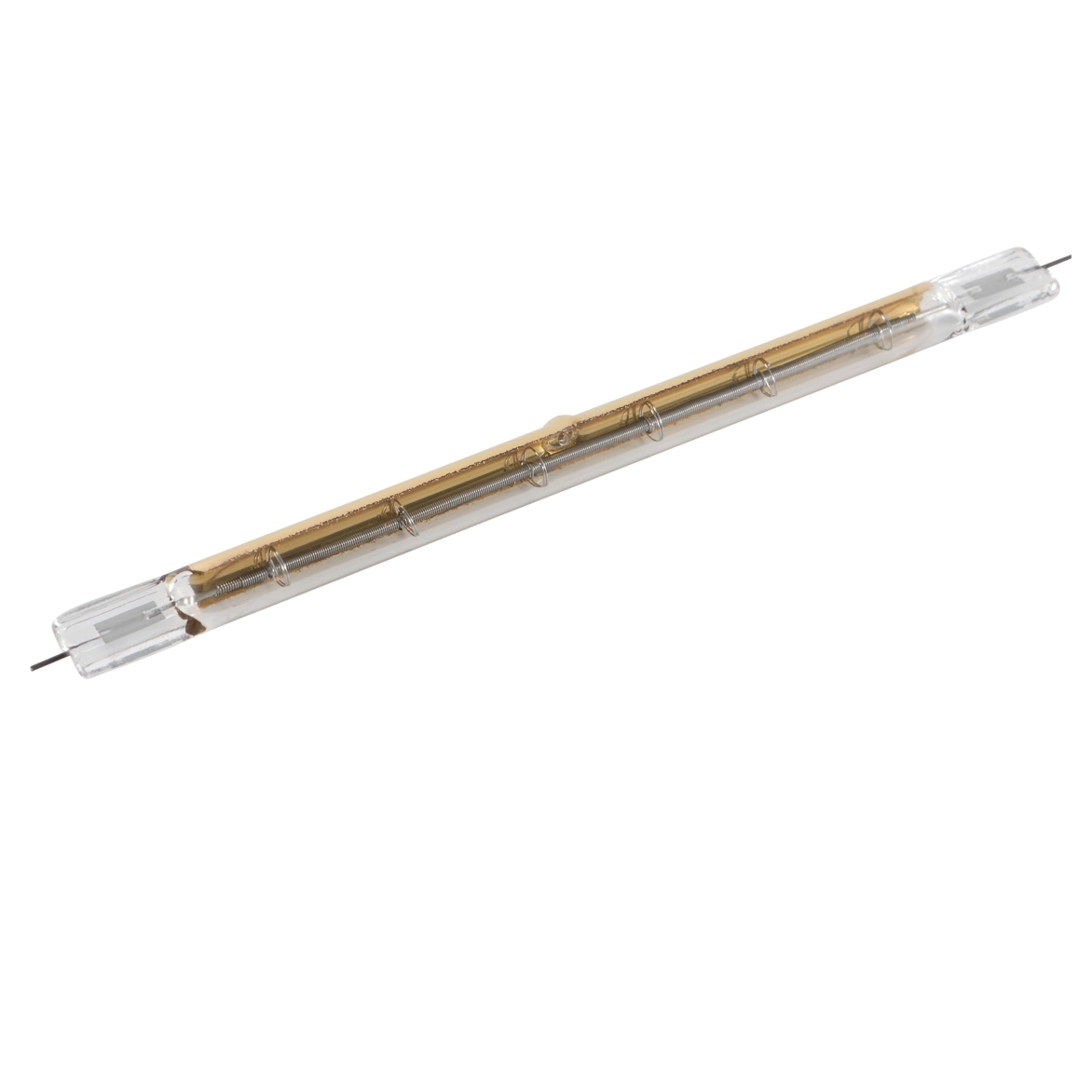

Gold-plated Single-tube Tungsten Infrared Heating Lamps

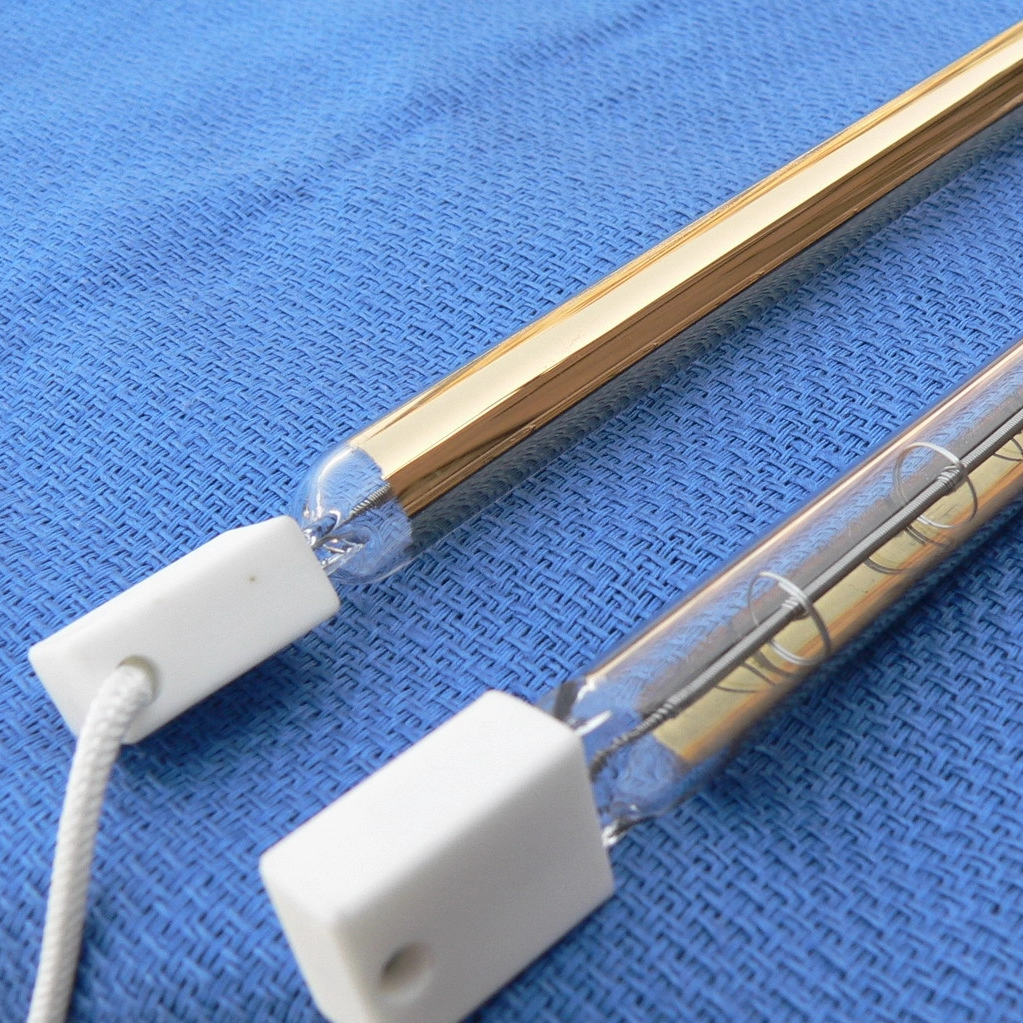

When using infrared Emitters with reflectors ,The heating process are running more steady and more efficiently . The Reflectors supply directional IR radiation. The reflective coating consists of a high-purity quartz ,ceramic material and some of fine gold, which is coated with The quartz tubes. therefore, the emitter has better performance in small working space. The quartz heaters is good resistant to heat,acid and corrode . As a result, The emitter with this refelctive coating can be used many extrem conditions.
The infrared Emitters technical data we have short waves, long waves and medium wave.
Single or double tube, U shape ,L shape or any other special shape,
The IR emitter can work in horizontally or vertically.
One or both sides connected with cable.
Infrared short-wave radiators can provide high-temperature thermal energy, which is more suitable for the needs of rapid point-to-point thermal response.
Short-wave Infrared emitters function at high temperatures of 1,300 - 2,600 C and emit infrared waves with a wavelength of around 0.75 - 1.4 microns. These wavelengths tend to be more transmissive and reflecting since they have higher frequencies.
With infrared technology, a transmission medium is not required, in contrast to all other heating methods. In some heating techniques, for instance, the air is heated first before the substance is heated. These procedures become ineffective and unfriendly to the environment since this does not occur losslessly. However, the environment is entirely unaffected by short-wave infrared radiation, and only the body gets heated. The efficiency of shortwave infrared emitters is unmatched due to this physical characteristic.
Technical parameter
| Tungsten single tube emitter | |
| Power | 20w / cm |
| Max heater length | 4000 mm |
| Cross-Section | 10mm /12mm /15mm /18mm |
| Filament Temperature | 800-900℃ |
| Wavelength | 0.75 - 1.4 um |
| Max Power density | 60 kw/㎡ |
| Response time | 2 seconds |
| Service life | 5000 hours |
Advantage
1.Suitable for zone control
2.comfort and direct heating.
3.No emissions or noise
4.Direct heating - heats objects not air.
5.Dimmable for heat to match your needs.
6.No preheating giving efficient heating.
7.Ease of installation
Application:
1.Health care & heating apparatus.

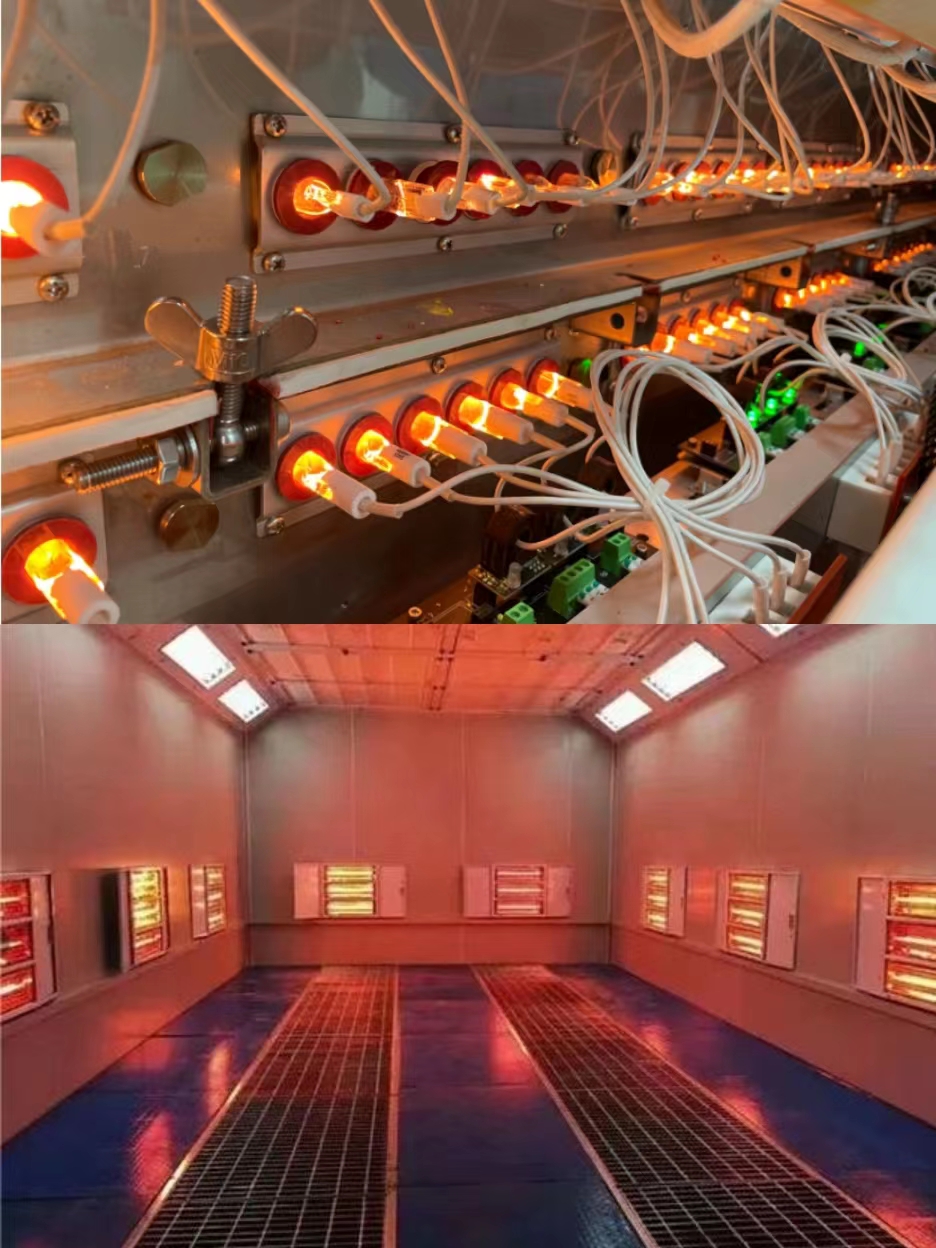

2.Drying equipment ,painting drying.
3.Cooking device.
4.Medical equipment.
5.Fry & baking equipment.
6.Brewage & fermentation installation.
7.Sterilizing device.
Why Choose Us
We are a manufacturer of Quartz IR emitters and infrared heating systems. With 13 years of experience in this industry, we have always maintained a conscientious, professional, flexible, on-time delivery, and responsive after-sales service attitude.
If you have customized needs, please feel free to contact us.
How to customize
Frequently asked questions
1.Are you a factory or trading company?
Yinfrared is a factory,we are professional manufacturer of infrared heater.You are warmily welcome to our factory, we will be happy to show you our production, quality control, warehouse,etc.
2.Can I have samples?Is it free?
Yes, we are happy to offer samples for you to check and test. Depending on sample quantity and product model, we will confirm with you whether it is a free sample or not.
3.Is there any warranty?
This is a serious supplier with good material and strick quality checking.lfthere is any problem with lamps or broken during shipping.We willremedy immediately or redo for free!
4.Can you do the design for us?
We can provide you with the design. We have a professional team with richexperience, you only need to tell us your ideas, the specific quantity.spen, voltage and other data of the infrared tube you need, we can produce the products you need.
If you have any other questions, please feel free to contact us.
