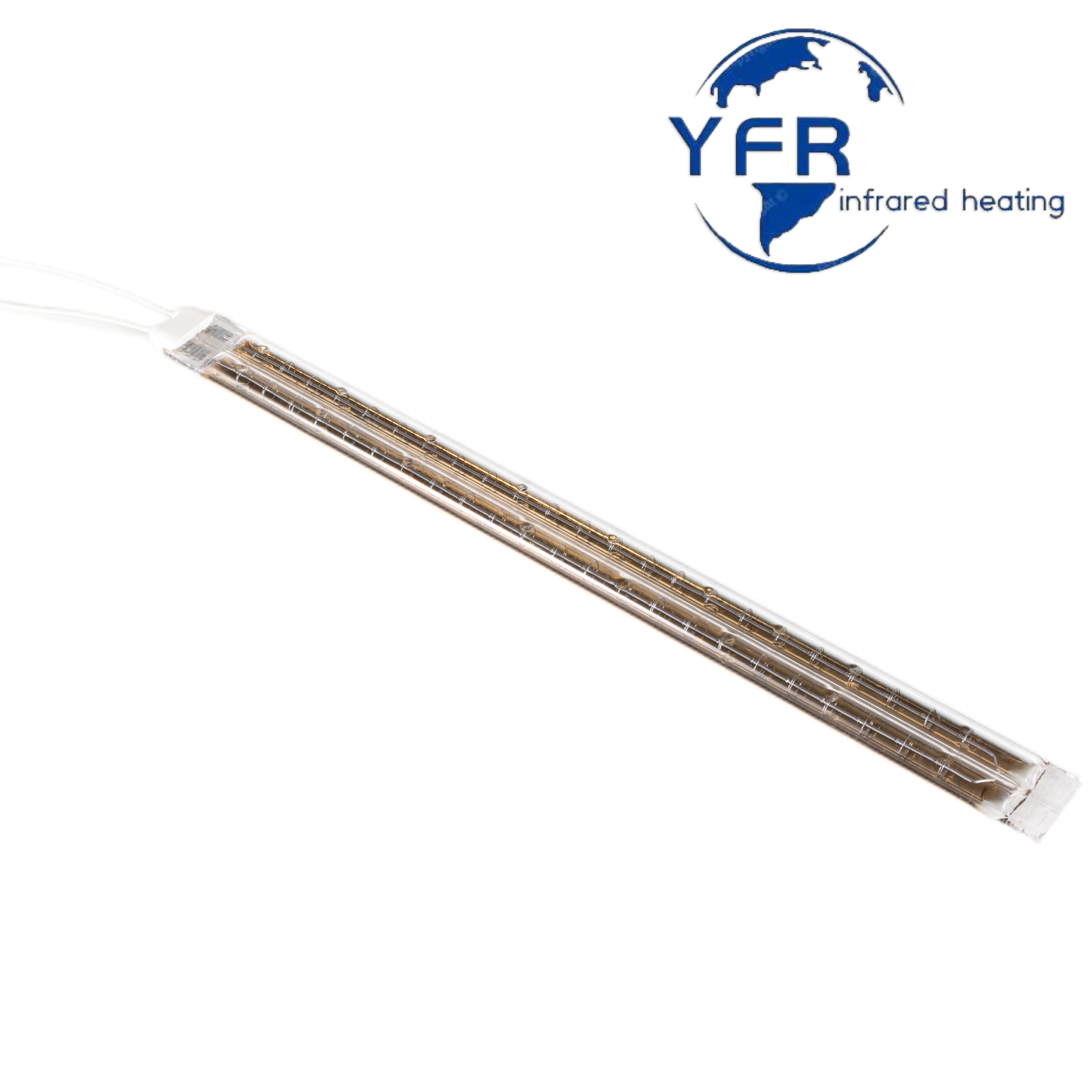

Gold-plated tungsten filament double-tube short-wave infrared heating lamps for printing machines, ovens
The infrared short-wave emitter provides high-temperature heat energy and is better suited to the needs of fast point-and-response heating.
Due to the higher temperature of the heating filament, the radiation density of the short-wave infrared lamp is in most cases higher than that of the medium-wave infrared emitter.
Technical Parameter
Power | Max 12000w |
Heating Length | Max 5000 mm |
Cross-Section | 11x23mm / 15x33mm |
Filament Temperature | 1800- 2400 C |
Wave length | 1.0-1.4 um |
Unit Area Power | Max 200kw/m² |
Response time | 1 Seconds |
Filament | Tungsten |
Service Life | 5000 hours |
Reflector | Gold reflective or Ceramic white coate |
Advantage

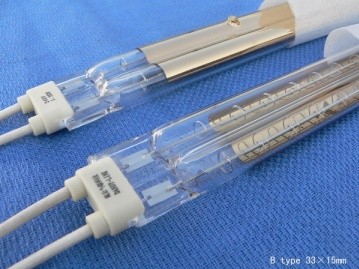

The unique double tube design has excellent mechanical stability and good radiation capacity and ,we can customize the quartz tube and filament to meet your requirements. The Max length can reach 3 meters.
Good Quality Quartz Tube
We can customize the tube according to your requirement, Special sharp all available .The Raw materials Quartz are filtered and finely processed . Quartz glass is very pure , with excellent thermal stability and transmission.

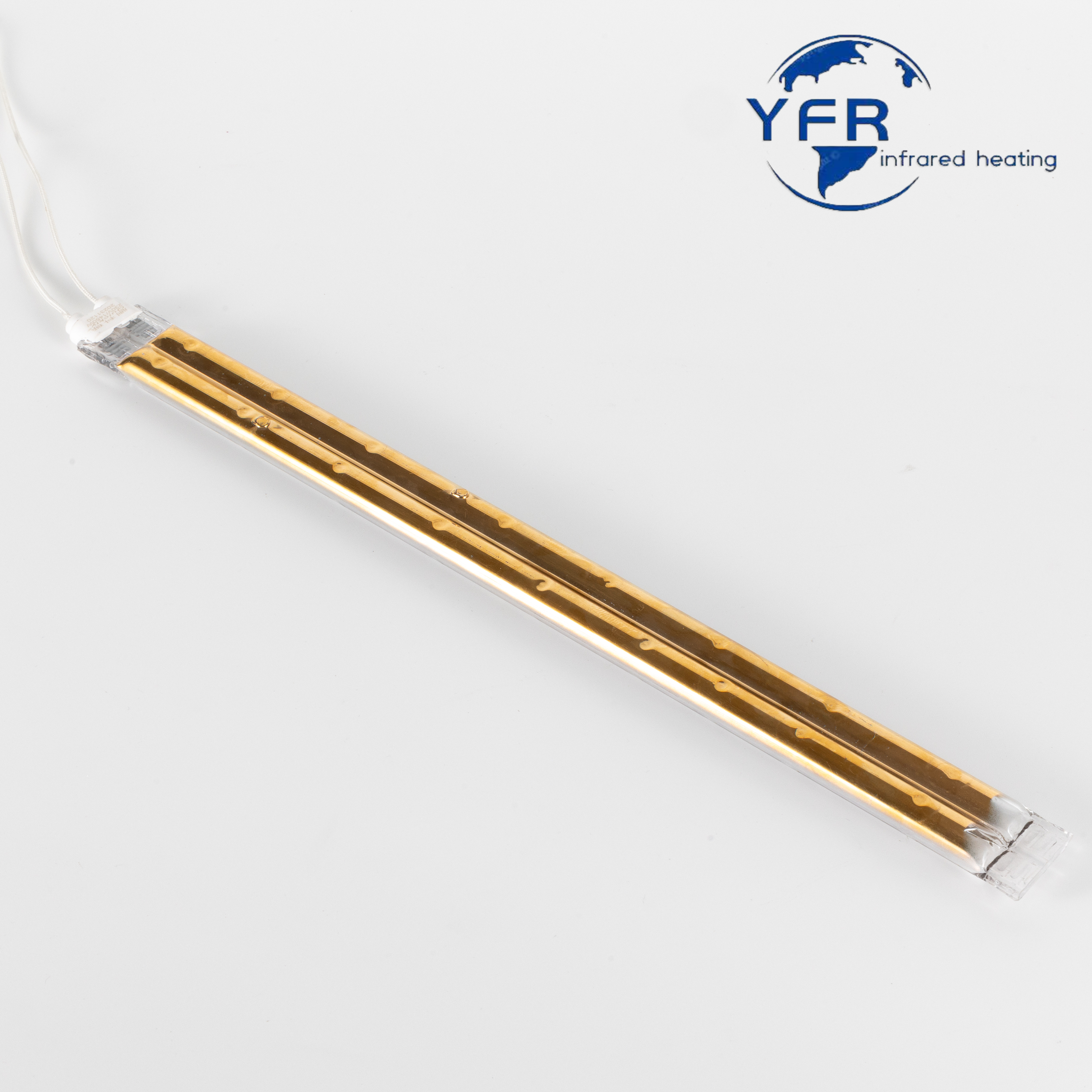

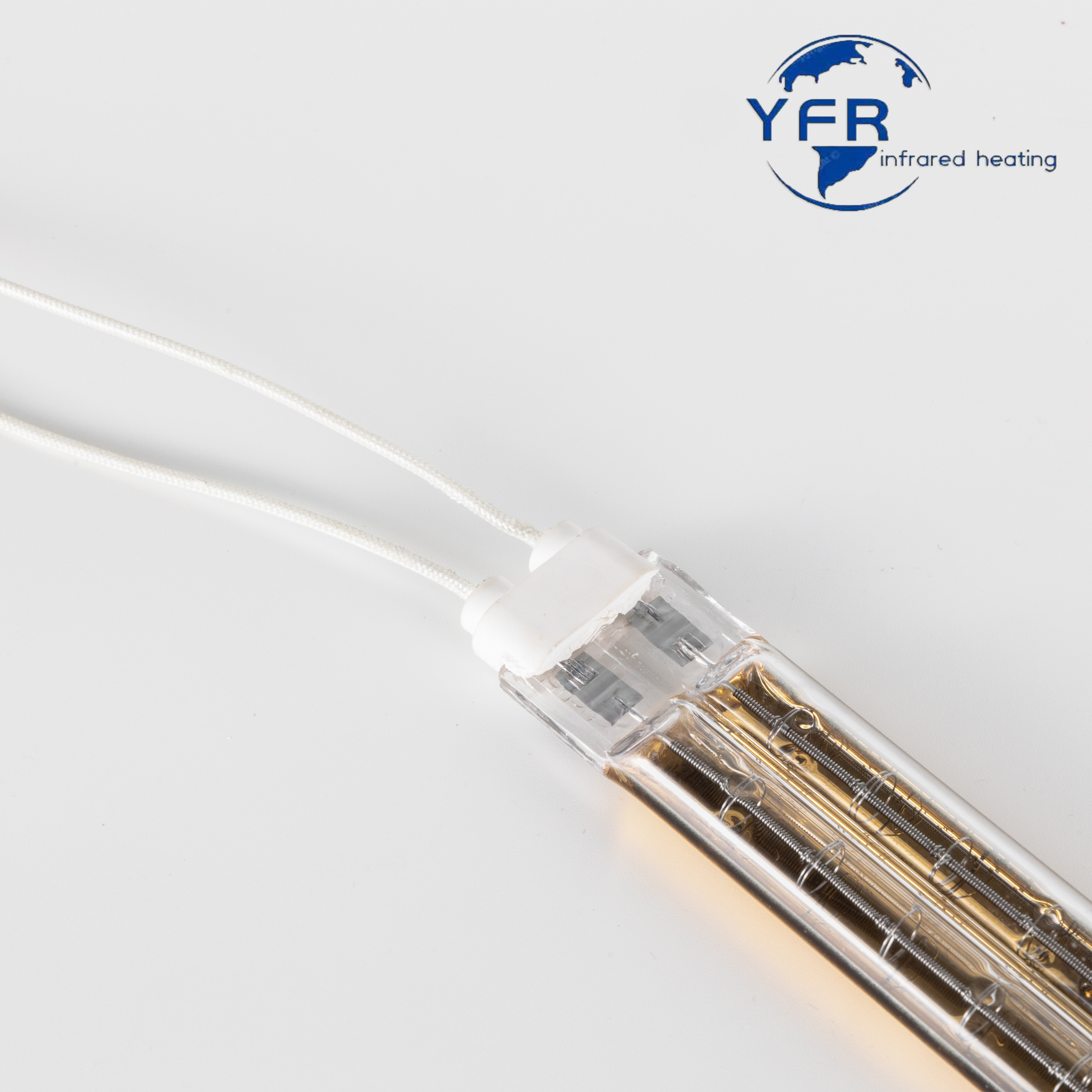

Gold reflector
Risen Gold coating IR lamps can Provide directional heating to the object. The gold reflector on the IR lamps reflects Infrared radiation. It nearly provide double the effective radiation - a good choice to improve the heating efficiency.
Energy-saving principle of short wave infrared heat lamp:
The short wave infrared lamp Produce multiple reflections when passing through the quartz tube. It has excellent far infrared radiation characteristics. If there is a gold-plated reflective layer, the effect is better, and the power saving can reach 35%.
Infrared heating lamp performance:
Infrared heating tube does not use paint outside, no filling inside, stable radiation rate, no deformation at high temperature, no harmful radiation, no environmental pollution, strong anti-corrosion ability, good chemical stability, small thermal penetration, high heat conversion rate, long-term Use, do not degenerate the true color.
Cause of the heating filament with higher temperature, the Radiant density of the short wave infrared lamp is In most instances higher than the Radiant density of the medium wave infrared lamp.

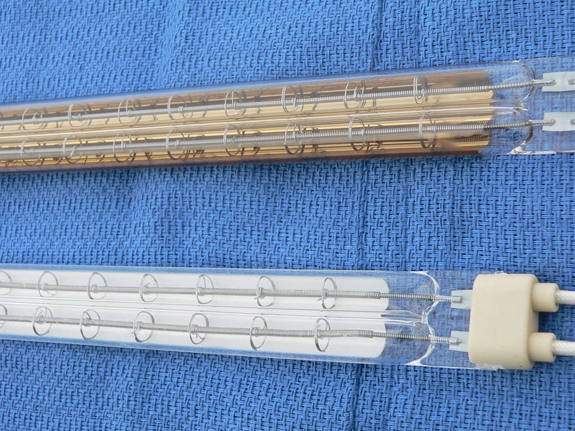

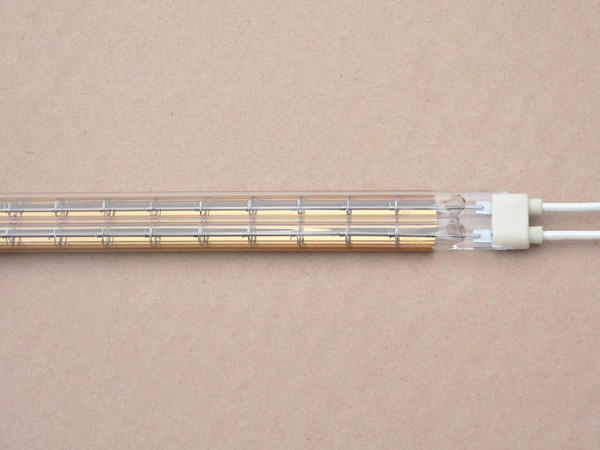

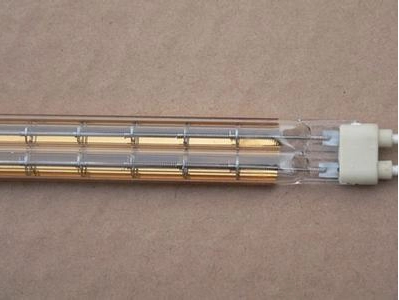

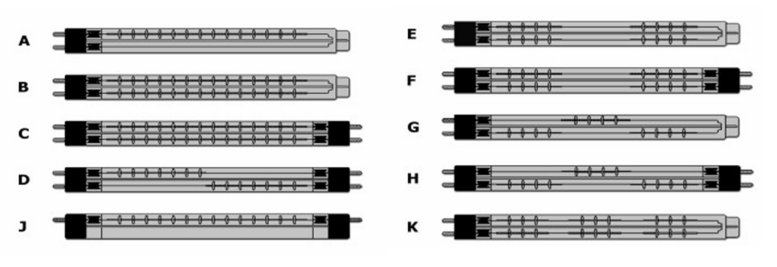

Short wave twin tube infrared lamp with different filament configurations. This allows extraordinary flexibility both in terms of heated area modularity and lead wire position. The picture below represents some of the most common filament configuration.

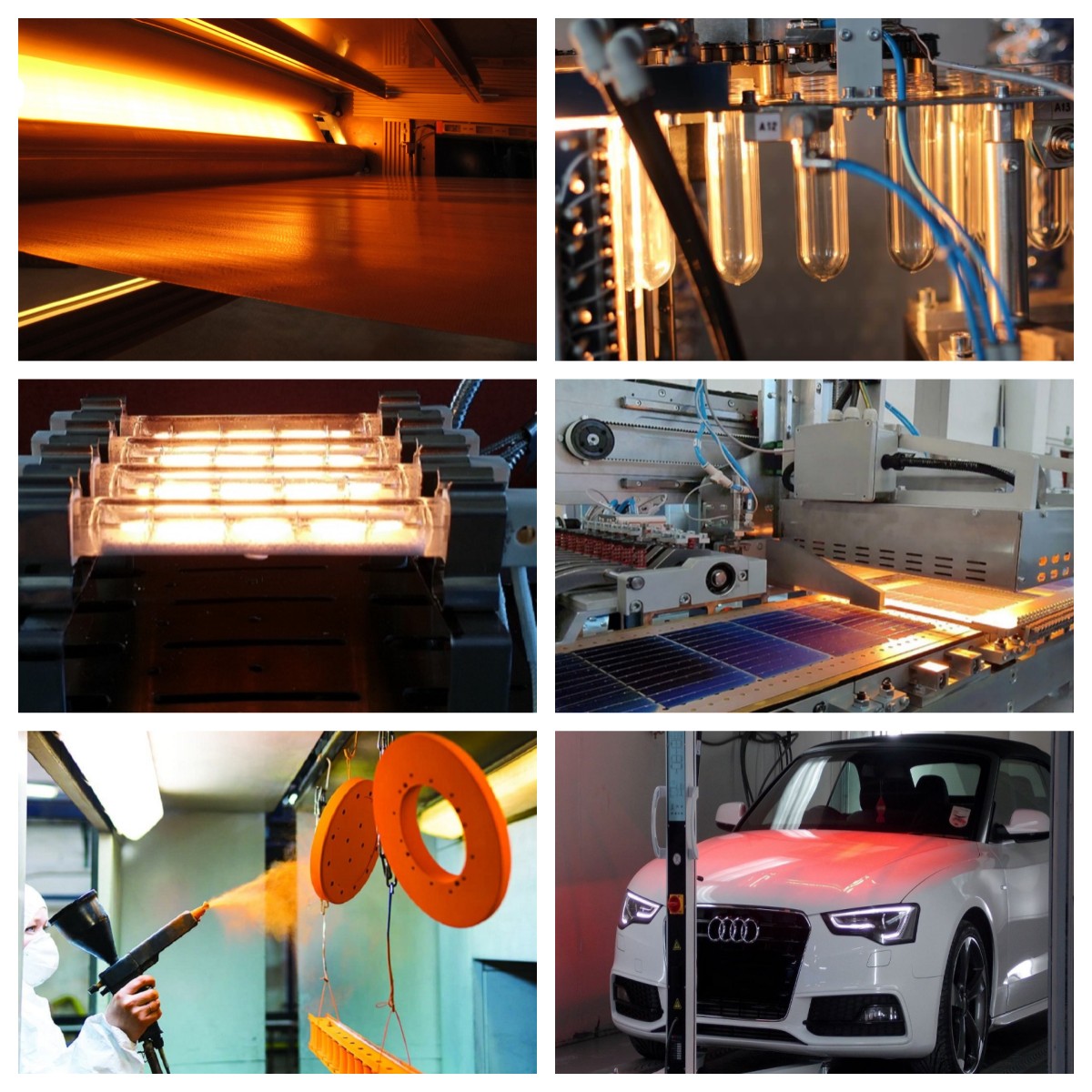

Applications
| Food industry | food drying, food heating, food packaging material molding, food high-temperature sterilization; |
| Printing industry | drying and curing of glue and ink; |
| Glass industry | annealing of glass and drying of coatings; |
| Packaging industry | PET blowing, laminating, ink drying; |
| Footwear industry | activated drying of glue; |
| Furniture industry | rapid drying of waterborne/oily coatings and paints; |
| Rubber industry | surface modification, softening and molding of plastics; |
| Photovoltaic industry | battery wafer soldering, sintering, substrate drying, spray preheating; |
| Automotive industry | sunlight simulation environment warehouse, sealing strip / wire harness heating, vehicle painting paint, body part point to make baking;Bonding Automotive Interiors |
| Textile industry | dry coating, fabric preheating, drying, pressing and activation of adhesives. |
Why Choose Us
We are a manufacturer of Quartz IR emitters and infrared heating systems. With 13 years of experience in this industry, we have always maintained a conscientious, professional, flexible, on-time delivery, and responsive after-sales service attitude.
If you have customized needs, please feel free to contact us.

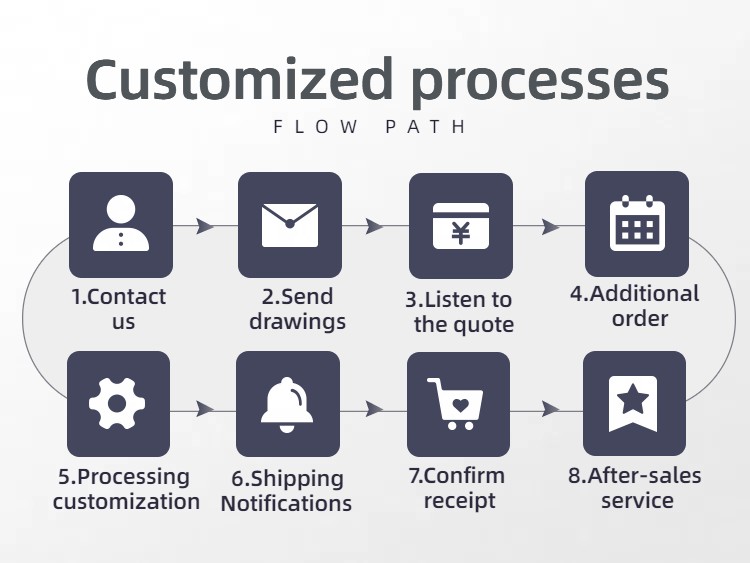

How to customize
Frequently asked questions
1.Are you a factory or trading company?
Yinfrared is a factory,we are professional manufacturer of infrared heater.You are warmily welcome to our factory, we will be happy to show you our production, quality control, warehouse,etc.
2.Can I have samples?Is it free?
Yes, we are happy to offer samples for you to check and test. Depending on sample quantity and product model, we will confirm with you whether it is a free sample or not.
3.Is there any warranty?
This is a serious supplier with good material and strick quality checking.lfthere is any problem with lamps or broken during shipping.We willremedy immediately or redo for free!
4.Can you do the design for us?
We can provide you with the design. We have a professional team with richexperience, you only need to tell us your ideas, the specific quantity.spen, voltage and other data of the infrared tube you need, we can produce the products you need.
If you have any other questions, please feel free to contact us.
