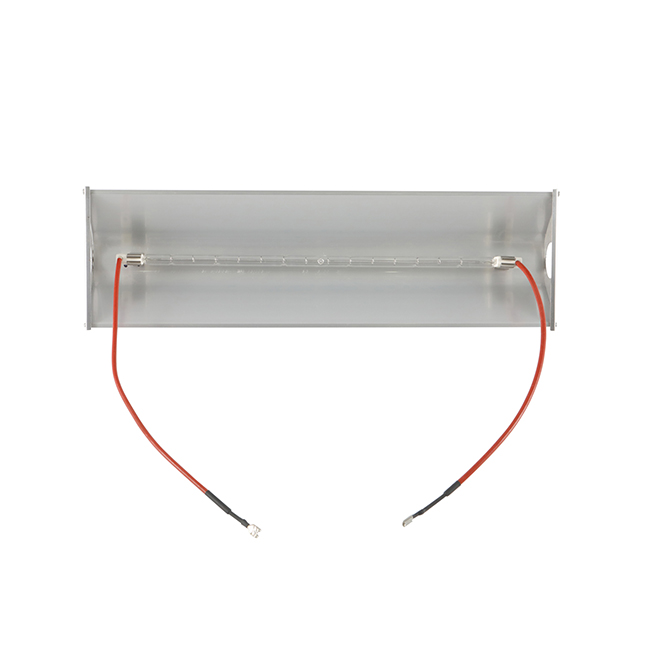

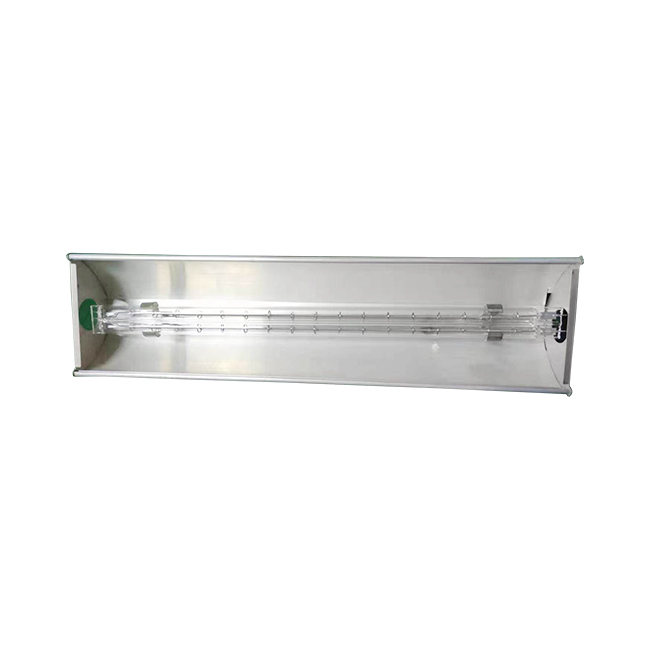

A YFR infrared heating module combines infrared emitters, a reflector, mounting structure, electrical connections and optional control components in a ready-to-integrate assembly. Compared with selecting and installing each heating element separately, a matched module gives machine builders and production plants a clearer route from the heating requirement to a practical installation.
The module is configured around the application rather than offered as one fixed specification. Heated area, available installation space, line speed, exposure time, operating environment and electrical supply are reviewed before the emitter arrangement and housing are confirmed. This makes the module suitable for new equipment, production-line upgrades and replacement projects where the original heater must fit an existing machine.
The final assembly can be designed around one or more infrared emitters and the mechanical and electrical features required by the machine. Depending on the project, the module may include:
Infrared emitters selected for the material, heating objective and required response.
A reflective housing that directs useful radiation toward the process area.
Mounting brackets, terminals, cables or connectors suited to the installation.
Protective or insulating details selected for the operating environment.
Temperature sensors, power regulation or control interfaces when required.
Cooling or ventilation provisions for applications with limited heat dissipation.
These elements are evaluated as one heating assembly. The purpose is not simply to place several lamps in a box, but to achieve a suitable heated width, energy distribution, working distance and service access for the actual process.
| Project item | Information to confirm | Why it matters |
|---|---|---|
| Material and process | Material type, starting condition and heating objective | Helps determine the suitable emitter and energy delivery method. |
| Heating zone | Required width, length and temperature uniformity | Defines the emitter layout, spacing and reflector geometry. |
| Production conditions | Line speed, exposure time, batch or continuous operation | Influences installed capacity and control strategy. |
| Installation | Available space, working distance, orientation and mounting points | Ensures that the assembly can be installed and maintained safely. |
| Electrical supply | Voltage, phase, power limits, cable and connector requirements | Allows the electrical design to match the customer’s equipment. |
| Control | On/off, staged output, power regulation, sensor or PLC interface | Determines how heating output will follow the production process. |
| Environment | Ambient temperature, dust, vapour, airflow and cleaning conditions | Guides the housing, protection and cooling arrangement. |
Custom infrared modules can be used wherever a defined area needs rapid, non-contact process heat. Typical projects include:
Drying water-based coatings, paint, ink or adhesive layers.
Preheating plastic sheet, film, profiles or moulded parts before forming or bonding.
Heating composite materials, laminated structures and technical textiles.
Supporting printing, coating, converting and web-processing lines.
Heating metal parts before coating, assembly or further processing.
Replacing an obsolete heater assembly in an existing oven, dryer or conveyor system.
Suitability depends on the material, required temperature profile and machine conditions. YFR therefore reviews the application data before recommending the emitter type, module dimensions and control method.
A well-planned module should be straightforward to mount, connect, inspect and service. During design review, attention can be given to terminal position, cable direction, access for emitter replacement, reflector cleaning and the distance between the module and the product. For retrofit projects, photos, drawings and the original heater dimensions help identify restrictions that may not appear in a basic specification sheet.
YFR supplies infrared emitters and develops assemblies around industrial heating requirements. Customers can source the emitter and the surrounding module from one supplier, which helps keep the lamp, reflector, mounting and electrical details aligned. The same approach supports both new machine designs and replacement projects based on an existing sample or drawing.
Explore our infrared heater modules and infrared heating lamps to compare the available product families.
For a new project, send the material, heating objective, heated dimensions, line speed or exposure time, working distance, available space, voltage and preferred control method. For a replacement project, include clear photos, overall dimensions, mounting details, label information and connector position.
Contact YFR to discuss your infrared heating module. We will review the information and help define a practical configuration before production.
