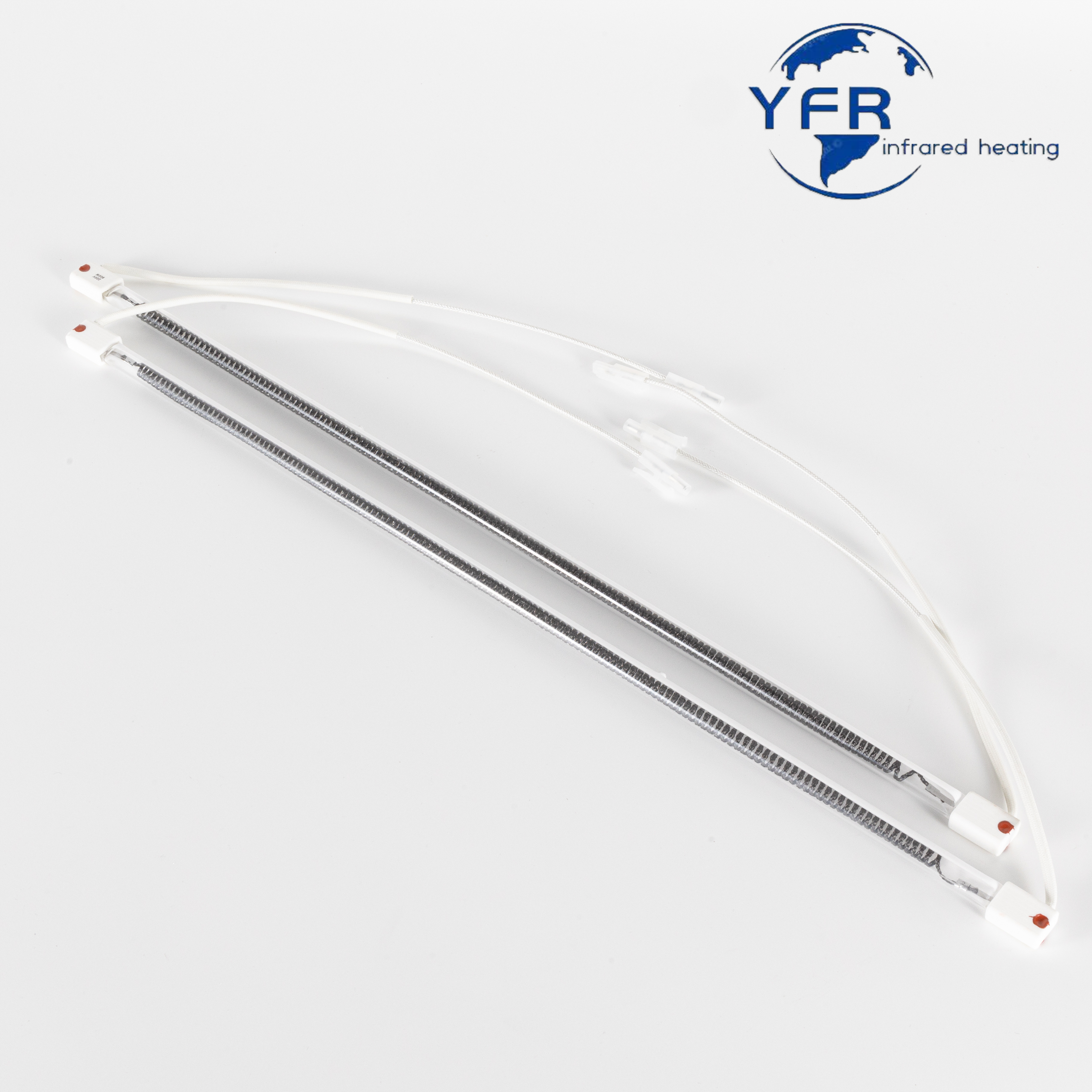

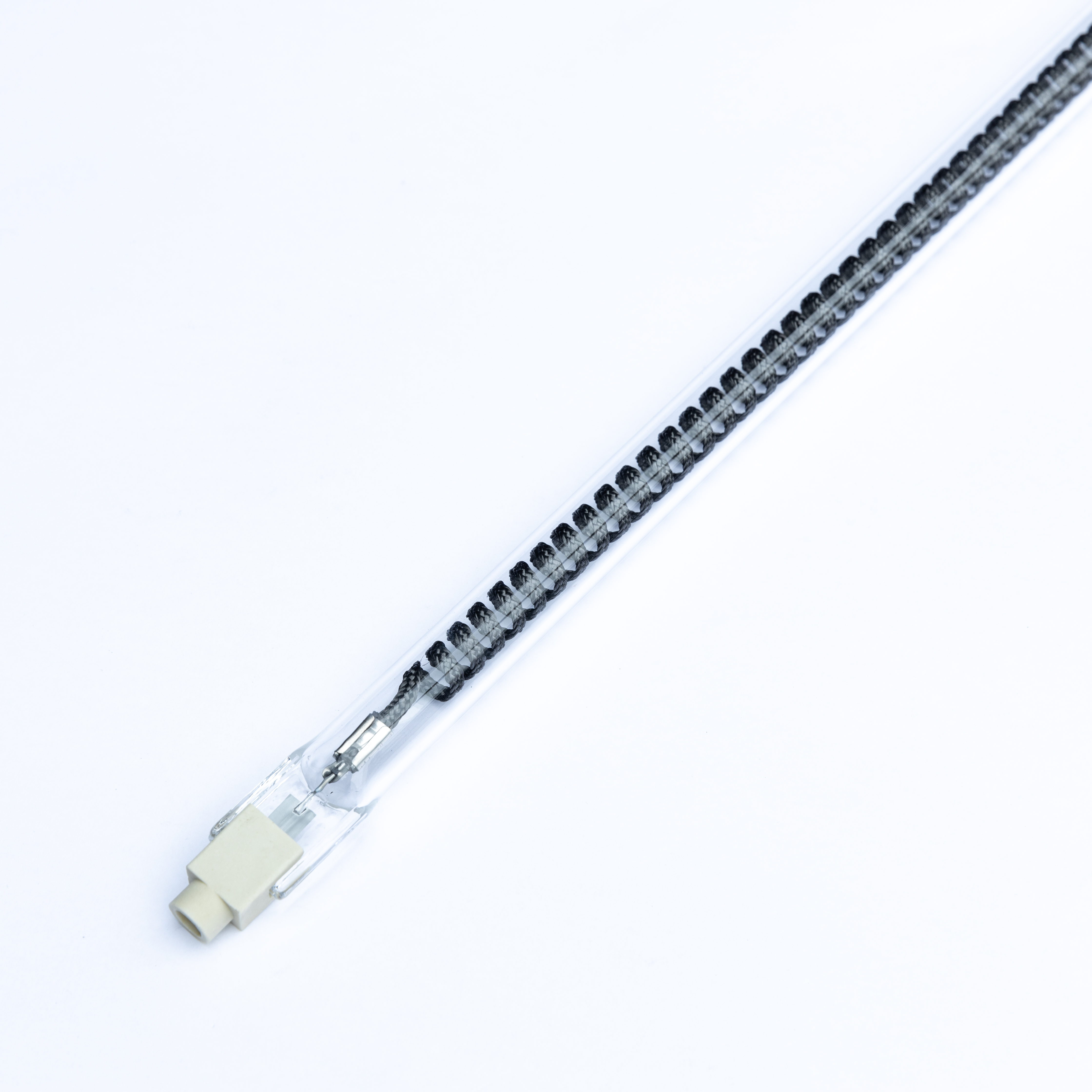

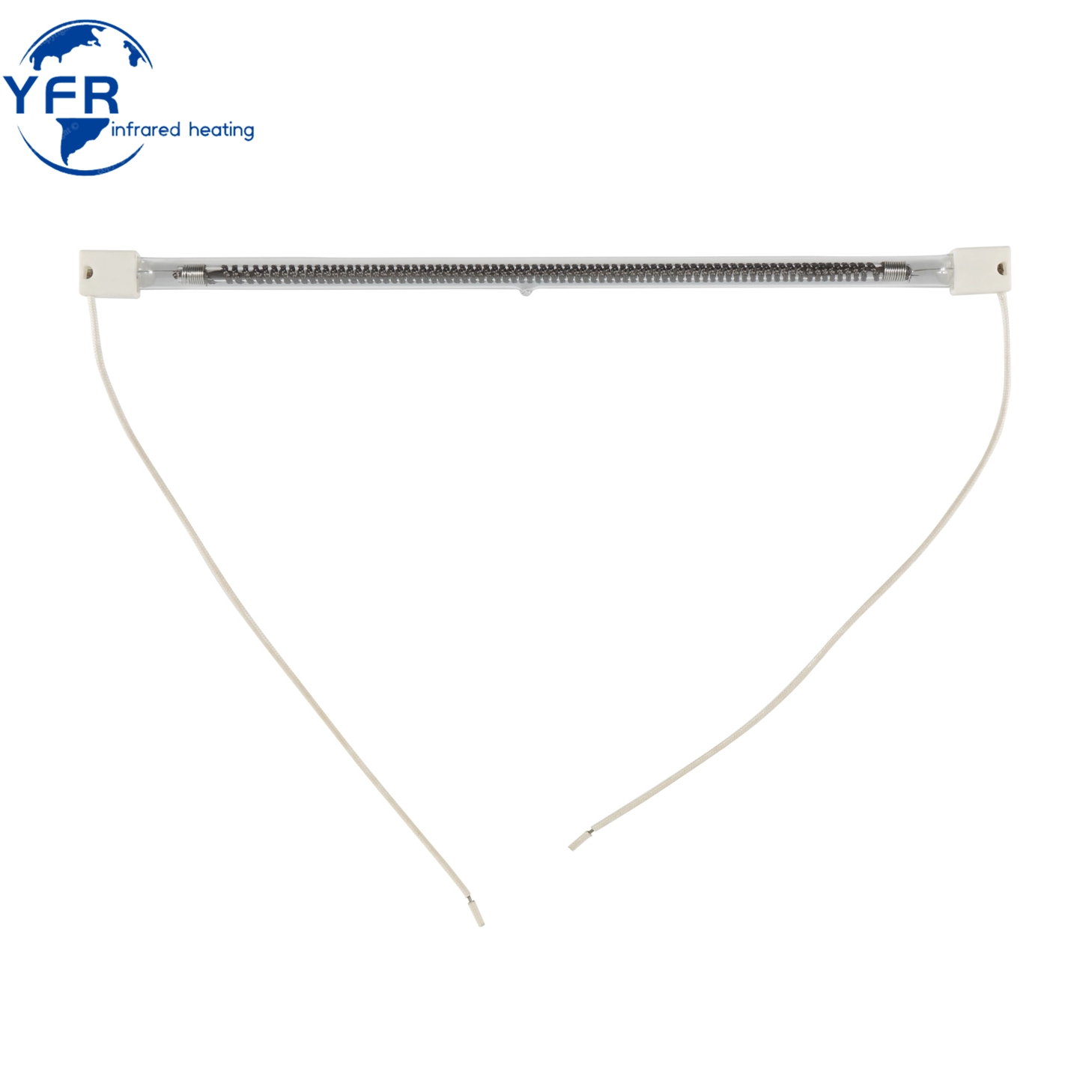

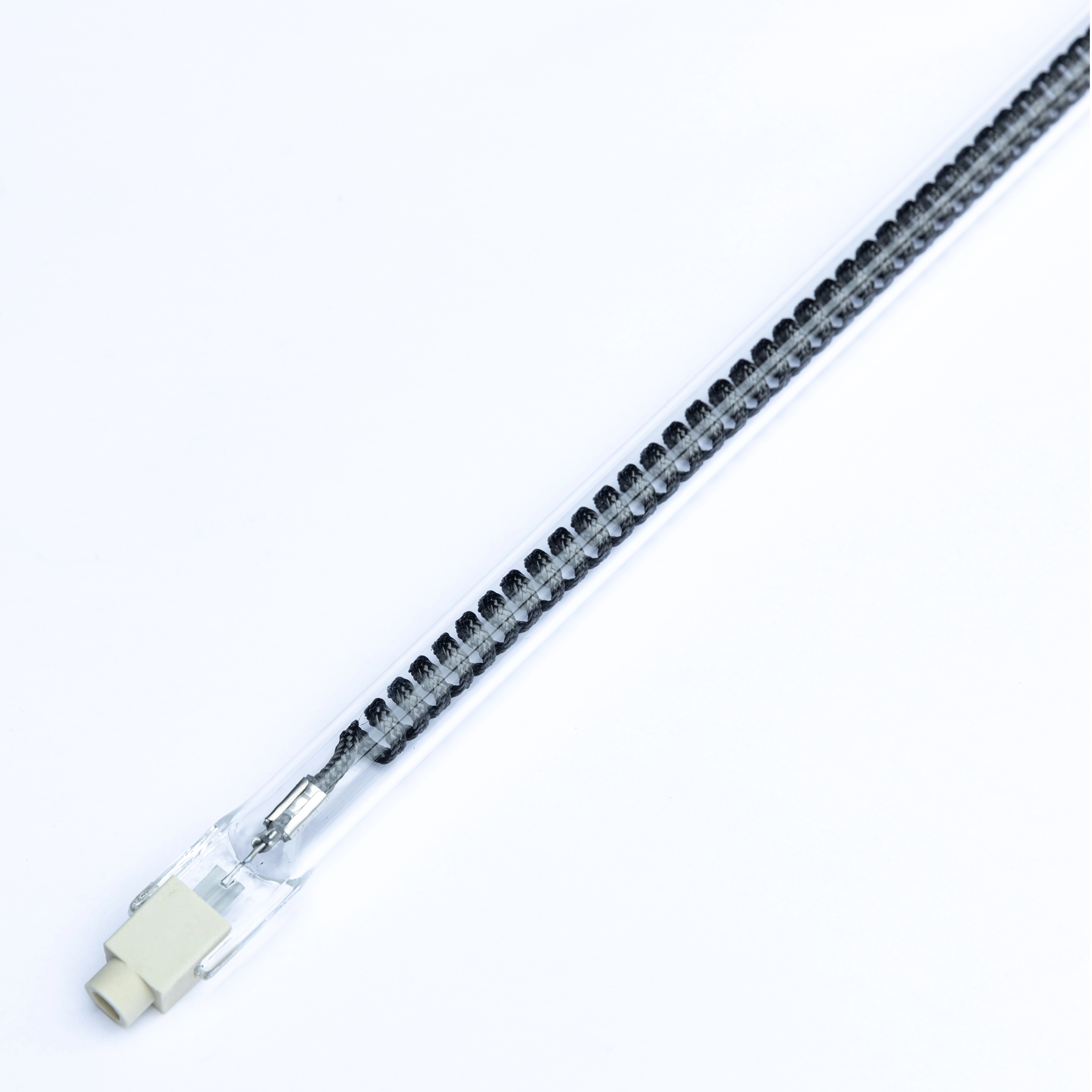

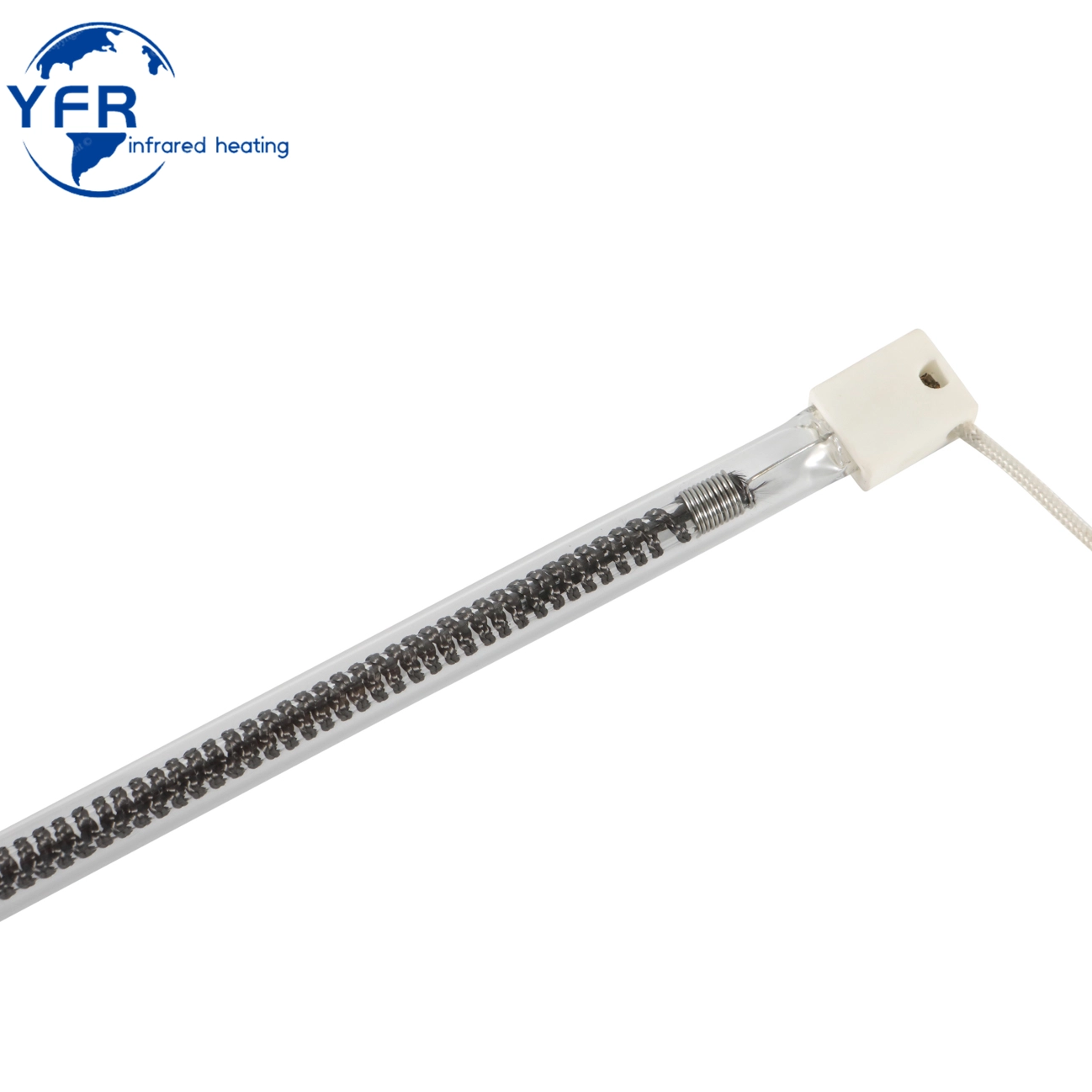

Carbon Fiber Infrared Heating Lamp
Carbon Infrared heaters can be manufactured as effective heating elements even a complete Infrared system. We have all the accessories to ensure the heating system works smoothly.
The carbon infrared heater has a heating length starting from 50mm to 3000mm and is suitable for a separate heating process. These new emitters are particularly suitable for curing small parts, drying painting paint, plastics welding, or for The areas where local heating is required. According to the customer's requirement, we can customize the carbon infrared heater as a twin tube or single tube with a gold reflective coating.
The carbon infrared heater can be used Horizontally and vertically, with an Energy-saving heating process and Fast response time. wavelength: 2-9.5 um,
Why carbon medium-wave infrared heating is so efficient
It is known that the wavelength of infrared emission has a significant influence on drying. Water evaporates particularly quickly when irradiated with carbon infrared emitters. The reason for this is that, in contrast to the very short-wave near-infrared emission, the medium-wave emission is very well absorbed by the water and then converted directly into heat.
Technical data
| Carbon infrared twin tube heater | Carbon infrared single tube heater | |
Power | 60W/cm | 30 W/cm |
Max. heated length | 3000mm | 2000 mm |
Diameter | 11*23mm/15*33mm | 10 mm - 20 mm |
| Filament temperature | 1200℃ | 1200°C |
Wavelength | 2-9.5µm | 2-9.5 µm |
| Max power density | 110 kW/m² | 85 kW/m² |
| Response time | 30 s | 30 s |
Advantages
1.Directional heating radiation.
2.fast response 30-60 seconds reach full power .
3.Good quality quartz tube with superior thermal stability.
4.excellent heating efficiency.
5.ceramic end cap.
Why Choose Us

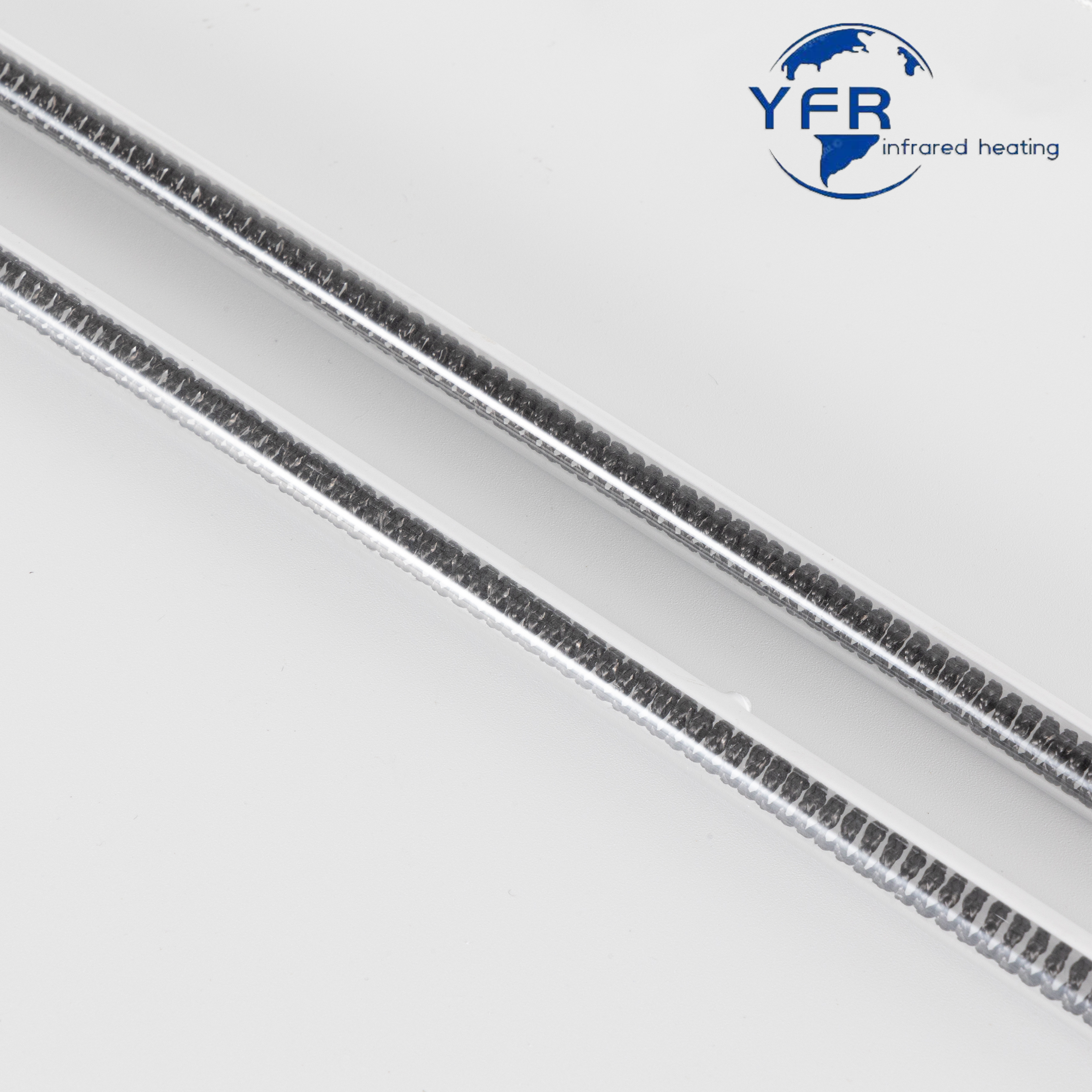

Huai'an Yinfrared’s carbon infrared emitter uses a unique heating filament design that can supply excellent heating efficiency and faster response time. The new twin-tube carbon infrared emitter can supply excellent mechanical stability and better density of radiation.
We are a manufacturer of Quartz IR emitters and infrared heating systems. With 13 years of experience in this industry, we have always maintained a conscientious, professional, flexible, on-time delivery, and responsive after-sales service attitude.
If you have customized needs, please feel free to contact us.

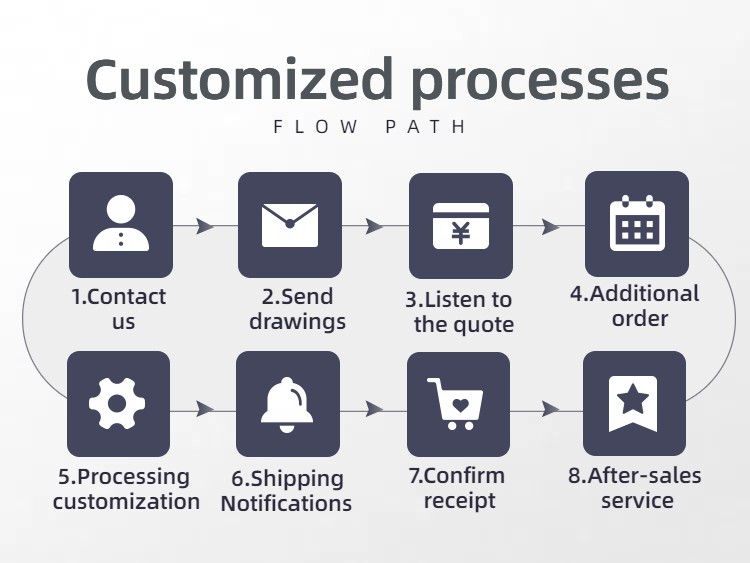

How to customize
Frequently asked questions
1.Are you a factory or trading company?
Yinfrared is a factory,we are professional manufacturer of infrared heater.You are warmily welcome to our factory, we will be happy to show you our production, quality control, warehouse,etc.
2.Can I have samples?Is it free?
Yes, we are happy to offer samples for you to check and test. Depending on sample quantity and product model, we will confirm with you whether it is a free sample or not.
3.Is there any warranty?
This is a serious supplier with good material and strick quality checking.lfthere is any problem with lamps or broken during shipping.We willremedy immediately or redo for free!
4.Can you do the design for us?
We can provide you with the design. We have a professional team with richexperience, you only need to tell us your ideas, the specific quantity.spen, voltage and other data of the infrared tube you need, we can produce the products you need.
If you have any other questions, please feel free to contact us.
