YFR2000CIR
Yinfrared

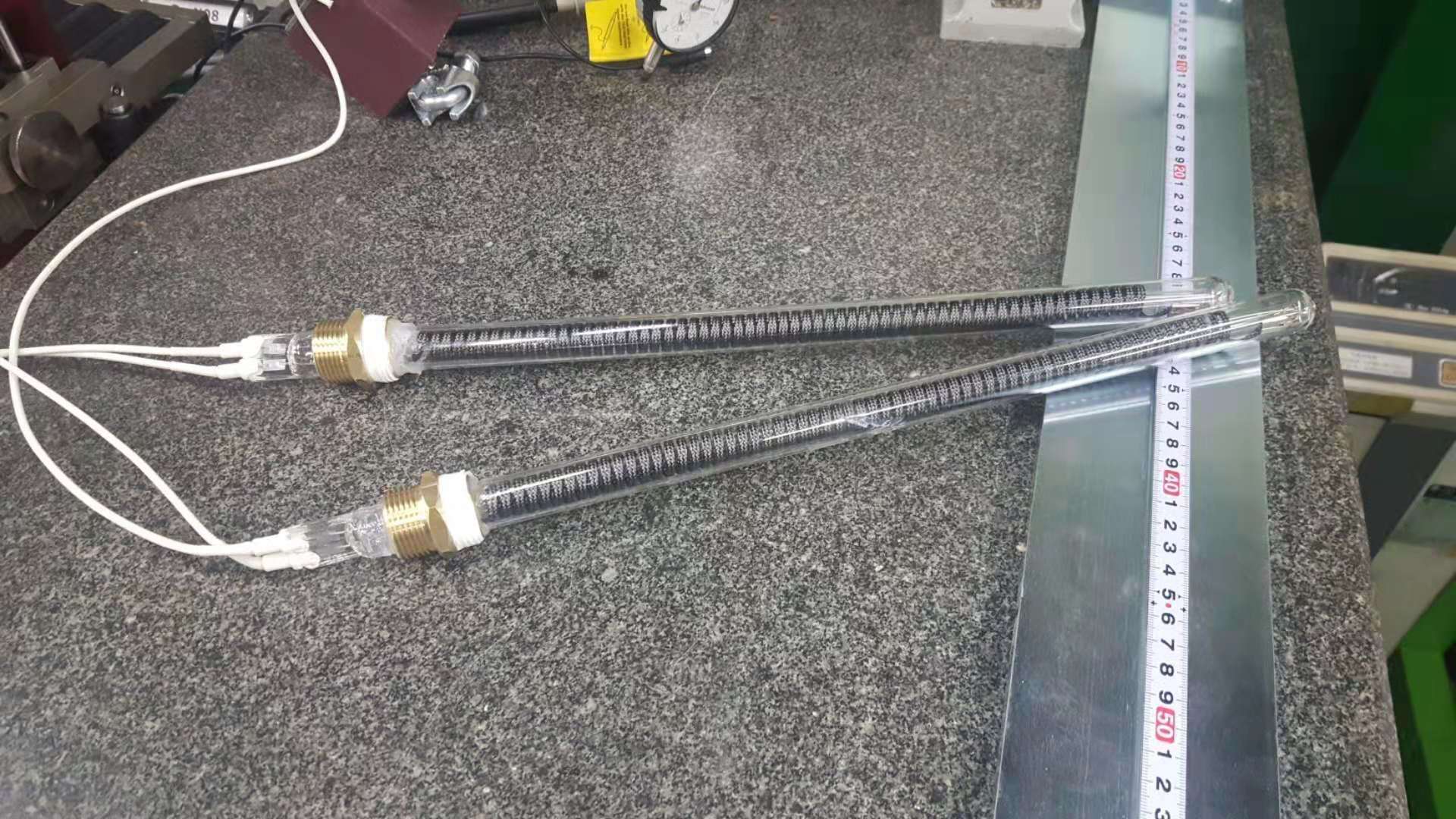

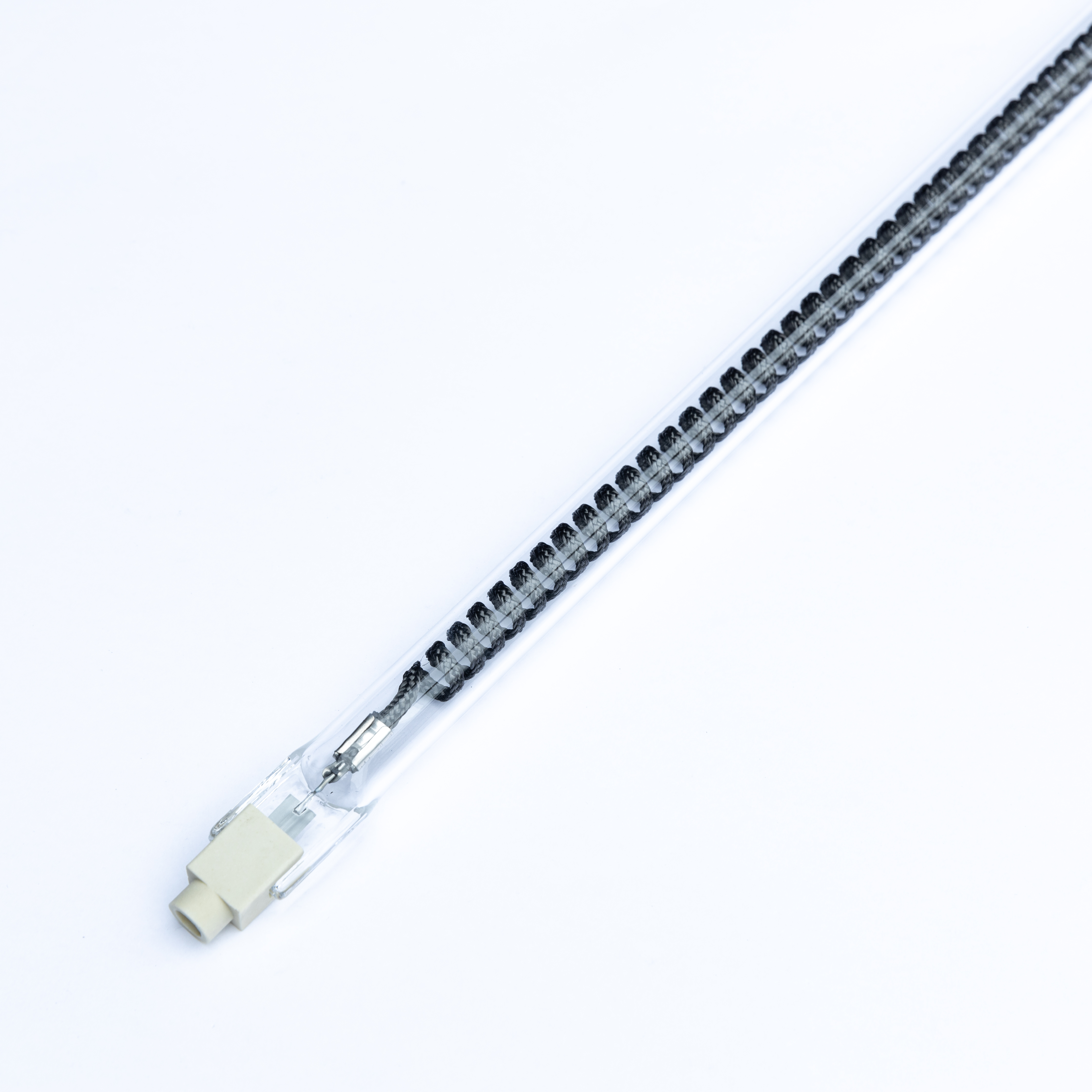

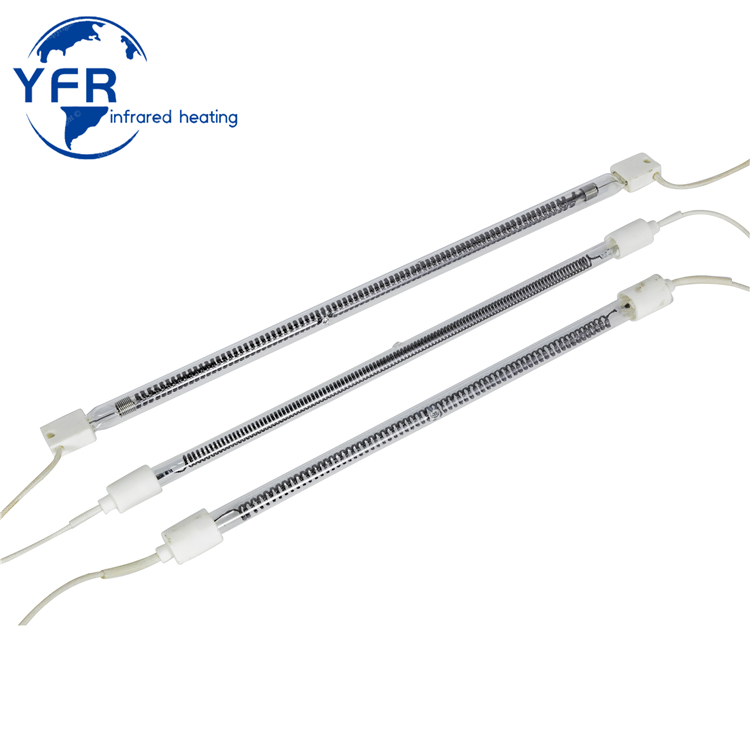

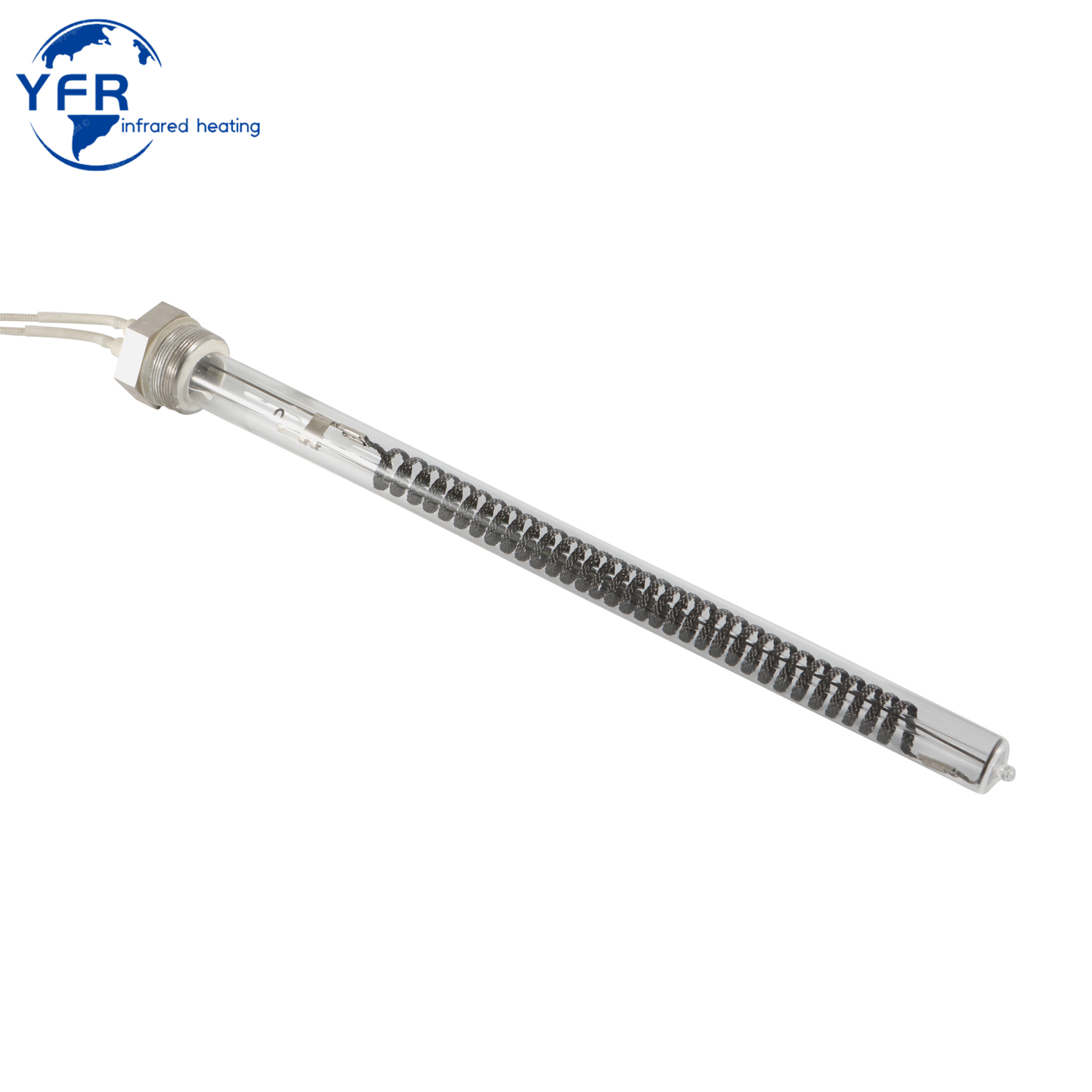

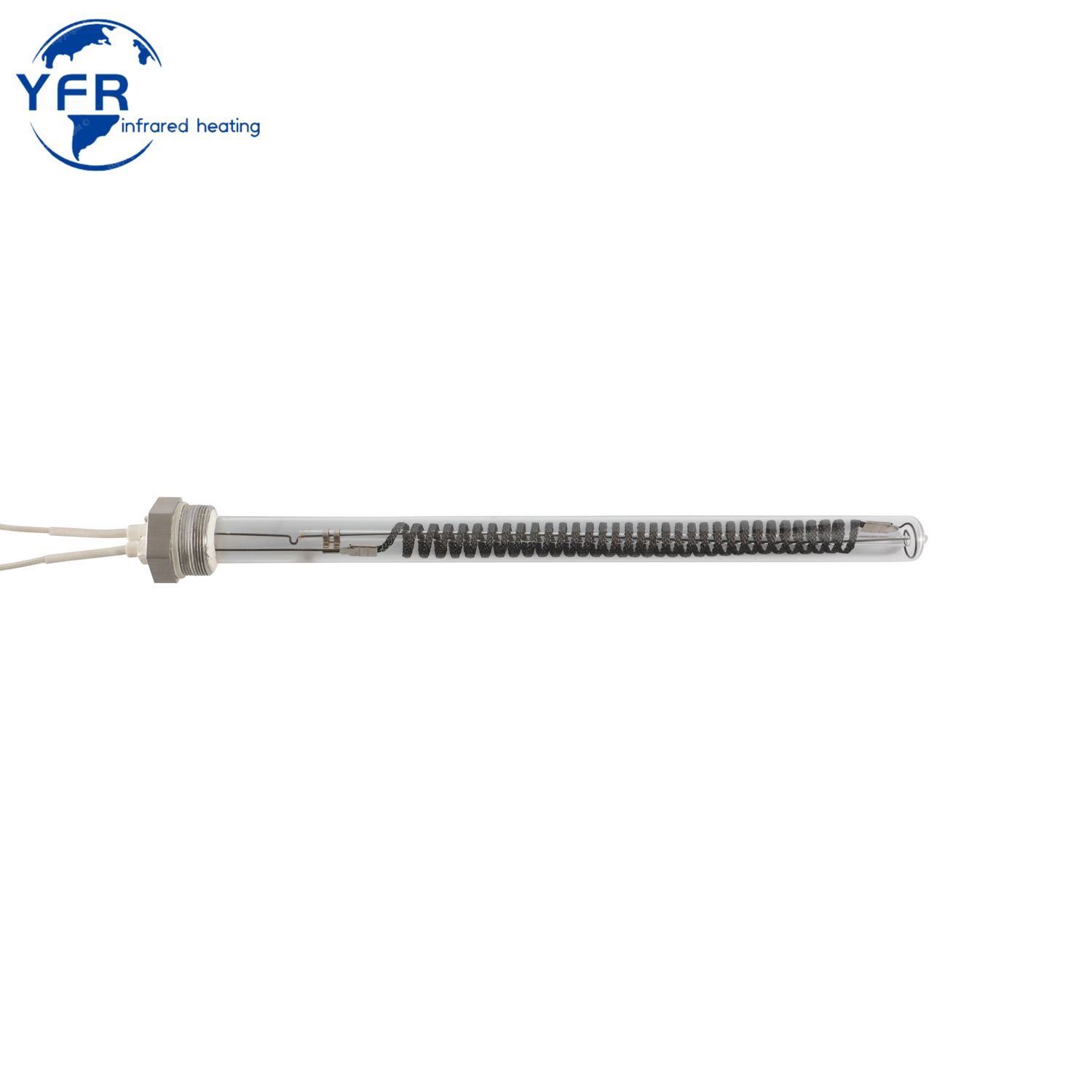

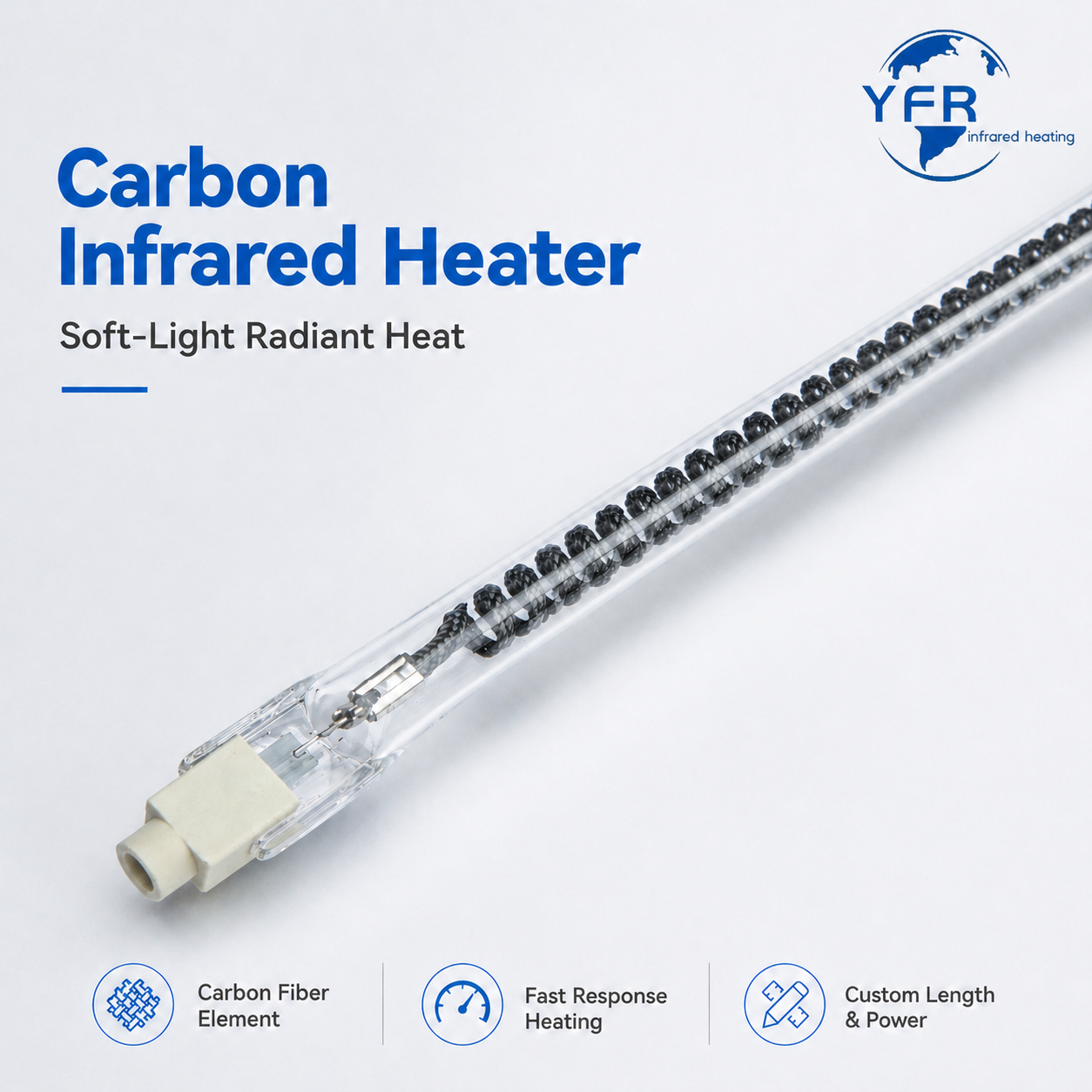

YFR carbon infrared heaters use a carbon-based heating element inside a quartz envelope to provide controllable radiant heat for industrial drying, warming and curing processes. Carbon emitters are often selected when the material responds well to a medium-wave-oriented output and when lower visible brightness is preferred compared with a bright short-wave halogen lamp.
The final lamp is customized to the machine. Voltage, power, total length, heated length, tube diameter, reflector, ceramic ends, cables and connectors must be confirmed for each new or replacement project.
Non-contact heating that transfers energy directly to the workpiece.
Lower visible glare than many short-wave halogen configurations.
Rapid controllability for production lines and zoned heating systems.
Clear or reflector-coated options for surrounding or directional radiation.
Custom lengths and terminations for OEM equipment and replacements.
Emitter performance depends on the material, wavelength, working distance, airflow, line speed and control method. A carbon lamp is not automatically more efficient than every alternative; selection should be based on the actual process.
| Item | Information to confirm | Why it matters |
|---|---|---|
| Process | Material, coating or moisture content and target result | Guides emitter and wavelength selection. |
| Production | Line speed, exposure time and heated width | Influences power and lamp spacing. |
| Electrical | Voltage, power and control method | Matches the machine supply and controller. |
| Dimensions | Total length, heated length and tube diameter | Confirms fit and heating coverage. |

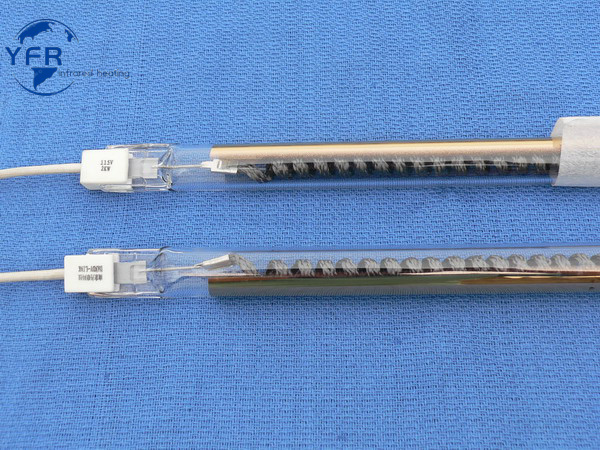

| Reflector | Clear, gold or white ceramic coating and heating direction | Controls where the radiation is directed. |
| Termination | Ceramic ends, clips, cables and connectors | Matches the mounting and wiring arrangement. |

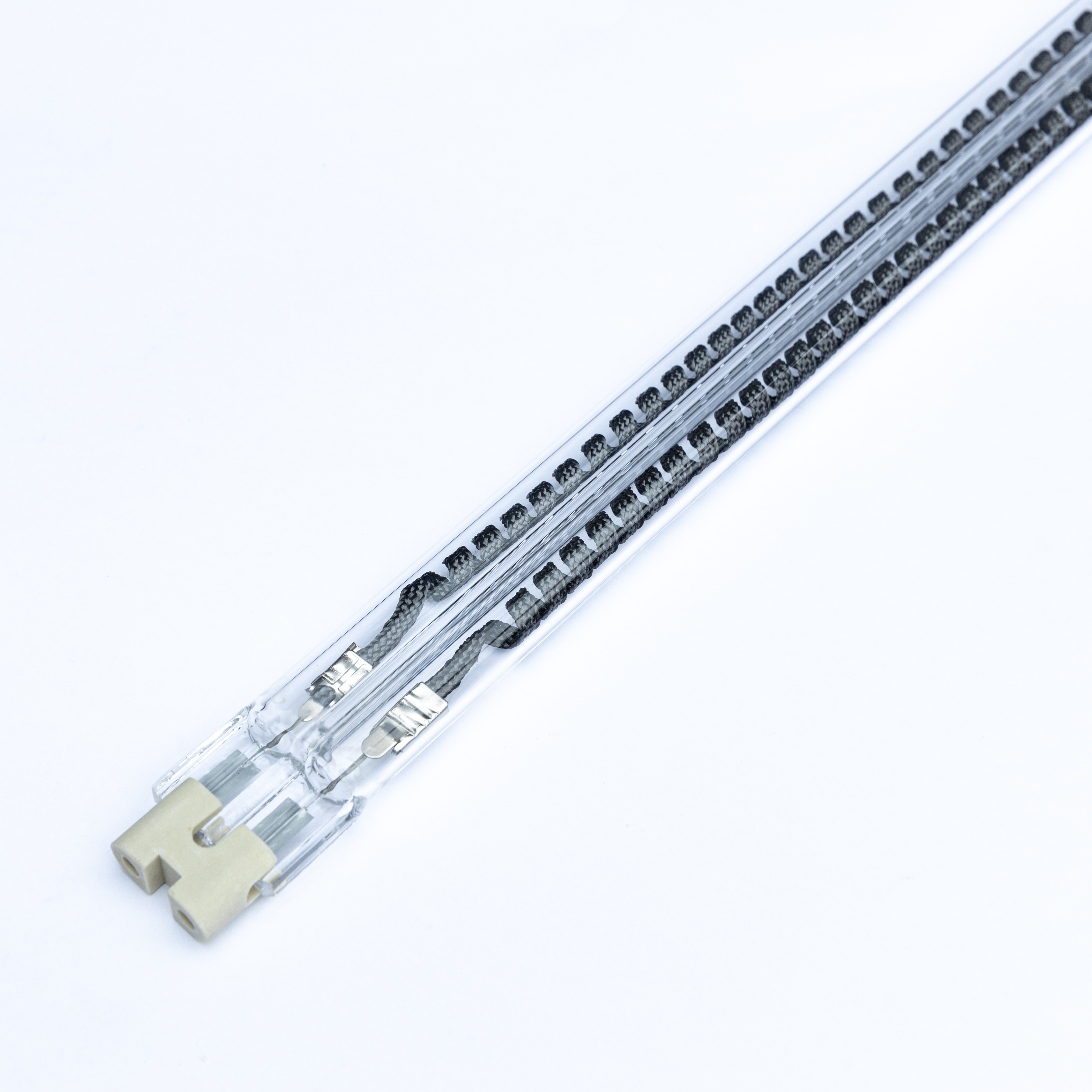

Carbon emitters can be evaluated for water-based ink and coating drying, paper and textile processing, adhesive activation, plastics heating, composite preheating and custom industrial ovens. The material should be tested when changing from a different emitter type because wavelength and response can alter the temperature profile.
For replacements, send the original lamp code, voltage, power, total length, heated length, tube diameter, photos of both ends and connector details. Mark the reflector orientation where applicable.
Allow the lamp to cool and disconnect power before inspection or cleaning. Use a clean, soft, lint-free cloth; avoid abrasive cleaners and avoid touching the quartz with bare hands. Mounting clips must allow for thermal expansion and should not place excessive stress on the tube.
Explore YFR infrared heating lamps and infrared heater modules.
Contact YFR for a carbon infrared heater evaluation. Final lamp and system details will be confirmed against the process.
