YFR
YFR supplies compatible replacement infrared lamps for Fostoria-style infrared heaters and comfort heating equipment. The range includes short wave quartz infrared lamps, medium wave infrared lamps, and ruby glare reduction sleeves for selected lamp sizes.
These replacement lamps are designed to help customers match damaged, aging, discontinued, or hard-to-source infrared heater bulbs by original part number, catalog number, voltage, wattage, overall length, heating length, and end configuration.
YFR is not affiliated with Fostoria. Product names and part numbers are used only to help customers identify compatible replacement lamps.
| Lamp Type | Description |
|---|---|

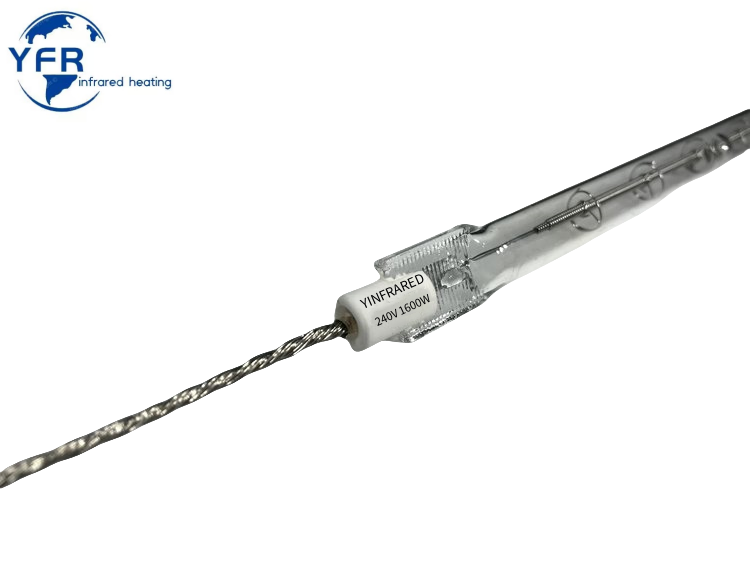

| Short Wave Replacement Lamps | Quartz infrared lamps for Fostoria-style short wave heater models |

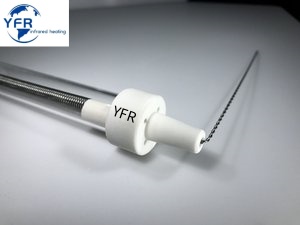

| Medium Wave Replacement Lamps | Medium wave infrared replacement lamps for compatible heater models |

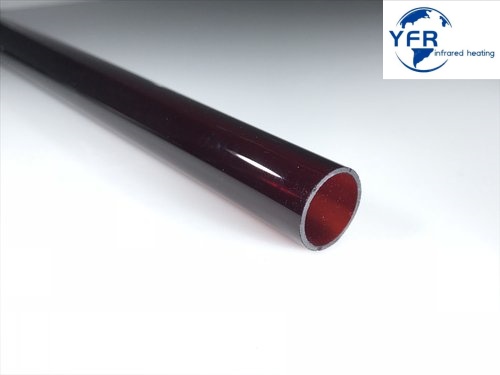

| Ruby Glare Reduction Sleeves | Ruby sleeves used to reduce visible glare on selected quartz lamps |
| Custom Replacement Lamps | Replacement lamps matched by sample, photo, drawing, or technical parameters |
Short-wave: MM-18A, MM-24A, 222/223 Series, MM-33A, 342/343 Series, MM-46A, 462/463 Series
Medium-wave: FFH-912B, FFH-512A, CH-2212-1C, CH-6424-1C, Trimline, OCH-46, OCH-46SS, CH-46, OCH-57, OCH-57SS, CH-57
| YINFRARED# | FOSTORIA # | CAT. # | WATTS | VOLTS | OAL | HL |
| YF-10218 | FOST444118 | 630-10249 | 1000 | 240 | 13.68" | 10.0" |
| YF-10177 | FOST440165 | 630-16209 | 1600 | 208 | 19.68" | 16.0" |
| YF-10052-V | FOST440998 | 631-16249 | 1600 | 240 | 19.68" | 16.0" |
| YF-10052-H | FOST440172 | 630-16249 | 1600 | 240 | 19.68" | 16.0" |
| YF-10294 | FOST440189 | 630-16279 | 1600 | 277 | 19.68" | 16.0" |
| YF-10230 | FOST481731 | 630-16489 | 1600 | 480 | 19.68" | 16.0" |
| YF-10189 | FOST481748 | 630-25209 | 2500 | 208 | 28.68" | 25.0" |
| YF-10190 | FOST481755 | 630-25249 | 2500 | 240 | 28.68" | 25.0" |
| YF-10329 | FOST481762 | 630-25279 | 2500 | 277 | 28.68" | 25.0" |
| YF-10228-H | FOST481762 | 630-25489 | 2500 | 480 | 28.68" | 25.0" |
| YF-10228-V | FOST440363 | 631-25489 | 2500 | 480 | 28.68" | 25.0" |
| YF-10274 | FOST440684 | 630-25609 | 2500 | 600 | 28.68" | 25.0" |
| YF-10135 | FOST440677 | 630-36489 | 3650 | 480 | 41.68" | 38.0" |
| YF-10188-H | FOST446235 | 630-38579 | 3000 | 480 | 41.68" | 38.0" |
| YF-10188-HH | FOST446235 | 630-38579 | 3800 | 600 | 41.68" | 38.0" |
| YF-10188-V | FOST444132 | 631-38579 | 3000 | 480 | 41.68" | 38.0" |
| YF-10188-VV | FOST444132 | 631-38579 | 3800 | 600 | 41.68" | 38.0" |
| YF-10051-V | F-4948V | N/A | 4900 | 480 | 52.80" | 49.0" |
| YF-85022 | N/A | N/A | 5000 | 480 | 61.37" | 58.9" |
| YF-10328 | N/A | N/A | 5800 | 480 | 63.26" | 61.7" |
| YF-10300 | N/A | N/A | 6000 | 480 | 64.0" | 60.0" |
| YINFRARED# | FOSTORIA # | CAT. # | WATTS | VOLTS | OAL | HL |
| YPM-120-450 | FOST440356 | FOST441957 | 450 | 120 | 12.9" | 8.4" |
| YPM-120-550 | FOST440080 | 671-3492 | 550 | 120 | 19.5" | 16.0" |
| YPM-120-1000 | FOST446242 | 671-5056 | 1000 | 120 | 18.3" | 14.4" |
| YPM-240- | FOST446259 | 671-5057 | 1425 | 240 | 27.3" | 23.4" |
| YPM-120- | FOST443234 | 671-3784 | 1500 | 120 | 39.6" | 34.1" |
| YPM-208- | FOST441810 | 671-3784 | 2000 | 208 | 39.6" | 34.1" |
| YPM-240- | FOST441803 | 671-3785 | 2000 | 240 | 39.6" | 34.1" |
| YPM-277- | FOST441933 | 671-3784 | 2000 | 277 | 39.6" | 34.1" |
| YPM-208- | FOST441667 | 671-5060 | 3000 | 208 | 50.6" | 45.1" |
| YPM-240- | FOST441476 | 671-3786 | 3000 | 240 | 50.6" | 45.1" |
| YPM-277- | FOST441940 | 671-5059 | 3000 | 277 | 50.6" | 45.1" |
| YPM-480- | FOST441957 | 671-5058 | 2250 | 480 | 50.6" | 45.1" |
| YINFRARED# | FOSTORIA # | CAT. # | DESCRIPTION |
| YPVS-16.25 | FOST440783 | 31939009 | Fits All 1600 Watt Quartz Lamps |
| YPVS-25.25 | FOST440738 | 31940009 | Fits All 2500 Watt Quartz Lamps |
| YPVS-38.25 | FOST440745 | 31941009 | Fits All 3650/3800 Watt Quartz Lamps |
No. YFR supplies compatible replacement infrared lamps. Fostoria product names and numbers are used only for identification and cross-reference.
Please compare the original part number, catalog number, wattage, voltage, overall length, heating length, and end type. If you are not sure, send photos of the original lamp and both ends.
Yes. YFR supplies compatible short wave and medium wave replacement infrared lamps for selected Fostoria-style heater models.
Yes. YFR can evaluate custom replacement lamps based on photos, drawings, samples, or technical parameters.
Please provide the original lamp number, catalog number if available, voltage, wattage, overall length, heating length, end type, quantity, and application.
