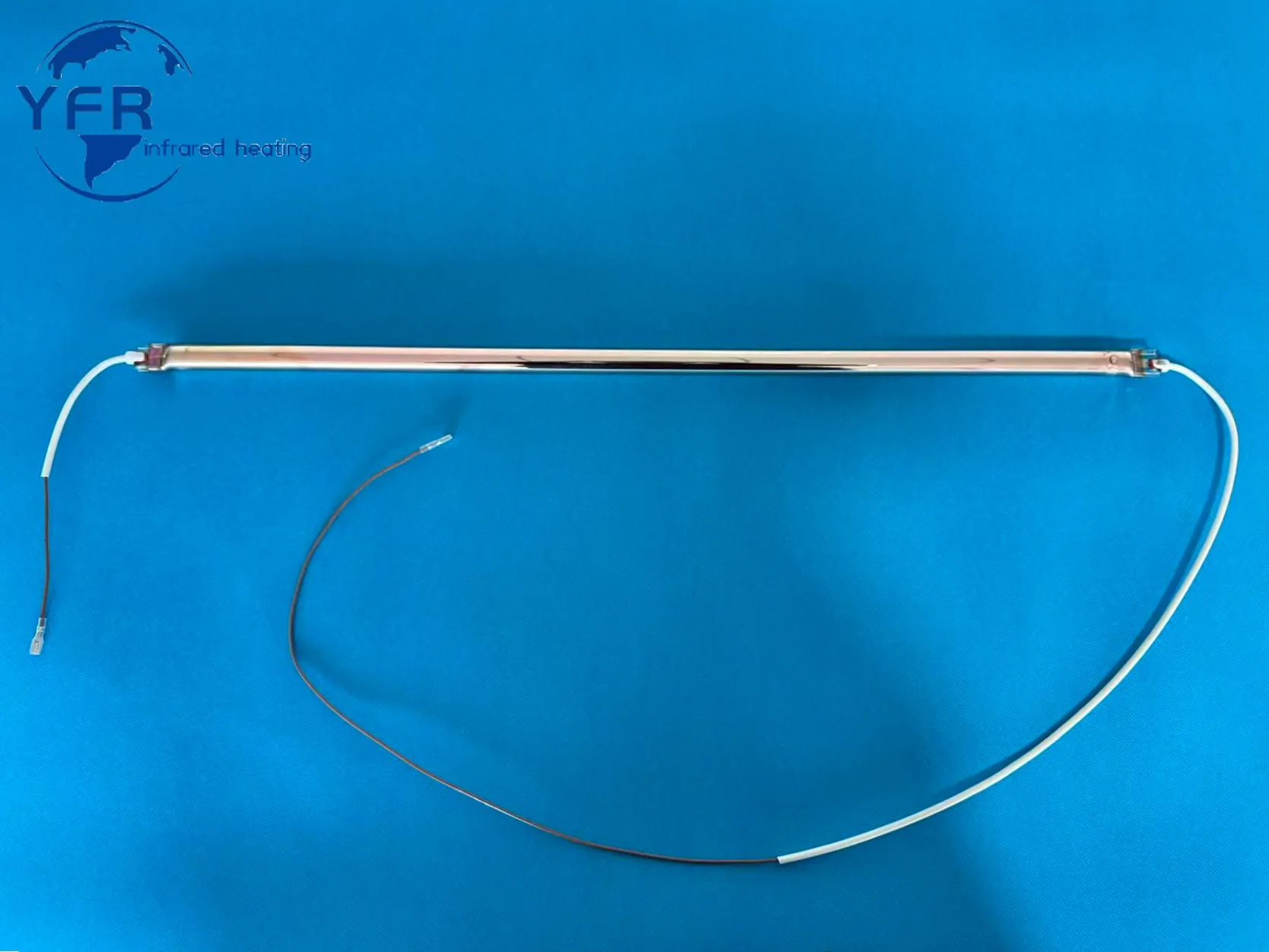

Gold and rose gold infrared tubes are usually selected for outdoor heaters where appearance, controlled visible glow, product positioning, and customized tube dimensions are important. Standard quartz infrared tubes are commonly used when the priority is straightforward radiant heating, standard construction, and cost-controlled heater production.
Neither option is universally better.
A gold or rose gold tube may be more suitable for a premium restaurant terrace heater, hotel patio heater, decorative wall-mounted heater, or branded OEM product. A standard quartz tube may be more suitable for general-purpose electric heaters where decorative light appearance is less important.
The final performance still depends on the complete heater design, especially the reflector, housing, electrical supply, installation distance, control method, and environmental protection.

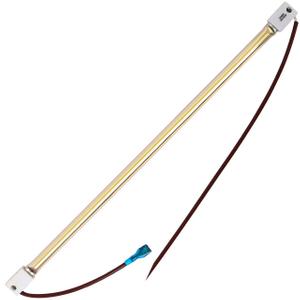

A gold tube infrared heating element is a quartz infrared lamp designed with a gold-colored or gold-based surface treatment, coating, or appearance according to the required product structure.
It is usually installed inside an electric infrared heater and works together with a reflector and housing. Depending on the design, the tube may provide a distinctive gold or warm visible appearance that supports premium outdoor-heater styling.

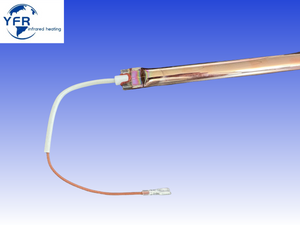

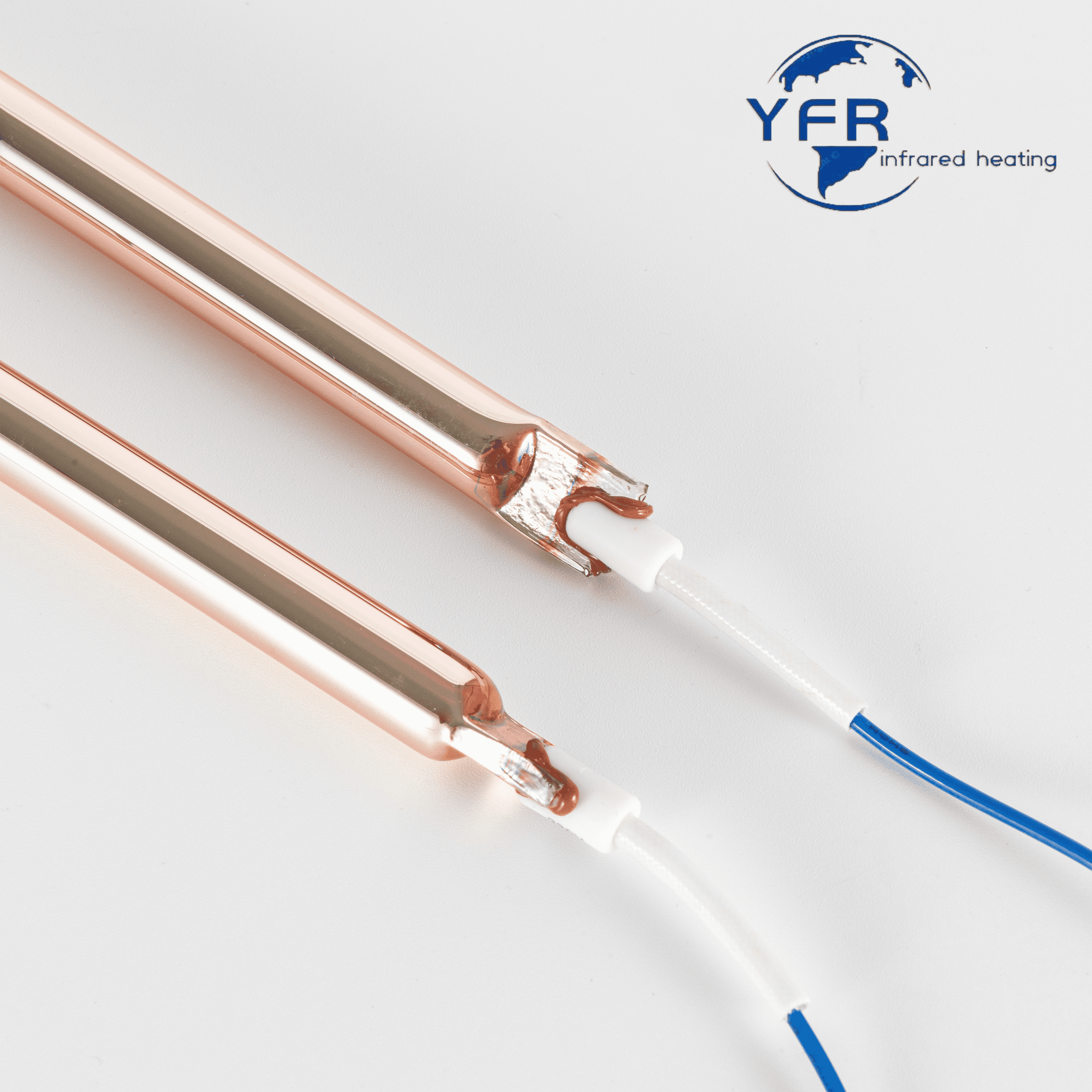

A rose gold tube follows a similar concept but provides a different visual tone. The final appearance depends on the tube structure, coating process, operating temperature, filament design, and heater housing.
Gold and rose gold tubes can be customized by:
Voltage and wattage
Total length
Heated length
Tube diameter
Filament arrangement
End-cap structure
Lead-wire length
Visible glow appearance
Coating or surface finish
Installation orientation
These parameters should be confirmed according to the complete heater design rather than selected independently.

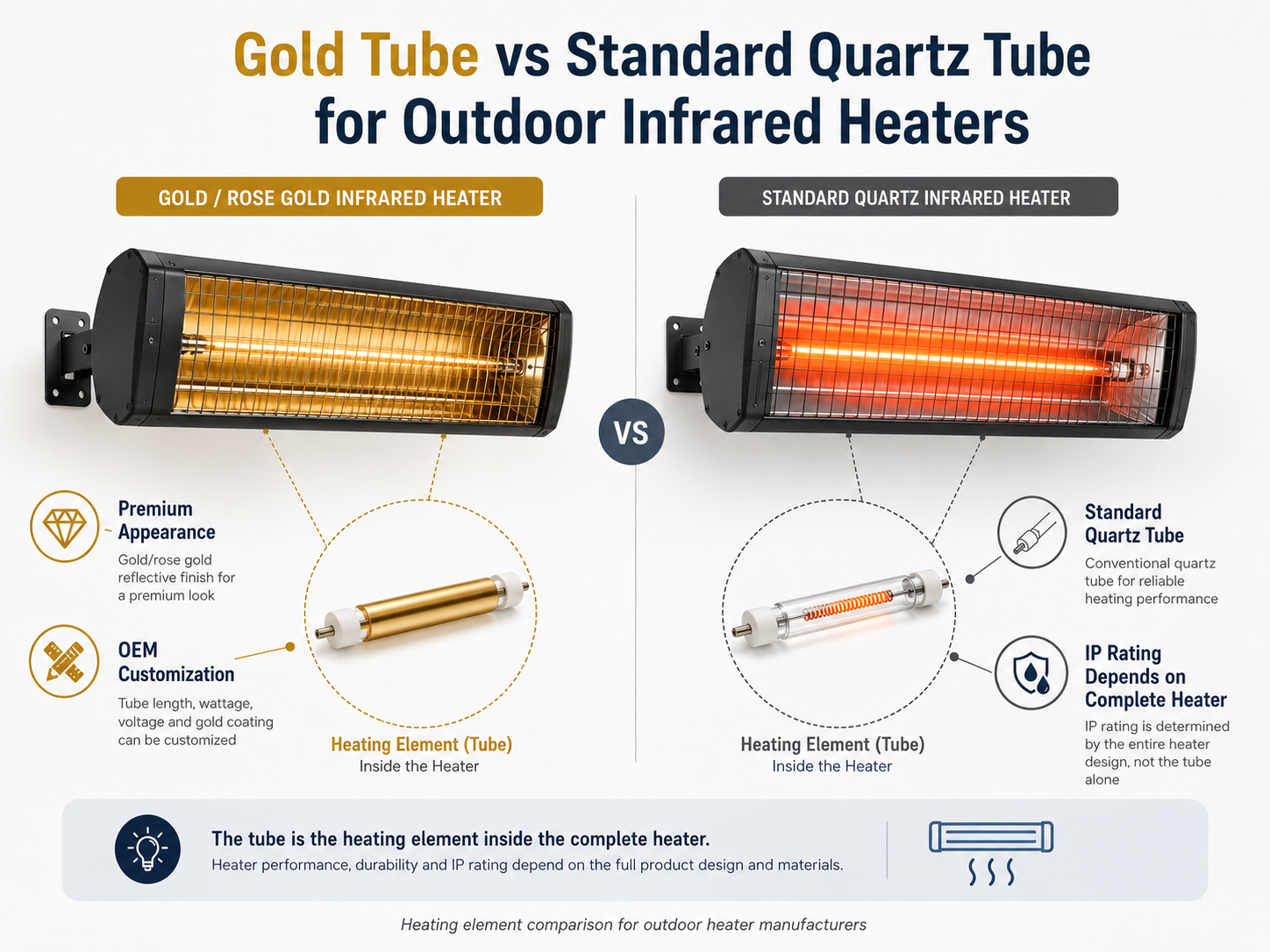

Gold, rose gold, and standard quartz tubes can all be used as electric infrared heating elements. Their differences are mainly related to appearance, product positioning, customization, and heater integration.
| Factor | Gold or Rose Gold Tube | Standard Quartz Tube |
|---|---|---|
| Main role | Premium infrared heating element for branded or decorative heater designs | General infrared heating element |
| Visible appearance | Gold, rose gold, or warm decorative glow depending on design | Usually brighter orange or red appearance |
| Typical application | Premium patio, hotel, restaurant, terrace, and OEM heaters | General patio, workshop, local, and electric infrared heaters |
| Customization | Length, power, end structure, appearance, and filament can be customized | Standard and custom specifications are available |
| Heat direction | Determined by tube design, reflector, and heater housing | Determined by tube design, reflector, and heater housing |
| Weather protection | Determined by the complete heater enclosure | Determined by the complete heater enclosure |
| Final safety rating | Determined by complete appliance design and testing | Determined by complete appliance design and testing |
The tube itself does not determine the complete performance of the outdoor heater. Two heaters using similar tubes may behave differently if their reflectors, housings, controls, and installation conditions are different.
Gold and rose gold infrared tubes are commonly considered for outdoor heaters where both radiant heating and product appearance matter.
Typical applications include:
Restaurant terraces
Hotel outdoor dining areas
Commercial patios
Café seating areas
Villa gardens
Balconies
Premium wall-mounted heaters
Freestanding outdoor heaters
Branded OEM heater products
Low-glare or decorative heater designs
For complete products, buyers can also review the 1500W–3000W outdoor infrared heater to understand how the heating tube, reflector, housing, mounting structure, and controller work together in a finished appliance.
Gold and rose gold tubes are especially relevant when the heater manufacturer wants a differentiated product appearance rather than a basic exposed bright tube.
A gold tube electric heater and a gas patio heater are complete systems that use different energy sources and heating structures.
An electric infrared heater converts electrical energy into radiant heat through an infrared tube. A gas or propane heater uses fuel combustion and normally requires a burner, fuel supply, ventilation, and combustion-safety considerations.
| Consideration | Electric Gold-Tube Heater | Gas or Propane Patio Heater |
| Energy source | Electricity | Gas or propane |
| Start-up | Usually rapid electrical switching | Requires ignition and fuel supply |
| Local emissions | No combustion at the heater | Produces combustion gases |
| Installation | Requires suitable electrical supply | Requires fuel connection or cylinder management |
| Control | Can use switches, remote control, dimming, or power stages | Depends on burner and valve system |
| Wind sensitivity | Depends on housing and installation | Flame and heated air can be affected by wind |
| Maintenance | Tube, reflector, wiring, and housing inspection | Burner, gas line, ignition, and fuel system inspection |
It is not accurate to say that one system is always more efficient or economical. The result depends on electricity prices, fuel prices, climate, usage time, installation conditions, heater placement, maintenance, and local regulations.
For indoor-adjacent terraces or partially enclosed spaces, the applicable ventilation and safety requirements should always be checked.
Visible glow is an important design consideration for outdoor heaters, but visible light alone does not determine heating performance.
A gold or rose gold tube may produce a warmer or more decorative appearance than a standard bright quartz tube. This can improve the visual experience in restaurants, hotels, patios, and other premium environments.
However, heater performance must still be evaluated through:
Radiant output
Tube power
Reflector design
Heater mounting height
Target distance
Heating coverage
Wind exposure
Control setting
Operating environment
The best tube is the one that gives the required balance between radiant heat, visible appearance, heater size, electrical load, and customer expectations.
The reflector behind the tube affects how infrared energy is directed toward the target area.
A well-designed reflector can help reduce radiation toward the rear of the heater and direct more energy toward people, furniture, work areas, or outdoor seating zones.
YFR also supplies gold reflector IR lamps for applications where radiant direction is integrated into the lamp structure.
However, a gold tube and a gold reflector lamp are not necessarily the same product.
A gold-colored heating tube may be selected primarily for appearance and heater integration. A gold reflector lamp is designed to direct infrared energy toward a specific side. Buyers should confirm whether they need:
A decorative gold or rose gold tube
A half-coated reflector lamp
An external polished reflector
A complete lamp-and-reflector module
The heater structure should determine the correct option.
A common mistake is to assume that an infrared tube automatically gives the complete heater an IP65 or IP66 rating.
This is not correct.
The final IP rating depends on the complete heater, including:
Housing design
Sealing structure
Electrical terminals
Cable entry
Junction box
Control components
Front grille
Mounting method
Drainage design
Complete-appliance testing
The heating tube is only one component.
A tube may be suitable for use inside an outdoor heater, but the complete heater manufacturer remains responsible for verifying water protection, dust protection, electrical safety, temperature limits, clearances, and applicable certification requirements.
OEM buyers should therefore provide the complete heater design or installation conditions when requesting a customized tube.
Power control affects comfort, energy use, visible glow, and tube operating conditions.
An outdoor heater may use:
Simple on/off control
Multiple power stages
Remote control
Timer control
Temperature control
Motion or occupancy sensors
Dimming or electronic power adjustment
An IR lamp power controller can help regulate output in suitable infrared heating systems. The controller must be matched to the lamp voltage, wattage, switching method, electrical load, and complete heater design.
Rapid or unsuitable switching can affect lamp life. Power regulation should therefore be designed together with the heating tube rather than added without checking compatibility.
For OEM or replacement projects, the buyer should provide complete technical information.
| Required Information | Why It Matters |
| Voltage | Must match the electrical system |
| Wattage | Determines electrical load and heating output |
| Total length | Determines whether the tube fits the housing |
| Heated length | Affects radiant coverage |
| Tube diameter | Affects holders and installation space |
| Gold or rose gold appearance | Determines visual product design |
| Filament structure | Affects heating behavior and lamp construction |
| End-cap type | Must match the heater holder |
| Lead-wire direction | Must match the wiring layout |
| Reflector requirement | Determines heat direction |
| Heater housing dimensions | Confirms installation compatibility |
| Required quantity | Affects production and customization planning |
For accurate evaluation, buyers should send a drawing, existing lamp sample, detailed photos, or the complete heater structure.
YFR can also provide custom replacement IR tubes when standard dimensions do not match the original heater.
When replacing an existing patio-heater tube, matching only the total length is not enough.
The replacement should also match:
Voltage
Wattage
Heated length
Tube diameter
End structure
Holder position
Lead-wire orientation
Reflector direction
Installation angle
Controller compatibility
A lamp with the wrong heated length or electrical rating may physically fit but still produce poor heating coverage, excessive local temperature, electrical problems, or reduced service life.
Clear photos of the complete lamp and both ends are especially useful. The heater brand and model should also be provided when available.
Some OEM projects require more than a separate tube.
A complete infrared heating module can combine:
Infrared heating tube
Reflector
Metal housing
Lamp holders
Wiring
Mounting brackets
Protective grille
Control interface
A module may be more suitable for new heater development, custom commercial equipment, or applications where the manufacturer needs a tested heating section rather than an individual lamp.
The module design should still be integrated into the final appliance according to electrical, thermal, mechanical, and outdoor-protection requirements.
Choose a gold or rose gold tube when the heater needs a distinctive visual appearance, premium product positioning, customized dimensions, or a warmer decorative glow.
Choose a standard quartz tube when the heater design prioritizes straightforward radiant heating, common specifications, or cost-controlled production.
Choose a directional reflector lamp when the heater requires more controlled one-sided radiation.
The final decision should be based on the complete product design, not only on tube appearance.
For many outdoor-heater manufacturers, the correct development sequence is:
Define the target application and customer group.
Confirm the heater dimensions and mounting method.
Define voltage, wattage, and control method.
Choose the required visible-light appearance.
Design the reflector and housing.
Confirm outdoor protection and safety requirements.
Test the complete appliance under real operating conditions.
YFR supplies infrared components and heating solutions for outdoor-heater and industrial-heater manufacturers.
Relevant products include:
For OEM projects, send the required voltage, wattage, tube dimensions, visible appearance, heater drawing, reflector structure, controller type, and expected order quantity.
A gold tube infrared heater normally refers to an electric infrared heater that uses a gold-colored or gold-treated quartz infrared tube as its heating element. The tube is only one component of the complete heater.
Not automatically. Performance depends on tube design, power, reflector structure, housing, mounting distance, control method, and application. A gold tube may provide a preferred appearance or customized heater design, but complete-system testing is still required.
The main visible difference is the color and appearance of the operating tube. The exact radiant output and electrical performance depend on the tube construction, filament, coating, dimensions, and power rating.
Yes. Gold and rose gold tubes can be used as heating elements inside electric outdoor patio heaters. The complete heater must still provide appropriate sealing, wiring protection, housing design, clearances, and safety testing.
No. The IP rating applies to the complete heater assembly, not the tube alone. The housing, sealing, cable entry, controls, wiring, and complete-appliance test determine the final IP rating.
Provide voltage, wattage, total length, heated length, tube diameter, gold or rose gold appearance, filament structure, end-cap type, lead-wire direction, reflector requirement, heater drawing, and order quantity.
YFR supports customized infrared tubes according to the required length, power, tube diameter, end structure, visible appearance, and heater installation design. Feasibility must be confirmed using the complete technical specification.
Gold and rose gold infrared tubes are valuable options for premium electric outdoor heaters, restaurant terraces, hotels, commercial patios, and branded OEM products.
However, the tube should not be evaluated separately from the complete heater. Radiant performance, visible light, weather protection, electrical safety, service life, and control all depend on the final appliance design.
For heater manufacturers, the best approach is to match the infrared tube, reflector, housing, controls, and environmental protection to the target application.
YFR can support gold tube, rose gold tube, custom replacement tube, and infrared heating module projects based on the customer’s technical drawings and product requirements.
