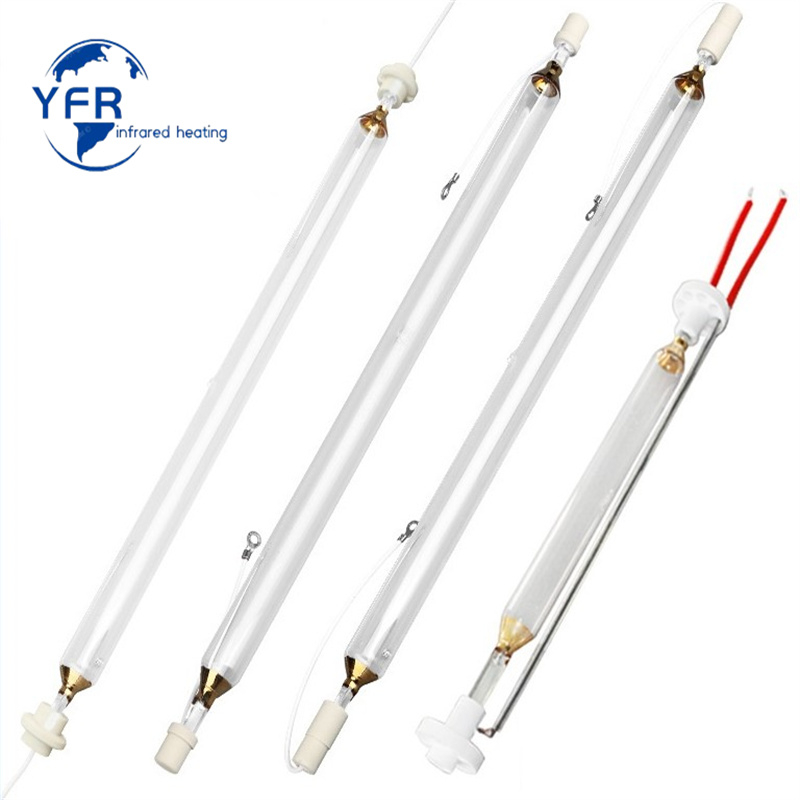

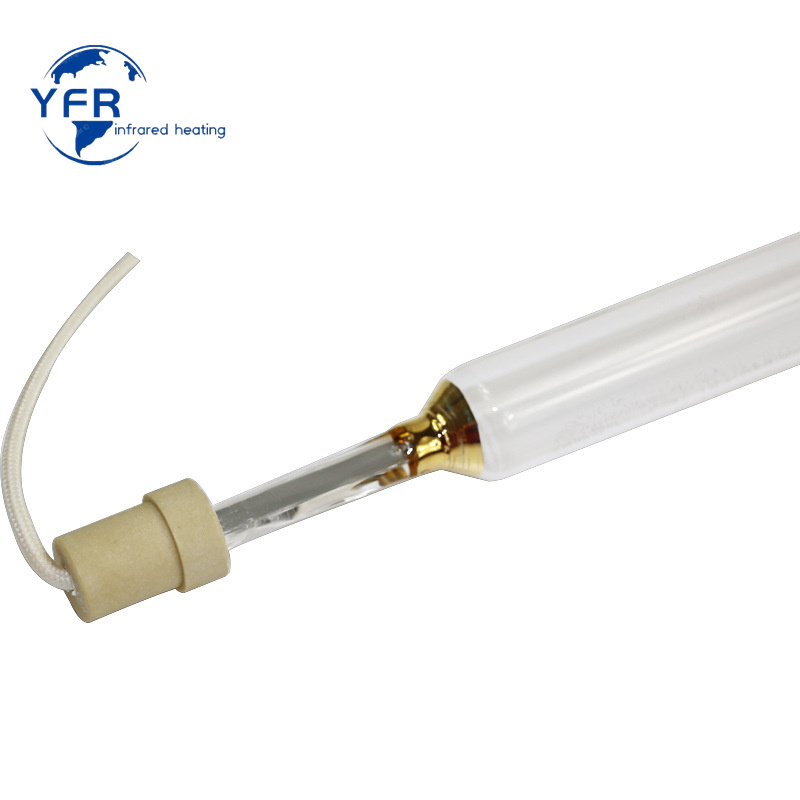

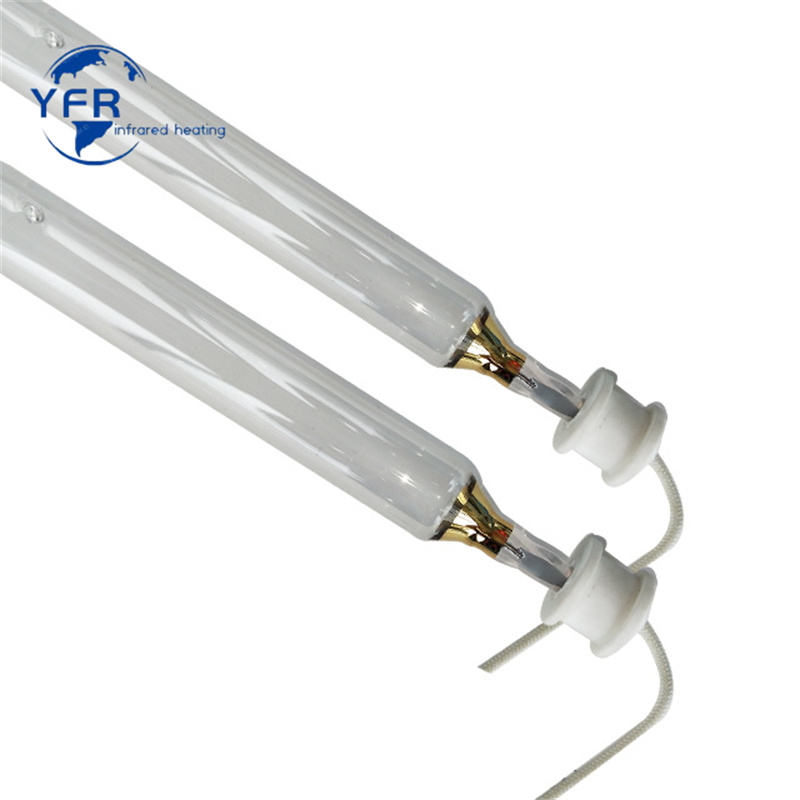

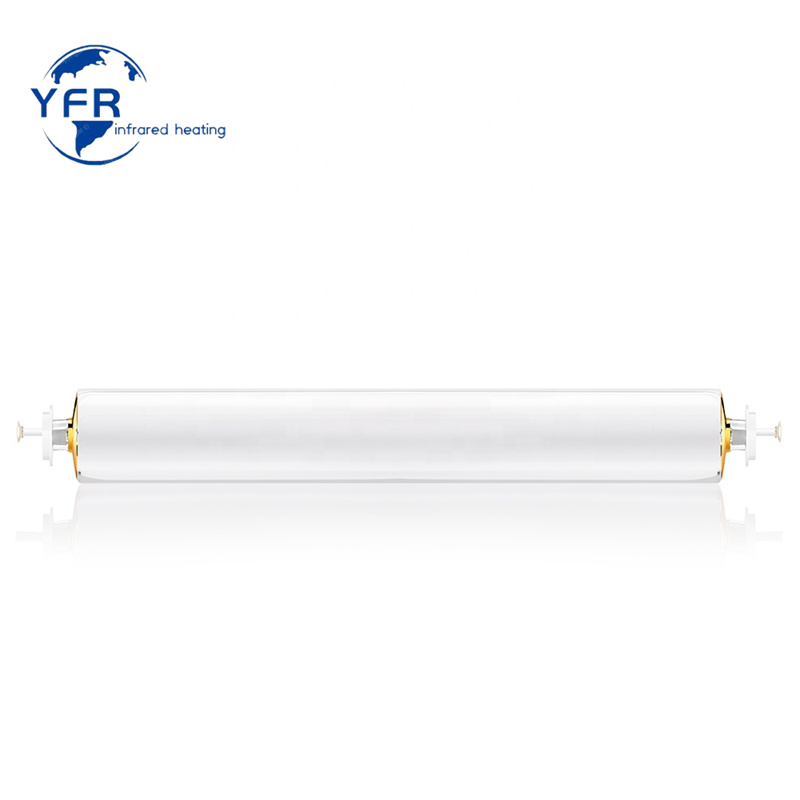

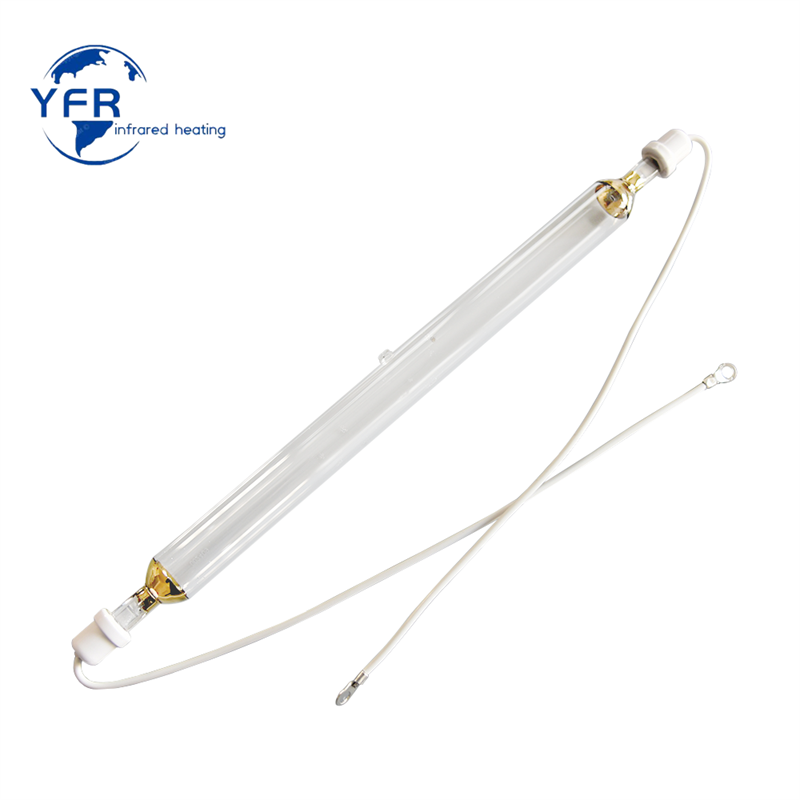

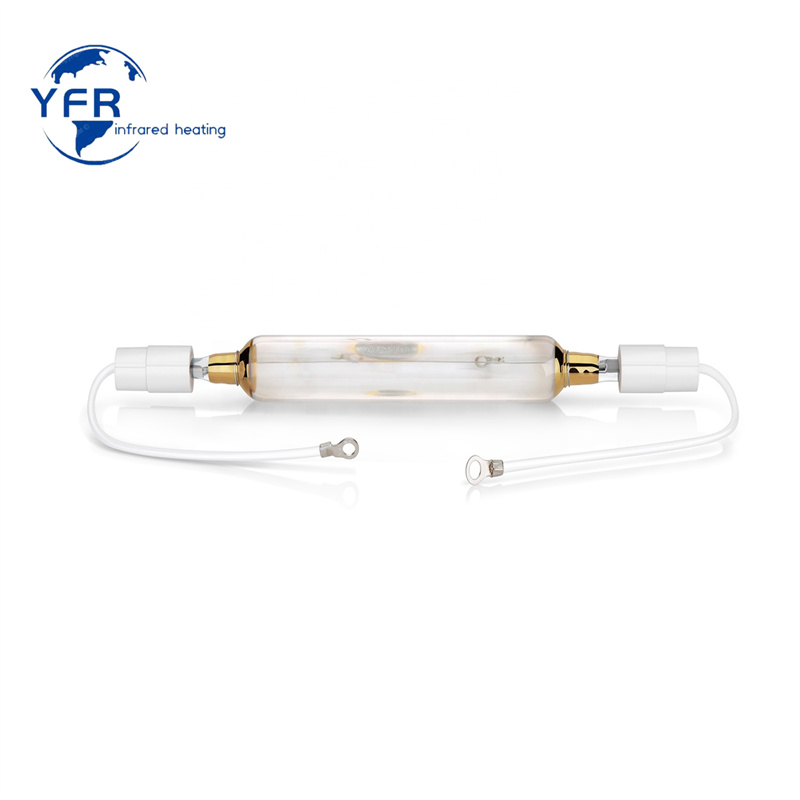

UV Lamps
What is the UV lamp:
UV lamp is the abbreviation of ultraviolet lamp. UV is the abbreviation of Ultra-Violet Ray. This kind of lamp mainly uses the characteristics of ultraviolet light to carry out photochemical reaction, product curing, sterilization and disinfection, medical inspection and so on. The spectral range of industrial UV light sources is 200nm-450nm, with main peaks at 365nm, 385nm, and 417nm. According to the different bands, they are UV-A, UV-B, UV-C, and each has different uses.
The UV lamps are gas discharge lamps. Gas discharge lamps are divided into arc discharge and glow discharge. The commonly used UV lamps in UV curing are arc discharge lamps.
Working principles:
A quantitative amount of high-purity mercury is added to a vacuum quartz tube, and an ion discharge is generated by providing a voltage difference (voltage drop) between the electrodes at both ends, thereby generating ultraviolet radiation.
The power of the UV lamp should meet the requirements (generally 80-120W/cm);
The maximum service life of the UV lamp cannot exceed 1200H, and it is generally recommended to be used for 1000H;
The UV lamp is replaced once every 500 hours, and the two UV lamps can be used alternately during maintenance for a period of time. One is used for 500 hours, and the other is used for lamps between 500 and 1000 hours;
Cleaning the lamp and turn it 1/4 turn counterclockwise before use.
Yinfrared UV lamp, spectral distribution: UVB/(UV+UVB)=3%~10%, Spectral lines are between 300-450nm. It can emit 3-5 times the ultraviolet light of sunlight, and the irradiation uniformity is better than ±15% (about ±9%), which is stronger than conventional fluorescent tubes.
Advantages:
1.Can shorten working time
2.Low cost of use
3.The light decay of the lamp is slow and the service life is long, generally more than 800-1000 hours
4.Mercury lamps and metal halide lamps can be customized on demands
5.Low cost of maintenance, which is the best choice for large-area light simulation equipment
Technical data:
Power output | 500w to 40kw | ||||||||
Wavelength | 320nm to 410nm | ||||||||
Arc length | 50mm to 3000mm | ||||||||
Spectrum | UVA / UVB / UVC / UVV | ||||||||
Fill | Mercury / Metal halide / Gallium iodide | ||||||||
Material | US General Electric 214A / 219 Quartz | ||||||||
End caps | Ceramic / metal ( more than 100 kinds) | ||||||||
Service life | 800 to 1000 hours | ||||||||
Power | Total length（mm） | Power supply | |||||||
120w~1kw | 110 | 170 | 180 | 200 | 230 | 330 | Other length | 220V 380V | |
2kw | 190 | 230 | 330 | 400 | 430 | 517 | |||
3kw | 300 | 360 | 400 | 460 | 500 | 550 | |||
600 | 620 | 650 | 680 | 700 | 725 | ||||
300 | 360 | 400 | 460 | 500 | 550 | ||||
600 | 620 | 650 | 680 | 700 | 725 | ||||
5kw~5.6kw | 360 | 400 | 460 | 500 | 580 | 600 | |||
625 | 660 | 700 | 725 | 750 | 800 | ||||
850 | 900 | 1020 | 1050 | 1150 | 1280 | ||||
7kw~8.4kw | 630 | 680 | 700 | 725 | 800 | 840 | |||
900 | 920 | 980 | 1020 | 1050 | 1120 | ||||
1150 | 1280 | 1030 | 1100 | 1500 | 1200 | ||||
9kw~9.6kw | 1020 | 1050 | 1080 | 1120 | 1280 | 1350 | |||
10kw~20kw | 1020 | 1450 | 1478 | 1580 | 1100 | 1080 | |||
30kw + | 990 | 1110 | 1180 | 1580 | 1280 | 1807 | |||
More Choices:
Model Number | Full Length(nm) | Acr Length(nm) | Power(kw) | Lifetime warrenty(h) |
H60/300C(12001) | 400 | 300 | 3.6 | 1000 |
H70/270C(12005) | 353 | 270 | 7 | 1000 |
H48/350L(12012) | 430 | 350 | 4.8 | 1000 |
H50/270CL(12048) | 353 | 270 | 5 | 1000 |
H50/270CT(12084) | 380 | 270 | 5 | 1000 |
H16.2KW(12098) | 884 | 770 | 16.2 | 1000 |
H9KW(12099) | 920 | 810 | 9 | 1000 |
H2.4KW(12175) | 420 | 280 | 2.4 | 1000 |
Applications:
1.Spraying: used for spraying mobile phone shells and cosmetic shells, etc.
2.Printing industry: used for screen printing, offset printing, etc.
3.Footwear
4.Wood Industry
5.PCB, LCD industry
6.Crafts glazing
7.UV automatic coating line
Why Choose Us
We are a manufacturer of Quartz IR emitters and infrared heating systems. With 13 years of experience in this industry, we have always maintained a conscientious, professional, flexible, on-time delivery, and responsive after-sales service attitude.
If you have customized needs, please feel free to contact us.

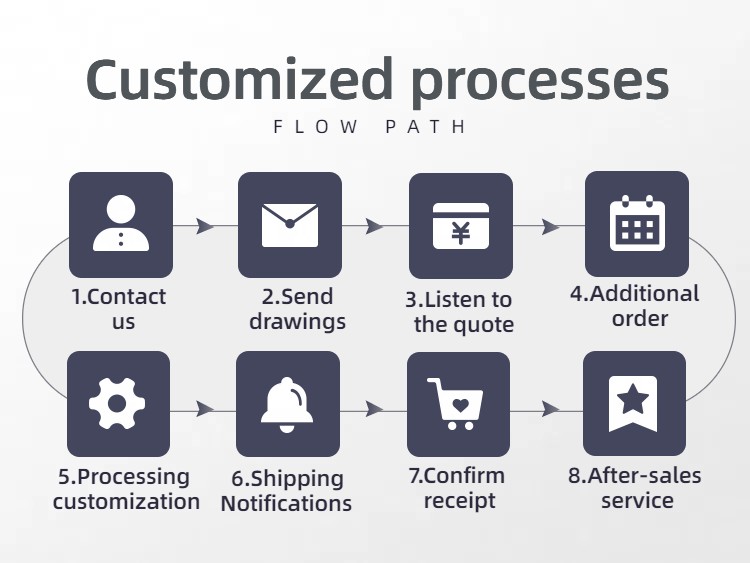

How to customize
Frequently asked questions
1.Are you a factory or trading company?
Yinfrared is a factory,we are professional manufacturer of infrared heater.You are warmily welcome to our factory, we will be happy to show you our production, quality control, warehouse,etc.
2.Can I have samples?Is it free?
Yes, we are happy to offer samples for you to check and test. Depending on sample quantity and product model, we will confirm with you whether it is a free sample or not.
3.Is there any warranty?
This is a serious supplier with good material and strick quality checking.lfthere is any problem with lamps or broken during shipping.We willremedy immediately or redo for free!
4.Can you do the design for us?
We can provide you with the design. We have a professional team with richexperience, you only need to tell us your ideas, the specific quantity.spen, voltage and other data of the infrared tube you need, we can produce the products you need.
If you have any other questions, please feel free to contact us.
