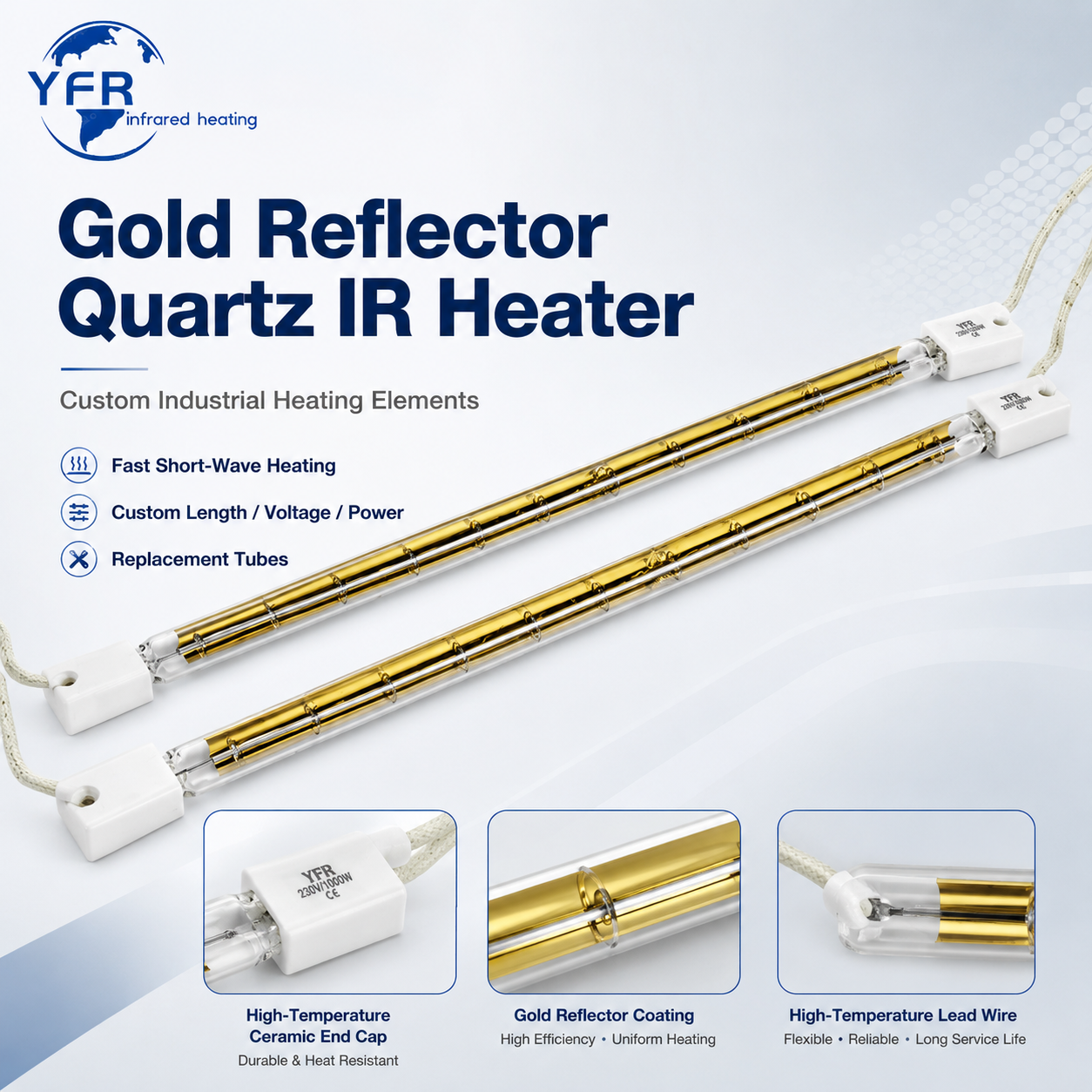

YFR gold reflector quartz IR heaters are quartz halogen infrared heating elements designed for fast radiant heating in industrial drying, curing, forming, preheating, coating, packaging, printing, glass processing, automotive heating, and general process heating systems.
The lamp uses a quartz tube with a tungsten filament and halogen atmosphere to generate short-wave infrared radiation. A gold reflector coating can be applied to one side of the tube to direct more radiant heat toward the working surface. This makes the heater suitable for applications where fast response, focused heating direction, and compact installation are required.
YFR can manufacture gold reflector quartz IR heaters according to customized length, voltage, wattage, tube diameter, filament design, reflector coating, end cap, lead wire, terminal type, and mounting method. These heaters can be supplied for new heating systems or as replacement infrared tubes for existing equipment.
| Feature | Description |
|---|---|
| Product Type | Gold reflector quartz IR heater |
| Lamp Type | Quartz halogen infrared heating element |
| Heating Type | Short-wave infrared radiant heating |
| Tube Material | Quartz glass tube |
| Reflector Option | Gold reflector coating |
| Typical Custom Length | 50–3000 mm |
| Typical Custom Power | 100–3000W |
| Voltage Range | 12–480V customized |
| Termination Option | R7s, ceramic cap, lead wire, pin, or custom terminal |
| Replacement Use | Suitable for many existing industrial heating systems |
| Application | Drying, curing, forming, coating, packaging, printing, glass, automotive, textile |
Quartz halogen infrared heaters are used where fast heat response and targeted radiant energy are required. The tungsten filament heats quickly after power-on, while the quartz tube structure supports high-intensity infrared radiation.
The gold reflector coating helps direct radiant heat toward the target side of the heater. This is useful when the lamp is installed in one-sided heating modules, drying tunnels, IR ovens, or compact equipment where rear-side radiation should be reduced.
For equipment manufacturers and maintenance buyers, gold reflector quartz IR heaters are practical because the lamp can be customized according to machine size, electrical rating, holder type, and installation structure.
| Advantage | Practical Benefit |
|---|---|
| Fast short-wave heating | Suitable for rapid drying, curing, forming, and preheating |
| Gold reflector coating | Helps direct radiant heat toward the working side |
| Quartz halogen structure | Supports high-intensity radiant heating |
| Custom voltage and power | Matches different machines and regional electrical systems |
| Custom length options | Suitable for compact heaters and long heating zones |
| Multiple end terminations | R7s, ceramic caps, lead wires, pins, and custom ends available |
| Replacement support | Can be produced according to samples, photos, drawings, or markings |
| OEM manufacturing | Suitable for machine builders and heating module manufacturers |
| Industry | Typical Use |
|---|---|
| Printing and Packaging | Ink drying, coating drying, varnish drying, film heating, laminating |
| Paint and Coating | Paint drying, powder coating preheating, coating curing |
| Plastic Processing | Thermoforming, softening, preheating, PET blowing, molding |
| Glass Processing | Coating drying, edge heating, preheating, annealing support |
| Automotive | Paint curing, adhesive activation, sealing strip heating, interior part bonding |
| Food Processing | Surface drying, packaging material forming, heating, baking support |
| Furniture | Water-based and solvent-based coating drying |
| Textile | Fabric drying, coating drying, adhesive activation, pressing |
| Photovoltaic | Wafer soldering support, substrate drying, preheating, process heating |
The gold reflector is used to improve heat direction. Instead of radiating evenly in all directions, the coated side helps reflect infrared energy toward the target surface.
| Reflector Design | Typical Purpose |
|---|---|
| Gold reflector coating | Directional heating toward the working side |
| Half-coated reflector | One-sided heating in compact IR modules |
| Clear quartz tube | All-around radiation when an external reflector is used |
| Custom coating length | Designed according to the effective heating area |
| Custom coating angle | Designed according to lamp position and target direction |
For applications such as drying, curing, paint heating, and packaging, reflector direction should be selected according to lamp orientation, heating distance, material width, and equipment structure.
YFR can provide different end structures according to your machine and holder design.
| Termination Type | Typical Use |
|---|---|
| R7s termination | Common replacement structure for many quartz halogen IR heaters |
| Ceramic end cap | High-temperature lamp holder or custom heater module |
| Lead wire connection | Flexible wiring for OEM machine installation |
| Pin terminal | Compact lamp holder or special heater design |
| Ring / spade terminal | Cabinet or module wiring connection |
| Custom connector | Replacement or OEM design based on original sample |
For replacement lamps, the end connection is as important as the wattage and length. Please provide clear photos of both ends before ordering.
YFR can manufacture quartz IR heaters according to your heating system requirements.
| Custom Item | Available Options |
|---|---|
| Lamp Length | 50–3000 mm or customized |
| Heating Length | Designed according to the effective heating area |
| Voltage | 12V, 24V, 110V, 120V, 220V, 230V, 240V, 380V, 400V, 480V or customized |
| Power | 100–3000W or customized |
| Tube Diameter | Customized according to lamp holder and power density |
| Reflector Coating | Gold reflector, partial coating, clear quartz, or custom coating |
| End Cap | R7s, ceramic cap, metal cap, or special end structure |
| Lead Wire | High-temperature cable with customized length |
| Terminal | Bare wire, pin, ring terminal, spade terminal, plug, or custom connector |
| Mounting Method | According to lamp holder, clip, or heating module |
| Packaging | Standard export packaging, neutral packaging, or OEM packaging |
YFR can produce replacement gold reflector quartz IR heaters for many existing dryers, ovens, heating tunnels, curing systems, packaging machines, printing dryers, and industrial heating modules.
To check replacement compatibility, please provide:
| Required Information | Example |
|---|---|
| Complete lamp photo | Full lamp plus both end details |
| Total lamp length | Overall length including end terminals |
| Heating length | Effective heated section |
| Voltage and power | 230V 1000W, 240V 2000W, etc. |
| Tube diameter | Measured quartz tube diameter |
| Reflector type | Gold reflector, clear quartz, ceramic reflector |
| End structure | R7s, ceramic cap, pin, lead wire, or special terminal |
| Lead wire length | Standard or customized |
| Holder or installation photo | Lamp holder, bracket, or heater module |
| Application | Drying oven, packaging machine, paint curing, forming equipment |
| Quantity | Sample replacement or batch order |
If the original lamp marking is unclear, photos of the lamp body, terminals, wiring, and machine nameplate can help confirm the correct replacement design.
Gold reflector quartz IR heaters can be installed individually or arranged into lamp banks for larger heating areas. A complete IR heating system may include:
Quartz halogen IR heaters.
Reflector housing or lamp cassette.
Ceramic holders or R7s holders.
Mounting clips and brackets.
SCR power controller or thyristor regulator.
PID temperature controller.
Infrared thermometer or thermocouple feedback.
PLC or HMI control interface.
Cooling or air extraction structure when required.
For multi-zone systems, each lamp group can be controlled separately according to material width, line speed, heating distance, and target temperature.
YFR manufactures quartz infrared heating lamps for industrial heating and replacement applications. For gold reflector quartz IR heaters, production focuses on quartz tube quality, filament positioning, gold reflector coating, end sealing, electrical performance, terminal assembly, and packaging protection.
Main inspection points include:
Quartz tube visual inspection.
Filament and support structure inspection.
Tube sealing and gas filling process control.
Gold reflector coating appearance and coverage check.
End cap or termination assembly inspection.
Electrical resistance and power matching.
Insulation and safety inspection according to order requirements.
Final visual inspection and export packaging.
A gold reflector quartz IR heater is a quartz halogen infrared heating element with a gold reflector coating on one side of the tube. It is used for fast, directional radiant heating in industrial drying, curing, forming, and process heating systems.
The gold reflector helps direct infrared radiation toward the working side of the lamp. This is useful for one-sided heating modules and applications where rear-side radiation should be reduced.
Yes. YFR can customize lamp length, voltage, power, tube diameter, reflector coating, end cap, lead wire, terminal type, and mounting structure according to your equipment.
Yes, if the length, voltage, wattage, tube diameter, reflector direction, and end structure match. Please send a full lamp photo, both end photos, markings, and machine application for checking.
Yes. R7s terminations can be supplied according to the required length, voltage, power, and holder structure.
Please provide lamp length, heating length, voltage, power, tube diameter, reflector coating, end structure, lead wire or terminal type, quantity, and application.
