IR tube technology represents a transformative innovation in industrial heating systems, offering unparalleled efficiency, precision control, and significant energy savings for manufacturing applications worldwide. As industries increasingly seek sustainable and cost-effective heating solutions, infrared tube heaters have emerged as the preferred choice for everything from plastic processing and paint curing to food manufacturing and automotive applications. This comprehensive guide explores the technical specifications, applications, and benefits of IR tube heating technology, providing engineering professionals and system integrators with essential knowledge for implementation.

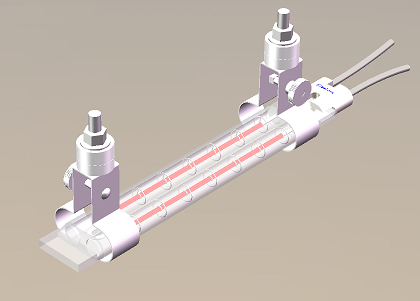

IR tubes (Infrared Radiation Tubes) are cylindrical heating devices designed to generate targeted infrared radiation for industrial processes. These systems consist of a heating element—typically tungsten filament or carbon fiber—encased within a high-purity quartz tube that transmits infrared energy with minimal loss. The tubular design provides exceptional heating uniformity and enables customized configurations for specific application requirements.
Unlike conventional heating methods that warm surrounding air, IR tubes transfer thermal energy directly to objects through electromagnetic radiation, resulting in faster heating times and reduced energy consumption. This direct transfer method achieves remarkable efficiency with up to 96% of electrical energy converted into usable infrared radiation.
The operation of IR tube systems is based on the principle of selective energy absorption. When electrical current passes through the internal heating element, it reaches temperatures between 800°C and 2,200°C depending on the tube type. This thermal energy is then converted into infrared radiation that travels at light speed to the target material.
The effectiveness of IR tube heating depends on the wavelength match between the emitter and the absorption characteristics of the target material. Different materials absorb infrared energy most efficiently at specific wavelengths, making proper tube selection critical for optimal performance.
Table: IR Tube Types by Wavelength and Application
| Tube Type | Wavelength Range | Operating Temperature | Heating Speed | Best Application Fit |
|---|---|---|---|---|
| Short-Wave IR Tubes | 0.76-1.6μm | 1800-2200°C | 1-3 seconds | Rapid surface heating, high-speed processes |
| Medium-Wave IR Tubes | 1.6-4.0μm | 800-1800°C | 30-90 seconds | Balanced surface/subsurface heating |
| Long-Wave IR Tubes | 4.0-100μm | 300-800°C | 1-3 minutes | Gentle, uniform heating of thick materials |
| Carbon IR Tubes | 2.0-10μm | 500-1200°C | 15-45 seconds | Medium-wave applications with quick response |
Modern IR tube systems incorporate several engineering advancements that enhance their performance and reliability:
High-Purity Quartz Tubes: Manufactured from fused quartz with exceptional thermal stability and transmission properties (99.9% SiO₂ content)
Advanced Heating Elements: Tungsten filaments with recrystallization resistance or carbon fiber elements for rapid thermal response
Reflective Coatings: Gold-doped (for short-wave) or ceramic-based reflectors that increase effective radiation efficiency by 25-40%
Robust Construction: Designed to withstand thermal shock (ΔT > 1000°C), mechanical vibration, and harsh industrial environments
Modular Design: Standardized components enabling easy replacement and system scalability
IR tube systems offer exceptional performance characteristics that make them suitable for demanding industrial applications:
Electrical-Thermal Conversion: 90-96% efficiency rating
Response Time: 1-3 seconds to full operational power for short-wave systems
Power Density: 15-150 W/cm² depending on configuration and wavelength
Lifespan: 7,000-10,000 hours of continuous operation (2-3x conventional heaters)
Temperature Control: ±1°C stability with advanced closed-loop control systems
Spectral Efficiency: 85-92% of energy emitted in optimal infrared spectrum
The production of PET containers represents one of the most significant applications for IR tube technology. In blow molding operations, these systems provide the precise thermal energy required to condition preforms before the blowing process.
Implementation Example:
A major beverage container manufacturer implemented YFR short-wave IR tubes in their blow molding process, achieving:
47% Reduction in energy consumption compared to conventional ovens
22% Faster cycle times through rapid heating capabilities
15% Improvement in material distribution consistency
Payback Period of under 11 months
Technical Configuration:
Modern PET blow molding machines utilize rotating carousels with 20-40 independently controlled heating zones per station. Advanced systems feature real-time temperature monitoring with pyrometers and adaptive control algorithms to maintain optimal heating profiles despite variations in ambient conditions or line speed.
IR tube systems have revolutionized industrial drying and curing applications, particularly in automotive manufacturing where finish quality and production throughput are critical.
Performance Advantages:
60-70% Faster Curing compared to convection ovens
55% Reduced Floor Space requirements
Superior Finish Quality with 30-40% fewer defects
Spot Repair Capability for targeted curing applications
Case Study: Automotive Manufacturer Implementation
A German automotive manufacturer implemented medium-wave IR tube systems in their paint shop, achieving:
52% Reduction in energy consumption per vehicle
65% Decrease in curing time for base coats
28% Improvement in first-time quality metrics
ROI Period of 13.5 months
IR tube systems serve numerous functions in food processing, meeting stringent sanitary requirements while providing efficient thermal processing.
Common Applications:
Baking and Toasting: Uniform browning with 40-50% energy savings
Sterilization: Surface pathogen reduction without product overheating
Drying: Moisture removal with 35-45% faster processing times
Package Sealing: Precision heat-seal activation with minimal energy waste
Sanitary Design Features:
FDA-Compliant Materials: 316 stainless steel housings and food-grade quartz
Easy-Clean Designs: Smooth surfaces with IP65 protection ratings
Hygienic Construction: No crevices or contamination points
Quick-Disconnect electrical connections for easy maintenance
IR tube systems offer significant environmental benefits compared to traditional heating methods:
Energy Savings Metrics:
40-70% Reduction in energy consumption across applications
Zero Energy Waste on heating air or surroundings
Instant Response eliminates standby losses (saving 15-25% energy)
Zone Control enables targeted energy application (20-30% savings)
Environmental Impact Reduction:
Zero Emissions at point of use
45-60% Lower Carbon Footprint from reduced energy use
No Combustion Byproducts or fumes
Minimal Waste Heat reducing ventilation requirements
The precision of IR tube heating enables manufacturers to achieve unprecedented process control:
Temperature Management:
±1°C Control for critical processes
Multi-Zone Programming for complex thermal profiles
Real-Time Adjustments based on infrared sensor feedback
Recipe Management for different products and materials
Quality Enhancements:
Consistent Results across production runs (Cpk > 1.67)
35-50% Fewer Defects from precise heating control
Improved Material Properties through optimized thermal profiles
Enhanced Product Performance from better processing conditions
Selecting the appropriate IR tube system requires careful analysis of several factors:
Material Characteristics:
Absorption Spectrum: Match tube wavelength to material absorption peaks
Thermal Sensitivity: Consider maximum safe temperatures and heating rates
Physical Properties: Account for size, shape, density, and composition
Production Requirements: Evaluate speed, throughput, and quality needs
Process Parameters:
Temperature Requirements: Determine optimal processing temperatures
Heating Time: Calculate required exposure duration
Uniformity Needs: Assess acceptable temperature variation (±ΔT)
Control Requirements: Identify necessary precision and response needs
Successful IR tube system implementation requires thorough planning:
System Design Considerations:
Tube Configuration: Optimal arrangement, spacing, and orientation
Cooling Requirements: Adequate heat management for system components
Safety Systems: Appropriate guards, interlocks, and emergency stops
Control Integration: Compatibility with existing automation systems
Economic Analysis Factors:
Capital Investment: Equipment, installation, and commissioning costs
Operating Costs: Energy consumption, maintenance, and replacement
Return on Investment: Payback period and lifetime savings calculation
Total Cost of Ownership: All direct and indirect costs over 5-10 years
IR tube systems must comply with numerous international standards and regulations:
Safety Certifications:
UL Certification: Underwriters Laboratories compliance (UL 499)
CE Marking: European conformity assessment (EN 60598-1)
VDE Approval: German electrical standards (VDE 0711-1)
RoHS Compliance: Restriction of Hazardous Substances Directive
Performance Standards:
ISO 9001: Quality management systems certification
ISO 14001: Environmental management certification
GB/T 10066.12-2020: Chinese infrared electroheat testing standards
IEC 60519-1: International electrical safety requirements
Industry-Specific Certifications:
FDA Compliance: For food processing applications (21 CFR)
ATEX Certification: For explosive atmospheres (2014/34/EU)
NSF/ANSI 4: For food equipment sanitation standards
CRN Registration: For pressure vessel applications
Proper maintenance ensures optimal performance and extends equipment life:
Daily Operational Checks:
Visual inspection for damage, discoloration, or contamination
Verification of proper system operation and output
Cleaning of reflectors and tube surfaces
Confirmation of cooling system functionality
Scheduled Maintenance Activities:
Tube replacement based on operational hours (7,000-10,000 hours)
Reflector cleaning and alignment verification
Electrical connection inspection and tightening
Control system calibration and sensor verification
Performance Monitoring:
Regular efficiency measurements and documentation
Temperature uniformity verification across target area
Energy consumption tracking and trend analysis
Output intensity testing and degradation monitoring
Effective problem-solving minimizes downtime and maintains quality:
Common Operational Issues:
Uneven Heating: Check reflector condition, alignment, and tube spacing
Reduced Efficiency: Verify tube age, cleanliness, and power supply
Control Instability: Inspect sensors, calibration, and control algorithms
Premature Failure: Examine cooling, electrical quality, and operating conditions
The field of industrial infrared heating continues to evolve with several promising developments:
Advanced Materials:
Ceramic Composite Tubes: For higher temperatures and improved durability
Graphene Heating Elements: For ultra-fast response and efficiency
Nanocrystalline Coatings: For enhanced spectral efficiency and longevity
Smart Technology Integration:
IoT Connectivity: Remote monitoring, diagnostics, and predictive maintenance
AI Optimization: Machine learning for process optimization and energy management
Advanced Sensors: Real-time spectral analysis and adaptive control
Sustainability Initiatives:
Renewable Integration: Compatibility with solar and wind power systems
Circular Economy: Recyclable materials and modular designs
Energy Recovery: Systems to capture and reuse waste heat
IR tube technology represents a transformative advancement in industrial heating that offers manufacturers significant advantages in efficiency, quality, and sustainability. As production facilities face increasing pressure to reduce costs while improving environmental performance, infrared tube heating provides a proven solution that delivers measurable results across diverse applications.
The implementation of IR tube systems requires careful consideration of technical specifications, application requirements, and operational factors. However, with proper planning and execution, manufacturers can achieve substantial benefits that typically justify the investment within 12-18 months.
As the technology continues to evolve, we can expect even greater efficiency, improved control capabilities, and enhanced integration with smart manufacturing systems. For forward-thinking manufacturers, IR tube technology represents not just a heating solution, but a strategic investment in future competitiveness and sustainability.
