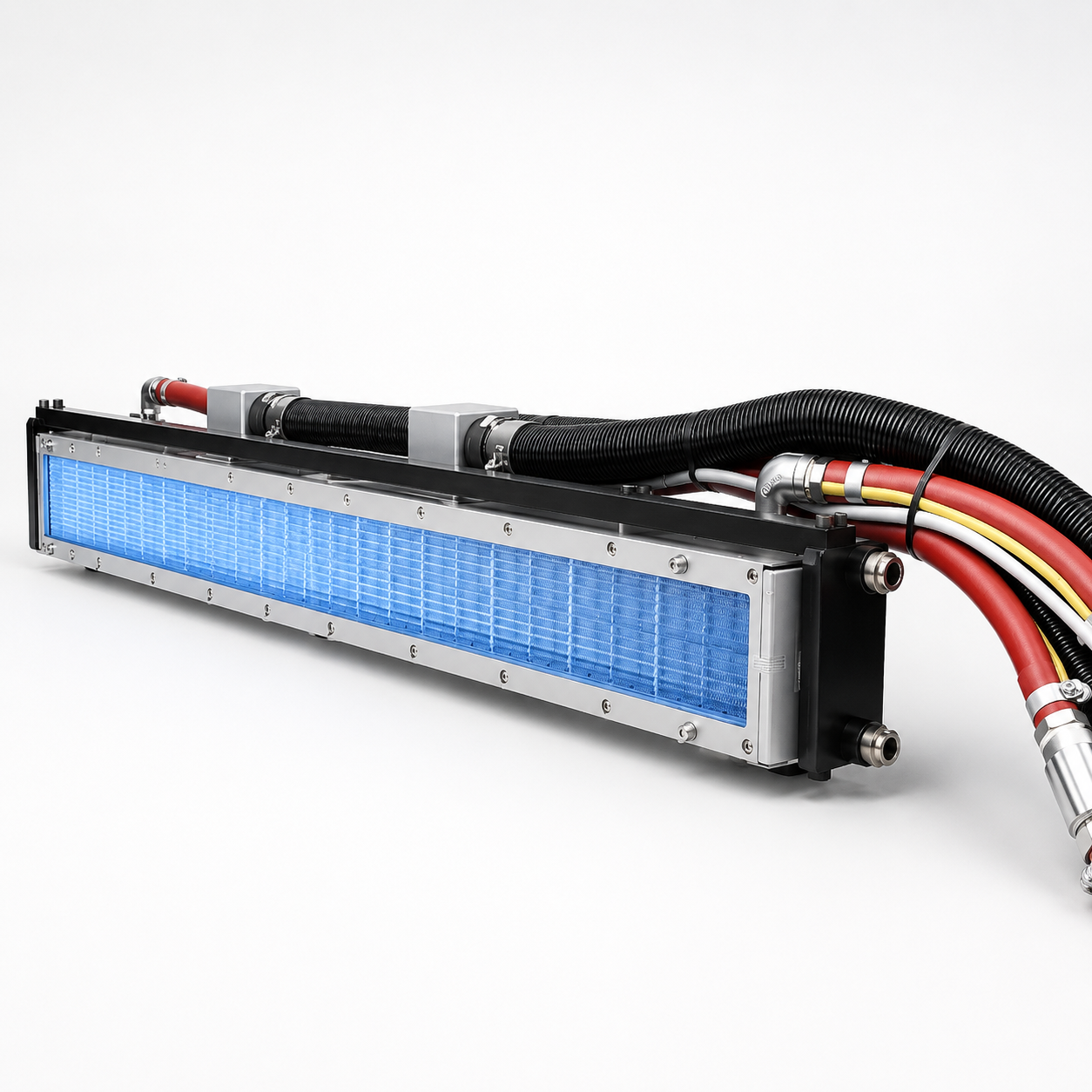

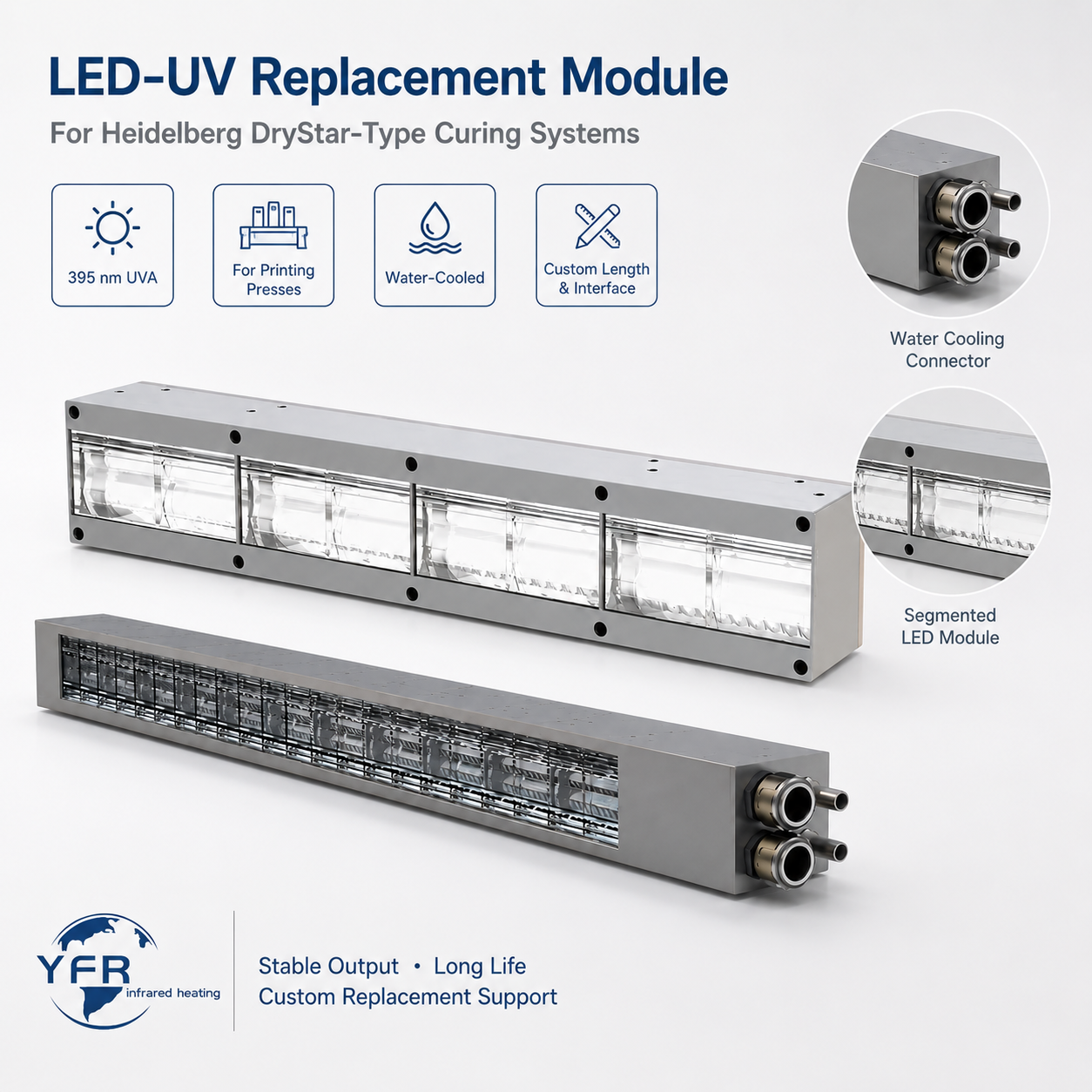

YFR LED-UV Replacement Lamp Module is designed for printing press UV curing applications, especially for selected Heidelberg DryStar-type LED-UV curing systems.
This module is used for UV ink curing, LED-UV varnish curing, coating curing, and high-speed sheetfed offset printing applications where stable UV output, correct installation structure, and reliable cooling performance are required.
For replacement projects, YFR does not recommend choosing only by product name or press model. Each LED-UV module should be confirmed according to the original module photo, machine model, wavelength, power output, cooling method, connector type, cable direction, mounting structure, and control interface.
This helps reduce installation mismatch and makes replacement evaluation more accurate for printing plants, maintenance companies, spare parts distributors, and printing equipment service teams.

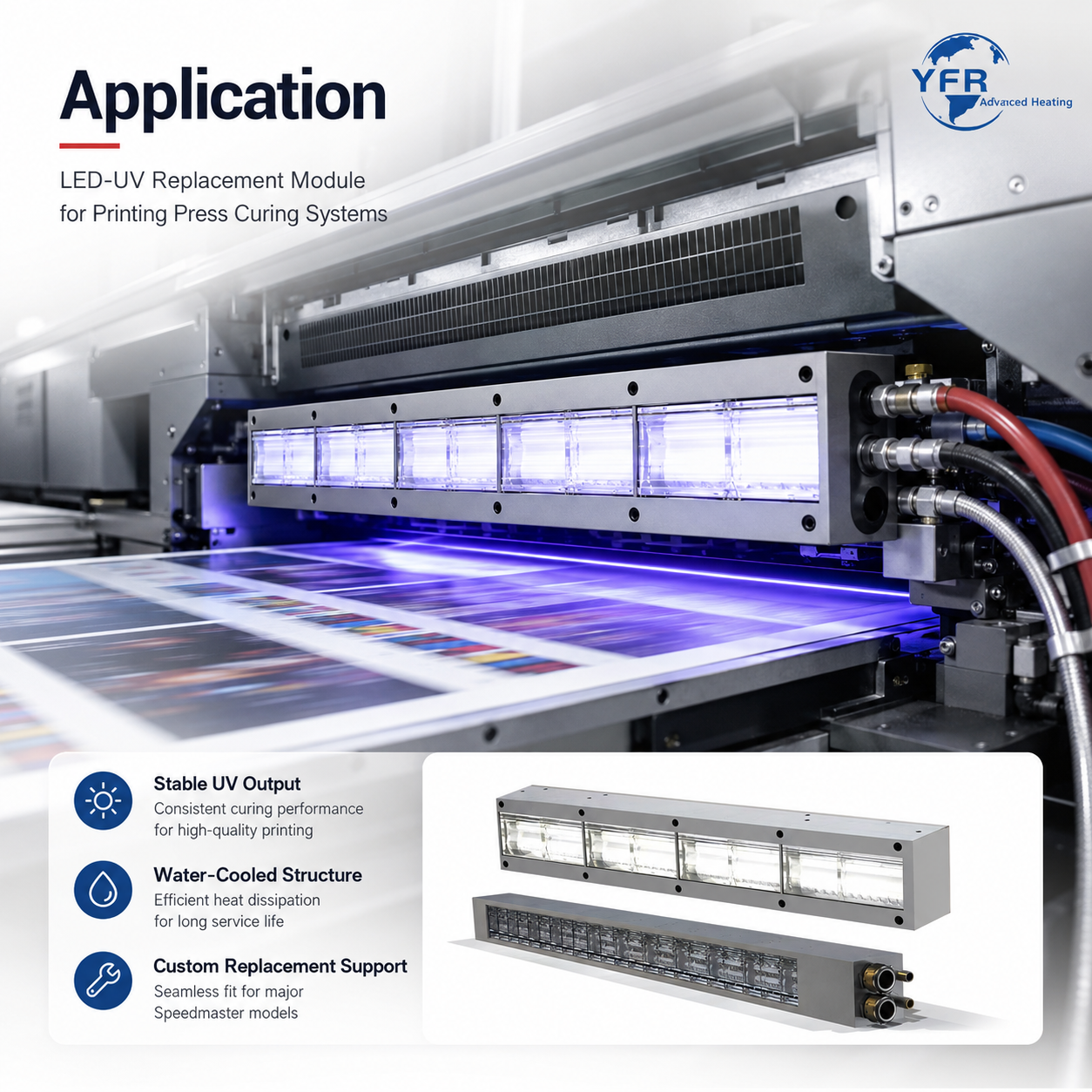

This LED-UV replacement module can be used for UV curing sections in sheetfed offset printing presses and related printing equipment.
| Product Type | LED-UV replacement lamp module |
| Main Application | Printing press UV curing system |
| Wavelength | 395 nm UVA is commonly used for LED-UV ink and varnish curing. Other wavelength options such as 365 nm, 385 nm, or 395 nm can be evaluated according to the ink system and curing requirement. |
| Cooling Method | Water-cooled structure can be supported for applications that require stable thermal control and lower heat transfer to the printed substrate. |
| Power Output | Power output should be confirmed according to the original LED-UV module and curing requirement. For reference, some printing UV curing systems use adjustable output in the range of 30–44 W/cm². Final configuration should be confirmed before production. |

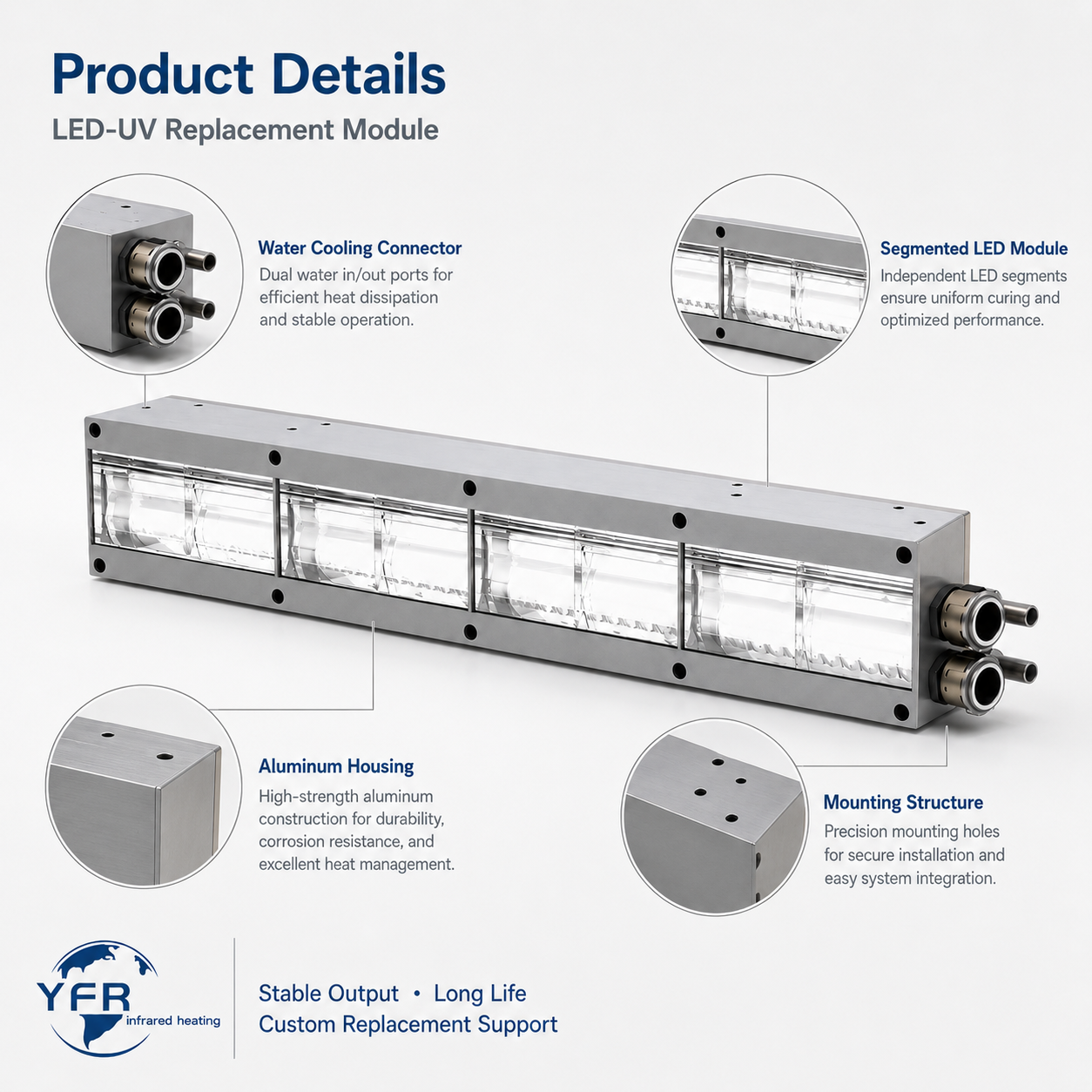

| Module Structure | Long aluminum housing with segmented LED curing windows, cooling connectors, cable connection, and mounting structure. |
| Customization Options | Module length, working width, wavelength, connector type, cable direction, water pipe connection, mounting holes, and control interface can be evaluated according to the original system. |
| Service Life | LED-UV modules are designed for long operating life, but actual lifetime depends on cooling condition, power setting, working temperature, operating environment, and maintenance condition. |
YFR can support replacement evaluation for selected Heidelberg printing press LED-UV curing applications, including systems used on Speedmaster-type presses.
Important note: Final compatibility should not be judged by press model alone. Please provide the original module photo, label, wavelength, power output, cooling method, connector structure, cable direction, mounting dimensions, and installation position before quotation.

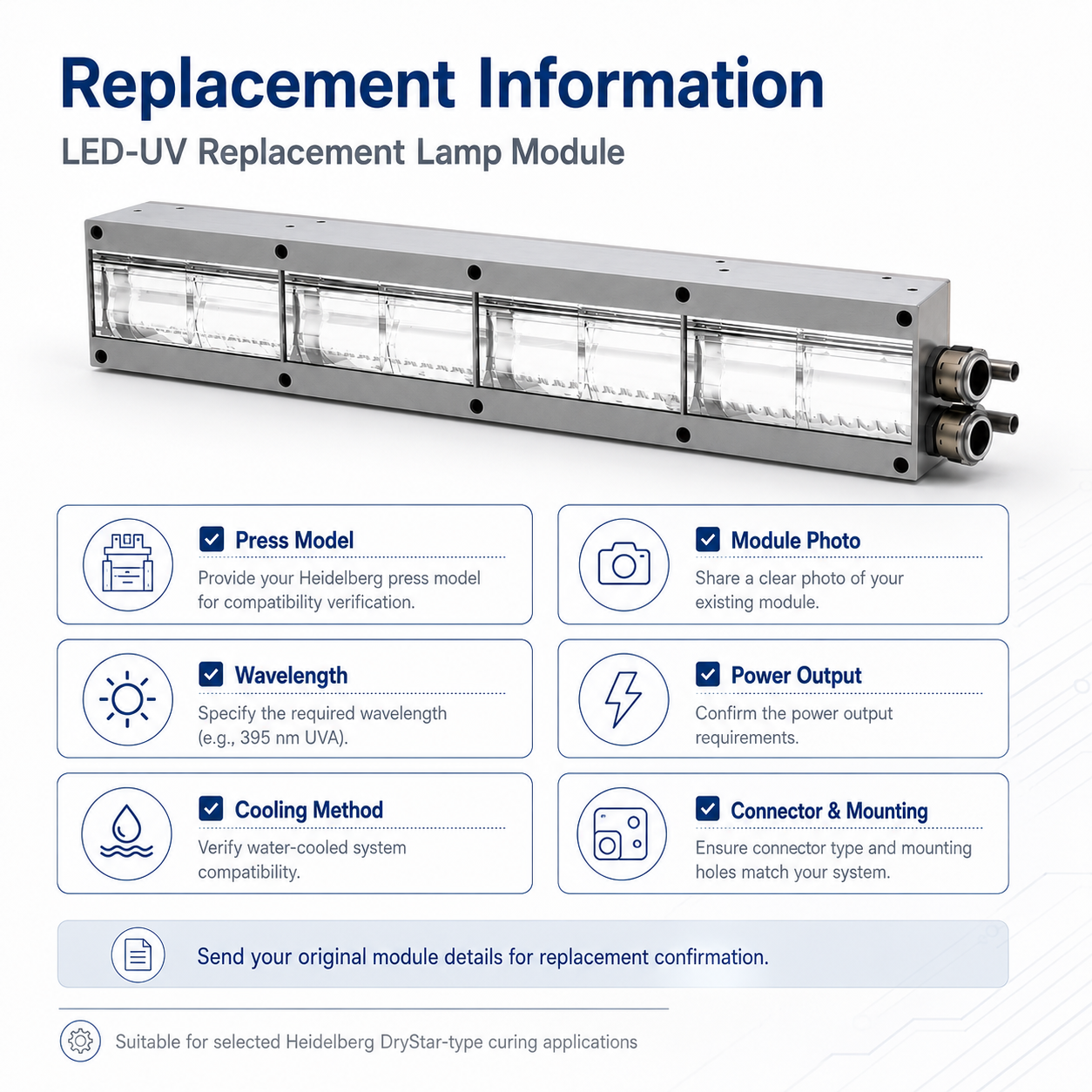

To confirm a suitable LED-UV replacement module, please send us the following information:
If you do not have a drawing, clear photos of the module front, back, side, connector, cable, water cooling connection, and mounting structure are useful for initial evaluation.
YFR supports custom lamp and module replacement projects for industrial heating, drying, and curing equipment.
For printing press applications, we can help customers evaluate both infrared drying lamp replacement and UV / LED-UV curing module replacement. This is useful for printing plants and service teams that need support for different drying and curing sections in one equipment system.
For LED-UV replacement projects, our team checks the original module structure, wavelength, cooling method, connector, cable direction, mounting design, and installation requirement before quotation. This helps customers reduce replacement risk and confirm whether the module can be manufactured to match the existing curing system.
YFR is suitable for customers who need custom replacement support, repeat supply, and technical confirmation before production.
Before shipment, YFR can check key replacement details, including:
For repeat orders, confirmed specifications can be recorded as the production reference for future replacement supply.
YFR can also support related printing press drying and curing products, including:
Need a replacement LED-UV module for a Heidelberg DryStar-type curing system?
Please send us your press model, original module photo, wavelength, power output, cooling method, connector type, cable direction, mounting structure, and installation position. YFR will review the structure and provide a replacement evaluation before quotation.
YFR is not affiliated with Heidelberg. Heidelberg, DryStar, Speedmaster, and other related names are trademarks of their respective owners. Product names and machine models are used only to describe replacement application and compatibility evaluation.
Final replacement compatibility should be confirmed by original module photo, machine model, drawing, and technical specification before production.
Yes. YFR can support replacement evaluation for selected Heidelberg DryStar-type LED-UV curing systems. Final compatibility should be confirmed by original module photo, machine model, wavelength, cooling method, connector type, cable direction, and mounting structure.
Please send the press model, original module photo, module label or code, wavelength, power output, cooling method, module length, working width, connector type, water pipe connection, mounting hole position, and installation position.
Yes. Cooling pipe connection, connector type, cable direction, mounting structure, and module length can be evaluated according to the original module and installation requirement.
Yes. 395 nm UVA can be evaluated for LED-UV ink and varnish curing applications. Other wavelength options can also be discussed according to the ink system and curing requirement.
Yes. After the specification is confirmed, the same replacement structure can be recorded for future repeat production and maintenance supply.
