YFR outdoor infrared heaters are designed to provide direct radiant heat for patios, terraces, restaurants, cafés, balconies, gardens, garages, workshops, warehouses, and semi-open commercial spaces. Unlike traditional convection heating, infrared heating transfers energy directly to people, objects, and surfaces within the heating area, making it suitable for outdoor and partially open environments.

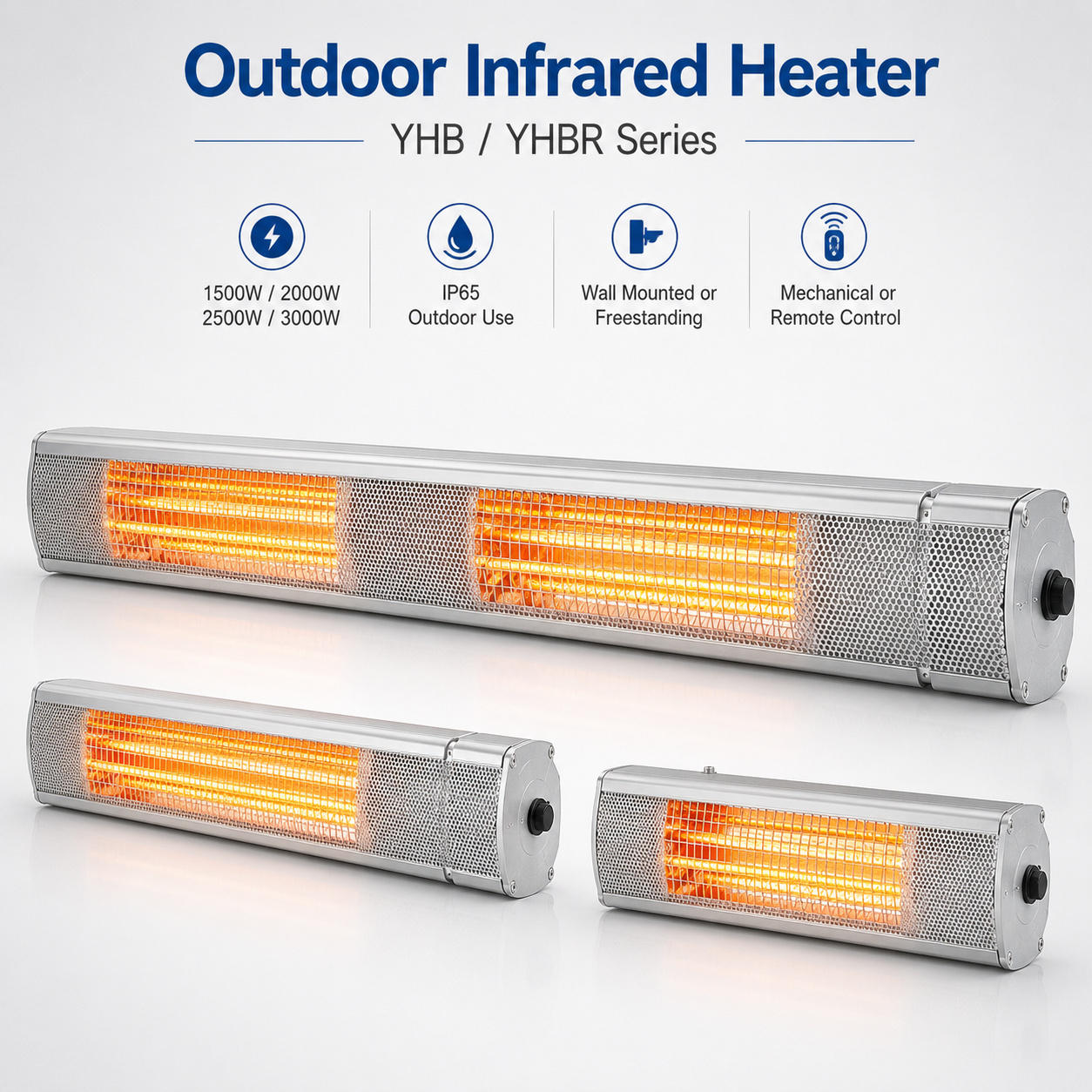

The YHB/YHBR series is available in 1500W, 2000W, 2500W, and 3000W models. The heater uses a gold infrared tube, anodized extruded aluminum alloy housing, and high-reflectivity aluminum reflector to deliver fast radiant heating with a durable structure. Wall-mounted and freestanding installation options are available depending on the application.
Mechanical-control and remote-control versions can be supplied to match different user requirements.
| Feature | Description |
|---|---|
| Product Type | Outdoor infrared heater |
| Series | YHB / YHBR |
| Power Options | 1500W, 2000W, 2500W, 3000W |
| Heating Element | Gold infrared tube |
| Housing Material | Anodized extruded aluminum alloy |
| Reflector | High-reflectivity aluminum reflector |
| Protection Rating | IP65 |
| Installation | Wall-mounted or freestanding options |
| Control Type | Mechanical control or remote control |
| Application | Patio, terrace, restaurant, café, balcony, garden, garage, workshop |
| Series | Control Type | Typical Use |
|---|---|---|
| YHB Series | Mechanical control | Simple, durable operation for fixed heating areas |
| YHBR Series | Remote control | Convenient operation for patios, restaurants, cafés, and commercial spaces |
Both versions use aluminum alloy housing, gold infrared tube heating, reflector structure, and IP65-rated protection. The correct model can be selected according to control preference, installation position, heating area, and project requirement.
Outdoor heating is different from indoor room heating. In patios, terraces, and open commercial areas, warm air can be quickly lost due to airflow. Infrared heating is more suitable for these environments because it transfers radiant heat directly to the target area.
For restaurants, cafés, hotels, and leisure spaces, infrared heaters can help improve comfort in outdoor seating areas. For workshops and garages, they provide localized heating without needing to heat the entire air volume.
| Advantage | Practical Benefit |
|---|---|
| Fast radiant heating | Provides direct warmth shortly after power-on |
| Gold infrared tube | Supports efficient radiant heat output and low-glare appearance |
| Aluminum alloy housing | Durable structure with good corrosion resistance |
| Aluminum reflector | Helps direct heat toward the heating area |
| IP65 protection | Suitable for outdoor and semi-outdoor heater installations |
| Wall-mounted option | Saves floor space and suits fixed heating zones |
| Freestanding option | Flexible placement for patios, events, and workshops |
| Mechanical or remote control | Matches simple operation or convenient user control needs |
| Application | Typical Use |
|---|---|
| Restaurant terrace | Outdoor dining area heating |
| Café and bar patio | Comfortable radiant heat for semi-open seating |
| Hotel and resort outdoor areas | Heating for lounges, balconies, and leisure areas |
| Residential patio | Garden, balcony, deck, and courtyard heating |
| Garage and workshop | Localized heating for workstations |
| Warehouse and industrial area | Spot heating for operators or work zones |
| Event and temporary spaces | Freestanding heater placement for flexible heating |
| Outdoor commercial projects | Wall-mounted heater installation for fixed areas |
| Power | Suggested Use |
|---|---|
| 1500W | Small patio, balcony, compact seating area, localized personal heating |
| 2000W | Medium patio, café table area, garage workstation, semi-open space |
| 2500W | Larger terrace, restaurant outdoor seating, commercial patio area |
| 3000W | High-output heating for larger outdoor areas, workshops, or project applications |
The actual heating effect depends on installation height, mounting angle, ambient temperature, wind exposure, distance from heater to target area, and whether the space is open or semi-enclosed.
YFR outdoor infrared heaters can be installed in different ways according to site conditions.
| Installation Type | Description |
|---|---|
| Wall-mounted | Suitable for patios, terraces, restaurants, cafés, balconies, and fixed heating zones |
| Freestanding | Suitable for movable heating areas, workshops, events, and flexible outdoor use |
| Ceiling or bracket installation | Can be designed according to project structure and safety requirements |
For best performance, the heater should be installed at a suitable height and angle so that radiant heat is directed toward the target area. Avoid placing the heater too far from the seating or working area.

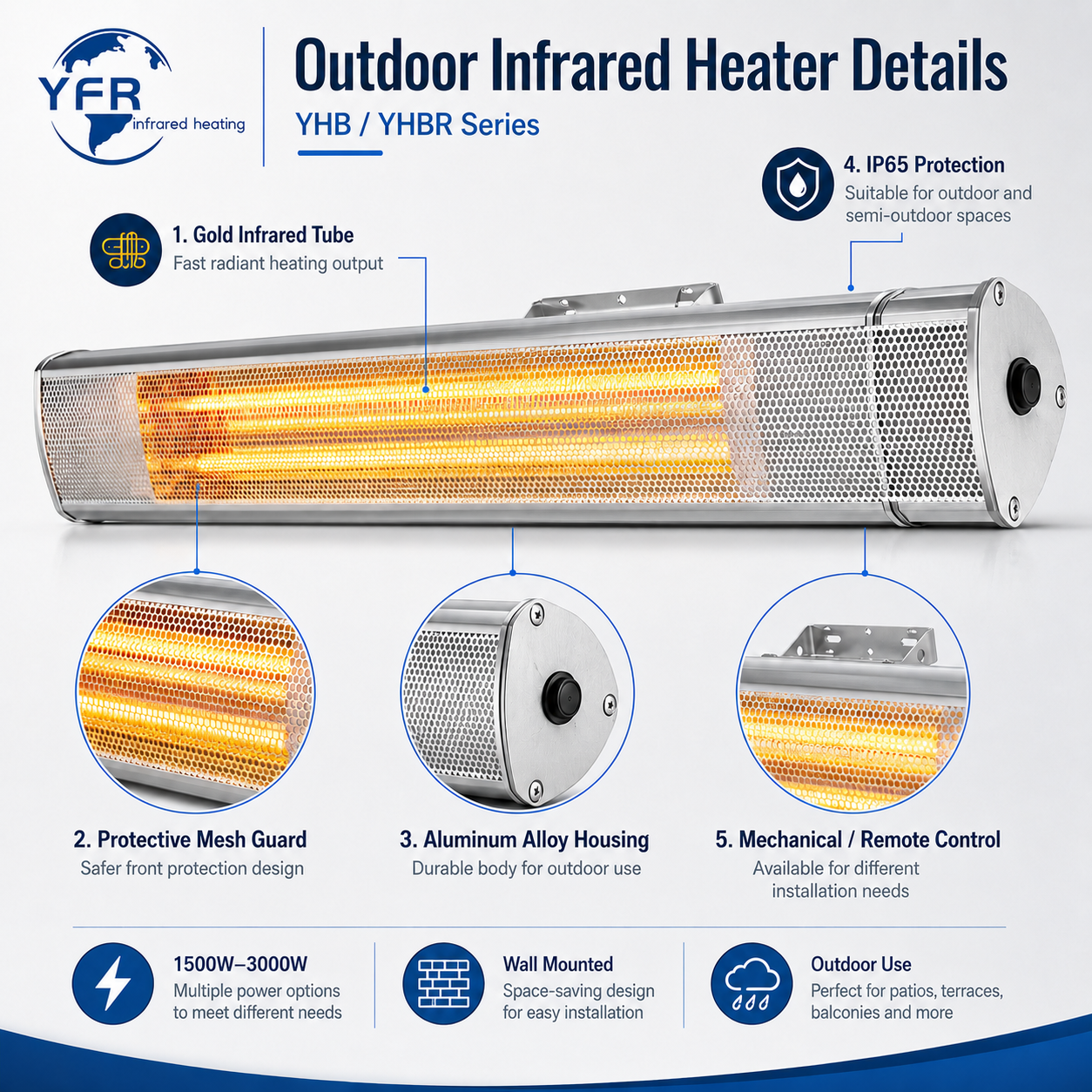

The heater housing is made from anodized extruded aluminum alloy. This structure provides a clean appearance, good rigidity, and improved corrosion resistance for outdoor and semi-outdoor use.
The internal aluminum reflector helps concentrate radiant heat toward the front side of the heater. The gold infrared tube provides fast heating response and a more comfortable visual appearance compared with standard clear tubes.
The IP65 design helps protect the heater from dust and water jets when correctly installed. For long-term outdoor use, the installation position, cable routing, power connection, and mounting structure should comply with local electrical safety requirements.
YFR can support heater distributors, project contractors, and OEM customers with different configuration requirements.
| Custom Item | Available Options |
|---|---|
| Power | 1500W, 2000W, 2500W, 3000W or customized |
| Control | Mechanical switch, remote control, or customized control interface |
| Installation | Wall-mounted, freestanding, bracket-mounted |
| Tube Type | Gold infrared tube or customized lamp option |
| Housing Finish | Standard aluminum finish or customized appearance |
| Packaging | Neutral packaging, OEM label, or project packaging |
| Accessories | Mounting bracket, stand, remote controller, spare lamp options |
Please provide the following information when requesting a quotation:
| Required Information | Example |
|---|---|
| Heater power | 1500W, 2000W, 2500W, 3000W |
| Quantity | Sample order or batch order |
| Installation method | Wall-mounted or freestanding |
| Control type | Mechanical or remote control |
| Application | Patio, restaurant, balcony, workshop, garage |
| Voltage | 110–120V, 220–240V, or project requirement |
| Plug or cable requirement | EU plug, UK plug, US plug, bare wire, or customized |
| Packaging requirement | Neutral carton, OEM packaging, or project shipment |
YHB models use mechanical control. YHBR models include remote control for more convenient operation. Both series are available in 1500W, 2000W, 2500W, and 3000W versions.
Yes. The heater has an IP65 protection design and is suitable for outdoor or semi-outdoor installations when correctly mounted and connected according to electrical safety requirements.
Yes. Wall-mounted installation is available. Freestanding installation can also be supplied as an option.
1500W is suitable for small areas, 2000W for medium areas, 2500W for larger patio zones, and 3000W for higher-output heating needs. Final selection depends on installation height, distance, wind exposure, and heating area.
Yes. YFR can support neutral packaging, OEM labels, and customized packaging for distributors and project customers.

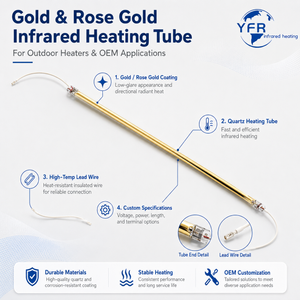

Yes. Replacement gold infrared tubes can be supplied according to the heater model, power, voltage, lamp length, and connection structure.
