White
YFR

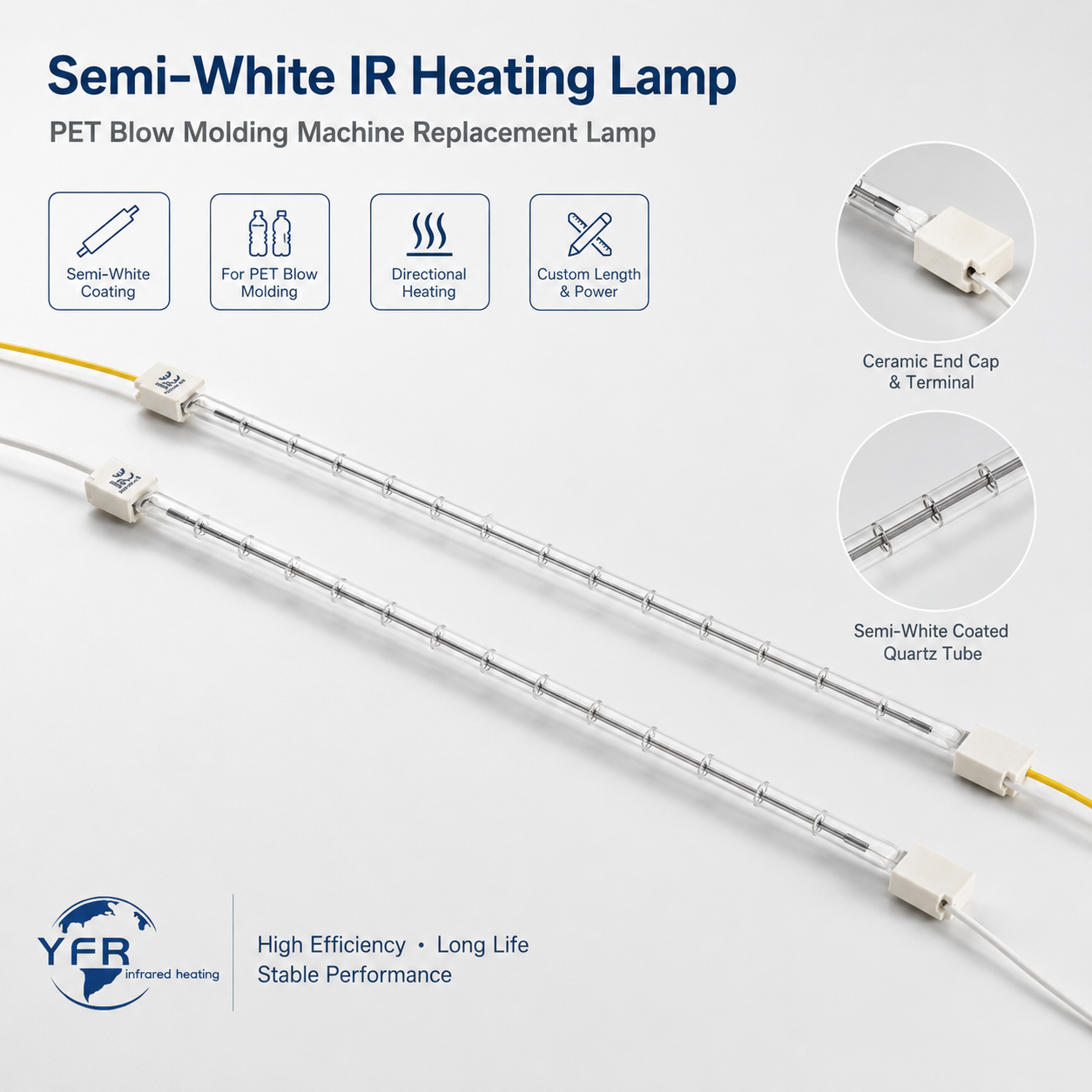

YFR semi-white coating infrared heating lamps are designed for PET preform heating in blow molding machines, bottle production lines, linear ovens, rotary ovens, and PET container manufacturing systems.
In PET blow molding, preforms must be heated evenly before stretching and blowing. The heating result affects bottle wall thickness, transparency, mechanical strength, neck protection, and production stability. A suitable infrared lamp helps deliver controlled radiant heat to the preform surface and body while matching the oven structure and machine speed.
The semi-white coating is applied to one side of the quartz tube to support directional heating. This helps reflect part of the infrared radiation toward the preform side and reduce unnecessary rear-side heat radiation inside the oven.
YFR can manufacture semi-white IR lamps according to original lamp samples, drawings, machine models, or customer specifications.
| Yinfrared | OEM | Philips | Toshiba | Tube Dia. (mm) | OAL (mm) | Wattage | Volts | Cap |
| 54242055-ESE | SIDEL | 13213z/98 | JHC 235V 2000W 280 BH2 | 10.5 | 353 | 2000W | 235 | SK15 |
| 64402555-ESE | SIDEL | 14106Z/98 | JHC 400V 2500W 315 BH | 11 | 380 | 2500W | 400 | SK15 |
| 64403055-ESE | SIDEL | 14111Z/98 | JHC 400V 3000W 315 BH | 11 | 380 | 3000W | 400 | SK15 |
| 64231251-ESE | KRONES | 14134Z/98 | JHC 235V 1200W 155BfH1 | 10.5 | 222 | 1200W | 235 | SK15 |
| 64231652-ESE | KRONES | 14135Z98 | JHC 235V 1600W 155BfH1 | 10.5 | 222 | 1600W | 235 | SK15 |
| 64402551-ESE | KRONES | 14143Z/98 | JHC 400V 2500W 280 BH | 10.5 | 354 | 2500W | 400 | SK15 |
| 64403050-ESE | KRONES | 14144Z/98 | JHC 400V 3000W 280 BH | 10.5 | 354 | 3000W | 400 | SK15 |
| 64231251-ESE | SIG (KRUGG) | 14134Z/98 | JHC 235V 1200W 155 BfH1 | 10.5 | 222 | 1200W | 235 | SK15 |
| 64141252-ESE | SIG (KRUGG) | 13561Z/98 | JHC 144V 1200W 155 BfH1 | 10.5 | 222 | 1200W | 144 | SK15 |
| 64141253-ESE | SIG (KRUGG) | 13561Y/98 | JHC 144V 1200W 155 JcH | 10.5 | 222 | 1200W | 144 | SK15 |
| 64231652-ESE | SIG (KRUGG) | 14135Z/98 | JHC 235V 1600W 155 BfH1 | 10.5 | 222 | 1600W | 235 | SK15 |
| 64141653-ESE | SIG (KRUGG) | 13568Z/98 | JHC 235V 1600W 155 BfH1 | 10.5 | 222 | 1600W | 144 | SK15 |
| 64141652-ESE | SIG (KRUGG) | 13568Y/98 | JHC 144V 1600W 155 JcH | 10.5 | 222 | 1600W | 144 | Metal Cap |
| 54242053-ESE | SIG (KRUGG) | 14136Z/98 | JHC 235V 2000W 280 BfH4 | 10.5 | 353 | 2000W | 235 | SK15 |
| 64242550-ESE | SIG (KRUGG) | 14137Z/98 | JHC 235V 2500W 280 BfH3 | 10.5 | 354 | 2500W | 240 | SK15 |
| 64242525-ESE | SIPA | 14103Z/98 | JHC 235V 2000W 280 BfH | 10.5 | 354 | 2500W | 240 | SK15 |
| 6423205N-ESE | SIPA | 6423205N | JHC230V 2000W 500 BfH | 10.5 | 656 | 2000W | 230 | SK15 |
| 64243055-ESE | SIPA | 14121Z/98 | JHC235V 3000W 280 BH | 10.5 | 354 | 3000W | 240 | SK15 |
| 64233050-ESE | SIPA | 14107Z/98 | JHC 235V 3000W 700 BfH2 | 10.5 | 785.5 | 3000W | 230 | SK15 |
| 64402580-ESE | SMI | N/A | JHC 400V 2500W 500 NH | 2500W | ||||
| 64241052-ESE | ADS | 13195Z/98 | JHC 235V 1000W 272 BfU1 | 10.5 | 346 | 1000W | 240 | SK15 |
| 64242052-ESE | ADS | N/A | JHC 235V 2000W 280 BfU1 | 10.5 | 346 | 2000W | 240 | SK15 |
| 64241052-ESE | SIDE | 13195Z/98 | JHC 235V 1000W 270 BfU1 | 10.5 | 346 | 1000W | 240 | SK15 |
| 64242052-ESE | SIDE | 13213Z/98 | JHC 235V 2000W 280 BfU1 | 10.5 | 346 | 2000W | 240 | SK15 |
| Feature | Description |
|---|---|
| Product Type | Semi-white coating infrared heating lamp |
| Application | PET blow molding machine / PET preform heating |
| Heating Type | Medium-short wave / quartz infrared heating lamp |
| Tube Material | High-purity quartz glass |
| Coating Type | Single-sided semi-white reflector coating |
| Filament Material | Tungsten filament |
| Standard Length | 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm or customized |
| Tube Diameter | Ø8 mm, Ø10 mm, Ø12 mm or customized |
| Voltage | 110V, 120V, 220V, 230V, 240V, 380V or customized |
| Power | Customized according to preform size, oven design, and production speed |
| Cold End | Standard or customized according to socket temperature requirements |
| Terminal Type | Molybdenum foil, screw, bayonet, metal cap, SK15, or customized |
| Replacement Support | Available for PET blow molding machine lamps and oven retrofit projects |
PET blow molding ovens usually require concentrated heating toward the preform side. If too much radiation goes to the rear side of the oven, energy is wasted and nearby machine components may receive unnecessary heat.
A semi-white reflector coating helps direct more heat toward the working side of the lamp. This supports more effective PET preform heating and can help reduce rear-side heat exposure inside the oven.
The actual heating result depends on lamp power, lamp spacing, preform size, oven ventilation, reflector structure, machine speed, and zone control. For this reason, lamp specifications should be selected according to the actual blow molding machine and bottle production requirement.
| Advantage | Practical Benefit |
|---|---|
| Directional semi-white coating | Helps guide infrared radiation toward PET preforms |
| Quartz infrared structure | Suitable for high-speed PET preform heating ovens |
| Custom length and power | Matches different oven layouts and preform sizes |
| Custom cold end | Helps adapt to socket position and machine structure |
| Multiple terminal types | Suitable for replacement and OEM machine use |
| Retrofit support | Can be used for oven upgrade or lamp replacement projects |
| Machine compatibility support | Can be produced based on samples, markings, or drawings |
| Batch supply capability | Suitable for beverage, cosmetic, food, and pharmaceutical bottle lines |
| Application | Typical Use |
|---|---|
| PET bottle blow molding | Heating PET preforms before stretching and blowing |
| Beverage bottle production | Water bottles, carbonated drink bottles, juice bottles |
| Cosmetic packaging | PET containers for personal care and cosmetic products |
| Food packaging | Edible oil bottles, sauce bottles, condiment bottles |
| Pharmaceutical packaging | PET medicine bottles and healthcare containers |
| Linear blow molding ovens | Replacement lamps for linear PET preform heating systems |
| Rotary blow molding ovens | Custom lamps for rotary high-speed production lines |
| Oven retrofit projects | Improving heating layout or replacing old lamp systems |
To select the correct semi-white IR lamp, the heating process should be evaluated together with the blow molding oven and preform design.
| Process Factor | Why It Matters |
|---|---|
| Preform Weight | Heavier preforms usually require more heating energy |
| Preform Wall Thickness | Thick areas require a suitable heating profile |
| Bottle Shape | Round, square, flat, and irregular bottles may need different heating zones |
| Machine Speed | Higher output requires suitable power and response |
| Lamp Distance | Affects heating intensity and uniformity |
| Oven Zone Layout | Determines lamp length, spacing, and control sections |
| Neck Protection | The neck area should avoid excessive heating |
| Cooling Airflow | Affects socket temperature and lamp service conditions |
| Control System | Zone control helps adjust heating for different bottles |
YFR can produce semi-white coating infrared lamps according to your machine and process requirements.
| Custom Item | Available Options |
|---|---|
| Lamp Length | 150–400 mm standard range or customized |
| Heating Length | Designed according to effective preform heating area |
| Voltage | 110V, 120V, 220V, 230V, 240V, 380V or customized |
| Power | Customized according to oven design and bottle output |
| Tube Diameter | Ø8 mm, Ø10 mm, Ø12 mm or customized |
| Coating Pattern | Single-sided semi-white coating, partial coating, or custom coating |
| Cold End Length | Customized according to socket and oven temperature |
| Terminal Type | Molybdenum foil, screw, bayonet, metal cap, SK15, or special terminal |
| Lead Wire | High-temperature lead wire with customized length |
| Packaging | Standard export packaging, neutral packaging, or OEM replacement packaging |
YFR can supply replacement infrared lamps for PET blow molding machines and PET preform heating ovens. To confirm compatibility, please provide:
| Required Information | Example |
|---|---|
| Original lamp photo | Full lamp and both end details |
| Lamp marking | Voltage, wattage, code, brand, or machine reference |
| Total length | Overall length including terminals |
| Heating length | Effective heated section |
| Tube diameter | Ø8 mm, Ø10 mm, Ø12 mm, etc. |
| Voltage and power | 235V 2000W, 400V 3000W, etc. |
| Terminal type | SK15, metal cap, screw, bayonet, or custom |
| Coating direction | White coating orientation relative to preform side |
| Machine model | Krones, Sidel, SIPA, SMI, KHS, Side, or other machines |
| Application | Water bottle, carbonated drink bottle, cosmetic bottle, etc. |
If the lamp marking is unclear, send photos of the lamp body, both terminals, oven socket, and machine nameplate. YFR can help check whether a replacement lamp can be produced.
YFR can manufacture semi-white infrared lamps for many PET blow molding machine formats, including lamps used in linear and rotary oven systems. Compatibility should be confirmed by dimensions, voltage, wattage, terminal structure, coating direction, and installation position, not only by machine brand.
If you want to keep the cross-reference table on the page, I suggest placing it after the main product description and formatting it as a separate section:
Semi-white IR lamps can be installed in lamp banks inside PET preform heating ovens. A complete heating section may include:
Semi-white coating infrared lamps.
Lamp holders or socket assemblies.
Reflectors or oven panels.
Zone power controllers.
Temperature monitoring or preform temperature feedback.
Cooling airflow and neck protection structure.
PLC or HMI recipe control.
For production lines with different bottle sizes, heating zones should be adjustable so operators can match the heating profile to the preform and bottle design.
YFR manufactures infrared lamps for PET blow molding, packaging, printing, coating, and industrial heating applications. For PET blow molding lamps, production focuses on quartz tube quality, filament positioning, reflector coating, cold end length, terminal consistency, electrical performance, and packaging protection.
Main inspection points include:
Quartz tube visual inspection.
Filament and support structure inspection.
Tube sealing and gas filling process control.
Semi-white coating appearance and orientation check.
Cold end length inspection.
Terminal and cap assembly inspection.
Electrical resistance and power matching.
Insulation and safety inspection according to order requirements.
Final visual inspection and export packaging.
It is a quartz infrared heating lamp with a single-sided semi-white reflector coating. It is used to heat PET preforms inside blow molding ovens before stretching and blowing.
The semi-white coating helps direct more infrared radiation toward the preform side and reduce rear-side heat radiation. This is useful in PET preform ovens where heating direction and oven temperature control are important.
Yes. YFR can produce replacement lamps if the length, voltage, wattage, tube diameter, terminal type, and coating direction match. Please send photos and specifications for checking.
They can be customized for many linear and rotary PET blow molding machines. Compatibility should be confirmed by lamp specification and oven structure rather than machine brand alone.
Yes. Lamp length, heating length, voltage, power, tube diameter, cold end, terminal type, lead wire, and coating pattern can be customized.
Please provide full lamp photos, markings, total length, heating length, tube diameter, voltage, wattage, terminal type, machine model, and coating direction.
