YFR3000SW
Yinfrared

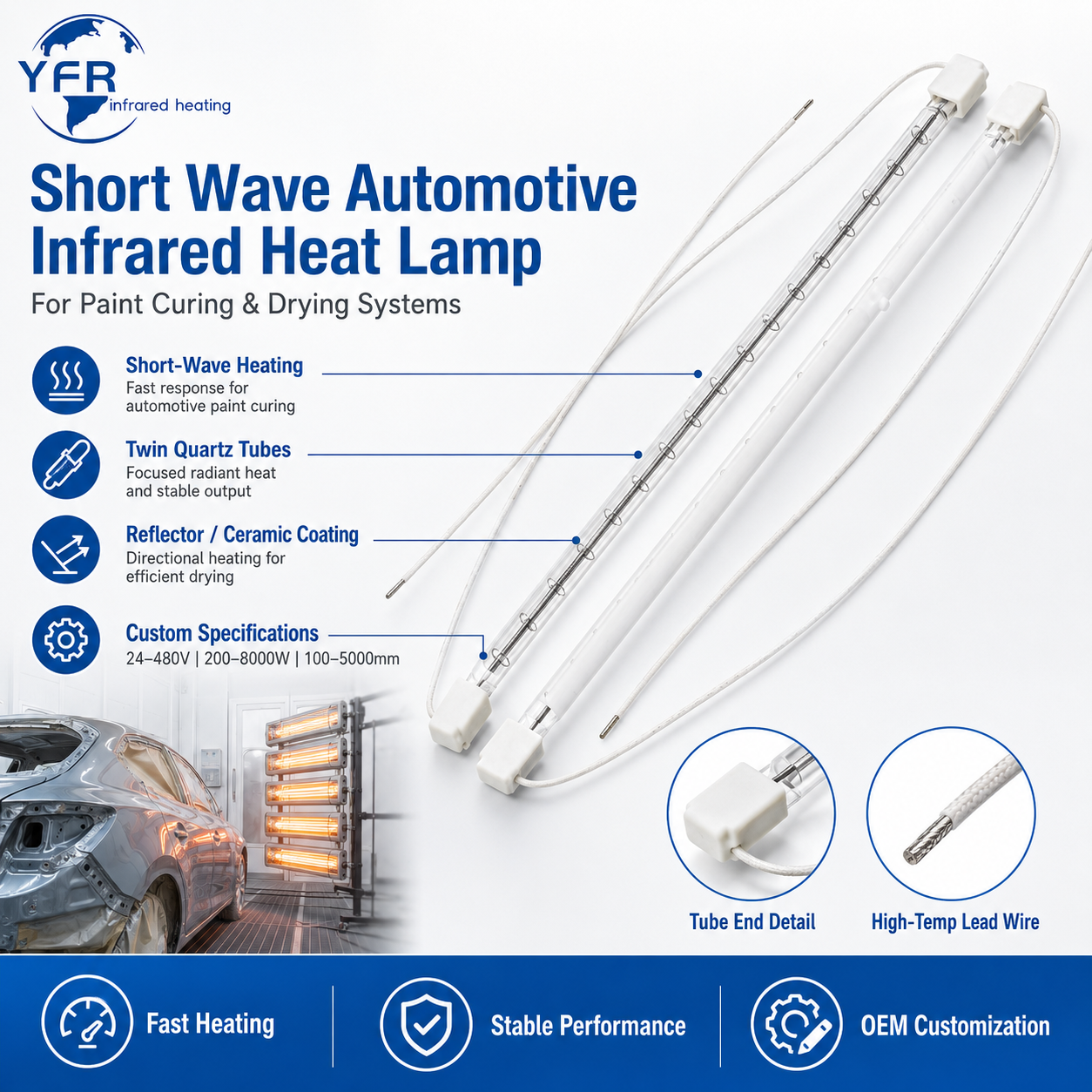

YFR short wave automotive infrared heat lamps are designed for fast, focused radiant heating in automotive paint curing, paint drying, repair booths, infrared ovens, IR heating tunnels, and automotive component heating systems.
Short wave infrared lamps provide rapid heat response and strong penetration into coated surfaces, making them suitable for applications where the heating process requires quick temperature rise, precise heating zones, and controlled curing time. These lamps can be used in both OEM automotive production lines and aftermarket repair equipment.
YFR can manufacture standard and customized infrared heat lamps according to your lamp length, voltage, power, tube diameter, coating type, reflector design, end cap structure, lead wire, and installation requirements.
| Item | Available Specification |
|---|---|
| Product Type | Short wave automotive infrared heat lamp |
| Model Example | YFR3000SW |
| Typical Example | 1280 mm, 3000W |
| Lamp Length | 100 mm to 5000 mm customized |
| Power Range | 200W to 8000W customized |
| Voltage Range | 24V to 480V customized |
| Tube Material | Quartz glass tube |
| Heating Type | Short wave infrared radiant heating |
| Coating Options | Clear, gold reflector, white ceramic coating, or customized |
| Reflector Option | With or without reflector coating |
| Tube Shape | Straight tube, twin tube, special shape available |
| Application | Automotive paint curing, car paint drying, repair booths, IR ovens, heating tunnels |
Automotive coating and repair processes require controlled heating. Traditional air heating can warm the surrounding air first before the coating and substrate reach the required temperature. Infrared heating transfers energy directly to the coating surface and the workpiece, helping shorten heating time and improve process control.
Short wave infrared lamps respond quickly after power-on and can be adjusted through power control systems. This makes them useful for body shops, spot repair systems, paint booths, conveyor ovens, and automotive production heating stations where operators need fast start-up, targeted heat, and repeatable curing conditions.
For automotive paint curing, the final result still depends on paint type, film thickness, substrate, distance from lamp to surface, exposure time, airflow, and temperature control. YFR can help select lamp specifications according to the actual process requirement.
| Advantage | Benefit for Automotive Heating |
|---|---|
| Fast heat response | Helps reduce waiting time during paint drying and curing |
| Focused radiant heat | Suitable for panels, bumpers, repair zones, and heating modules |
| Custom lamp length | Matches different curing lamps, ovens, and heater frames |
| Custom voltage and power | Supports different markets and equipment designs |
| Optional reflector coating | Helps direct more heat toward the workpiece |
| Ceramic coating option | Supports targeted heating and reduced rear-side radiation |
| Suitable for control systems | Can work with power regulators, PID controllers, and PLC systems |
| OEM manufacturing support | Suitable for replacement lamps and custom heating equipment |
| Application | Typical Use |
|---|---|
| Automotive paint curing | Curing primer, basecoat, clear coat, and repair coatings |
| Car paint drying lamp | Replacement or OEM lamp for infrared paint drying equipment |
| Spot repair systems | Focused heating for small area repair and panel refinishing |
| Paint booths | Supplemental infrared heating for faster drying cycles |
| IR drying ovens | Heating modules for automotive coating lines |
| IR heating tunnels | Continuous drying and curing for production lines |
| Plastic automotive parts | Heating bumpers, trim parts, interior parts, and formed components |
| Adhesive and sealant heating | Controlled drying or activation for assembly processes |
YFR automotive infrared heat lamps can be produced with different tube surface designs according to the heating direction and equipment structure.
| Option | Typical Purpose |
|---|---|
| Clear quartz tube | Direct radiant heating with high visible output |
| Gold reflector coating | Directs infrared radiation toward the working side |
| White ceramic coating | Reduces rear-side heat loss and supports focused target heating |
| Half-coated reflector | Suitable for lamp modules with one-sided heating direction |
| Full or special coating | Customized according to the heater structure |
For car paint curing and drying equipment, reflector coating is often used to improve heat direction and reduce wasted radiation toward the rear side of the lamp.
YFR can produce short wave automotive infrared heat lamps according to drawings, samples, or technical requirements.
| Custom Item | Options |
|---|---|
| Total lamp length | 100–5000 mm or customized |
| Heating length | Customized according to heating area |
| Power | 200W–8000W or customized |
| Voltage | 24V–480V or customized |
| Tube diameter | Customized according to lamp holder and power density |
| Tube shape | Straight, twin tube, U-shape, or special shape |
| Coating | Clear, gold, ceramic, or customized reflector coating |
| End cap | Ceramic cap, metal cap, or special end structure |
| Lead wire | High-temperature wire with custom length |
| Terminal | Bare wire, ring terminal, spade terminal, plug, or customized |
| Mounting | Matched to lamp holder, clip, or heating module design |
YFR short wave automotive infrared lamps can be used as single replacement lamps or integrated into complete infrared heating modules. For equipment manufacturers, YFR can also support lamp holders, clips, reflectors, power controllers, temperature sensors, and heating module design.
A complete infrared heating system may include:
Short wave infrared lamps.
Aluminum or stainless steel reflector housing.
Lamp clips and ceramic holders.
SCR power controller or thyristor regulator.
PID temperature controller.
Infrared thermometer or thermocouple feedback.
PLC or HMI control interface.
Cooling and safety protection design.
For production lines or ovens, heating zones can be designed separately so operators can adjust the heating profile according to paint type, conveyor speed, panel size, and target temperature.
To choose the correct automotive infrared heat lamp, please confirm the following information:
| Required Information | Example |
|---|---|
| Lamp length | 1280 mm or customized |
| Voltage | 220V, 230V, 240V, 380V, or customized |
| Power | 3000W or customized |
| Tube type | Single tube, twin tube, special shape |
| Coating | Clear, gold reflector, ceramic coating |
| Heating direction | One-sided heating or all-around radiation |
| Installation method | Holder, clip, module, or lamp frame |
| Working distance | Distance from lamp to vehicle surface |
| Application | Paint curing, spot repair, oven, IR tunnel, component heating |
| Control method | Manual, PID temperature control, PLC signal, power regulator |
If the lamp is used as a replacement part, please provide the original lamp photo, total length, heating length, voltage, power, end cap type, wire length, and terminal type.
YFR manufactures infrared lamps for industrial heating and automotive heating applications. For automotive paint curing lamps, production focuses on quartz tube quality, filament positioning, electrical performance, reflector coating, lead wire connection, and mechanical consistency.
Main inspection points include:
Quartz tube visual inspection.
Filament and support structure inspection.
Tube sealing and gas filling process control.
Coating uniformity inspection.
End cap and lead wire assembly inspection.
Electrical performance testing.
Insulation and safety inspection according to order requirements.
Packaging protection for export shipment.
A short wave automotive infrared heat lamp is a quartz infrared lamp used for fast radiant heating in car paint curing, paint drying, repair booths, infrared ovens, and automotive production heating systems.
Yes. Short wave infrared lamps are commonly used in automotive paint drying and curing equipment. The correct lamp power, distance, exposure time, and temperature control should be selected according to the paint system and repair area.
Yes. YFR can customize lamp length, heating length, voltage, power, tube diameter, coating, end cap, lead wire, and terminal structure according to your equipment requirements.
One example is 1280 mm 3000W, model YFR3000SW. Other specifications can be produced according to customer drawings or samples.
Yes. The quartz tube can be supplied clear or with reflector coating, such as gold or ceramic coating, depending on the required heating direction and equipment structure.
Yes. YFR can supply infrared lamps, lamp holders, clips, reflectors, power controllers, temperature sensors, and customized infrared heating modules for automotive heating systems.
