YFR3000SW
Yinfrared

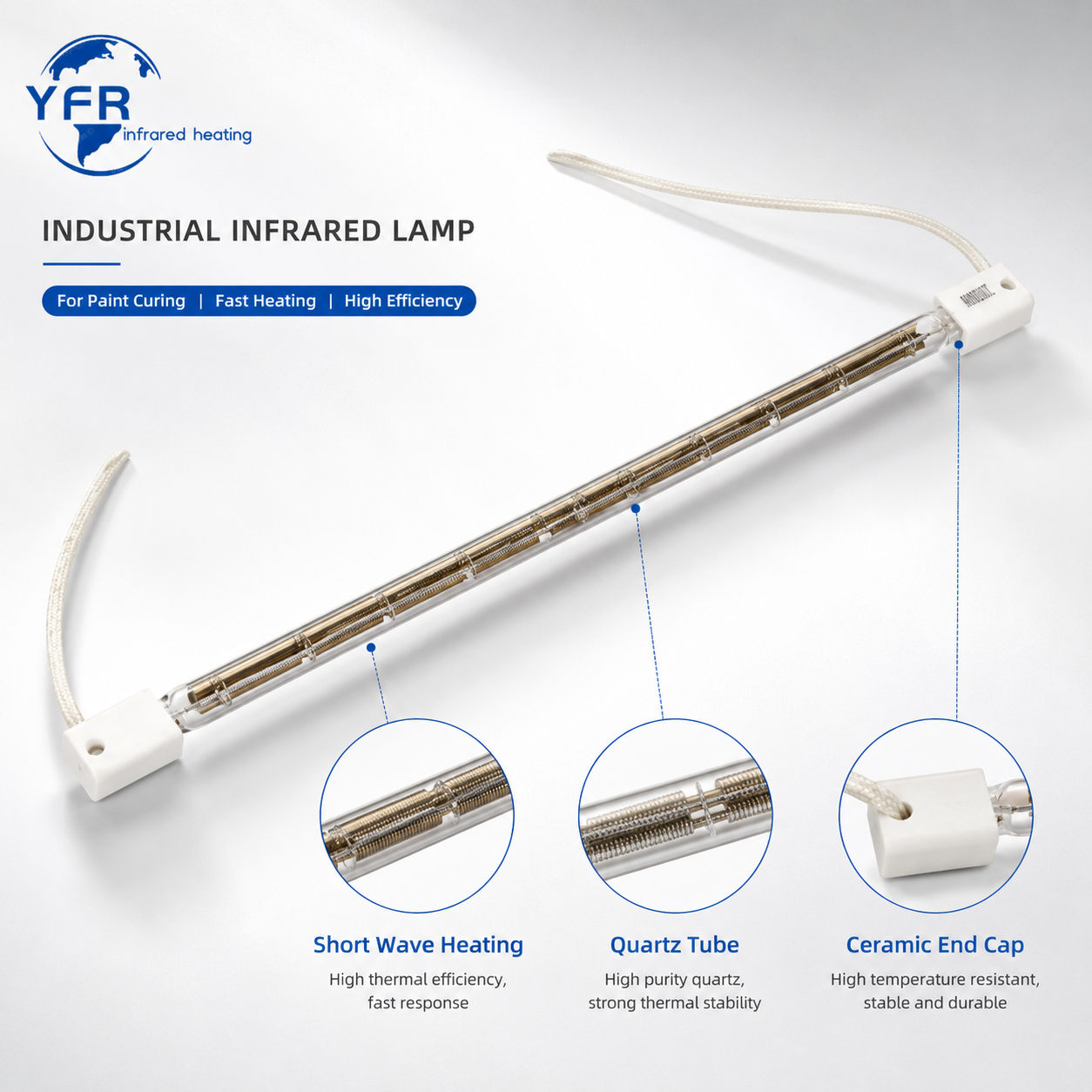

YFR short wave infrared paint curing lamps are quartz infrared emitters designed for paint drying, coating curing, automotive refinishing, repair booths, IR drying ovens, and industrial heating systems.
Short wave infrared lamps provide fast thermal response and focused radiant heat, making them suitable for processes where painted or coated surfaces need controlled heating within a defined time window. They can be used in automotive repair equipment, industrial coating lines, drying tunnels, paint booths, and customized infrared heating modules.
YFR can manufacture standard and customized IR paint curing lamps according to lamp length, voltage, power, tube diameter, filament design, reflector coating, end cap, lead wire, terminal type, and installation structure.
| Feature | Description |
|---|---|
| Product Type | Short wave infrared paint curing lamp |
| Model Example | YFR3000SW |
| Heating Type | Short wave infrared radiant heating |
| Tube Material | Quartz glass tube |
| Reflector Option | Gold reflector, ceramic reflector, clear tube, or customized |
| Heating Direction | Directional heating available with reflector coating |
| Custom Shape | Straight tube, special shape, or custom design |
| Application | Paint drying, coating curing, automotive refinishing, IR ovens |
| Replacement Use | Can be produced according to original sample, drawing, or specification |
| System Support | Lamp, reflector, holder, power controller, and heating module options |
Paint curing and coating drying require controlled surface heating. Conventional hot-air heating warms the surrounding air first, while infrared heating transfers energy directly toward the coated surface and substrate.
Short wave infrared lamps are often selected for paint curing systems because they respond quickly after power-on and can be controlled through power regulators or temperature control systems. This makes them suitable for production processes where heating time, surface temperature, lamp distance, and curing consistency must be controlled.
The final curing result depends on paint type, coating thickness, substrate material, heating distance, lamp power, exposure time, airflow, and temperature control method. For this reason, the lamp specification should be selected according to the actual process rather than only the wattage.
| Advantage | Practical Benefit |
|---|---|
| Fast heat response | Helps shorten waiting time during paint drying and curing |
| Focused radiant heating | Suitable for painted panels, coated parts, repair areas, and drying zones |
| Gold reflector option | Helps direct radiant heat toward the target surface |
| Custom lamp length | Matches different curing lamps, ovens, and equipment frames |
| Custom voltage and power | Supports different machines and regional electrical systems |
| Special shape available | Suitable for edge heating, curved structures, and custom heating modules |
| Replacement support | Can be produced according to samples, photos, or drawings |
| System integration | Can work with reflectors, SCR power controllers, PID controllers, and sensors |
| Application | Typical Use |
|---|---|
| Automotive refinishing | Paint drying and curing for car panels, bumpers, and repair areas |
| Repair booths | Infrared lamp replacement for paint repair and local curing systems |
| Paint drying ovens | Lamp banks for controlled heating zones |
| Industrial coating lines | Drying coatings on metal, plastic, wood, glass, and composite parts |
| Powder coating preheating | Preheating or supplemental heating before curing |
| Furniture coating | Drying water-based or solvent-based coatings |
| Aerospace and component coating | Controlled heating for coated parts and assemblies |
| Custom IR heating modules | Lamp integration into OEM curing equipment |
YFR can supply short wave infrared paint curing lamps with gold reflector coating or other reflector options. A reflector coating helps direct more radiant energy toward the working side of the lamp, reducing unnecessary rear-side radiation when the equipment requires one-sided heating.
| Tube / Coating Option | Typical Purpose |
|---|---|
| Clear quartz tube | General all-around radiation |
| Gold reflector coating | Directional heating toward the painted surface |
| White ceramic reflector coating | Rear-side insulation and focused heating direction |
| Half-coated reflector | One-sided heating in lamp modules or curing frames |
| Custom reflector design | Made according to equipment structure and target heating profile |
YFR can also supply external reflectors or lampshades for target heating. The reflector size and material can be customized according to working temperature, lamp structure, and installation requirements.
YFR can manufacture short wave IR paint curing lamps according to samples, drawings, or heating system requirements.
| Custom Item | Available Options |
|---|---|
| Lamp Length | Customized according to equipment frame |
| Heating Length | Designed according to effective curing area |
| Voltage | 110V, 120V, 220V, 230V, 240V, 380V, 400V, 480V, or customized |
| Power | Customized according to heating load and curing process |
| Tube Diameter | Customized according to lamp holder and power density |
| Tube Shape | Straight tube, U-shape, special shape, or custom design |
| Reflector Coating | Clear, gold, ceramic, half-coated, or customized |
| End Cap | Ceramic cap, metal cap, or special end structure |
| Lead Wire | High-temperature cable with customized length |
| Terminal | Bare wire, ring terminal, spade terminal, plug, pin, or customized connector |
| Accessories | Reflector, lamp holder, clip, power controller, sensor, heating module |
Short wave infrared paint curing lamps can be used as individual replacement lamps or integrated into complete heating modules.
A complete infrared paint curing system may include:
Short wave infrared lamps.
Gold or ceramic reflector coating.
External reflector or lampshade.
Ceramic lamp holders and mounting clips.
SCR power controller or thyristor regulator.
PID temperature controller.
Infrared thermometer or thermocouple feedback.
Heating zone control.
Safety protection and cooling structure.
For ovens or production lines, multiple lamps can be arranged into heating zones. Each zone can be controlled separately according to part size, paint type, conveyor speed, and target surface temperature.
To select or replace a short wave infrared paint curing lamp, please confirm the following information:
| Required Information | Example |
|---|---|
| Total lamp length | Overall length including end parts |
| Heating length | Effective heated section |
| Voltage and power | 230V 1000W, 400V 3000W, etc. |
| Tube diameter | Measured quartz tube diameter |
| Coating type | Clear, gold reflector, ceramic reflector |
| End cap style | Ceramic cap, metal cap, no cap, or special connector |
| Lead wire length | Standard or customized |
| Terminal type | Ring terminal, spade terminal, pin, plug, or bare wire |
| Application | Automotive paint curing, repair booth, coating line, IR oven |
| Installation photos | Complete lamp photo, both ends, holder, and wiring position |
If the original lamp marking is unclear, photos of the complete lamp and both end structures can help confirm the replacement design.
YFR manufactures quartz infrared lamps for paint drying, coating curing, replacement heating, and OEM infrared heating systems. For short wave paint curing lamps, production focuses on quartz tube quality, filament positioning, reflector coating, end sealing, electrical performance, lead wire assembly, and packaging protection.
Main inspection points include:
Quartz tube visual inspection.
Filament and support structure inspection.
Tube sealing and gas filling process control.
Reflector coating appearance and coverage inspection.
End cap and lead wire assembly inspection.
Electrical resistance and power matching.
Insulation and safety inspection according to order requirements.
Final visual inspection and export packaging.
A short wave infrared paint curing lamp is a quartz infrared emitter used to provide fast radiant heating for paint drying, coating curing, automotive refinishing, repair booths, IR ovens, and industrial heating equipment.
Yes. Short wave infrared lamps are commonly used in automotive refinishing and paint repair equipment. The correct lamp power, distance, exposure time, and temperature control should be selected according to paint type, coating thickness, and repair area.
Yes. YFR can customize lamp length, heating length, voltage, power, tube diameter, coating, end cap, lead wire, terminal, and special shape according to your equipment requirements.
A gold reflector helps direct infrared radiation toward the painted surface. It is useful when the lamp is installed in one-sided heating modules or when rear-side radiation should be reduced.
Yes. YFR can supply reflectors or lampshades for target heating. The size and material can be customized according to working temperature and installation structure.
Yes, if the dimensions, voltage, power, coating, end structure, and terminals match. Please send the original lamp photos, markings, dimensions, and application details for confirmation.
