Due to the higher temperature of the heating filament, the radiation density of the short-wave infrared lamp is in most cases higher than that of the medium-wave infrared emitter.

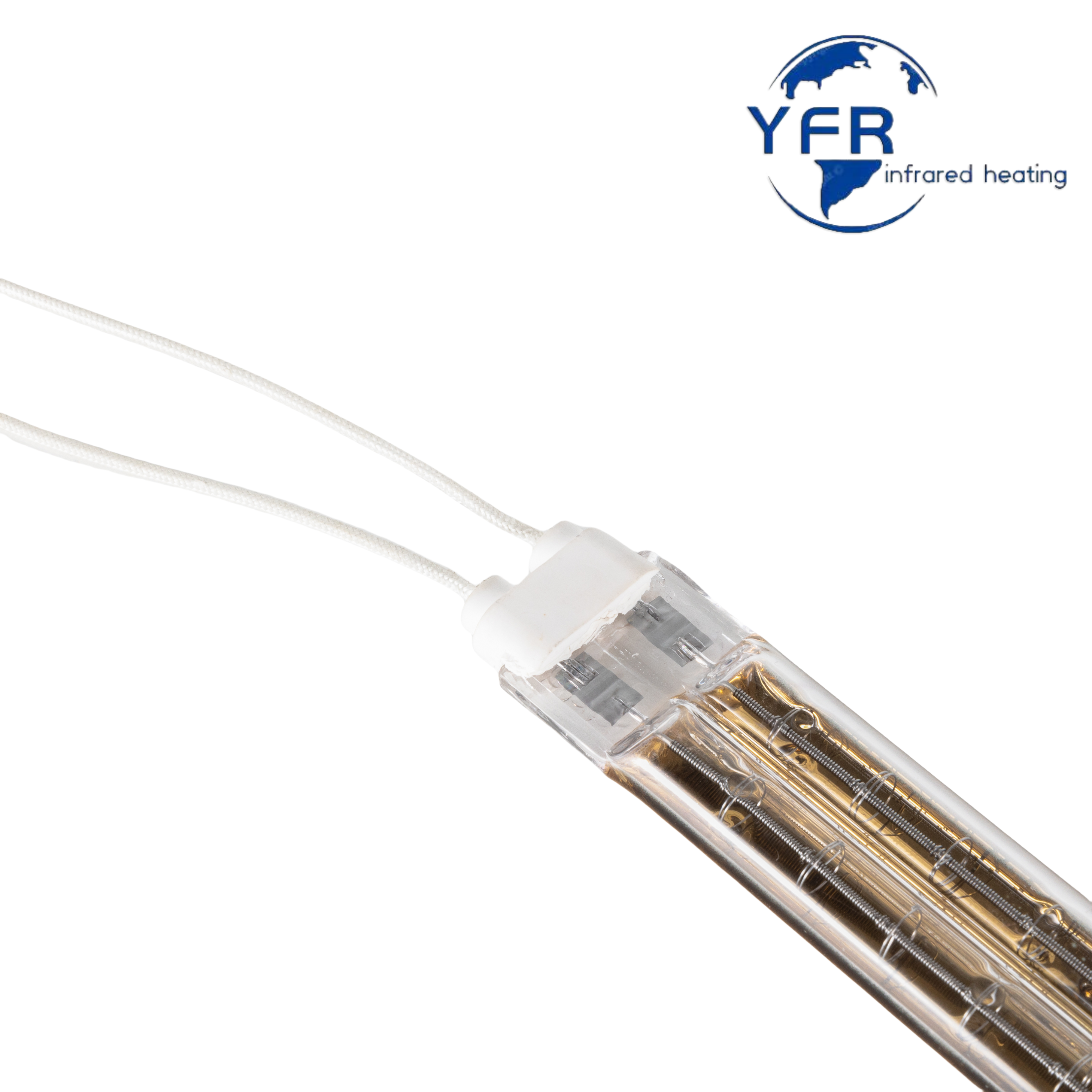

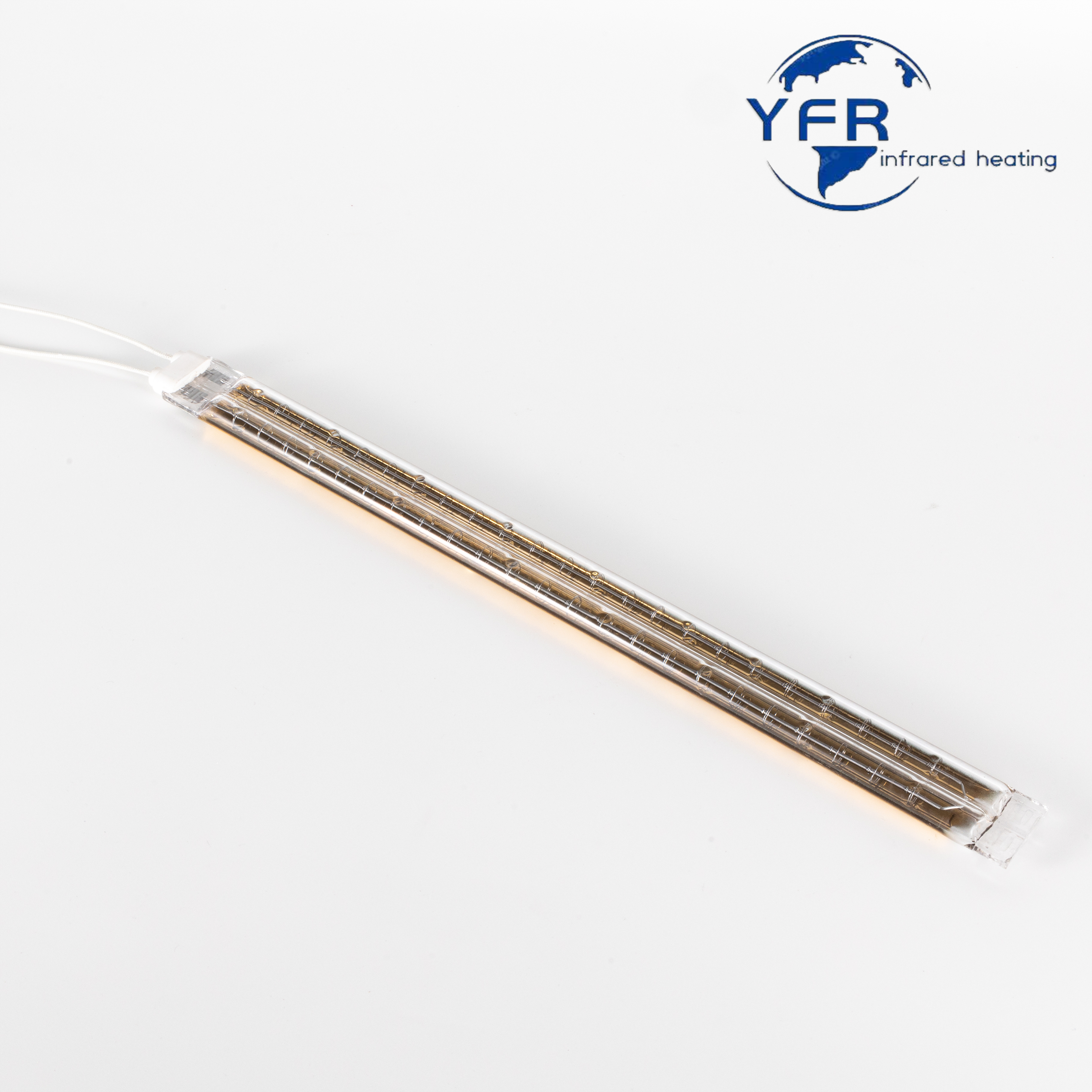

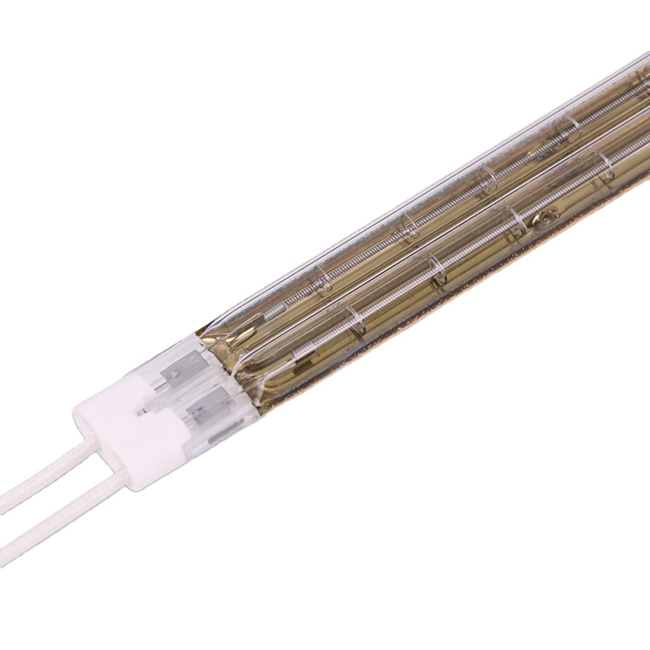

Double tube Design
The unique double tube design has excellent mechanical stability and good radiation capacity and, we can customize the quartz tube and filament to meet your requirements. The Max length can reach 3 meters.
Good Quality Quartz Tube
We can customize the tube according to your requirement, Special sharp all available. The Raw materials Quartz are filtered and finely processed. Quartz glass is very pure, with excellent thermal stability and transmission.

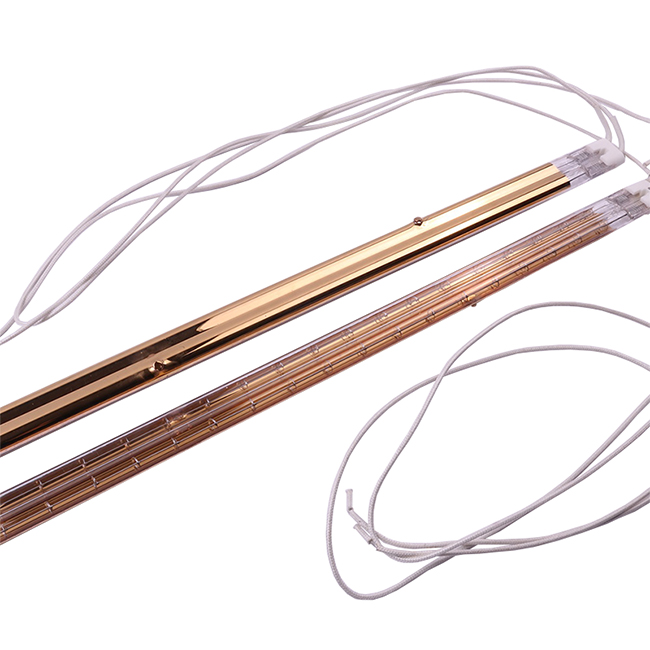

Gold reflector
Risen Gold coating IR lamps can Provide directional heating to the object. The gold reflector on the IR lamps reflects Infrared radiation. It nearly provide double the effective radiation - a good choice to improve the heating efficiency.
Energy-saving principle of short wave infrared heat lamp:
The short wave infrared lamp Produce multiple reflections when passing through the quartz tube. It has excellent far infrared radiation characteristics. If there is a gold-plated reflective layer, the effect is better, and the power saving can reach 35%.
The characteristics of the infrared quartz lamp.
The infrared heating tube does not use paint outside, is not filled inside, stable radiation rate, no deformation at high temperature, no harmful radiation, no environmental pollution, strong corrosion resistance, good chemical stability, Little thermal penetration, high thermal conversion rate, long-term use, no deterioration of the original color.
Technical Parameter
Power | Max 12000w |
Heating Length | Max 5000 mm |
Cross-Section | 11x23mm / 15x33mm |
Filament Temperature | 1800- 2400 C |
Wave length | 1.0-1.4 um |
Unit Area Power | Max 200kw/m² |
Response time | 1 Seconds |
Filament | Tungsten |
Service Life | 5000 hours |
Reflector | Gold reflective or Ceramic white coated |

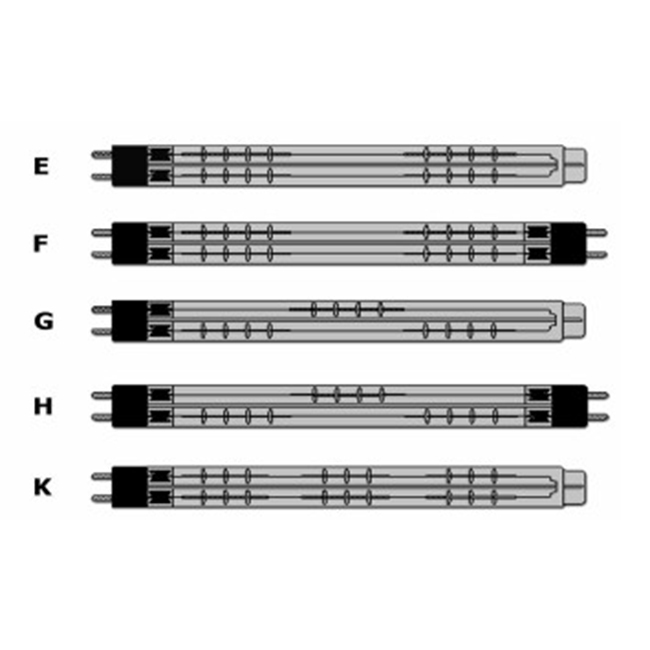

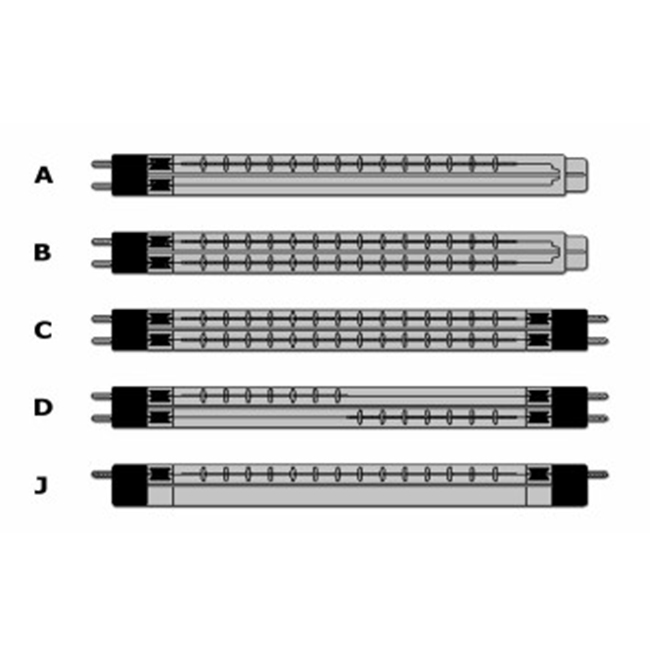

Short wave twin tube infrared lamp with different filament configurations. This allows extraordinary flexibility both in terms of heated area modularity and lead wire position. The picture below represents some of the most common filament configuration.

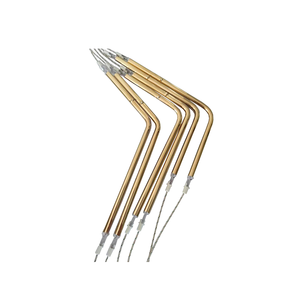

YFR Tech Infrared radiators can also be customized in special geometries such as omega, curved or to build complete infrared system .
