Single Tube Infrared Heating Tube

The infrared short-wave emitter provides high-temperature heat energy and is better suited to the needs of fast point-and-response heating.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Single-Tube Short-Wave Infrared Heating Lamp

YFR single-tube infrared heating lamps use a helically wound tungsten filament inside a compact quartz envelope. The narrow round tube is suitable for localized heating, dense multi-lamp arrays and equipment with limited installation space. Clear, reflector-coated and customized end configurations can be evaluated for OEM or replacement use.

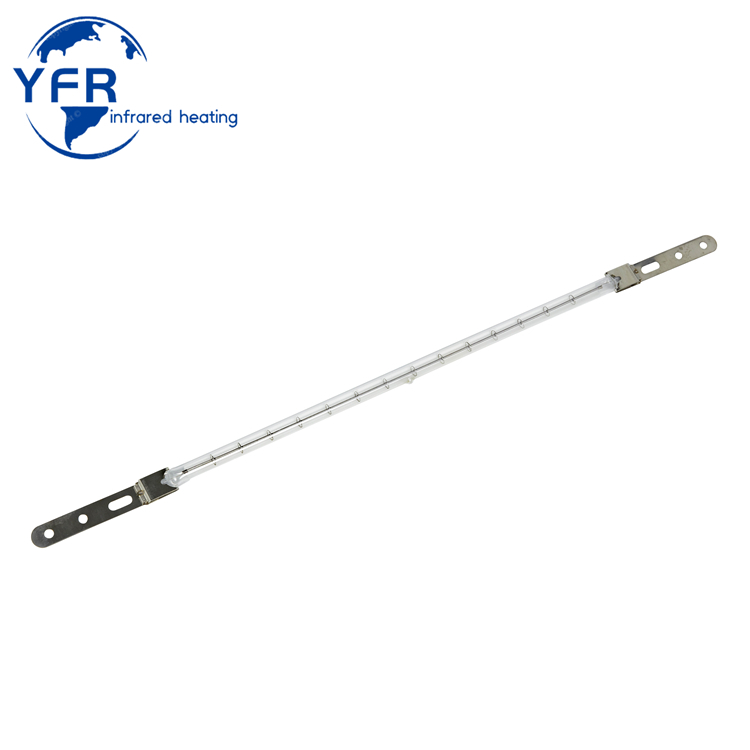

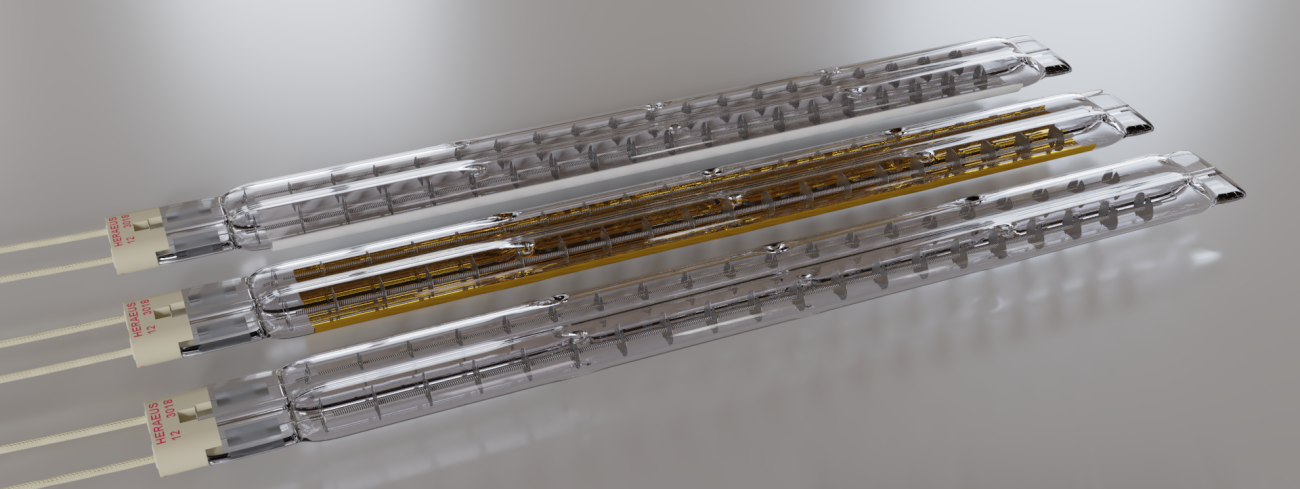

YFR single-tube short-wave quartz infrared heating lamps with customized end connections

Published Dimensional Range

Tube diameter	Overall length	Tube thickness	Heated length	Maximum power
10 mm	80–1700 mm	1.3 mm	30–1650 mm	100 W/cm
10.5 mm	80–1700 mm	1.3 mm	30–1650 mm	100 W/cm
11 mm	80–1700 mm	1.3 mm	30–1650 mm	100 W/cm
12 mm	80–1700 mm	1.3–1.5 mm	30–1650 mm	100 W/cm
13 mm	80–1700 mm	1.5 mm	30–1650 mm	100 W/cm
13.5 mm	80–2100 mm	1.5–1.75 mm	30–2050 mm	100 W/cm
15 mm	80–2500 mm	1.8 mm	30–2450 mm	120 W/cm
18 mm	80–3000 mm	2.0 mm	30–2950 mm	150 W/cm

The table describes the published manufacturing range. Maximum length and maximum power do not necessarily apply together. The approved rating depends on filament design, mounting, cooling, orientation and electrical supply.

Configuration Options

Total length, heated length, cold ends and filament zoning.
Voltage, power and switching or power-control method.

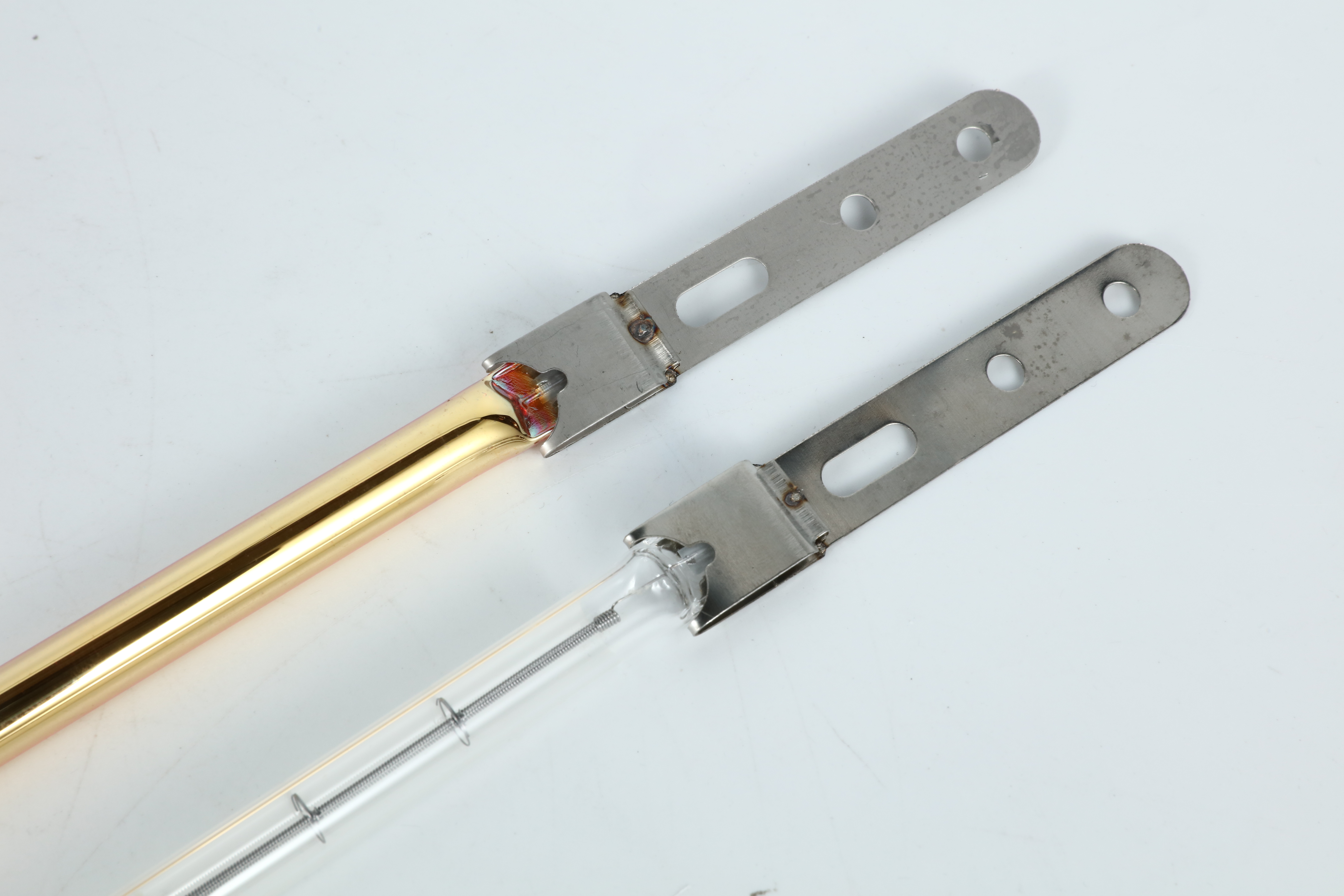

Clear quartz, gold reflector or white ceramic reflector.

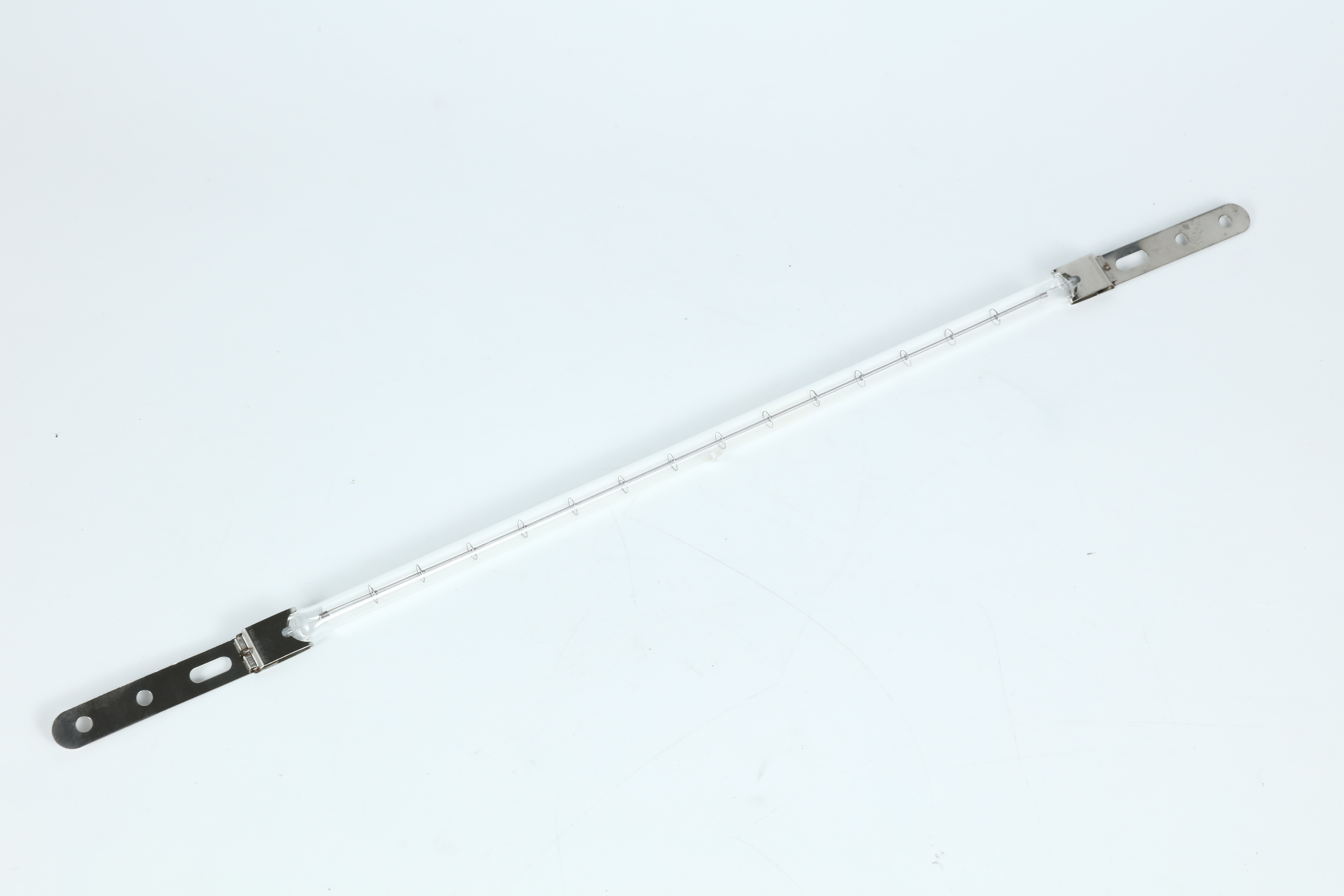

Ceramic ends, clips, cables, connectors and lead direction.

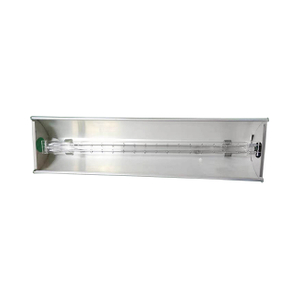

Horizontal or vertical mounting and available cooling.

Typical Applications

Single-tube lamps can be evaluated for coating and ink drying, adhesive activation, plastic forming, PET preform heating, local component preheating, textile processing, food-equipment heating zones and custom industrial ovens. Their compact diameter makes them useful when several lamps must be arranged close together or when a narrow heating line is required.

Replacement Information

Provide the original lamp code, voltage, power, tube diameter, total length, heated length, photos of both ends and connector details. If the lamp uses a directional reflector, mark the side that faces the product. An undamaged sample or dimensioned drawing is recommended for non-standard end structures.
