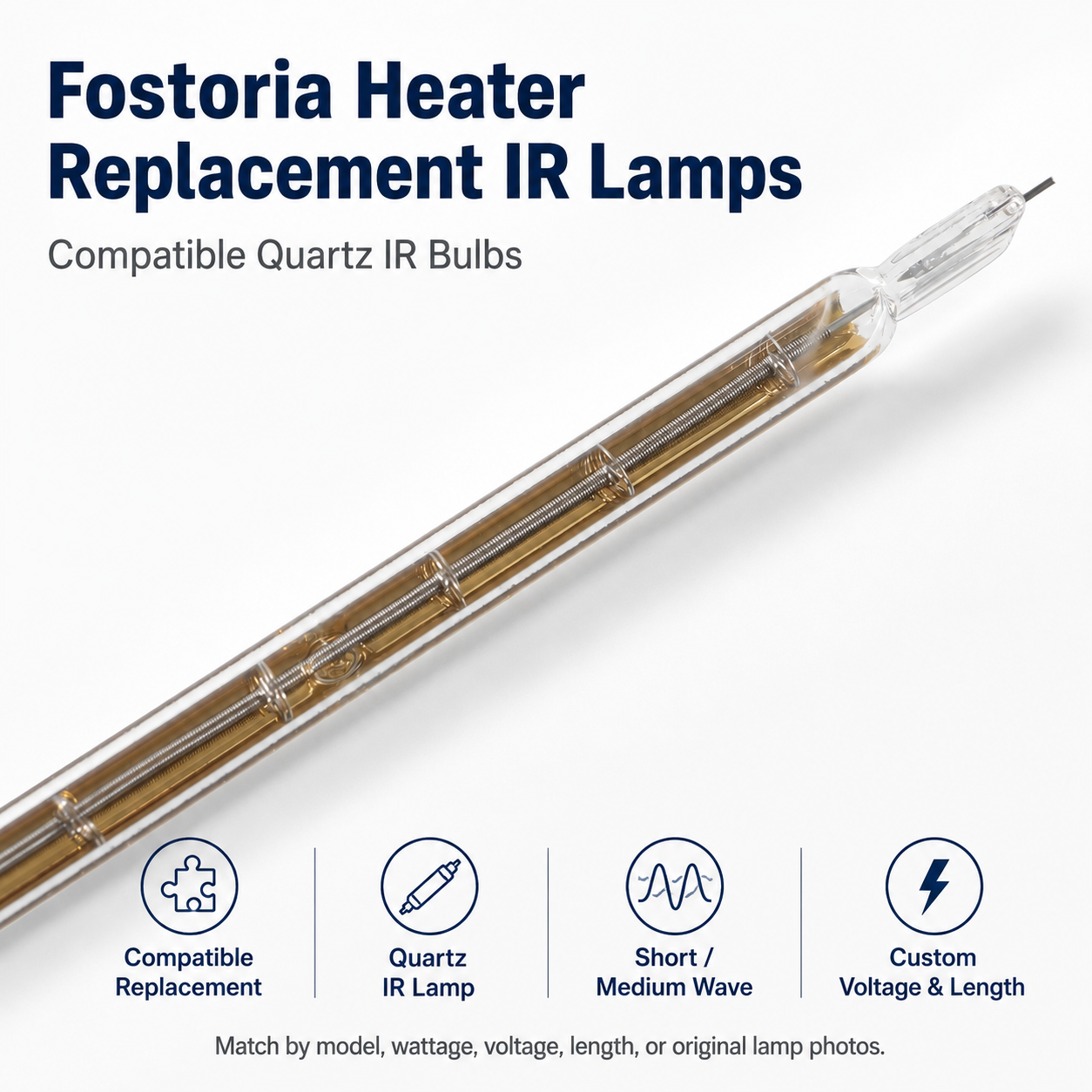

YFR supplies compatible replacement IR lamps for Fostoria-style heaters used in industrial, commercial, and comfort heating applications. The lamps can be matched by original model number, wattage, voltage, overall length, heating length, end type, and installation structure.
These replacement infrared lamps are commonly used when the original heater lamp is broken, aging, difficult to source, or discontinued. YFR can provide quartz short wave infrared lamps, medium wave infrared lamps, and customized replacement lamps according to your heater requirements.
YFR is not affiliated with Fostoria. Brand names and model references are used only to help customers identify compatible replacement lamps.
Fostoria-style heaters are designed around specific lamp dimensions, wattage, voltage, and mounting structures. Using an incorrect replacement lamp may cause poor heating performance, uneven radiant output, installation problems, or overheating risks.
A properly matched IR lamp helps maintain the heater’s original heating direction, reflector alignment, electrical load, and installation fit. For this reason, YFR recommends confirming the original lamp number or checking the key dimensions before ordering replacement lamps.
YFR can supply different replacement lamp types according to the original heater design.
For faster checking and quotation, please provide as much information as possible from the original lamp or heater label.
| Required Information | Example |
|---|---|
| Heater Model | Fostoria heater model if available |
| Lamp Number | Original lamp number or catalog number |
| Voltage | 120 V, 208 V, 240 V, 277 V, 480 V, etc. |
| Wattage | 1000 W, 1600 W, 2500 W, 3000 W, etc. |
| Overall Length | Full lamp length from end to end |
| Heating Length | Effective heated section |
| End Type | Ceramic cap, R7s, lead wire, clip, or special terminal |
| Quantity | Sample order or batch order |
| Photos | Full lamp body and both lamp ends |
If the model number is missing or unclear, clear photos of the complete lamp, both ends, and the heater installation position are usually enough for preliminary evaluation.
YFR replacement IR lamps for Fostoria-style heaters can be used in different heating environments.
| Application | Typical Use |
|---|---|
| Industrial Process Heating | Drying, curing, preheating, and thermal processing |
| Warehouse & Workshop Heating | Replacement lamps for comfort heating equipment |
| Loading Dock Heating | Infrared heater lamp replacement |
| Food Service Heating | Warming and holding applications |
| Packaging & Shrink Heating | Film heating and shrink-wrapping systems |
| Maintenance Replacement | Replacing broken or aging IR heater lamps |
If your required lamp is not a standard model, YFR can evaluate a custom replacement based on your sample, drawing, or photos. Length, voltage, wattage, tube diameter, filament design, reflector structure, ceramic end cap, lead wire, and terminal type can be adjusted according to the heater design.
For discontinued or hard-to-find lamps, we recommend sending one original sample or detailed photos before batch production.
YFR focuses on infrared lamp manufacturing for industrial heating and replacement applications. Quartz tube quality, filament structure, sealing, end connection, and electrical parameters are selected according to the required operating conditions.
Before shipment, lamps can be checked for appearance, dimensional consistency, continuity, and basic electrical performance. For custom replacement orders, sample confirmation is recommended before mass production.
No. YFR supplies compatible replacement IR lamps for Fostoria-style heaters. Fostoria names and model references are used only for identification and cross-reference.
Please check the original lamp number, heater model, voltage, wattage, overall length, heating length, and end type. If you are not sure, send photos of the original lamp and both ends.
Yes. YFR can evaluate custom replacement lamps based on photos, samples, drawings, or technical parameters.
Yes. YFR can supply quartz short wave lamps, medium wave lamps, and customized IR lamps depending on the heater design.
Please provide heater model, lamp number, voltage, wattage, total length, heating length, end type, quantity, and photos if available.
Need IR lamps for a Fostoria-style heater?
Send us your heater model, original lamp number, voltage, wattage, total length, heating length, end fitting details, and photos. YFR can help check the matching replacement lamp or provide a customized infrared lamp solution.
