When a Fostoria infrared lamp fails, most users want the same thing: get the heater back into service as quickly as possible without ordering the wrong replacement. The problem is that infrared lamp replacement is often treated as a simple spare-parts decision when it is actually a matching decision. A lamp can fit the heater, power on correctly, and still produce a different heating result. That is why the right replacement is not just the lamp that installs. It is the lamp that preserves the original heating behavior.
For Fostoria replacement infrared lamps, the most common questions are practical ones. How do you tell whether the failed lamp is short-wave or medium-wave? Which specification matters first: OAL, HL, voltage, or wattage? Why can two lamps look similar but still behave differently? When should a glare reduction sleeve also be checked instead of treating the lamp alone as the full replacement?
This guide is built to answer those questions directly.
A failed lamp often gets removed in a hurry. The old part may be darkened, hard to read, or missing a clear label. That is why many users fall back on visual comparison. They look at the old lamp, estimate the length, check the voltage or wattage if visible, and reorder something that looks close.
That shortcut is where replacement errors begin.
A replacement infrared lamp should be matched by function, not by rough appearance. If the wave type is wrong, if the active heated section does not match, or if the accessory setup is incomplete, the heater can operate differently even though the new lamp physically installs without trouble.
A correct replacement should preserve three things:
basic physical fit
electrical compatibility
heating behavior
If one of those is missed, the replacement can still be wrong.
Before comparing dimensions, start with the wave type. This is the first real filter in Fostoria replacement infrared lamps.
Short-wave and medium-wave infrared lamps are not interchangeable categories. They can differ in response, application fit, construction, and how the heater was originally designed to use them. If the replacement starts from the wrong wave family, the rest of the specification check can go in the wrong direction from the start.
That is why wave type should be identified before trying to match length alone.
Common short-wave Fostoria replacement families include models such as:
MM-18A
MM-24A
222 / 223 Series
342 / 343 Series
462 / 463 Series
Short-wave replacements are commonly associated with higher-wattage quartz lamp configurations, and they often appear in a wide range of voltage options. In practical replacement work, users should expect short-wave lamps to require careful confirmation of wattage, voltage, overall length, and heated length rather than assuming that one quartz lamp is much like another.
Common medium-wave Fostoria replacement families include models such as:
FFH-912B
FFH-512A
CH Series
OCH Series
Trimline Series
Medium-wave replacements also come in multiple wattages and voltages, but they should be treated as their own matching path. A medium-wave heater should not be matched by starting from a short-wave assumption, even when the lamp looks generally similar in size or shape.
If the old lamp reference or heater family can still be identified, confirm the wave type first. If the heater family is uncertain, do not jump directly to wattage-only matching. Start by establishing whether the failed lamp belongs to a short-wave or medium-wave replacement group.
Once the wave type is known, the next step is not “choose the nearest size.” The correct sequence is to verify the specifications that actually affect fit and heating behavior.
Voltage is one of the first specifications to confirm because it determines whether the replacement can run in the heater correctly. If the voltage does not match the original requirement, the replacement is not valid, no matter how similar the lamp looks.
Wattage matters because it affects the intended heating output. It is one of the main reference points users can often identify, but it should never be used alone as the full replacement standard. Two lamps with the same wattage can still differ in how the heat is delivered if other specifications do not match.
OAL confirms the basic end-to-end size of the lamp. This is one of the dimensions users often check first because it affects whether the lamp can physically fit the heater assembly.
But OAL is not the whole story.
HL is one of the most commonly overlooked replacement checks. It tells you the length of the active heating section. Two lamps may have similar overall size, but if the heated section differs, the heater can behave differently after replacement.
This is one of the clearest reasons why “it fits” does not automatically mean “it is correct.”
Some replacement lamps may differ in orientation or construction even when the basic size looks similar. If the replacement is matched only by wattage and OAL, physical installation may become difficult or the lamp may not sit correctly in the heater.
Check item | Why it matters |
|---|---|
Wave type | Confirms whether the replacement path starts with short-wave or medium-wave |
Voltage | Ensures the lamp is electrically correct |
Wattage | Confirms intended heating output level |
OAL | Confirms the lamp can physically fit |
HL | Helps preserve the original active heating behavior |
Tube style / orientation | Prevents look-alike mismatch |
Sleeve requirement | Ensures the original setup is fully matched |
This is one of the most important replacement lessons.
A lamp can fit the heater, power on normally, and still be the wrong replacement. That happens because replacement success is not defined by installation alone. It is defined by performance after installation.
There are several common ways this goes wrong:
the overall length matches, but the heated length does not
the wattage is correct, but the wave type is wrong
the voltage is correct, but the accessory setup is incomplete
the lamp fits physically, but the orientation or active section differs from the original
In all of these cases, the heater may still operate. But it may no longer behave the way the original setup was intended to behave.
That is the difference between a lamp that can be installed and a lamp that is truly matched.
Some Fostoria infrared lamp replacements are not complete if the lamp alone is matched. The glare reduction sleeve may also need to be checked.
This matters when the original setup used a ruby glare reduction sleeve and the replacement decision focuses only on the lamp body. If the sleeve is ignored, the replacement may be incomplete even though the lamp itself is correct.
Typical glare reduction sleeve grouping is often tied to lamp wattage families, for example:
sleeves used for 1600 W quartz lamp groups
sleeves used for 2500 W quartz lamp groups
sleeves used for 3650 W or 3800 W quartz lamp groups
The practical takeaway is simple: if the old setup included a glare reduction sleeve, do not assume the replacement is complete until that sleeve requirement is also confirmed.
The same mistakes appear repeatedly in Fostoria replacement work.
A lamp looks close enough, so it gets reordered without confirming wave type, HL, or sleeve requirement.
Wattage is important, but it is not a complete replacement standard. It should be checked together with voltage, OAL, HL, and wave type.
This is one of the easiest ways to order a lamp that fits the heater but changes the heating pattern.
If the heater originally used a glare reduction sleeve, leaving it out of the replacement check can create an incomplete match.
Short-wave and medium-wave replacement logic should not be mixed. If the old reference is unclear, the first task is identification, not approximation.
Like-for-like replacement is usually the right choice when the original heater was already performing correctly and the goal is simply to restore the same behavior after lamp failure.
That approach becomes less safe when any of the following is true:
the old lamp marking is unreadable
the wave type is uncertain
the heater’s performance expectations have changed
previous replacements were inconsistent
the original accessory setup is incomplete or unknown
In those cases, the user should not treat the order as a quick reorder. It should be treated as a replacement review.
A user removes a failed Fostoria infrared lamp and confirms two things from the old setup: the voltage and the wattage. The overall size looks close to a replacement option, so the lamp is reordered and installed.
The new lamp fits. The heater powers on. At first glance, the replacement appears successful.
But the heating result is not quite the same. The user then discovers that the lamp was matched by overall size and power only. The active heated section was not checked carefully, and the glare reduction sleeve from the original setup was not reviewed.
Nothing was wrong with the electrical connection. The problem was incomplete matching logic.

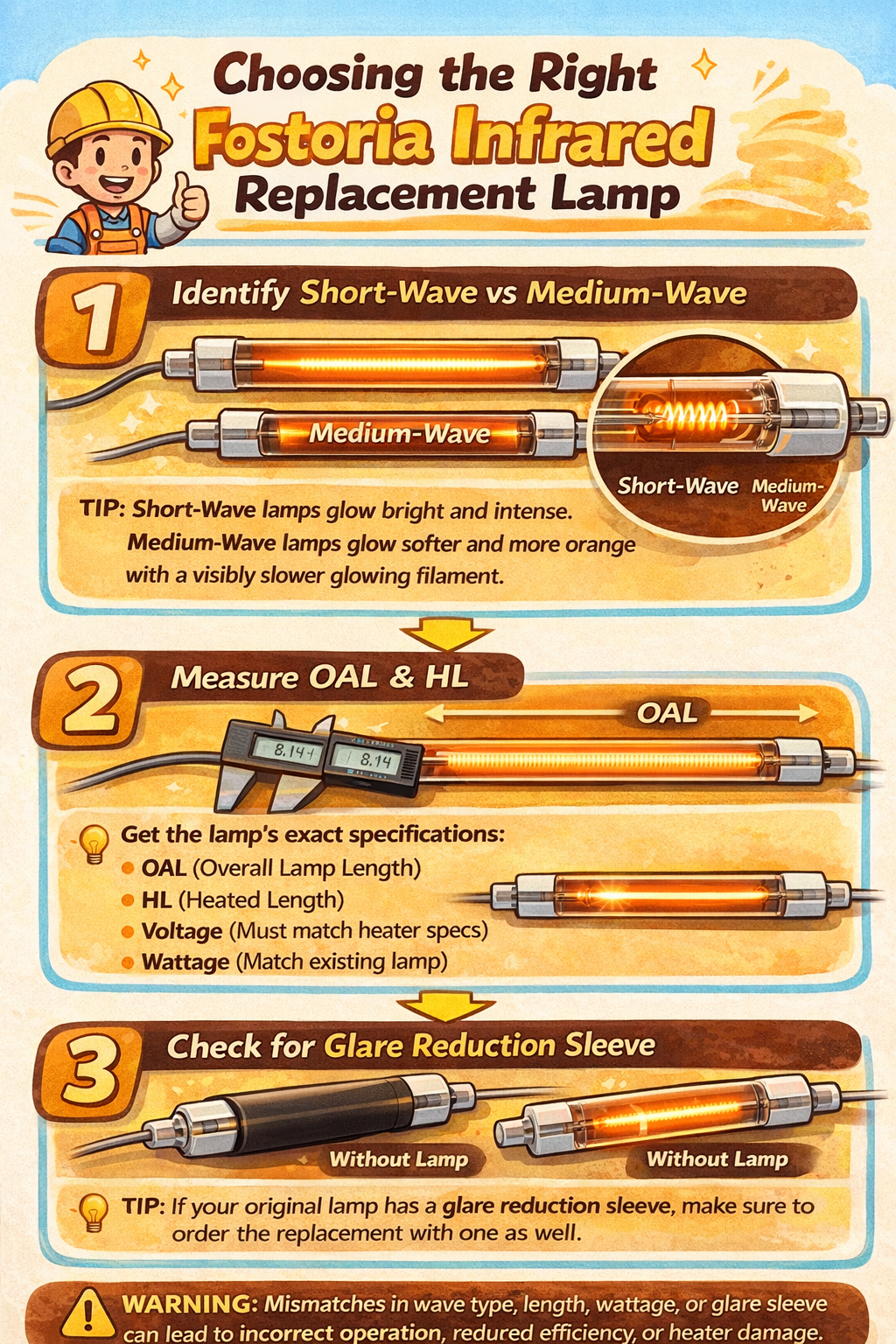

That is why correct Fostoria replacement infrared lamps should be selected by sequence:
identify wave type
confirm voltage and wattage
verify OAL and HL
check orientation and fit
confirm whether a sleeve is also part of the replacement
Start by identifying the heater family or old reference if available. Do not guess only from overall size. The correct replacement path begins with wave type.
Start with wave type first. After that, confirm voltage and wattage, then verify OAL and HL together. OAL helps confirm fit, while HL helps confirm the active heating section.
Because they describe different things. OAL tells you the total lamp size. HL tells you the length of the active heated area. A lamp can match one and still differ in the other.
Because physical fit is only one part of the match. The lamp also needs to match the original electrical requirement and the original heating behavior.
Check it whenever the original setup used one or when the replacement family includes sleeve compatibility as part of the lamp system. Do not assume the lamp alone is the full replacement.
Wave-type check
Confirm whether the failed lamp belongs to a short-wave or medium-wave replacement family before comparing dimensions.
Specification check
Verify voltage, wattage, OAL, and HL together, not one at a time in isolation.
Accessory check
If the original setup used a glare reduction sleeve, include that in the replacement review.
Best first inquiry package
Prepare the old lamp photos, heater model if known, wave type if known, voltage, wattage, OAL, HL, and any sleeve information.
