Medium-wave infrared emitters are used when a process benefits from a different absorption balance and a more gradual response than a low-mass short-wave lamp. They are often evaluated for coatings, moisture-rich materials, textiles, wood and other drying or heating duties.
Record material, thickness, colour, moisture or coating chemistry, initial condition, target temperature and accepted quality. Define the endpoint with a repeatable measurement rather than time alone.
The emitter’s element temperature and construction determine its output. The product absorbs part of that spectrum according to its composition and surface. Medium wave is not universally “deeper” or “more efficient”; fit is process-specific.
| Decision | Options | Evidence |
|---|---|---|
| Element | Nickel-chromium or carbon design | Absorption and response trial |

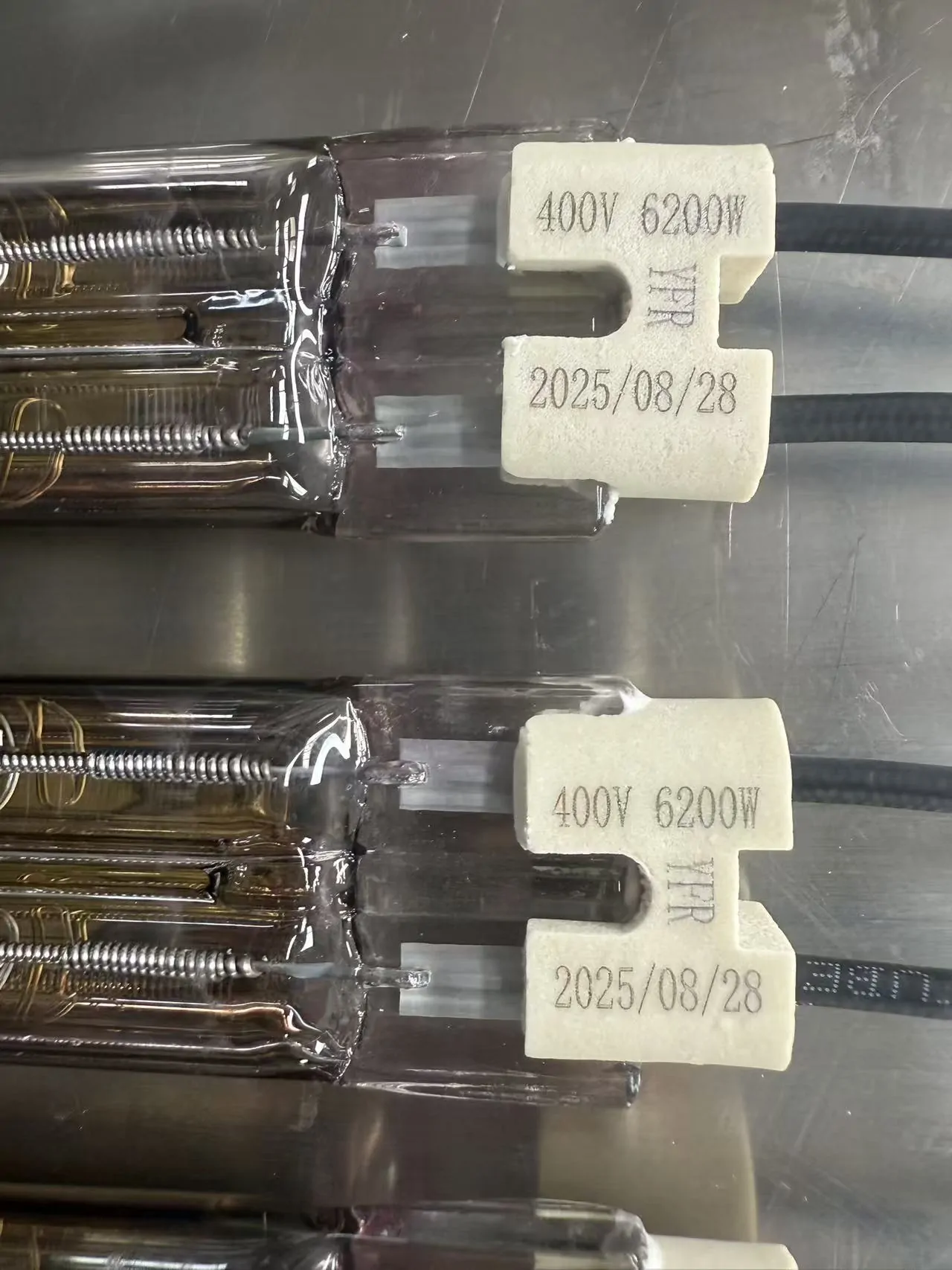

| Tube | Single or twin tube | Power, rigidity and mounting |
| Direction | Clear, coated or external reflector | Temperature profile |
| Control | Zoned switching or power regulation | Line-speed and stop tests |
Compare YFR medium-wave lamps and carbon emitters.
For drying, radiant input supplies evaporation energy while airflow removes humid air from the surface and enclosure. Poor exhaust can limit output even when more lamp power is available.
Map temperature across the product and through the operating range. Check start-up, maximum speed, low speed and line stops. Measure energy per accepted product rather than quoting a universal saving.
No. Coating, substrate, airflow and line conditions must be tested.
Yes, but controller and emitter thermal inertia affect the response.
No. Twin tube is a mechanical construction.
Adjust spacing, distance, reflector, zones and airflow from measured profiles.
Send YFR the material, process speed, heated dimensions and endpoint for an emitter review.
