In the vast spectrum of light invisible to the human eye, infrared radiation reigns supreme, powering technologies from night vision cameras to therapeutic medical devices. But within the infrared world, there's a crucial divide that often causes confusion: Near IR vs. Far IR.
Understanding the difference between Near-Infrared (NIR) and Far-Infrared (FIR) is not just an academic exercise; it's essential for engineers, product designers, security professionals, and wellness experts to select the right technology for their application. Choosing the wrong type of infrared can lead to inefficient systems, failed projects, and unnecessary costs.
This ultimate guide will demystify these two types of infrared radiation. We will break down their scientific properties, explore their most common applications, and provide a clear framework to help you decide which technology is best suited for your needs. By the end of this article, you will be able to confidently navigate the difference between near and far infrared technology.
Before we dive into the comparison of NIR and FIR, it's important to understand where they come from. Infrared (IR) is a type of electromagnetic radiation with wavelengths longer than visible light but shorter than microwaves. Essentially, it's the "heat" energy emitted by objects.
The infrared spectrum is broadly divided into three categories based on wavelength:
Near-Infrared (NIR): 700 nm to 1,400 nm (0.7 µm to 1.4 µm)
Mid-Infrared (MIR): 1,400 nm to 3,000 nm (1.4 µm to 3 µm)
Far-Infrared (FIR): 3,000 nm to 1 mm (3 µm to 1,000 µm)
For the purpose of this article, we will focus on NIR and FIR technology, as they represent the two most distinct ends of the commonly used IR spectrum.
Near-IR is the region closest to visible light, hence its name. Its wavelengths range from approximately 0.7 to 1.4 micrometers (µm). NIR light is characterized by its high energy (compared to other IR bands) and its ability to behave similarly to visible light—it can be reflected, refracted, and focused with optical lenses. It is often called "short-wavelength" infrared.
NIR technology typically relies on an active illumination source. A device, like an LED or laser, emits NIR light that is invisible to humans. This light hits objects and reflects back to a sensor (e.g., a CCD or CMOS camera sensor designed to be sensitive to NIR). The sensor then interprets this reflected light to create an image or gather data. This is why it's excellent for imaging in low-light conditions.
Night Vision & Surveillance: NIR illuminators are used in security cameras to provide covert lighting for capturing clear footage in complete darkness.
Fiber Optic Communications: NIR wavelengths (especially around 1300 and 1550 nm) experience low loss in glass fibers, making them the backbone of the internet and telecommunications.
Medical Imaging: Techniques like NIR spectroscopy use the light's ability to penetrate tissues and be absorbed by hemoglobin to monitor oxygen saturation in blood (pulse oximeters) and study brain activity.
Machine Vision & Industrial Inspection: NIR cameras can see through certain materials (like silicon) or detect impurities in food products that are invisible to the naked eye.
Remote Controls: Your TV remote uses an NIR LED to send signals to your television receiver.
Far-IR is the region closest to microwaves. It encompasses much longer wavelengths, typically from 3 to 1000 µm. This band is primarily associated with thermal radiation. Every object with a temperature above absolute zero emits FIR radiation. The amount and specific wavelength of emission depend directly on the object's temperature.
Unlike NIR, FIR sensing is passive. It does not require an active light source. Instead, a thermal camera or sensor detects the inherent FIR radiation (heat) emitted by objects themselves. These sensors are made from materials like vanadium oxide or mercury cadmium telluride that are highly sensitive to heat. The camera translates different intensity levels of this radiation into a thermogram—an image that uses color to represent temperature variations.
Thermal Imaging: This is the primary application. Used for building inspections (heat leaks), electrical maintenance (overheating components), firefighting (seeing through smoke), and search-and-rescue operations.
Military and Law Enforcement: Advanced thermal imaging scopes and goggles allow users to see targets based on their body heat, day or night, without any ambient light.
Astronomy: FIR telescopes study cool and distant objects in space, such as molecular clouds and cosmic background radiation.
Far-Infrared Saunas: A wellness application where FIR heaters are claimed to penetrate the body more deeply to promote detoxification and relaxation.
Motion Sensors: Passive Infrared (PIR) sensors in security systems detect the movement of a heat source (like a person) against the background.

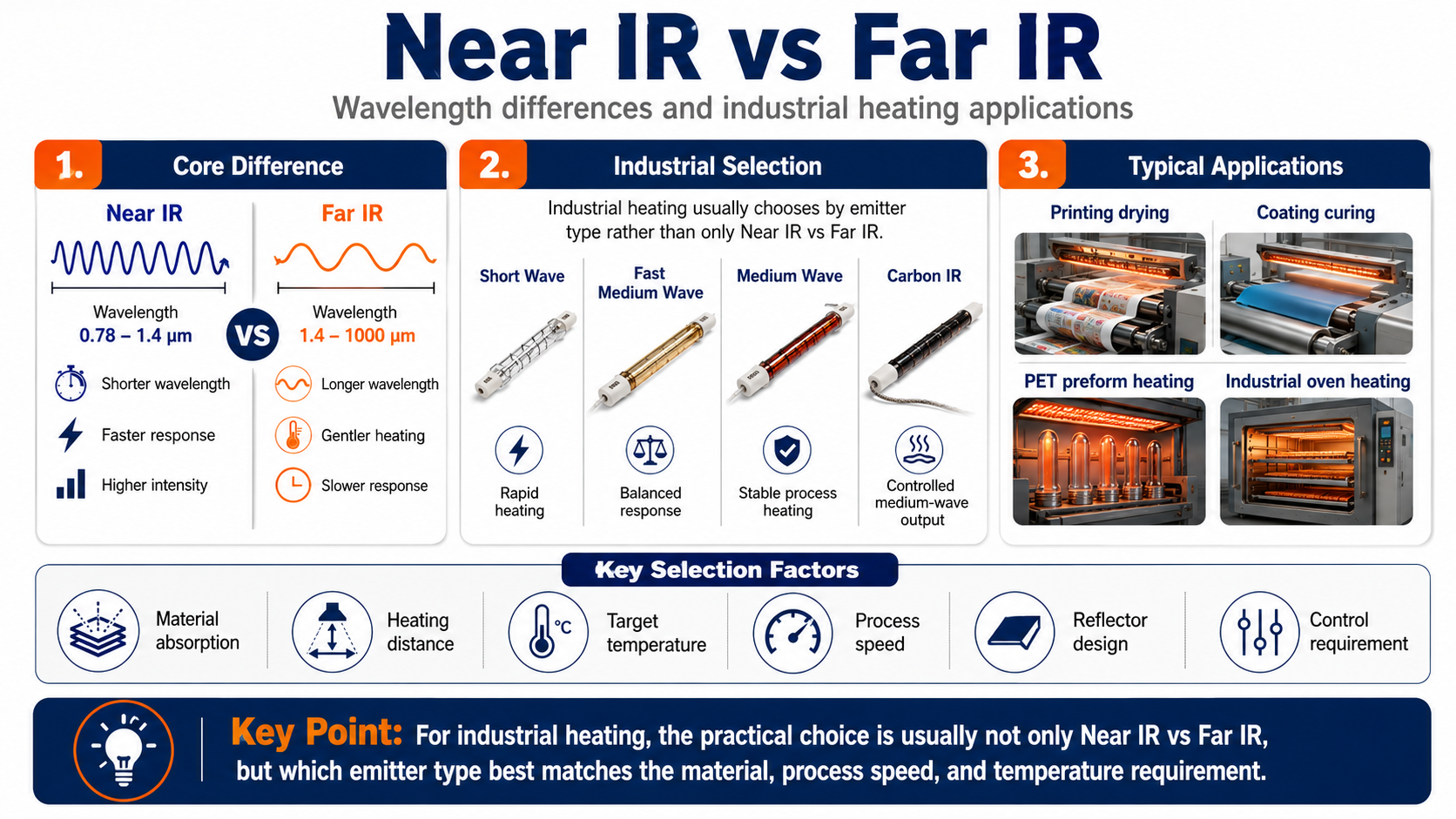

| Feature | Near-Infrared (NIR) | Far-Infrared (FIR) |
|---|---|---|
| Wavelength | Short (0.7 - 1.4 µm) | Long (3 - 1000 µm) |
| Energy Level | Higher | Lower |
| Primary Source | Active Illumination (LEDs, Lasers) | Passive Emission (Heat from objects) |
| Detection Method | Reflectance | Emissivity |
| Relation to Heat | Not directly perceived as heat; is reflected light. | Is heat; it is the thermal emission itself. |
| Performance in Light | Requires some active IR light; defeated by total darkness without an illuminator. | Works in total darkness, any weather (though affected by heavy rain/fog). |
| Performance in Fog/Dust | Poor penetration; light is scattered by particles. | Better penetration through obscurants, but absorbed by water vapor. |
| Common Applications | Night vision (with illuminator), communications, spectroscopy | Thermal imaging, temperature measurement, astronomy |
| Cost | Generally lower cost for cameras and systems. | Historically more expensive, but costs are decreasing. |
Your choice entirely depends on the problem you are trying to solve.
Choose NIR Technology if:
You need to see in low light but have control to add an invisible illuminator.
Your application involves analyzing reflected light properties (e.g., material composition, blood oxygen levels).
You require high-resolution imaging at a lower cost.
You are working with telecommunications through fiber optics.
Choose FIR Technology if:
You need to see based on heat signatures alone, with no available light.
Your goal is to measure temperature or identify thermal anomalies.
You need to "see through" visual obstructions like smoke, dust, or light fog.
Detecting living beings or overheating equipment is the primary objective.
The fields of near and far infrared technology are rapidly advancing. We are seeing the miniaturization and cost reduction of thermal cameras, bringing FIR technology into consumer smartphones and automotive safety systems (e.g., pedestrian detection at night). NIR is advancing in biomedical fields with new contrast agents for deeper tissue imaging. Furthermore, the integration of AI and machine learning is enhancing the analytical capabilities of both NIR and FIR imaging, enabling predictive maintenance and advanced diagnostic tools.
The debate of Near IR vs. Far IR is not about which technology is better, but about which tool is right for the job. NIR is the master of reflected light, ideal for detailed imaging and analysis when some form of illumination is possible. FIR is the master of thermal energy, unlocking the ability to see the world through the lens of heat, completely independent of visible light.
By understanding their fundamental principles, key differences, and primary applications outlined in this guide, you can now make an informed decision on whether NIR or FIR technology holds the key to your project's success. Embrace the invisible spectrum and unlock its potential.
A: No, humans cannot see any type of infrared light directly. Our eyes are only sensitive to the visible light spectrum (approximately 400-700 nm). However, some NIR lasers may appear as a faint red glow because they emit a small amount of light at the visible red edge of the spectrum.
A: It depends on the context. NIR with an illuminator provides high-resolution, detail-oriented images but requires an active light source and can be detected by other NIR-sensitive equipment. FIR (thermal) provides true night vision without any light, excels in detecting living targets and heat sources, and can see through visual obscurants like smoke, but the images are less detailed and primarily show heat gradients. Military and tactical teams often use a combination of both.
A: Yes, in everyday contexts. FIR is simply thermal radiation, a natural form of energy. We are constantly emitting and absorbing it. FIR saunas use concentrated heat, so standard precautions against overheating and dehydration apply. It is non-ionizing radiation, meaning it does not carry enough energy to damage DNA like UV or X-rays can.
A: NIR performance is severely degraded by fog, rain, and dust as the small particles scatter the short-wavelength light. FIR (thermal) imaging can penetrate these obscurants better but is absorbed by water vapor in the air. Heavy fog or rain, which is made of large water droplets, will also attenuate thermal signals and reduce image quality.
A: Absolutely. NIR is in your TV remote, gaming motion sensors (like older Kinect), and smartphone face unlock systems. FIR is found in non-contact thermometers (a technology everyone became familiar with during the pandemic), some high-end smartphones with thermal cameras, and advanced driver-assistance systems (ADAS) in modern cars.
A: Mid-Infrared sits between NIR and FIR. It contains wavelengths where both molecular absorption (for gas sensing) and thermal emission begin to be significant. It's crucial for chemical analysis, environmental monitoring (detecting greenhouse gases), and some specialized thermal imaging applications.
A: No, this is a common misconception. Standard thermal cameras cannot see through solid walls. They can only detect the heat emitted from the surface of objects. However, they can detect heat patterns through thin materials like plastic or glass, and they can see the heat signature from a person on the other side of a wall if it has caused a temperature change on the wall's surface.
