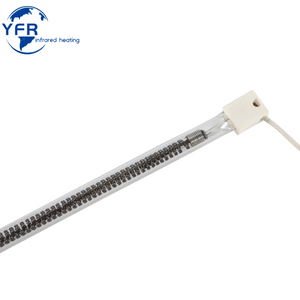

Medium wave infrared heating lamp
We manufacture and supply superior quality medium wave infrared heater that consists of a helical wound resistance coil housed in a quartz tube. The quartz tubing is terminated with ceramic insulating caps, they are are tightly fastened to the quartz tube with high temperature cement that allows the quartz to breathe. Made of high quality material, these are superior in performance and offer long serving life.
Product Date
Glass tube | 99.9% Pure fused silica quartz sealed |
Filament material | Nickel Chrome |
Filament temperature | 800-950 Degree |
Response time | > 2 minutes |
Peak wavelength | 2.2-3.5 um |
Work life | 20,000 hours |
Cross section | 11x23 / 15x33 mm . |
Max power | 25w/cm |
Length | 200-6000mm |
Operation orientation | Horizontal only |
Advantages
1.Energy saving, clean and safe,
2.Quick response, suitable for Space heating .
3.5000 hours Long work life ,
4.Easy to control, easy to install
5.High purity double tube transparent quartz tube,
6.180 degree gold plating on the back, reflection efficiency can reach 95%.

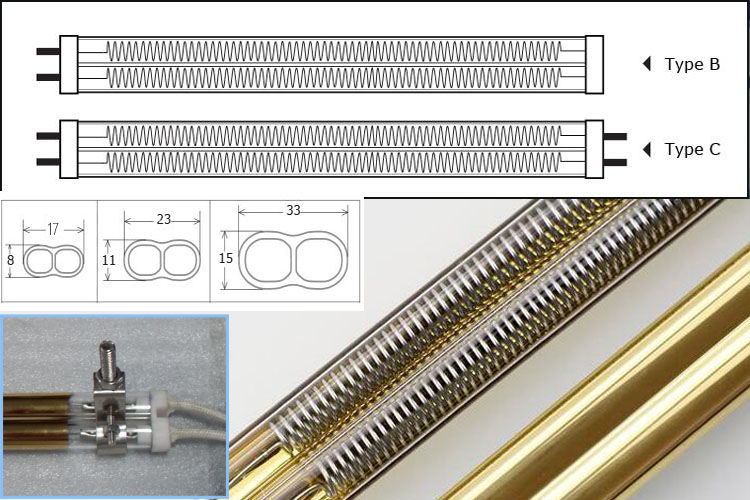

Double tube Design
The unique double-tube design has excellent mechanical stability and good radiation capacity and, we can customize the quartz tube and filament to meet your requirements. The Max length can reach 3 meters.
Good Quality Quartz Tube
We can customize the tube according to your requirements, Special sharp is all available. The Raw materials Quartz are filtered and finely processed. Quartz glass is very pure, with excellent thermal stability and transmission.

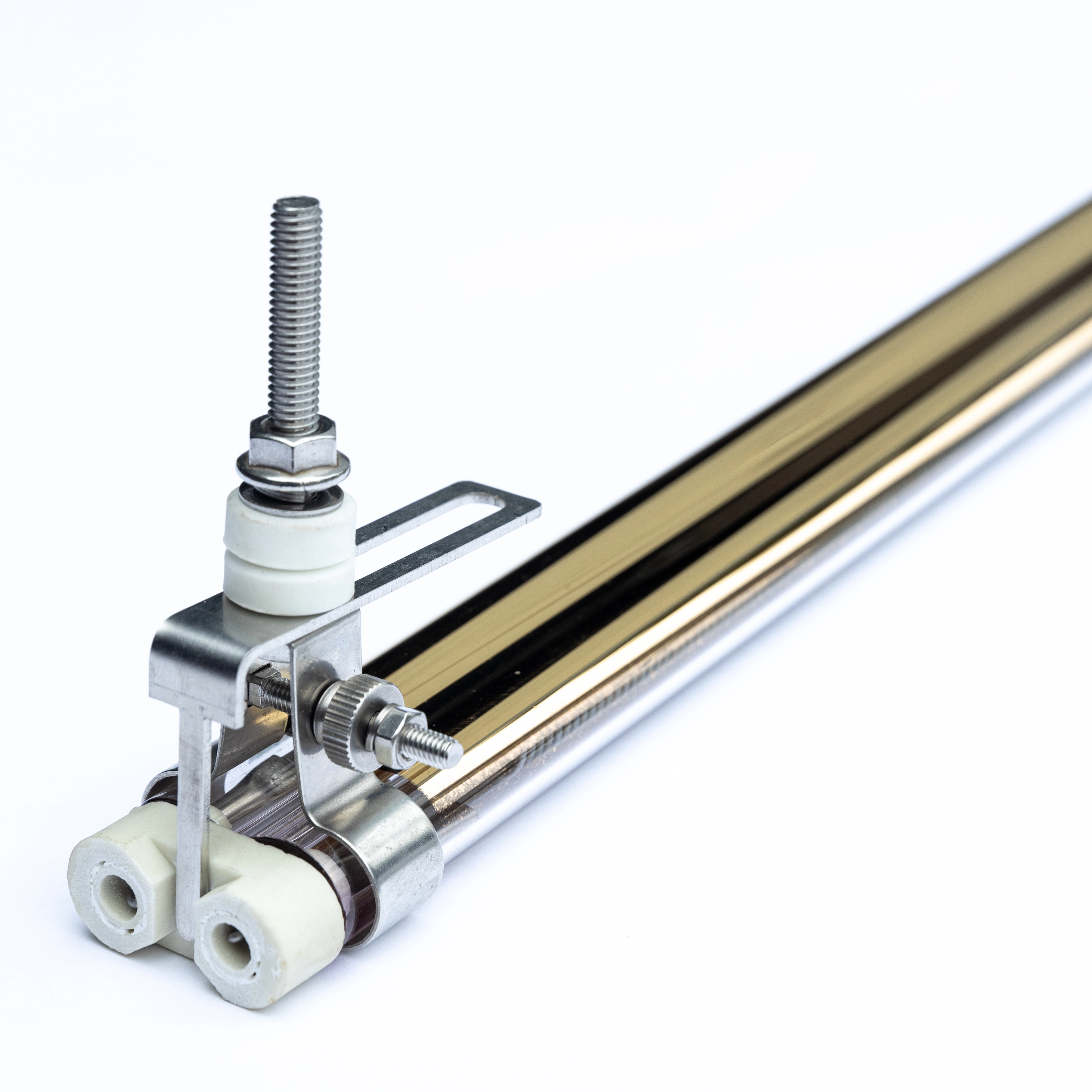

Gold reflector
Risen Gold coating IR lamps can Provide directional heating to the object. The gold reflector on the IR lamps reflects Infrared radiation. It nearly provides double the effective radiation - a good choice to improve the heating efficiency.
The Filament is made of nickel-chromium alloy, will not oxidize, and its Infrared wavelength range is 1.4-2.7μm, peak value is 2.4-2.7μm, Filament temperature can reach 800-950 degrees, 20 seconds can reach 100% full power output, and rapid cooling. The cross-section is 11 × 23mm or 15×33 mm. with lengths up to 3000mm. The voltages, powers, and lengths can be Customized according to customer requirements.
Heating method:
• Mainly tunnel furnaces and other similar moving heating methods
Application
1. Rapid drying, curing, and activation of surface coatings, water, and inks.
2. Softening of the surface material for post-processing. Suitable substrate materials are very wide:
• Glass, sheet metal, wood, paper, textiles, leather, etc. A lot of suitable coatings are available:
• Ink, water, paint (especially water-based paint and PU paint), powder coating, PTFE coating, etc.
• Leather ginning machine • Screen printing machine: automotive glass, LCD screen, mobile screen • Flocking machine • Coating machine • Production of transfer paper (ceramics, textiles, etc.) • Automotive interior parts forming • Digital printing machine • Textile printing • Glazing machine, oil machine, glass mirror line, industrial production, paper, non-woven fabric production
Why Choose Us
We are a manufacturer of Quartz IR emitters and infrared heating systems. With 13 years of experience in this industry, we have always maintained a conscientious, professional, flexible, on-time delivery, and responsive after-sales service attitude.
If you have customized needs, please feel free to contact us.

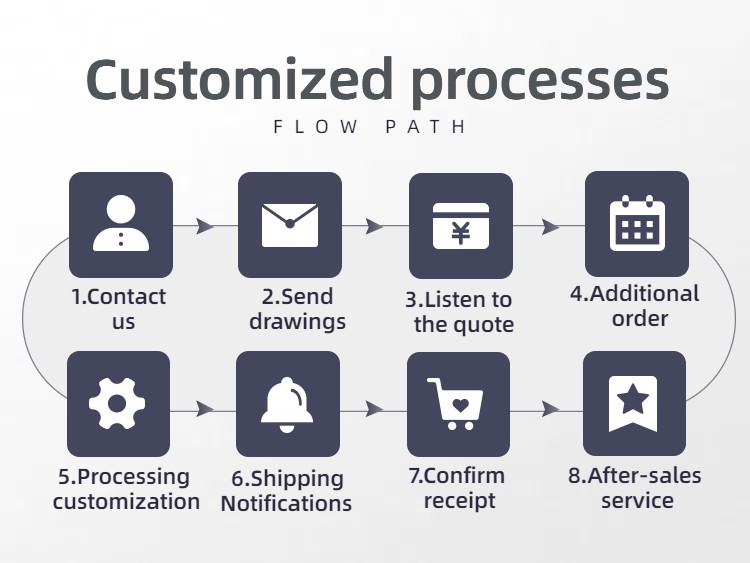

How to customize
常见问题
1.您是工厂还是贸易公司？
阴红外线是一家工厂，我们是红外线加热器的专业制造商。热烈欢迎您来到我们的工厂，我们将很乐意向您展示我们的生产、质量控制、仓库等。
2.我可以有样品吗？这是免费的吗？
是的，我们很乐意提供样品供您检查和测试。根据样品数量和产品型号，我们将与您确认是否为免费样品。
3.Is 保修吗？
这是一家认真的供应商，材料好，质量检查严格，如果有任何问题，灯在运输过程中会损坏。我们将立即补救或免费重做！
4.你能为我们做设计吗？
我们可以为您提供设计。我们拥有一支经验丰富的专业团队，您只需要告诉我们您的想法，您需要的红外线管的具体数量、电压、电压等数据，我们就可以生产您需要的产品。
如果您有任何其他问题，请随时与我们联系。
