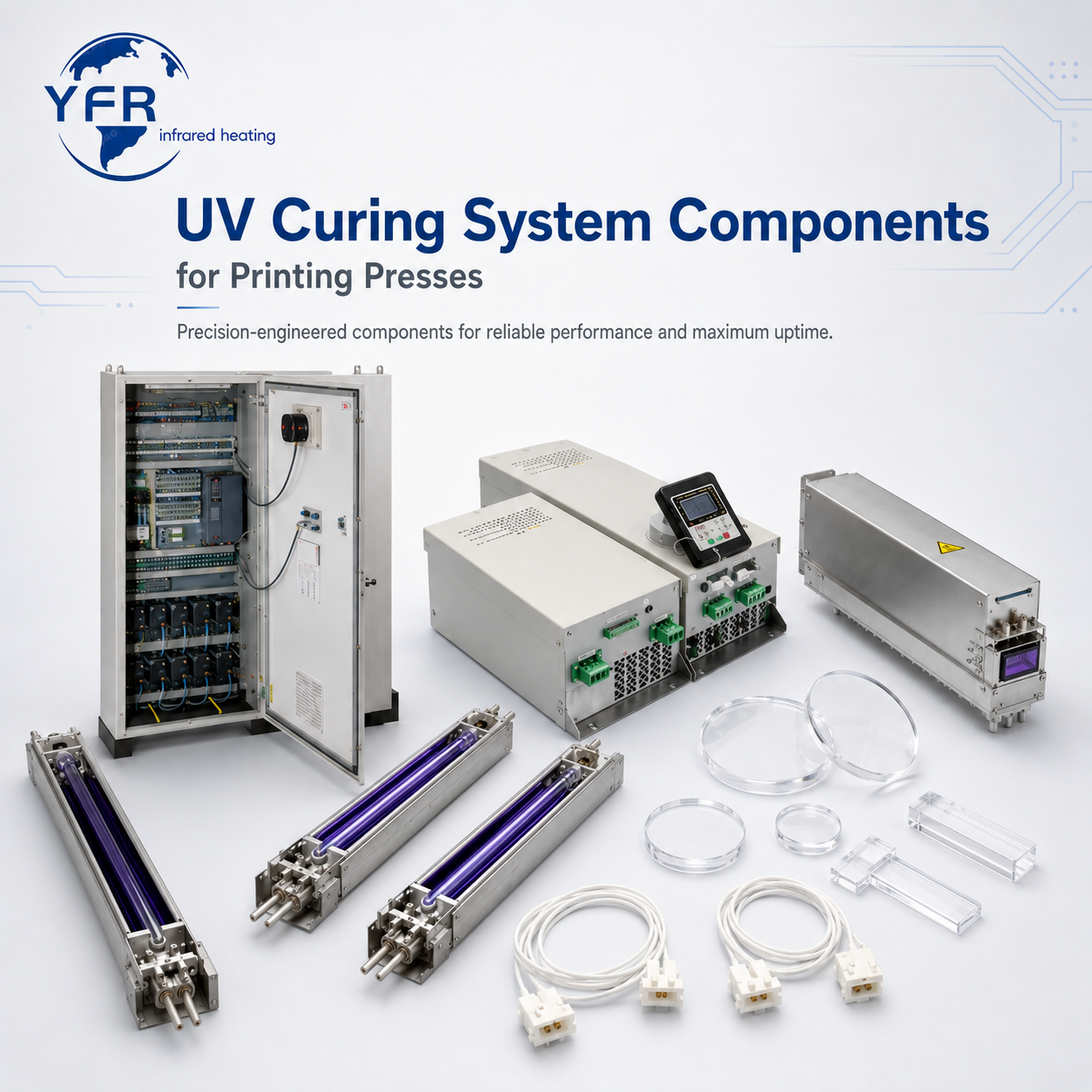

UV Curing System Components for Printing Presses
YFR supplies UV curing system components for printing presses, coating lines, packaging printing equipment and industrial curing systems. These components are used for UV lamp installation, light reflection, substrate protection, power supply, output control and replacement maintenance.
Available components may include UV reflectors, quartz plates, transformers, power regulators, heating modules and replacement lamp kits. For replacement projects, the correct component should be evaluated according to the original photo, machine model, lamp type, size, mounting structure, electrical specification and installation position.
Component | Function |
|---|---|
UV Reflector | Directs UV lamp energy toward the printed substrate and improves curing efficiency. |
Quartz Plate | Installed between the lamp and substrate to transmit UV light and reduce unwanted heat transfer. |
UV Transformer | Supports lamp start-up voltage and stable current output for UV curing systems. |
Power Regulator | Helps control UV or IR system output and supports machine control integration. |
Heating Module | Custom lamp housing and module structure based on machine space and curing area. |
Replacement Lamp Kit | Lamp, cap, cable and reflector configuration supplied as a maintenance set. |
YFR UV curing system components can be used for selected applications such as:
Printing press UV curing units
Sheetfed offset printing equipment
Packaging printing and varnish curing systems
Coating and surface curing lines
UV/IR drying system maintenance
Replacement and retrofit support for existing curing units
System Component Coverage
YFR can support multiple UV curing system components, including reflectors, quartz plates, transformers, power regulators, lamp housings and replacement kits.
Replacement Evaluation by Photo and Size
Replacement components can be evaluated by the original component photo, size, machine model, lamp type, mounting structure and installation position.
Support for UV and IR Drying Systems
Some components can be used in UV or IR drying systems depending on the original machine structure and technical requirements.
Custom Structure Support
For non-standard systems, YFR can evaluate component replacement based on samples, drawings, photos or technical specifications.
Maintenance-Oriented Supply
Suitable for buyers who need replacement parts for curing systems and want to reduce machine downtime caused by worn reflectors, damaged quartz plates, unstable transformers or mismatched control components.

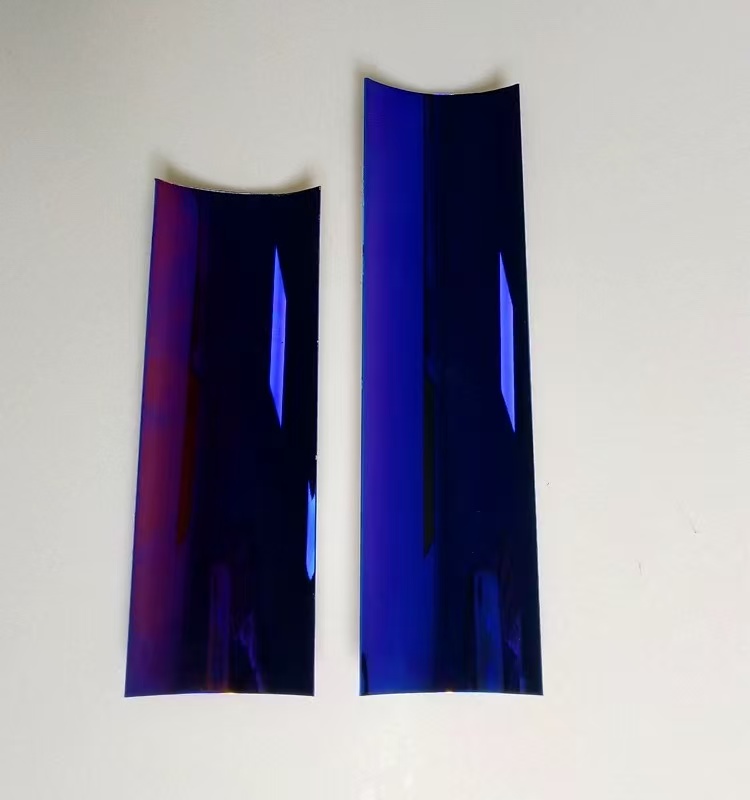

UV reflectors help direct lamp energy toward the printed substrate. The reflector structure, coating type, size and mounting position should be checked before replacement. For high-temperature curing systems, reflector material and surface condition can directly affect curing performance and heat management.
Quartz plates are usually installed between the UV lamp and the substrate. Their function is to allow UV light transmission while helping reduce unwanted heat transfer to films, foils, thin paper or heat-sensitive materials. Size, thickness, shape and mounting method should be confirmed before replacement.
The transformer is a key electrical component for UV lamp operation. Replacement should be confirmed according to input/output electrical specifications, lamp power, installation space and machine control requirements.
Power regulators are used to support stable output and integration with machine control requirements. For replacement projects, customers should provide the original unit photo, wiring information, rated power and control interface details.
Heating modules or lamp housings can be customized according to machine space, reflector geometry and required heating or curing area. This section can later内链到你的 IR heating module 或 LED-UV module 页面。

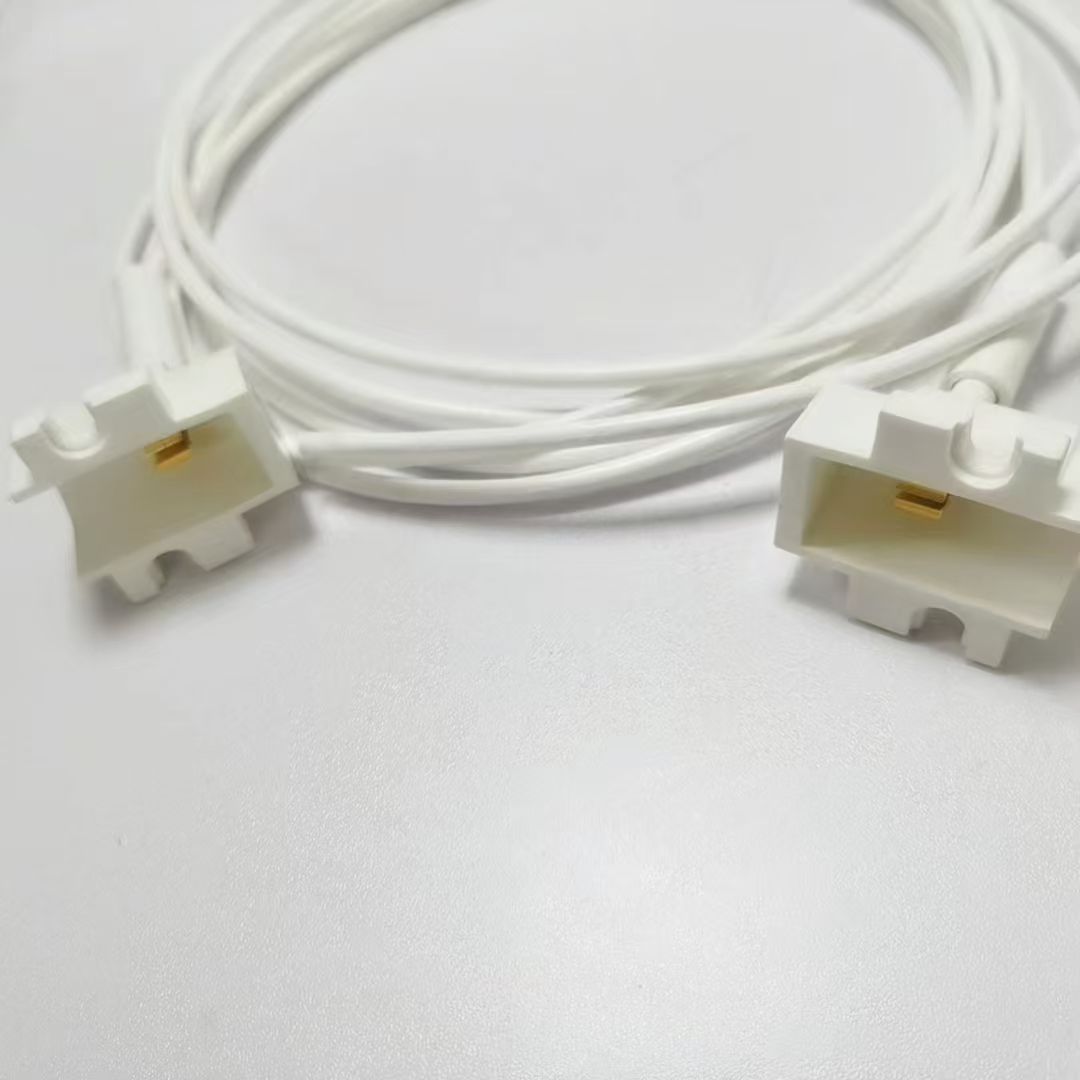

A replacement kit may include lamp, cap, cable and reflector configuration for faster maintenance. This is useful when the customer wants a more complete replacement set rather than only one loose component.
To evaluate the correct UV curing system component, please send the following information:
Component details: original component photo, size, material, surface condition and part code if available.
Machine details: machine model, lamp type, installation position and curing section photo.
Electrical details: rated power, voltage, transformer or power regulator specification if applicable.
Structure details: mounting holes, connector position, cable direction, bracket structure and available drawing.
This information helps reduce replacement errors and supports faster quotation and production confirmation.
UV and IR Curing System Experience

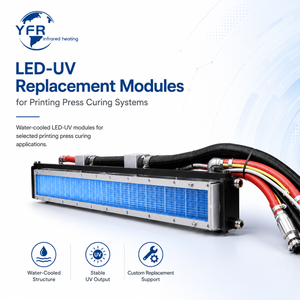

YFR supplies UV mercury lamps, LED-UV modules and related curing system components for printing and industrial curing applications.
Multiple Component Support
Customers can source reflectors, quartz plates, transformers, power regulators, lamp housings and replacement kits from one supplier.
Custom Replacement Evaluation
Replacement can be evaluated by component photo, sample, drawing, machine model or technical specification.
Maintenance and Retrofit Support
YFR can support selected maintenance and replacement projects for printing press UV curing units and industrial UV/IR drying systems.
Faster Communication for Replacement Projects
Customers can send photos and basic technical details first. YFR will check the component structure and provide confirmation suggestions before production.
Need replacement components for your UV curing system?
Send us your component photo, machine model, lamp type, size, mounting structure, electrical specification and installation position. YFR will help evaluate the replacement reflector, quartz plate, transformer, power regulator, heating module or lamp kit before production.
YFR is not affiliated with Heidelberg, Speedmaster, IST, GEW, Roland or other related equipment brands. Brand names and machine models are used only to describe replacement application and compatibility evaluation. Final replacement compatibility should be confirmed by the original component photo, machine model, drawing and technical specification before production.
