Infrared Doubles Throughput in PA Tube Straightening

APPLICATION CONCEPT  |  AUTOMOTIVE MANUFACTURING

CUSTOM INDUSTRIAL INFRARED HEATING

PUBLIC CASE REFERENCE

Relax coiled pneumatic tube
before precision cutting.

Upper and lower carbon infrared modules heat the running tube with fast response.

2X REFERENCE THROUGHPUT

Reference data subject to application testing and specification review.

Infrared Doubles Throughput in PA Tube Straightening industry application

The Process Challenge

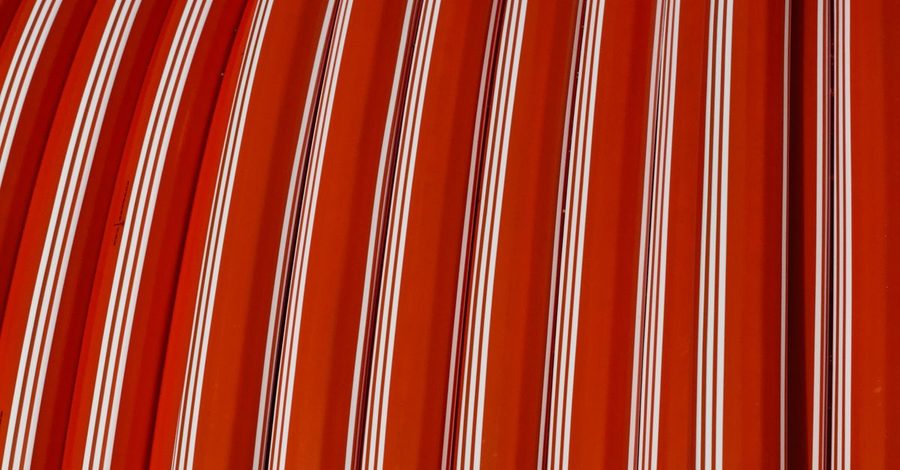

Coiled polyamide pneumatic tube must relax and straighten before cutting. Slow ceramic heaters can limit feeder speed and remain hot during a line stop.

The Infrared Approach

Upper and lower carbon infrared modules heat the running tube with fast response. Power can track line speed, and stop signals can reduce exposure immediately.

1

UNCOIL

Feed PA tube

2

HEAT

Relax the material

3

STRAIGHTEN

Guide the tube

4

CUT

Produce set lengths

Application Features

  • Two-sided heating balances the tube temperature
  • Fast response supports line-stop protection
  • Multiple lanes can run through one module
  • Power control follows speed and tube diameter
  • Compact retrofit replaces slow legacy heaters

Typical Configuration

PUBLIC RESULT

Reference cutting throughput doubled

REFERENCE SPEED

25-35 m/min

REFERENCE SCALE

Four 8 kW modules; 40%-70% power

EMITTER

Carbon medium-wave infrared

CONTROL

Speed following and stop interlock

CONFIRM

PA grade, diameter, coil set and cut tolerance

APPLICATION NOTE

Public case-study reference - not a YFR performance claim. Confirm equivalent results through YFR sample testing before publishing as a customer result.

Need a heating solution for this process?

Share your dimensions, target temperature and cycle time with YFR.
