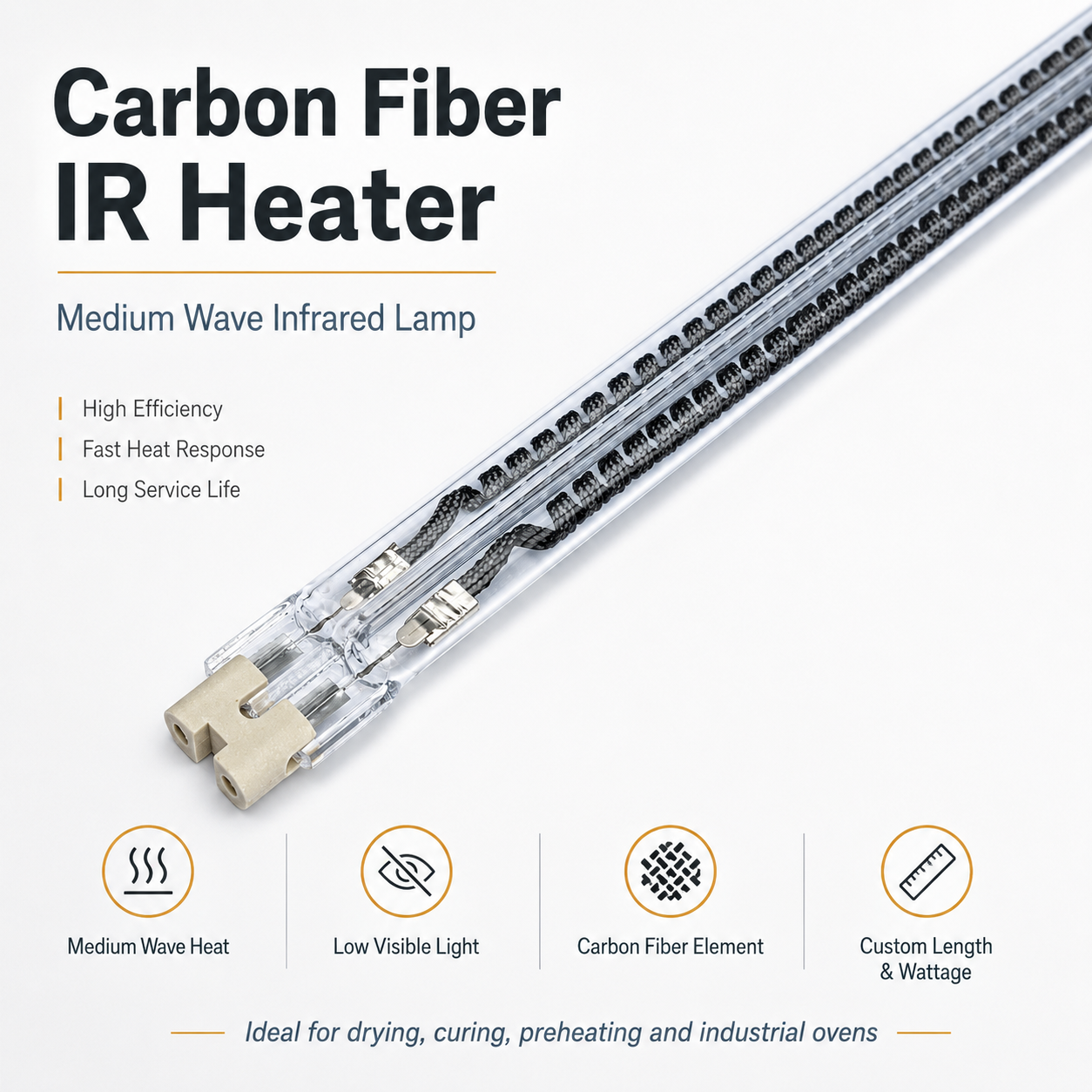

YFR carbon fiber IR heaters are medium wave infrared emitters designed for drying, curing, preheating, and industrial oven applications. Each heater is built with a high-purity quartz tube and carbon fiber heating element, providing stable radiant heat with lower visible light compared with tungsten short wave infrared lamps.
Carbon fiber infrared heaters are suitable for processes that require gentle and uniform heat rather than extremely high-intensity short wave radiation. They are commonly used for water-based coating drying, paint drying, plastic heating, glass heating, textile processing, packaging machines, and general industrial heating equipment.
YFR supplies standard and customized carbon fiber IR heaters according to equipment structure, heating length, total length, voltage, wattage, tube diameter, reflector type, end fittings, and lead wire requirements.
| Feature | Description |
|---|---|
| Product Type | Carbon fiber IR heater |
| Infrared Type | Medium wave infrared emitter |
| Tube Material | High-purity quartz glass |
| Heating Element | Carbon fiber |
| Filament Temperature | Approx. 1200°C |
| Response Time | Fast response, typically above 3 seconds |
| Visible Light | Lower visible light than tungsten short wave lamps |
| Tube Type | Single tube or twin tube options |
| Reflector Options | Clear quartz, white ceramic reflector, gold coating |
| Length | Standard or customized |
| Applications | Drying, curing, preheating, ovens, coating lines |
Carbon fiber infrared heaters provide medium wave radiant heat with relatively low visible brightness. This makes them suitable for materials and processes that absorb medium wave infrared effectively, especially where a softer heating profile is preferred.
Compared with short wave tungsten lamps, carbon fiber IR heaters usually provide gentler heat and less visible glare. They are often selected for drying and curing applications where the process does not require extremely high peak intensity.
Typical advantages include stable heat output, lower visible light, medium wave radiation, customizable structure, and compatibility with many industrial drying and heating systems.
| Parameter | Available Options |
|---|---|
| Glass Tube | 99.9% fused quartz glass |
| Heating Element | Wound carbon fiber / woven carbon fiber |
| Infrared Type | Medium wave |
| Filament Temperature | Approx. 1200°C |
| Average Working Life | Up to 10,000 hours depending on operating conditions |
| Cross Section | 10, 11, 12, 13, 14, 15, 18, 20 mm; twin tube options available |
| Max Unit Power | Up to 80 W/cm depending on design |
| Available Length | 100–4000 mm |
| Operating Orientation | Universal, depending on lamp structure |
| Reflector Options | Clear, white ceramic reflector, gold coating |
| End Options | Ceramic caps, lead wires, clips, or special terminals |
YFR can manufacture carbon fiber IR heaters according to your original lamp sample, drawing, machine model, or technical specification.
| Custom Item | Available Options |
|---|---|
| Total Length | Customized according to equipment |
| Heating Length | Customized |
| Tube Diameter | Standard or customized |
| Tube Type | Single tube or twin tube |
| Voltage | Customized |
| Wattage | Customized |
| Reflector Type | Clear quartz, white ceramic, gold coating |
| End Fittings | Ceramic cap, clip, metal terminal, special fitting |
| Lead Wire | Customized length and connector |
| Mounting Style | Based on machine structure |
Carbon fiber IR heaters are suitable for industrial heating processes where medium wave radiant heat is preferred.
| Application | Typical Use |
|---|---|
| Coating Drying | Drying water-based coatings and surface coatings |
| Paint Drying | Gentle heating and curing of painted surfaces |
| Plastic Heating | Preheating, forming, and thermal processing |
| Glass Heating | Surface heating and preheating processes |
| Textile Processing | Fabric drying, coating drying, and heat setting |
| Packaging Machines | Film heating, sealing, and shrinking |
| Industrial Ovens | Drying, curing, and temperature maintenance |
| Item | Carbon Fiber IR Heater | Tungsten Short Wave IR Lamp |
|---|---|---|
| Infrared Type | Medium wave | Short wave |
| Visible Light | Lower visible light | Stronger visible brightness |
| Heating Feel | Gentler radiant heat | Higher intensity radiant heat |
| Typical Use | Drying, curing, coating, plastics, glass | Fast heating, PET preform heating, high-intensity processes |
| Response | Fast, but generally slower than short wave | Very fast |
| Suitable Materials | Coatings, plastics, glass, textiles | Materials requiring high-intensity surface heating |
YFR can supply replacement carbon fiber infrared heaters for industrial ovens, dryers, heating modules, coating lines, and packaging machines. If your original heater is damaged, discontinued, or difficult to source, we can help evaluate the structure and provide a matching or customized replacement.
For faster quotation, please provide the following information:
| Required Information | Example |
|---|---|
| Total Length | Overall lamp length |
| Heating Length | Effective heated area |
| Tube Diameter | Quartz tube diameter |
| Tube Type | Single tube or twin tube |
| Voltage & Wattage | Marking on lamp or machine |
| Reflector Type | Clear, white ceramic, or gold coating |
| End Type | Ceramic cap, wire lead, clip, or special fitting |
| Lead Wire Details | Wire length and connector type |
| Quantity | Sample order or batch order |
| Application | Dryer, oven, coating line, packaging machine, etc. |
Clear photos of the full heater body and both heater ends are recommended if you do not have a drawing.
YFR focuses on customized infrared heater manufacturing for industrial heating equipment. Quartz tube quality, carbon fiber element structure, reflector coating, sealing, end connection, and electrical parameters are selected according to the required working conditions.
Before shipment, heaters can be checked for appearance, dimensional consistency, continuity, and basic electrical performance. For customized replacement heaters, sample confirmation is recommended before batch production.
A carbon fiber IR heater is an infrared emitter made with a quartz tube and carbon fiber heating element. It usually emits medium wave infrared radiation and is used for drying, curing, preheating, and industrial heating.
No. Carbon fiber IR heaters are generally medium wave emitters, while tungsten halogen lamps are usually short wave emitters. They are used for different heating requirements.
They provide medium wave radiant heat, lower visible light, gentle heating, customizable structure, and suitability for drying, coating, plastic, glass, textile, and oven applications.
Yes. Length, voltage, wattage, tube diameter, tube type, reflector type, end fittings, lead wires, and mounting style can be customized according to your equipment.
Please provide total length, heating length, tube diameter, voltage, wattage, tube type, reflector type, end fitting, lead wire details, quantity, and application. Photos are recommended for replacement projects.
Need a carbon fiber IR heater for a dryer, oven, coating line, packaging machine, or replacement project?
Send us your heater photo, voltage, wattage, length, tube diameter, tube type, reflector type, end fitting, lead wire details, and application requirements. YFR can help match or customize carbon fiber infrared heaters for your equipment.
Talk to an engineer | Request a custom carbon fiber IR heater quote
