Far infrared heating tubes convert electrical input into heat at an emitter, then transfer part of that energy to a product by radiation. Useful heating depends on how much radiation reaches and is absorbed by the workpiece. The label “far infrared” alone does not establish heating speed, uniformity or energy consumption.
This article follows the working principle from the resistive element to the product. It also explains why emitter temperature, material absorption and geometry must be considered together.
A far infrared heating tube is an electric heater designed to emit infrared radiation from a heated element or surface. Electricity flows through a resistive heating element, which heats up and emits thermal radiation. Part of that radiation may reach and be absorbed by the target object.
Different industries and references use different band boundaries. For a real heater, confirm its emission spectrum, operating conditions and construction rather than inferring them from the product name. A heated emitter produces a range of wavelengths, not a single wavelength.
Heating-tube construction; the photograph does not identify the emission spectrum.
When current passes through a resistive element, electrical energy converts into thermal energy. The heating element temperature rises until heat generation is balanced by heat losses to the environment and the product. The operating temperature also depends on the element’s construction and permitted operating conditions.
A body above absolute zero emits thermal radiation. Temperature and the surface’s emission properties affect its output. A hot element also exchanges heat through its mounting and surrounding air, so electrical input should not be equated with radiation absorbed by the product.
For an ideal thermal emitter, increasing temperature shifts the peak toward shorter wavelengths and increases total radiant output. NASA’s blackbody-radiation explanation provides this physical reference. A real tube’s material, envelope and coating modify its emitted spectrum; the ideal model is not a product performance curve. A lower-temperature emitter is not automatically more uniform, and a higher-temperature emitter does not automatically heat every workpiece faster.
Infrared energy travels from the tube to the target without contact. Incident radiation can be absorbed, reflected or transmitted. The absorbed portion contributes heat; conduction redistributes that heat within the product. Absorption depth and the resulting temperature profile depend on wavelength, material, thickness and exposure, rather than on the “far infrared” label alone.
The U.S. Department of Energy sourcebook, Electric Infrared Processing describes absorption, reflection, transmission and line-of-sight geometry. These provide useful checks when a heater produces radiation but the product does not reach the required condition.
| Stage | What to distinguish | Practical check |
|---|---|---|
| Emitter output | Electrical input and emitted spectrum are different quantities. | Use the heater’s confirmed ratings and operating information. |
| Radiation reaching the product | Distance, reflector geometry, spacing and obstructions affect exposure. | Check the actual product positions and faces, including shadowed regions. |
| Absorption and temperature profile | Material response and heat conduction determine the temperature distribution. | Evaluate representative samples and relevant surface or internal locations. |
| Process result | A temperature reading is not, by itself, proof of drying, cure or forming quality. | Apply the material-specific acceptance method for the intended operation. |
Visible color alone does not establish infrared absorption. Surface finish, coating, moisture and thickness can change the response. A reflective or partly transmitting product needs evaluation under the actual emitter spectrum. Do not assume that a visually dark surface will absorb every infrared band well.
Infrared transfers energy to exposed product regions without using air as the primary heat carrier. In practical equipment, however, the emitter, product and surroundings also exchange heat with air. Drying may still need airflow and exhaust to remove moisture or solvent; a shadowed face may depend on conduction or a complementary heating arrangement.
Whether the process improves depends on the complete installation and the required product result. Compare energy and cycle time only at an equivalent production and quality condition. Lamp response alone is not product heating response, and a shorter surface-heating stage does not prove that an entire layer has dried or cured.
While designs vary, an IR heater may include a resistive element, an envelope or radiating body, terminals, mounting components and a reflector. These parts are not interchangeable across all heater designs. Confirm the actual construction and the manufacturer’s installation and operating requirements.
A heating arrangement combines the emitter, reflector and mounting geometry. Confirm the tube, terminal and mounting arrangement for the specified heater model.

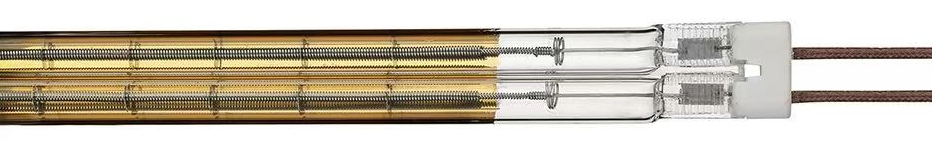

Close-up of tube construction and end connections.
Are you drying a coating, curing resin, softening polymer or preheating a substrate? Define the required condition and how it will be verified. These are different thermal tasks.
Selection should be based on the target material and the proposed spectrum, not on a marketing label. Record thickness, surface condition, heated area, line speed or cycle time, and relevant temperature limits. Use representative product trials to check the proposed arrangement.
Distance affects exposure. Zoning and reflector layout can change distribution, while airflow, exhaust, fixtures and surrounding parts affect heat losses. Confirm electrical compatibility and the control arrangement with the equipment requirements. For a broader system discussion, see heating modules and controls.
Keep the specified clearances, guarding and maintenance access. Follow the heater and machine instructions for isolation, cooling, handling, cleaning and inspection. Contamination, deposits, damaged supports or deteriorated connections need assessment using those instructions; this article does not prescribe universal clearances or a cleaning method.
There is no universal penetration advantage. Absorption depends on the wavelength and material. Heat can also move inward by conduction after radiation is absorbed. Evaluate the required temperature profile at the actual thickness and exposure time.
Radiation does not rely on air as the primary heat carrier. Air and surrounding equipment still exchange heat in a practical installation, and airflow may remain essential to the process.
It affects emitted power and the spectrum. The product’s response also depends on how much radiation reaches it and how much it absorbs. Emitter temperature alone cannot predict the product’s temperature history.
Check spacing, distance, reflector geometry, product movement and zoning, then measure the relevant product locations. A far-infrared designation is not a guarantee of uniformity.
A far infrared heating tube converts electrical input into thermal radiation through a heated emitter. The useful process result follows from absorption, heat redistribution and the operating conditions. Review the industrial infrared heating lamp range, or send YFR your material, dimensions, target condition, cycle time and current equipment details for an application-specific review.
