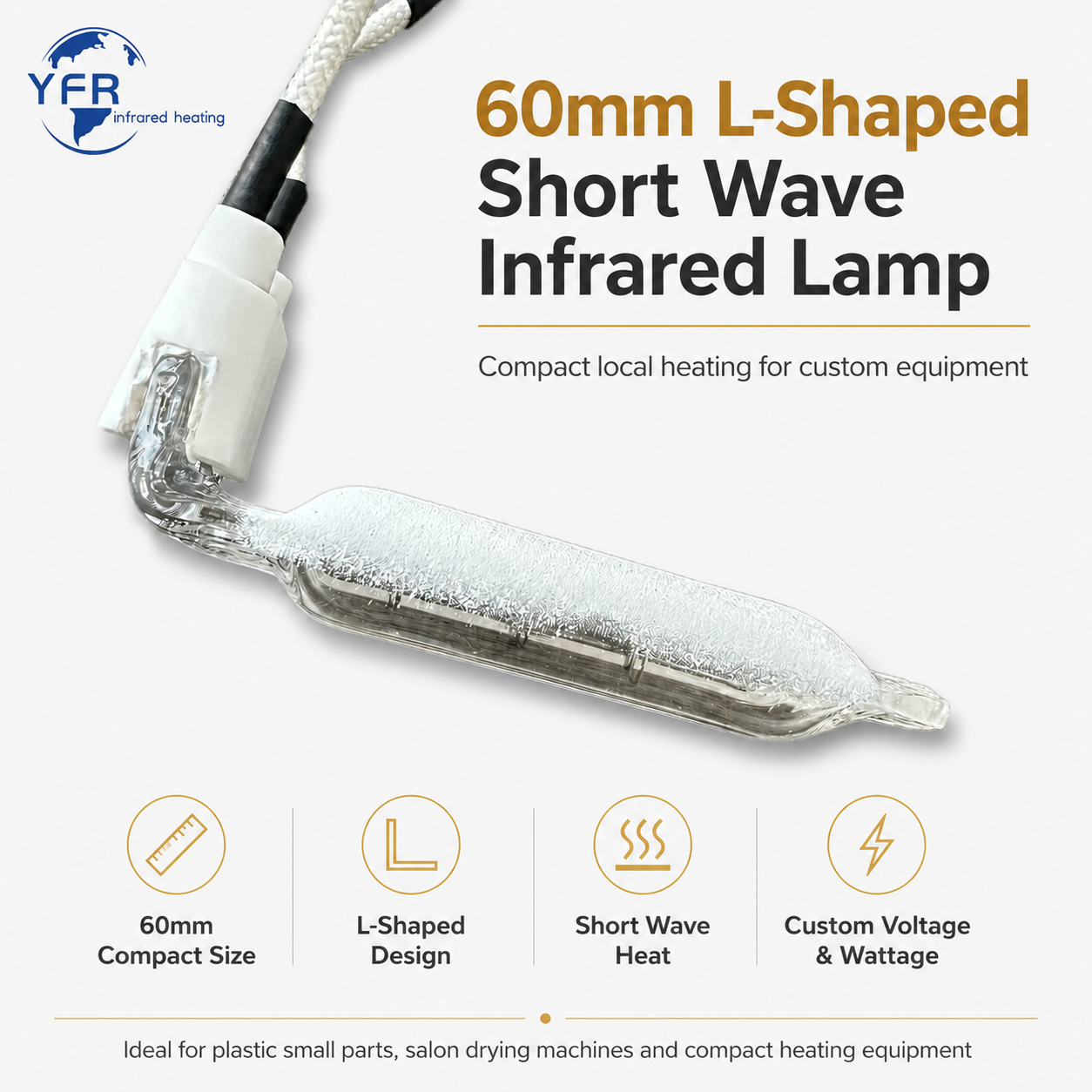

YFR 60mm L-shaped short wave infrared lamps are compact quartz IR heating lamps designed for local heating in small equipment. The L-shaped structure allows the lamp to fit into narrow or special installation spaces where a straight infrared lamp cannot be used easily.
This lamp is suitable for plastic small part heating, salon drying machines, local spot heating, compact drying equipment, and customized heating modules. It provides fast radiant heat in a small heating area and can be manufactured according to the required shape, voltage, wattage, terminal structure, and lead wire design.
| Feature | Description |
|---|---|
| Product Type | L-shaped short wave infrared lamp |
| Lamp Length | 60mm or customized |
| Lamp Shape | L-shaped / bent quartz IR lamp |
| Infrared Type | Short wave infrared |
| Tube Material | Quartz glass |
| Heating Element | Tungsten filament |
| Heating Style | Compact local radiant heating |
| Custom Options | Voltage, wattage, lead wire, terminal, bend direction |
| Applications | Plastic small parts, salon drying machines, compact heating equipment |
An L-shaped infrared lamp is used when the heating space is small, curved, or limited by the machine structure. Compared with a straight lamp, the L-shaped design can help the heating element fit closer to the target area or avoid mechanical interference inside the equipment.
This makes it useful for compact machines that need fast localized heating, such as small plastic processing equipment, salon drying machines, repair devices, and custom infrared heating modules.
YFR can manufacture compact L-shaped infrared lamps according to your sample, drawing, or equipment requirements.
| Custom Item | Available Options |
|---|---|
| Overall Length | 60mm or customized |
| Heating Length | Customized according to target area |
| Shape | L-shaped, bent shape, or special shape |
| Bend Direction | Customized based on installation |
| Voltage | Customized |
| Wattage | Customized |
| Tube Diameter | Based on lamp design |
| Lead Wire | Customized length and insulation |
| Terminal Type | Wire lead, ceramic end, metal terminal, or special fitting |
| Mounting Style | Based on equipment structure |
| Application | Typical Use |
|---|---|
| Plastic Small Part Heating | Local heating for small plastic components |
| Salon Drying Machines | Compact infrared heating for drying equipment |
| Small Drying Devices | Local drying or curing in limited spaces |
| Repair Equipment | Spot heating for small work areas |
| Custom Heating Modules | Special-shaped infrared heating inside compact machines |
| Laboratory or Test Equipment | Small-area heating and process testing |
YFR can supply L-shaped short wave infrared lamps for replacement or OEM equipment projects. If your original lamp is damaged or difficult to source, we can check the structure based on photos, samples, drawings, or key specifications.
For replacement projects, please provide the following information:
| Required Information | Example |
|---|---|
| Lamp Shape | L-shaped, bend angle, bend direction |
| Overall Length | 60mm or measured size |
| Heating Length | Effective heated area |
| Tube Diameter | Quartz tube diameter |
| Voltage & Wattage | Marking on lamp or equipment |
| Lead Wire | Wire length and position |
| Terminal Type | Ceramic, wire lead, metal fitting, or special terminal |
| Quantity | Sample order or batch order |
| Application | Plastic heating, salon dryer, small machine, etc. |
Clear photos of the full lamp, both ends, and the installation position are recommended if no drawing is available.
YFR focuses on customized quartz infrared lamp manufacturing for compact and special-shaped heating applications. The quartz tube, filament structure, sealing, bending shape, and electrical connection are selected according to the equipment structure and operating conditions.
For special-shaped lamps, sample confirmation is recommended before batch production to ensure correct installation fit, heating position, and electrical performance.
An L-shaped short wave infrared lamp is a compact quartz infrared heating lamp with a bent or L-shaped structure. It is used when heating space is limited or when a straight lamp cannot fit the equipment.
Yes. The lamp length, heating length, bend direction, voltage, wattage, terminal, and lead wire can be customized according to your equipment.
It is suitable for plastic small part heating, salon drying machines, small drying devices, repair equipment, compact heating modules, and custom local heating systems.
Yes. You can send the original lamp sample, photos, drawing, or key specifications. YFR can check whether the shape and electrical parameters can be matched.
Please provide lamp shape, overall length, heating length, tube diameter, voltage, wattage, lead wire details, terminal type, quantity, and application. Photos are recommended for custom shapes.
Need a compact L-shaped infrared lamp for plastic small part heating, salon drying equipment, or a custom machine?
Send us your lamp photo, drawing, voltage, wattage, dimensions, bend direction, terminal type, lead wire details, and application requirements. YFR can help match or customize a short wave infrared lamp for your equipment.
Talk to an engineer | Request a custom L-shaped IR lamp quote
