Author: Process Heating Engineer Publish Time: 2025-10-21 Origin: Site

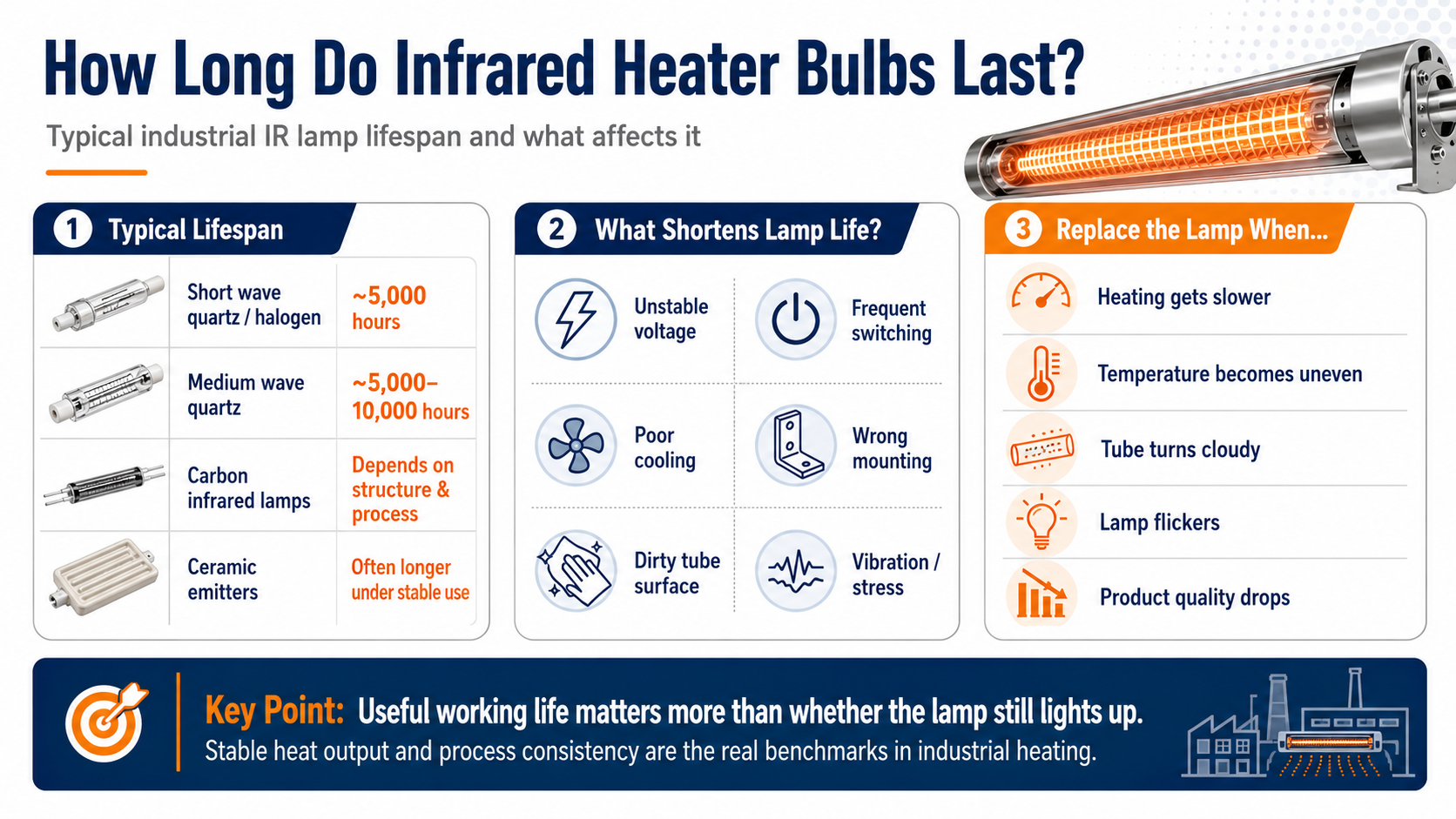

Most infrared heater bulbs used in industrial heating systems last between 5,000 and 10,000 hours, depending on the lamp type, voltage stability, switching frequency, cooling, mounting, and working environment. Some ceramic emitters can last longer under stable conditions, while fast-response quartz or halogen infrared lamps may need earlier replacement in high-cycle production lines.
For industrial users, the real question is not only how long the bulb can still light up. The more important question is how long it can deliver stable heat output, uniform temperature, and repeatable process performance.
YFR focuses on industrial infrared heating lamps, replacement IR emitters, and custom heating solutions for manufacturing systems. This guide explains how to evaluate infrared heater bulb lifespan from an industrial use perspective.
The working life of an infrared heater bulb depends strongly on its structure and operating environment.
A simple reference is:
| Lamp Type | Typical Lifespan Reference | Common Industrial Use |
|---|---|---|
| Short wave quartz / halogen IR lamps | Around 5,000 hours depending on conditions | Fast drying, curing, paint heating, printing lines |
| Medium wave quartz IR emitters | Around 5,000–10,000 hours depending on design | Coating, plastic heating, drying systems |
| Carbon infrared lamps | Depends on structure and process conditions | Stable medium-wave heating |
| Ceramic emitters | Often longer under stable low-cycle use | Slower-response heating and holding applications |
These values are only general references. Actual service life can be shorter or longer depending on voltage control, installation, airflow, switching cycle, reflector condition, vibration, and surface contamination.
For high-speed drying, curing, or process heating, useful life should be evaluated by heating performance, not only by whether the lamp still turns on.
Infrared heater bulbs usually have a rated life, but rated life is not the same as useful working life.
Rated life usually refers to the expected operating time under controlled or standard conditions. Useful working life refers to the period during which the lamp can still deliver stable heat output for the actual process.
In industrial production, a lamp may still light up but no longer perform well enough. This can happen when:
Heating output drops
Drying or curing time becomes longer
Temperature distribution becomes uneven
Product quality becomes unstable
Energy consumption increases
The reflector or tube surface becomes degraded
For this reason, industrial users should not wait until an infrared heater bulb completely fails. Replacement should be planned before heating performance affects production quality.
Infrared heater bulbs often fail earlier than expected because of poor operating conditions.
The most common causes include:
Unstable voltage
Frequent on/off switching
Poor cooling or blocked airflow
Wrong mounting position
Excessive vibration
Dirty quartz tube surface
Poor electrical connection
Aging reflector surface
Incorrect lamp type for the application
Voltage instability is one of the most common causes of shortened infrared lamp life. If the lamp is repeatedly exposed to overvoltage, thermal stress increases and the filament or heating element may degrade faster.
Frequent switching also reduces service life. Fast heating and cooling cycles create thermal expansion stress inside the lamp structure. For production lines that require frequent temperature changes, a suitable controller and proper process setup are important.
Different infrared lamp types have different lifespan behavior.
Short wave infrared lamps usually provide fast response and high-intensity heating. They are often used in paint curing, printing drying, high-speed heating, and processes that require rapid temperature rise. Their lifespan depends heavily on voltage stability, switching frequency, and cooling conditions.
Medium wave infrared lamps are often used for coating, drying, plastic heating, and processes where balanced heating is needed. They may provide stable performance when properly matched to the material and process.
Carbon infrared lamps are often used when stable medium-wave infrared output is required. They can be suitable for processes that need controlled heating rather than aggressive high-intensity heating.
Gold reflector lamps are used when directional heating is required. In many industrial systems, gold reflector IR lamps help direct more infrared energy toward the target material, improving heating efficiency and reducing wasted energy.
To extend infrared heater bulb life, the entire heating system should be considered. The lamp itself is only one part of the system.
Practical ways to extend service life include:
Keep voltage stable
Avoid unnecessary on/off cycling
Use a suitable power controller
Maintain proper airflow and cooling
Avoid touching quartz tubes with bare hands
Keep the tube surface clean
Check ceramic holders and electrical contacts
Maintain the reflector surface
Avoid installing the lamp under mechanical stress
Match the lamp type to the actual process
For production lines that require stable output, an IR lamp power controller can help regulate power more smoothly and reduce unnecessary thermal shock.
Good installation is also important. If the lamp is mounted too tightly, exposed to vibration, or installed with poor airflow, even a high-quality infrared lamp may fail earlier than expected.
An infrared heater bulb should be replaced when its performance no longer supports the process, even if it still lights up.
Common replacement signs include:
Heating speed becomes slower
Drying or curing time increases
Temperature becomes uneven across the heating zone
The filament becomes dark, thin, or distorted
The quartz tube becomes cloudy
The lamp flickers during operation
Electrical connections become loose or overheated
Product defects increase
The machine requires more energy to achieve the same result
In industrial drying or curing systems, delayed replacement can cause quality problems before the lamp completely fails.
For example, printing lines may experience slow ink drying, coating lines may show uneven curing, and plastic heating systems may produce inconsistent forming results.
Choosing the right replacement lamp is essential for longer service life and stable heating performance.
When selecting replacement IR lamps, buyers should confirm the following parameters:
Voltage
Wattage
Total length
Heated length
Tube diameter
Lamp type
Reflector type
End cap type
Lead wire length
Mounting structure
Working distance
Machine model
Operating environment
If the original lamp is not available, a clear photo of the old lamp can help identify the structure. Photos should include the full lamp, both ends, the lead wire direction, and the mounting area.
For non-standard machines or imported equipment, custom replacement IR tubes may be required to match the original installation dimensions and electrical parameters.
A replacement lamp with the wrong wattage, wrong heated length, or wrong end cap may still turn on, but it may cause uneven heating, poor fit, short service life, or process instability.
Infrared heater bulb lifespan is especially important in continuous industrial systems. In these applications, lamp failure can cause downtime, quality defects, and production delays.
Common applications include:
Printing ink drying
Coating and varnish curing
PET preform heating
Plastic forming
Industrial oven heating
Paint curing
Packaging and film drying
Surface treatment
In drying and curing lines, IR drying modules can be used when the application requires a complete heating structure rather than separate lamps only.
For oven-based systems, industrial oven replacement lamps should be selected according to oven structure, heating zone design, operating temperature, and process requirements.
A low-price infrared heater bulb may cost more in the long run if it fails early or produces unstable heating.
Industrial buyers should compare:
Lamp service life
Heat output stability
Fit with the original machine
Electrical compatibility
Reflector quality
Lead wire and end cap structure
Replacement accuracy
Production downtime risk
The lowest unit price is not always the lowest operating cost. If a lamp causes frequent replacement, uneven heating, or process defects, the real cost becomes much higher.
For industrial users, a good infrared lamp should provide stable output, correct fit, predictable lifespan, and reliable process performance.
To help match the correct replacement infrared heater bulb, send the following information:
Old lamp photo
Voltage and wattage
Total lamp length
Heated length
Tube diameter
End cap photo
Lead wire length and direction
Machine brand and model
Application
Quantity required
Operating environment
If you are not sure about the lamp parameters, send photos from multiple angles. A photo of the lamp label, end cap, ceramic holder, and machine installation area can help confirm the replacement structure.
Most industrial infrared heater bulbs last around 5,000 to 10,000 hours depending on lamp type and working conditions. Actual life depends on voltage stability, switching frequency, cooling, installation, and process environment.
Infrared bulb life varies by lamp structure. Quartz and halogen infrared lamps are often used for fast-response heating, while medium wave, carbon, and ceramic emitters may behave differently under stable operating conditions.
Yes. An infrared heater bulb can lose heating performance over time even if it still lights up. Aging filaments, contaminated quartz tubes, reflector degradation, and unstable electrical conditions can reduce useful heating output.
The most common causes include overvoltage, frequent switching, poor cooling, vibration, dirty tube surfaces, wrong installation, and using the wrong lamp type for the process.
It is not recommended unless the machine and process have been checked. Using the wrong wattage can cause overheating, poor drying, uneven curing, electrical problems, or shorter lamp life.
You should confirm voltage, wattage, total length, heated length, tube diameter, end cap type, lead wire structure, reflector type, machine model, and application. A clear photo of the old lamp is usually very helpful.
Infrared heater bulb lifespan should be evaluated by useful working performance, not only by whether the lamp still turns on.
For industrial users, the best replacement lamp is the one that matches the equipment, process temperature, heating distance, electrical system, and working environment.
If your production line uses infrared lamps for drying, curing, printing, PET heating, plastic forming, paint curing, or industrial oven heating, YFR can help check the replacement parameters and recommend a suitable infrared heating lamp.
