Paper printing often looks straightforward until drying becomes the real production limit. The press may print cleanly, but output slows down because the sheet still carries too much moisture, the surface remains unstable, or the paper begins to curl, wrinkle, or lose handling consistency before the next step. In paper-based printing, drying is not only about heat. It is about how heat, moisture, airflow, coating chemistry, and paper structure interact in a narrow process window.
This is where infrared drying becomes valuable. Infrared systems direct energy to the sheet and coating more quickly than broad convective heating alone, which can improve evaporation rate, support faster line speeds, and help stabilize print quality when properly matched to the paper grade and drying layout. Industrial references on paper and printing drying consistently describe IR as useful for faster moisture removal, compact dryer design, and more targeted heat transfer, especially when integrated with airflow and exhaust management.
The most important point is that paper is not a neutral substrate. Moisture content, porosity, thickness, surface treatment, and coating structure all change how the sheet responds to infrared energy. A useful paper-printing IR guide therefore has to focus on one core issue: how to improve drying speed and print stability without overheating or destabilizing the paper web.
Paper printing becomes drying-limited when the sheet leaves the print zone before moisture or solvent release is under control. At that point, the line starts to show practical problems rather than obvious machine failure. Smearing, set-off, blocking, curl, inconsistent gloss, register instability, and reduced downstream handling all become more likely when the drying stage is weaker than the press speed. The current YFR page already points in this direction by emphasizing moisture content, print quality, and drying efficiency, but the stronger professional framing is that drying limits productivity long before the press reaches its theoretical print capacity.
This matters even more in paper than in some film applications because paper is hygroscopic. It gains and loses moisture depending on the surrounding environment and process conditions. Cork’s pressroom guidance notes that dry air causes paper to lose moisture, which can lead to wrinkling, paper jams, register issues, and static-related problems in offset environments. That means a drying system should not be designed as “maximum heat at all times.” It should be designed as controlled moisture removal with stable sheet behavior.
Moisture is the most useful place to start because it is one of the main reasons infrared works well in paper-related drying. Your current page correctly notes that water molecules absorb infrared efficiently and that moisture content strongly influences how paper responds to IR exposure. In industrial drying references, IR is repeatedly described as improving evaporation rate by directing more heat onto the web itself rather than relying only on slower bulk-air heating.
That is why infrared can accelerate paper-printing drying without requiring a very long drying path. When the emitted energy is properly matched to the process, the sheet surface and its moisture load respond faster, which can shorten the unstable wet phase after printing or coating. ScienceDirect’s engineering overview of infrared drying describes benefits such as improved moisture evaporation rate, improved energy efficiency, increased drying power output, and better compactness. It also cites paper-industry examples where IR systems improved line productivity and handled water-based print more effectively than the previous setup.
The practical implication is simple: in paper printing, infrared is most valuable when it is used to control drying kinetics, not just to raise surface temperature. Too little IR leaves the sheet wet and unstable. Too much poorly controlled IR can create uneven drying or dimensional distortion. The target is controlled moisture reduction with stable print handling.
Paper does not behave the same way across grades. Your current page already highlights thickness, porosity, and coatings, and these are the right variables to keep because they directly influence drying behavior. Porous paper allows moisture and air to move more freely, which affects how quickly the sheet can release moisture during IR-assisted drying. Thicker sheets require more energy balance and can respond differently at the surface and through the thickness. Coatings also change absorption, reflection, and how quickly the printed or coated layer stabilizes.
This is one reason a single “best IR setting” does not exist for all paper-printing jobs. Some coated papers benefit from rapid surface setting because binder migration and coating uniformity matter. The papermaking IR reference notes that IR can set coatings quickly and evenly, helping binder stay at the paper surface rather than migrating into the base sheet, while also reducing moisture variation and improving caliper and smoothness uniformity. That is a useful industrial principle even when the exact production context differs from finished-print drying.
In other words, paper structure changes the drying window. The more the substrate changes, the more important emitter selection, power control, and drying-zone design become.
The first improvement is faster drying response. This does not only mean “more heat.” It means the system can bring the printed sheet to a more stable state sooner, which lets the line maintain speed with fewer wet-handling problems. Industrial examples cited in the infrared drying overview include faster production speeds and stronger drying performance in paper and water-based print applications.
The second improvement is better moisture uniformity. The papermaking IR reference is especially useful here because it emphasizes that moisture uniformity is often more important than moisture reduction alone. It describes IR as helping reduce moisture variations across the sheet, resulting in more uniform thickness, fewer breaks, and faster production. That same logic is highly relevant to printed paper handling: uniform drying usually produces fewer secondary defects than aggressive but uneven drying.
The third improvement is print stability. Your current page already links IR drying to reduced smudging and improved print quality. A more precise way to say this is that IR can help shorten the unstable post-print phase, which reduces the chance of smearing, set-off, or downstream handling defects when the system is tuned correctly for the paper and coating load.
When the printed or coated sheet carries a high water load, hot air alone may not be enough to maintain speed in a compact machine layout. Cork’s guidance on printing and coating operations notes that aqueous coatings contain large amounts of water and that drying at speed depends not only on heat input but also on effective air evacuation. In that environment, short- or medium-wave IR is often used as part of the drying system, not as a standalone magic fix.
If the surface remains unstable after printing, the next transport or stacking stage can damage the image. Infrared helps by shortening the time before the sheet reaches a more stable condition, especially when the system is paired with proper airflow and exhaust handling.
Paper that loses or redistributes moisture unevenly can become dimensionally unstable. Cork’s pressroom guidance explicitly links poor humidity control to wrinkling, jams, and register issues, which reinforces the broader point that drying quality is also moisture-management quality. Infrared systems should therefore be adjusted to support uniform drying rather than maximum surface heat alone.
One of IR’s strongest practical advantages is compactness. ScienceDirect’s overview describes better heat-transfer capability and compactness as core benefits of IR drying. For printers working within fixed machine layouts, that can make IR especially attractive.
Start with the paper, not the lamp. Define the paper grade, coating load, moisture sensitivity, and whether the print job is more likely to suffer from slow drying or from over-drying side effects such as curl or instability. If the process is dominated by water removal, moisture behavior should be treated as the central control variable. Your current page already correctly emphasizes moisture content as a critical factor in IR-assisted paper printing.

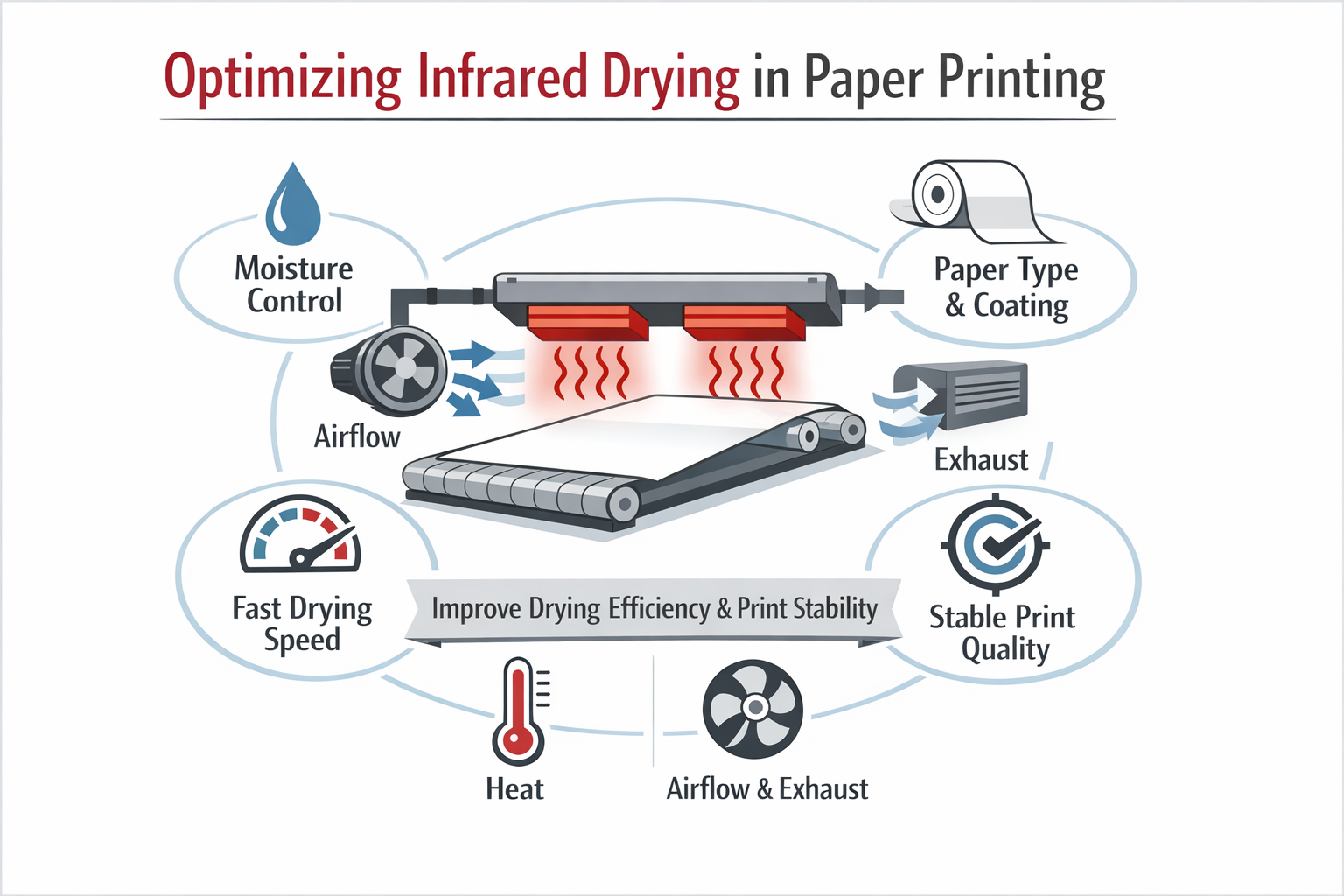

Then evaluate the drying architecture. In paper printing, IR works best when it is treated as part of a system that may also include airflow, air knives, and exhaust removal. Cork’s technical article is explicit that moisture-laden air must be removed from the press drying and delivery space for high-speed coating and printing operations, and that short- and medium-wave emitters often work alongside these airflow tools.
Next, choose the control strategy. The papermaking IR reference emphasizes that IR controls can respond quickly and can level moisture variations across the sheet, even in narrow zones. That kind of control logic matters because paper drying performance depends on uniformity as much as raw heat.
Finally, confirm that the drying goal is realistic. The right setup is not the one with the highest output claim. It is the one that improves drying speed while preserving print quality and sheet behavior.
In paper printing, it is both, but moisture control is the more useful practical lens. IR works because it helps remove moisture more efficiently, yet the real process goal is stable drying, not just higher temperature.
Because paper changes with moisture. It can lose or gain moisture, which affects curl, register, static behavior, and handling consistency. That makes drying a substrate-control issue, not just a heater issue.
Not always. In many printing and coating systems, IR performs best when combined with airflow and exhaust management. Air evacuation remains important because evaporated water has to leave the drying zone efficiently.
Moisture content, porosity, thickness, and coatings are the most important starting points because they affect how the sheet absorbs, reflects, and releases heat and moisture during drying.
If your paper-printing line is limited by slow drying, smearing, unstable handling, or moisture-driven quality variation, the next step is not simply adding more heat. The better step is to evaluate the paper grade, moisture load, drying architecture, and IR control strategy together. That is how infrared becomes a real productivity tool instead of just another heat source.
