Quartz IR Emitters help make plastic manufacturing more efficient. They give heat only where it is needed. Many manufacturers save 25% to over 50% on energy after using these heaters. This technology also makes the process cleaner and more exact. Companies like Huai’an Infrared Heating Technology are leaders. They offer reliable and new infrared solutions for plastics.
Quartz IR emitters heat plastic fast and only where needed. This makes production quicker and helps products turn out better. These emitters help factories use 25% to 50% less energy. They send heat right into the materials, so there is less waste and lower costs. With quartz IR emitters, temperature is controlled very well. This means fewer mistakes and plastic products stay high quality. Quartz IR emitters are clean and safe to use. They do not make harmful fumes and keep factory areas cooler. Picking the right emitter and taking care of it helps factories do their best work. It also makes the equipment last longer.
Quartz IR emitters change how plastic is made by giving heat fast and exactly where needed. When manufacturers use quartz IR instead of old heating ways, they see production get much faster.

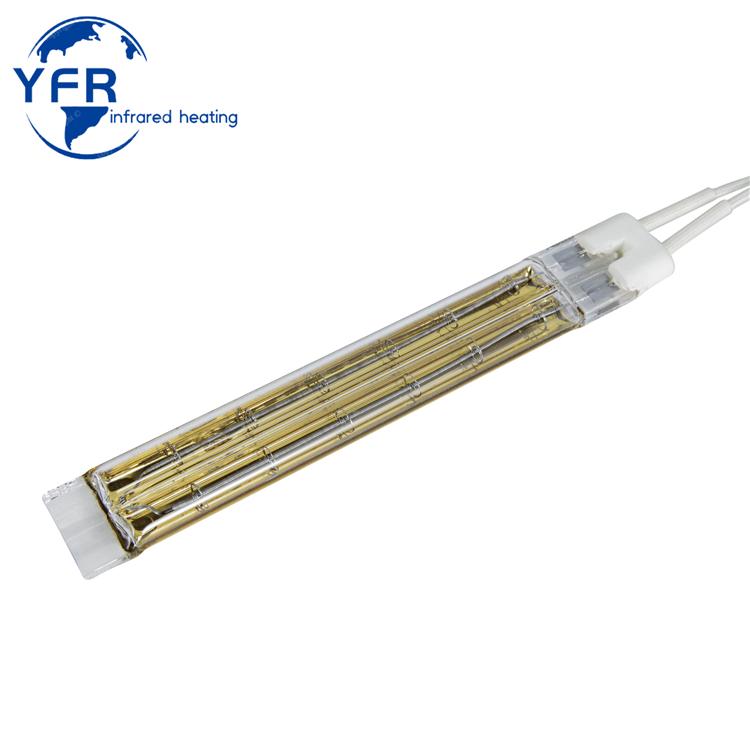

Twin-tube quartz IR emitters have a bigger surface, so they make more infrared radiation and heat things better.
These emitters get hot much quicker than old systems, sometimes five to ten times faster.
For jobs like PVC sheet thermoforming, the time for each cycle drops a lot—from 120 seconds to only 20 seconds—so factories can make up to six times more products.
Quartz IR emitters keep the temperature steady, usually within ±1°C, which helps stop mistakes and keeps things from getting too hot.
Infrared radiation goes into plastic sheets and heats them all at once, so there is less uneven cooling and shrinking.
Good preheating of molds helps stop problems like short shots and leftover stress.
Using infrared heat to dry out materials that soak up water stops mistakes and makes the process work better.
Tip: Heating things quickly and keeping control not only makes work faster but also helps keep products good.
The table below shows big improvements in plastic embossing:
Aspect | Description | Impact on Cycle Time / Efficiency |
|---|---|---|
Heating Method | Quartz infrared tubes inside embossing rollers heat the roller surface to 140°C | Takes the place of slower electric wires |
Preheating Time | Goes down from 20 minutes to 3 minutes | Gets ready much faster |
Energy Consumption | Infrared heats the roller surface right away, so less heat is lost | Uses 35% less energy |
Product Quality | Texture looks better and there are fewer mistakes | Mistakes go down by 12% |
Quartz heaters are lighter than ceramic heaters. This means they heat up fast and can change temperature quickly. Twin quartz heaters spread heat more evenly, so forming cycles are even faster. Using pyrometers to control heat stops things from getting too hot and lowers mistakes, making everything work better.
Keeping heat the same is important for good plastic products. Quartz IR emitters give even and repeatable results every time. Tests show these emitters reach steady temperatures as fast or faster than top brands. Automated infrared sensors check the heat in three directions, showing that quartz parts spread energy evenly over the area.
Spectral measuring tools help factories match the wavelength and strength of the infrared to what the plastic needs. This makes sure the energy is used well, so there are fewer changes and better results every time.
Experts say medium wave quartz IR emitters give very even energy, with temperature changes of less than ±5°C across the surface. This evenness is very important for jobs like thermoforming and curing. Quartz IR emitters also react fast to temperature changes, so they are easier to control than convection ovens. Their strong power and good energy use make things heat up faster and keep the temperature steady, which helps keep heating the same every time.
Note: Keeping heat even lowers mistakes, makes products better, and helps every batch meet tough rules.
Infrared heating uses electromagnetic radiation to heat plastic. The heat goes straight into the plastic, not the air. Many factories use this because it is fast and accurate.
Infrared heating keeps the temperature steady and even. This helps with jobs like thermoforming, welding, curing, drying, embossing, and laminating.
There are different heaters and wavelengths for each plastic job. This makes energy use better and helps products turn out well.
Heating things quickly means less waiting and less damage.
In thermoforming, infrared heaters warm plastic sheets evenly. This makes it easy to shape the plastic over molds.
Plastic welding uses focused infrared energy to soften the edges. This makes strong bonds without hurting the plastic.
Infrared heating helps cure composites by keeping the heat steady on tricky shapes.
Drying coatings and inks happens without touching or blowing air. This stops smudges and damage.
Special surface heating turns on adhesives and cures coatings. Thin parts do not bend or warp.
Note: Infrared heating lets factories control heat better and make better plastic products.
Factories can pick from different quartz IR emitters. Each one has special features and works best for certain jobs. The table below lists the main types and what they do:
Quartz IR Emitter Type | Emission Wavelength (µm) | Typical Industrial Applications |
|---|---|---|
Quartz Tungsten Tubes | 1.6 to 2 | Automotive plastic heating, glass forming |
Quartz Halogen Tubes | 1.0 to 1.4 | Aerospace material testing, heating wire/round tubes |
Medium Wave Quartz Elements | 1.5 to 8 | Heating polyester fabric, PVC coating, plastic welding |
Ceramic Elements (for contrast) | 2 to 10 | Thermoforming acrylic, curing foam, preheating carbon fiber |
Factories choose the right emitter for the plastic and the job. Quartz IR Emitters heat up fast and spread heat evenly. This makes them a great pick for many plastic factory jobs.
Factories must control temperature well to make good plastic. Quartz IR emitters help with this. They can keep heat as close as ±1°C. These emitters use special systems with infrared thermometers. The system checks the heat all the time and uses PID to control it. Workers can change heat in different zones for each job. This helps with things like thermoforming, drying, curing, laminating, and bonding.
Closed-loop control means fewer mistakes and faster work.
Zoned heating helps with tricky shapes and materials.
Even curing and bonding make stronger joints and better materials.
Custom systems give the right heat for each product, so results stay the same.
These emitters react fast, in just 1-2 seconds. Workers can heat or cool things quickly. This stops stress and damage from heat. Factories can make more products, up to 20% more, and save about 40% energy. There are fewer mistakes and more good products. This is why precise control is so important.
Tip: Good temperature control gives better and more reliable plastic products.
Saving energy is very important in plastic factories. Quartz IR emitters send heat right into the material. This means less heat is lost and less energy is used than old ways. Factories using these emitters often save 25% to 50% on energy.
Huai’an Infrared Heating Technology has made new things to help save energy:
Innovation Area | Details |
|---|---|
Material Selection | Carbon fiber filaments and halogen gases make lamps last longer and work better. |
Structural Design | Special caps and tungsten supports stop filaments from sagging. |
Manufacturing Process | Gold layers and special quartz help send out more far-IR and focus the heat. |
Performance | Up to 96% energy efficiency, quick warm-up (1-3 seconds), and ±1°C control. |
Environmental Impact | No dangerous emissions and meets RoHS/CE rules. |
These things help factories spend less and be kinder to the planet. Quartz IR lamps last a long time, over 10,000 hours, so they need fewer changes and make less waste. Compared to hot air or ceramic heaters, these emitters heat up faster and use less energy. This makes them a smart choice for factories that want to save energy.
Clean work is very important in plastic factories. Quartz IR emitters heat things directly, so less heat goes into the air. This saves energy and keeps the work area cooler. The technology does not use open flames or bare parts, so it is safer.
Feature | Explanation |
|---|---|
Non-contact heating | Heats without touching, so there is less dirt and moving parts are safe. |
Energy efficiency | Direct heating uses less energy and is cleaner. |
No harmful emissions | Does not make chemicals or fumes, so it is safer for people and the earth. |
Safety | No open flames or bare parts, so fire risk is lower. |
Compact design | Small and simple, easy to add to machines, and saves space in the factory. |
Huai’an Infrared Heating Technology works on making things efficient, clean, and good for the environment. Their quartz IR lamps have been trusted since the 1970s for being strong and working well. These lamps help factories follow safety and environmental rules and still make good products.
Note: Clean and efficient heating makes work safer and helps the planet.
Quartz IR Emitters are important for plastic welding. They heat plastic parts without touching them. The heat is fast and saves energy. Operators hold the emitters at a set distance from the plastic. After heating, they press the parts together or use special paths to join them. Factories weld many shapes, like flat and curved plastic pieces. These include things like instrument panels and door trims. Special 3D quartz glass infrared emitters fit each part’s shape. This makes the work more exact and faster. The welds are strong and clean. The surface does not get damaged.
Tip: Using the right wavelength for the plastic helps make better welds.
Plastic forming, like thermoforming, needs quick and exact heat. Quartz IR Emitters heat up and cool down very fast. This is good for jobs that need heat over and over. Operators use them to soften, cure, or preheat plastics. The power can be changed to fit the job. Factories use thermal imaging with quartz IR heating. This helps check and change the heat as needed. It keeps the heat even and makes work faster and better. The emitters can turn on and off quickly. This helps finish jobs fast and keeps work moving.
Some forming jobs are:
Thermoforming plastic sheets
Laminating and welding plastic parts
Embossing and sealing
Deburring takes off extra bits from plastic parts. Quartz IR Emitters, mostly short wave types, melt the burrs but do not burn the surface. Factories use emitters shaped to fit the part. This lets them heat only where needed. The process is automatic and faster than using hand tools. Fewer parts are thrown away. Parts can be used right after deburring. The small size of these emitters fits into most factory lines. This saves time and money.
Note: Heating just the burr melts it and keeps the rest of the part safe.
Drying plastics and coatings needs steady, even heat. Quartz IR Emitters give direct heat without touching the material. This makes drying faster. Factories use them to dry plastic pellets, coatings, and inks. The emitters heat up fast and spread energy evenly. This stops overheating and keeps results the same. Good drying makes products better and lowers mistakes. Using the right wavelength for the material saves energy and works best.
Application Area | Benefit of Quartz IR Emitters | Impact on Product Quality |
|---|---|---|
Welding | Non-contact, precise heating | Strong, clean welds |
Forming | Instant, programmable heat | Uniform shapes, fewer defects |
Deburring | Targeted, contactless melting | Smooth edges, less scrap |
Drying | Fast, even energy delivery | Consistent, high-quality finish |
Picking the right Quartz IR Emitters takes some planning. You need to match the emitter’s wavelength to the plastic and its thickness. For example, polypropylene works best with energy at about 3.45 microns. This means a medium-wave quartz heater is a good choice. Testing helps you find the best absorption for each plastic. The heater’s temperature decides what wavelength it gives off. Hotter heaters make shorter wavelengths with more energy.
You should also think about how long the heater will last and where it will be used. Running the heater at less than full power helps it last longer. In dusty places, internal reflectors keep the heater working well without lots of cleaning. Good air flow helps heat things evenly, which is important for sensitive plastics. Fast heating and cooling are important for quick production lines.
Companies like Huai’an Infrared Heating Technology, Heraeus Noblelight, and Excelitas Noblelight have many types of emitters and parts. These include short wave, medium wave, carbon, and round tube emitters. They also have modules, controls, and reflectors.
Tip: Always test the emitter with your plastic to get the best results.
Putting Quartz IR Emitters into a factory line helps make work faster and products better. Use power control systems like PLC or SCR regulators to change the power automatically. These systems keep the temperature steady within ±1°C and stop overheating. Real-time feedback lets you make quick changes to protect the product and the emitter. Safety features like alarms and automatic shutoff give extra safety.
A typical emitter specification table:
Feature | Description |
|---|---|
Power | 500 W |
Voltage | 115 V |
Heated Length | 225 mm |
Wavelength | 1.0 - 1.4 µm |
Response Time | 1 second |
Doing regular maintenance keeps emitters working well and helps them last longer. Check for dirt or things blocking the emitter surface, as these can stop infrared energy. Clean reflectors and surfaces when needed, especially if it is dusty. Watch power controls and safety systems to make sure they work right. Change emitters before they wear out to stop work from being delayed.
Note: Good maintenance and controls help keep heating steady and reliable.
Quartz IR emitters give off strong heat and control the wavelength well. This helps plastic factories work faster and make products that are always the same quality. Top companies make these emitters last as long as 25,000 hours. They can be used for many different jobs. Factories should look at their old heating systems and think about using these new tools. If they need help, they can talk to expert suppliers. These experts give advice and make special solutions for each factory.
Quartz IR emitters heat things fast and right where needed. They use less energy than old heaters. They let workers control the temperature very well. This helps factories make products faster and with better quality.
Most quartz IR emitters work for 10,000 to 25,000 hours. Taking care of them and using them the right way helps them last longer.
Factories can use quartz IR emitters with many kinds of plastic. It is important to match the emitter’s wavelength to the plastic’s needs. This helps get the best results.
Quartz IR emitters do not have open flames or make bad fumes. They help keep the work area cooler and safer for everyone. Doing safety checks often keeps everything working safely.
In addition to selling industrial infrared heating solutions to OEMs, Huai'an Yinfrared Heating Tech has been a quality supplier of shortwave and mediumwave quartz halogen infrared lamp replacements for most infrared dryers, pre-dryers, ovens and comfort heaters. YFR not only provides replacement lamps, but often assists customers in determining the cause of premature infrared lamp failure.
We have extensive experience in replacing infrared lamps and extending lamp life through visits to various customers' facilities.
Some of the most common factors that lead to premature failure of shortwave quartz halogen lamps are as follow
Improper storage of lamps: One of the most common causes of breakage is also one of the most basic. Quartz lamps have very thin walls and are therefore very easy to damage. Slight collisions can cause tiny gaps in the quartz tube, which can lead to air leakage, filament oxidization and short circuits inside the infrared lamp. For gold-plated lamps, try not to touch them with your hands, and you should wear clean gloves ，because acidic sweat stains on your hands can corrode the gold-plated film on the surface of the lamps, so the lamps should be always be stored in the shipping container to prevent breakage and contamination. There is nothing more frustrating than looking for emergency replacement lamps on the shelf only to find that the stock is broken.
Improper Installation: Extra care should be taken when installing the lamp. Lamps should not be “forced” into position or clamped. This is especially true of longer lamps. Forced installation can create tiny cracks in the quartz that may go unnoticed but will eventually cause premature lamp failure.
Metamorphosis due to contamination: Oil, salt and other contaminants can cause quartz tubes to metamorphose, during which crystalline structures grow on the surface or inside the quartz. Crystallization causes the quartz to be opaque rather than transparent to infrared energy. This can trap too much energy in the quartz, causing the filament to overheat and resulting in lamp failure. Oil and salt from freehand operation, shop oil and dust are common sources of infrared lamp metamorphosis. All quartz halogen lamps should be visually inspected and wiped down with denatured alcohol before installation and energization.
Improper Power-Up: Use a soft-start silicon-controlled rectifier (SCR) when powering up the IR lamp. Minimizing temperature extremes will reduce filament expansion and contraction and extend lamp life. Full power produces high inrush currents that can damage wiring and blow fuses. A soft-start SCR raises the lamp voltage in pre-determined steps, gradually increasing the filament temperature and avoiding any potential damage to the filament.
Improper power connection: This last cause is also easily avoided. Infrared lamps, like all electrical products, must be properly connected to the power supply. Loose connections and undersized wires are common causes of shortened quartz halogen lamp life. Vigilance during installation and a system of regular inspections are good ways to avoid lamp damage due to improper connections.
