Author: Process Heating Engineer Publish Time: 2025-08-08 Origin: Site
There is no single best infrared lamp for every paint curing process. The better choice depends on the coating type, substrate, film thickness, heating distance, production speed, and required curing result.
Short wave IR lamps are usually better when the process needs fast response, high radiant intensity, and rapid heat-up. Medium wave IR lamps are often better when the process needs more uniform surface heating, gentler drying, or better control over sensitive materials.
| Application Need | Better Direction |
|---|---|
| Fast spot curing | Short wave IR |
| Rapid heat-up on metal parts | Short wave IR |
| Large uniform coating area | Medium wave IR |
| Water-based coating drying | Medium wave or fast medium wave IR |
| Sensitive plastic substrate | Medium wave IR |
| Continuous finishing line | Depends on coating, speed, distance, and control |
For industrial paint curing, the correct solution is usually a combination of lamp type, reflector design, heating distance, and power control rather than lamp wavelength alone.
Infrared paint curing uses radiant heat to transfer energy directly to the coating layer and substrate. Unlike hot-air heating, which first heats the surrounding air, infrared energy can act more directly on the painted surface.
This makes infrared useful in paint drying, coating curing, automotive finishing, industrial coating lines, and production-line thermal processing. The curing result depends on how well the coating and substrate absorb the infrared energy.
Several factors affect performance: paint type, film thickness, substrate material, lamp wavelength, lamp distance, reflector direction, airflow, temperature control, and curing time. If these factors are not matched correctly, the result may be uneven curing, surface overheating, slow drying, or unstable coating quality.
For this reason, infrared paint curing should be treated as a process design problem, not only a lamp selection problem.

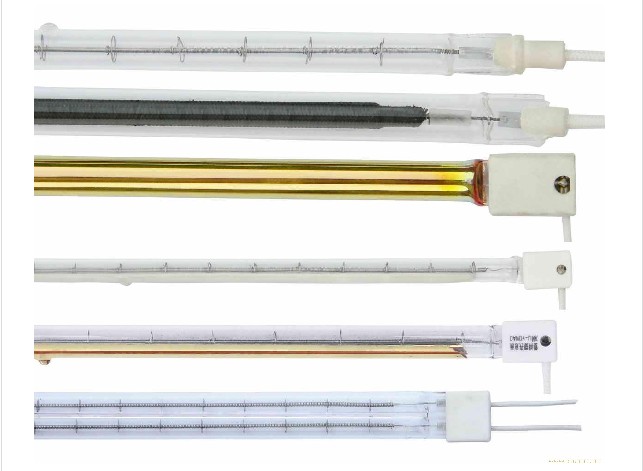

Short wave infrared lamps are often used when fast heat response is required. They can reach operating temperature quickly and deliver high radiant intensity to the painted surface.
In paint curing, short wave IR can be useful for fast spot repair, metal parts, primer curing, clear coat curing, and production processes where reducing heating time is important. It is also useful when the heating zone is compact and the process requires quick on/off response.
However, short wave IR should be controlled carefully. If the lamp is too close to the surface or the power is too high, the coating may heat too aggressively. This can cause surface defects, uneven curing, or overheating of sensitive substrates.
For best results, short wave IR lamps should be used with proper heating distance, reflector design, temperature monitoring, and power control.
Medium wave infrared lamps provide a different heating behavior. They are often selected when the process requires stable and more uniform heating rather than maximum heating intensity.
Medium wave IR can be suitable for water-based coatings, sensitive substrates, larger panels, continuous coating lines, and applications where surface uniformity is more important than rapid heat-up. It can help reduce the risk of overheating when the coating or substrate cannot tolerate aggressive radiant energy.
In industrial finishing lines, medium wave lamps are often used when the heating process must be stable across a wider working area. The final curing result still depends on coating formulation, lamp spacing, heating distance, and control method.
Medium wave IR is not automatically slower or less efficient in every case. If the coating absorbs medium-wave radiation well, it may provide a more stable and consistent curing process.
In many industrial paint curing and coating drying systems, the choice is not only short wave or medium wave. Fast medium wave IR emitters can provide a practical middle option.
Fast medium wave emitters are often used when the process needs better response than standard medium wave heating but less aggressive heating than short wave infrared. This can be useful for coating lines, printing drying, varnish curing, plastic substrates, and controlled surface heating.
For paint curing, fast medium wave emitters may be considered when the process needs a balance between curing speed, temperature stability, and coating quality.
The table below gives a practical comparison for paint curing and coating drying applications.
| Factor | Short Wave IR | Medium Wave IR |
| Response speed | Faster | Moderate |
| Heating behavior | High radiant intensity | Gentler and more uniform surface heating |
| Best suited for | Fast curing, spot repair, metal parts, compact heating zones | Water-based coatings, larger panels, sensitive substrates, continuous lines |
| Control requirement | Needs careful distance and power control | Easier to manage for uniform drying |
| Common system design | Short wave lamp + reflector + controller | Medium/FMW emitter + module + controller |
| Main risk | Surface overheating if poorly controlled | Slower response if the process needs rapid curing |
This comparison should not be used as a fixed rule. In real applications, the best choice depends on the coating, substrate, working width, line speed, and required curing result.
Paint curing efficiency is strongly affected by paint type and substrate. A solvent-based coating, water-based coating, clear coat, primer, powder coating, or adhesive layer may respond differently to infrared radiation.
The substrate also matters. Metal parts can often tolerate faster and more intense heating. Plastic parts, films, composite materials, and sensitive panels may require gentler and more controlled heating to avoid deformation or surface defects.
Film thickness is another key factor. A thin coating layer may dry quickly with short wave IR, while a thicker or moisture-rich coating may need a more controlled heating profile. If the surface cures too quickly while deeper layers remain wet, the final finish may become unstable.
For this reason, lamp type should always be selected together with paint formulation, coating thickness, substrate material, and curing target.
Reflector design has a major effect on infrared paint curing. A lamp with good output can still perform poorly if the energy is not directed toward the painted surface.

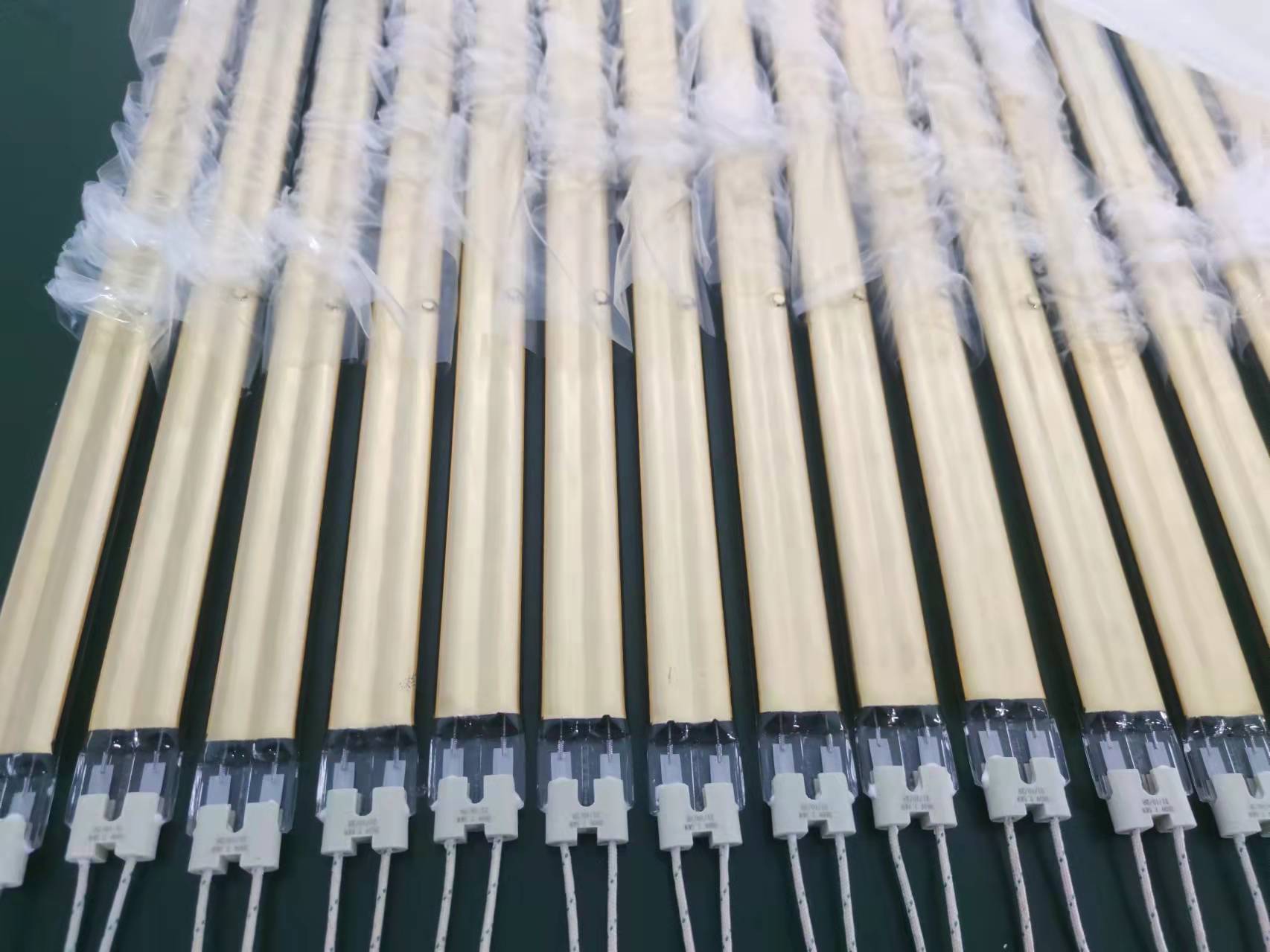

Gold reflector IR lamps can help direct more infrared energy toward the target area. This is useful in compact curing stations, conveyor systems, narrow heating areas, paint curing stations, and industrial finishing lines where energy direction matters.
Heating distance is equally important. If the lamp is too close, the surface may overheat before the coating cures evenly. If the lamp is too far away, curing time may increase and energy may be wasted.
For stable paint curing, the lamp distance should be tested together with coating type, substrate, line speed, and target temperature. The correct setup should produce a repeatable curing result without overheating the coating surface.
Paint curing efficiency is not only about lamp type. Power control also has a major effect on curing quality.
An IR lamp power controller can help regulate heat output more smoothly during production. This is especially useful when a paint curing system needs repeatable temperature control, multiple heating zones, or different curing profiles for different coatings.
Good control can help reduce thermal shock, improve consistency, and avoid unnecessary overheating. For industrial finishing lines, this is often more important than simply increasing lamp power.
Power control should be considered together with temperature sensors, lamp grouping, reflector layout, and conveyor speed. A well-controlled infrared curing system can provide more stable results across repeated production cycles.
Separate infrared lamps can be useful for replacement, testing, or simple curing stations. However, production lines often need a more complete heating structure.
IR drying modules can combine infrared lamps, reflector housings, lamp cassettes, wiring, mounting structures, and heating zones into one integrated unit. This can improve installation consistency and make maintenance easier.
For industrial paint curing and coating drying, modules are useful when the process requires:
Stable heating across a working width
Multiple heating zones
Conveyor-based drying
Repeatable curing conditions
Easier lamp replacement
Integrated reflector and housing design
For machine builders or production line upgrades, infrared heating modules may be more practical than installing separate lamps one by one. A module-based design allows the lamp, reflector, housing, mounting structure, and power control interface to be considered together.
Many paint curing systems do not require a completely new heating design. They only need correctly matched replacement infrared lamps.
When selecting replacement IR lamps, buyers should confirm the original lamp dimensions and electrical parameters. Important information includes voltage, wattage, total length, heated length, tube diameter, reflector type, end cap type, lead wire direction, and machine model.
A replacement lamp with the wrong heated length, wattage, or end cap may still turn on, but it may cause uneven curing, poor fit, short service life, or unstable coating quality.
For accurate replacement, clear photos of the old lamp are very helpful. Photos should show the full lamp, both ends, lead wires, ceramic holders, and installation area.
The right infrared lamp should be selected according to the paint process, not only according to wavelength.
Before choosing between short wave and medium wave IR lamps, confirm the following conditions:
| Selection Factor | Why It Matters |
|---|---|
| Paint or coating type | Different coatings absorb infrared energy differently |
| Substrate material | Metal, plastic, film, and composite materials tolerate heat differently |
| Film thickness | Thicker coatings may need more controlled heating |
| Heating distance | Affects intensity, uniformity, and curing quality |
| Working width | Determines lamp length, spacing, and module structure |
| Line speed | Determines response speed and required heat output |
| Target temperature | Defines lamp power and control method |
| Reflector design | Controls energy direction and heating efficiency |
| Control requirement | Maintains repeatable curing quality |
If the process requires rapid heat-up on metal parts, short wave IR may be suitable. If the process requires controlled drying across a larger coating area, medium wave or fast medium wave IR may be more practical.
For industrial paint curing, the best solution is often not one lamp type alone, but a matched system of lamp, reflector, controller, and module design.
For fast automotive spot repair or small metal parts, short wave infrared lamps are often a strong option because they provide quick response and high radiant intensity.
For coating lines, water-based paints, plastic substrates, or larger heating areas, medium wave or fast medium wave IR may provide better process stability.
For conveyor systems, industrial drying lines, and paint curing sections with multiple heating zones, IR drying modules or infrared heating modules should be considered.
For compact equipment or directional heating, gold reflector IR lamps may help improve effective heat direction.
The final choice should always be validated with the actual coating, substrate, distance, temperature, and production speed.
YFR supplies infrared heating solutions for paint curing, coating drying, and industrial finishing applications.
Our related product directions include:
For replacement projects, buyers can send the old lamp photo, voltage, wattage, total length, heated length, tube diameter, end cap type, lead wire direction, and machine model. For new equipment or line upgrades, buyers should provide the heating area, target temperature, working distance, line speed, coating type, and available installation space.
Short wave IR lamps are better when the process needs fast response, high radiant intensity, and rapid curing. Medium wave IR lamps may be better when the process needs gentler heating, better surface uniformity, or more controlled drying. The best choice depends on coating type, substrate, distance, and production speed.
Water-based coatings often require controlled drying rather than only high-intensity heating. Medium wave or fast medium wave IR emitters may be suitable, depending on coating thickness, substrate, airflow, and line speed.
Yes. Medium wave IR lamps can be used in automotive paint curing when the process requires controlled surface heating or larger heating areas. Short wave IR is often used for fast spot repair, while medium wave or fast medium wave IR may be used where uniform heating is more important.
Infrared paint curing efficiency depends on lamp wavelength, coating absorption, substrate material, film thickness, lamp distance, reflector design, power control, airflow, and curing time.
There is no fixed distance for every application. The correct distance depends on lamp type, power, reflector design, coating type, substrate, and target temperature. The distance should be tested to avoid overheating, uneven curing, or slow drying.
Gold reflectors can improve effective heat direction by reflecting more infrared energy toward the target surface. They are useful in compact curing stations, conveyor systems, and applications where directional heating is important.
Use an IR drying module when the process requires stable heating across a working width, multiple heating zones, integrated reflectors, easier maintenance, or conveyor-based drying. Modules are often more suitable for production lines than separate lamps.
Short wave and medium wave infrared lamps can both be used for paint curing, but they are suitable for different process conditions.
Short wave IR lamps are useful when fast response and high radiant intensity are required. Medium wave and fast medium wave IR lamps are often more suitable when the process needs controlled drying, uniform surface heating, or better compatibility with sensitive substrates.
For industrial paint curing, the best result comes from matching the lamp type, reflector design, heating distance, power control, and module structure to the coating, substrate, and production process.
