UV curing affects ink drying, varnish gloss, coating adhesion, scratch resistance, sheet handling, and production stability. When the curing system works correctly, printed sheets can move through the press with better surface quality and reduced waiting time. When the wrong lamp or module is selected, the result may include incomplete curing, uneven gloss, excessive heat, substrate deformation, or installation mismatch.
Before ordering a replacement, the first question is not only “Which UV lamp do I need?” The more important question is: does the original system use a traditional mercury UV lamp or an integrated LED-UV curing module?
These two systems may both be used for printing press curing, but their structures, replacement parameters, cooling requirements, and installation checks are different. If the buyer only provides a press model or a general product name, the supplier may not have enough information to confirm a reliable replacement.
For general UV product options, YFR provides UV Lamps for printing presses, curing systems, exposure equipment, and industrial UV applications.
A mercury UV lamp is a linear discharge lamp commonly used in traditional printing press UV curing systems. It is often installed together with reflectors, quartz plates, transformers, power regulators, and cooling structures inside the UV curing section.
For replacement, a mercury UV lamp is usually confirmed by its original lamp code, rated power, voltage, total length, arc length, lamp diameter, cap type, cable length, connector type, and application equipment. These details matter because the lamp must match not only the curing requirement, but also the original reflector, power supply, lamp holder, and installation space.
In printing presses, mercury UV lamps may be used for UV ink curing, varnish curing, coating curing, commercial printing, packaging printing, and exposure-related applications. A Heidelberg Speedmaster, Roland, IST, GEW, Eltosch, or other UV curing system may use different lamp structures depending on machine model, printing width, production year, and retrofit history.
This is why a machine model alone is not enough. If the original UV lamp label is missing, clear photos and accurate measurements become especially important. For Heidelberg-related replacement projects, YFR also provides Heidelberg Replacement Lamps for printing press drying and curing applications.
An LED-UV curing module is an integrated curing assembly. Unlike a traditional linear UV mercury lamp, an LED-UV module may include segmented LED curing windows, aluminum housing, water-cooling connectors, power or signal cables, mounting holes, installation brackets, and control-related interfaces.
For selected Heidelberg DryStar-type applications, LED-UV module replacement should be confirmed by original module photo, press model, wavelength, power output, cooling method, connector type, cable direction, mounting structure, and installation position.
YFR supplies LED-UV Replacement Lamp Module for Heidelberg DryStar-Type Curing Systems for selected printing press UV curing applications. For this type of replacement, the original module structure is more important than the product name alone.
A LED-UV module may look simple from the front, but the back side, connector area, cooling pipe position, cable routing, and mounting holes can decide whether the replacement can fit the existing curing system.
The correct choice depends on the existing press, ink system, curing process, cooling structure, replacement budget, and installation condition. LED-UV should not be described as always better than mercury UV, and mercury UV should not be treated as outdated in every situation. Many printing plants still maintain mercury UV systems because the original press, power supply, lamp housing, and curing process are already designed for that structure.

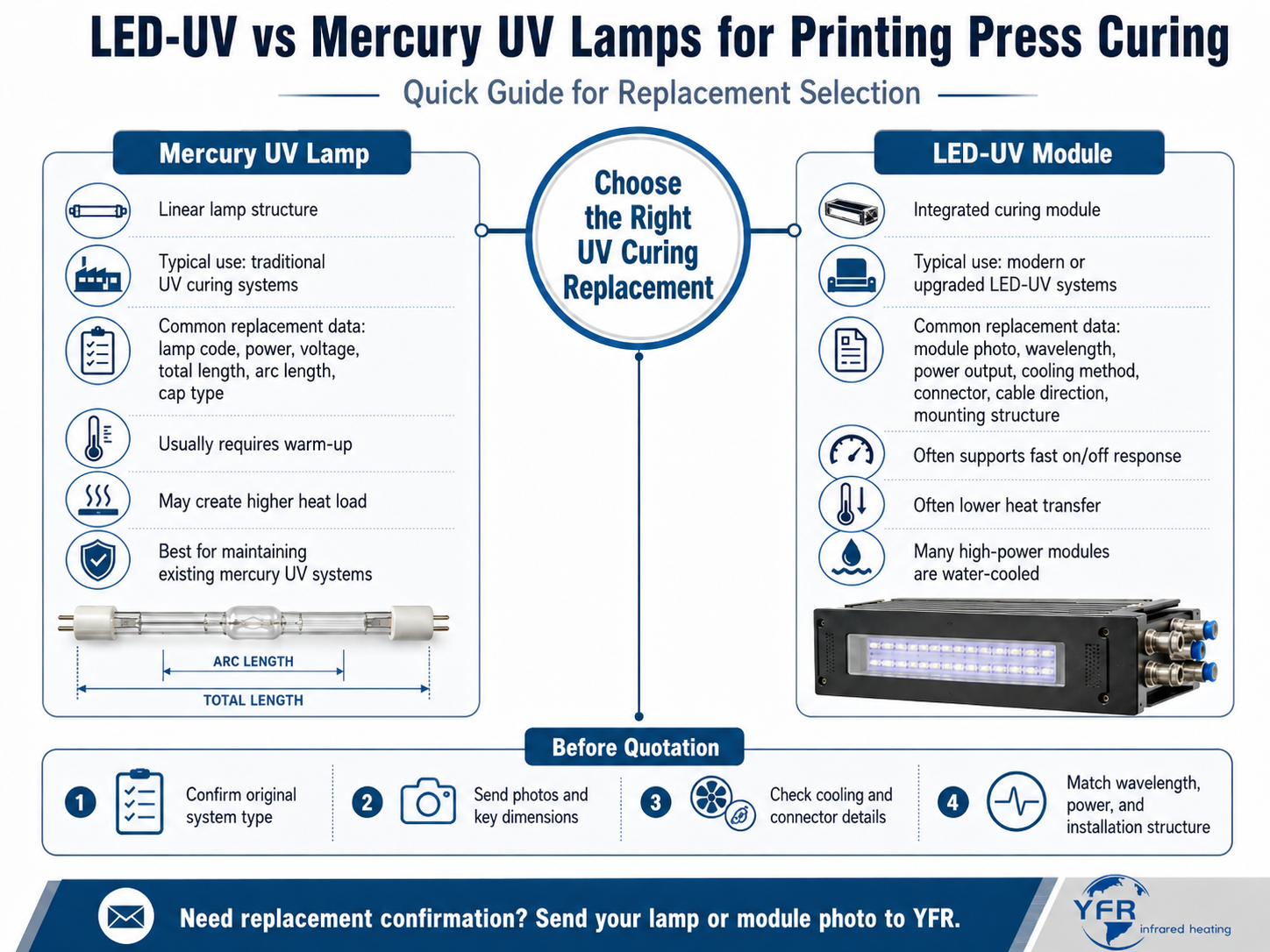

Comparison Point | Mercury UV Lamp | LED-UV Module |
|---|---|---|
Product structure | Linear discharge lamp | Integrated LED curing module |
Common replacement data | Lamp code, power, voltage, total length, arc length, diameter, cap type, connector | Module photo, wavelength, power output, cooling method, connector, cable direction, mounting structure |
Warm-up behavior | Usually requires warm-up and cool-down depending on system design | Often supports faster on/off response depending on system design |
Heat transfer | May create higher heat load depending on lamp power, reflector, and cooling structure | Often selected where lower heat transfer and controlled curing area are required |
Cooling method | Often air-cooled or system-cooled | High-power modules are often water-cooled |
Wavelength | Depends on lamp type and UV system design | Common LED-UV options may include 365 nm, 385 nm, and 395 nm |
Replacement complexity | Usually lamp-based replacement | Requires module structure and interface confirmation |
Typical use | Traditional UV curing systems | Modern or upgraded LED-UV curing sections |
This comparison is only a general guide. Final replacement should always be confirmed by original lamp or module photos, machine model, drawing, and technical specification before production.
Wavelength is one of the most important differences between mercury UV and LED-UV curing.
Mercury UV lamps and LED-UV modules do not work in the same way. A mercury UV lamp has a different spectral output from a LED-UV module. LED-UV systems usually work within more specific wavelength ranges, and 395 nm UVA is commonly used for LED-UV ink and varnish curing applications. However, 395 nm should not be assumed without checking the original system and ink requirement.
Other LED-UV wavelength options such as 365 nm or 385 nm may also be used depending on the ink system, varnish type, substrate, and curing process. If the wavelength does not match the curing chemistry, the printed sheet may remain tacky, show poor adhesion, or fail to reach the expected curing result even when the module can be installed mechanically.
For replacement projects, wavelength should be confirmed together with the ink system, varnish type, curing requirement, original lamp or module specification, and printing speed.
Heat transfer is another important factor in printing press curing.
Mercury UV systems may create higher heat load depending on lamp power, reflector design, cooling structure, and machine setup. This does not mean mercury UV is unsuitable, but it does mean the press must be designed and adjusted to manage the heat properly.
LED-UV systems are often selected for applications where lower heat transfer, controlled curing area, and fast response are important. This can be useful for packaging printing, thin paper, plastic film, heat-sensitive substrates, and premium varnish applications.
However, LED-UV does not automatically solve every curing problem. The final result still depends on wavelength, LED output, cooling stability, ink compatibility, substrate type, printing speed, and machine integration.
Cooling is one of the clearest structural differences between many mercury UV systems and high-power LED-UV modules.
For mercury UV lamp replacement, the main checks usually include lamp size, cap type, rated power, voltage, connector structure, and the existing power supply or lamp housing. The cooling system is normally part of the original UV unit or machine structure.
For LED-UV module replacement, cooling details are often part of the module itself. Many high-power LED-UV modules use water-cooled structures, so the replacement must match the original water inlet, water outlet, connector size, pipe direction, sealing structure, and available installation space.
If the cooling connector does not match, the module may not fit the machine. If the cooling method is not stable, module performance and service condition may be affected. For this reason, buyers should send photos of the cooling connector, pipe direction, cable routing, and installation position before quotation.
The information needed for replacement depends on whether the original system uses a mercury UV lamp or a LED-UV module.
For mercury UV lamp replacement, the key information includes the original lamp code, machine model, rated power, voltage, total length, arc length, lamp diameter, cap type, cable length, connector type, quantity, and application process.
If the lamp label is missing, clear photos of the full lamp body, both ends, connector, cable, and installation position are useful for initial evaluation. A photo with a ruler or tape measure is also helpful when the total length or arc length is uncertain.
For LED-UV module replacement, the key information includes the press model, original module photo, wavelength, power output, cooling method, module length, working width, connector type, cable direction, water pipe connection, mounting hole position, control interface, installation position, and quantity required.
For Heidelberg DryStar-type applications, cooling method, connector structure, cable direction, mounting design, and installation clearance are especially important. These details help confirm whether the replacement module can be manufactured or supplied to match the existing curing system.
For a more detailed checklist, you can read How to Send a UV Lamp or LED-UV Module Sample for Replacement Confirmation. Replace this link with the real blog URL after publishing the second article.
The correct choice depends on your existing equipment. In most replacement projects, the goal is not to choose a completely different UV technology, but to match the original curing system correctly.
Mercury UV replacement is usually the right direction when the original machine already uses a traditional UV mercury lamp system and the customer wants to maintain the existing curing section.
This is also suitable when the buyer has the original lamp code, rated power, voltage, total length, arc length, cap type, and connector information. If the original system is still working and only the lamp needs replacement, changing the entire curing method is usually not necessary.
LED-UV module replacement is the correct direction when the original equipment already uses a LED-UV curing module or a DryStar-type LED-UV system.
This type of replacement requires more structural confirmation. The buyer should be able to provide module photos, wavelength, power output, cooling method, connector type, cable direction, mounting hole position, and installation details.
For selected Heidelberg DryStar-type applications, YFR can support replacement evaluation through the LED-UV Replacement Lamp Module for Heidelberg DryStar-Type Curing Systems.
The correct replacement should not be selected only by terms such as “Heidelberg UV lamp,” “DryStar LED module,” or “UV curing lamp.”
These names are useful for initial communication, but they do not confirm the full technical structure. Final compatibility should be confirmed by original lamp or module photo, machine model, drawing, and technical specification before production.
A common mistake is assuming that all UV systems on the same press series use the same lamp or module. In reality, production year, retrofit history, curing position, printing width, and system supplier can all affect the replacement structure.
Another mistake is choosing only by wavelength or power. A LED-UV module with the correct wavelength may still fail to install if the cooling connector, cable direction, or mounting holes do not match. A mercury UV lamp with similar wattage may still be unsuitable if the arc length, cap type, or connector structure is different.
Many replacement delays also happen because the first inquiry includes only one photo. For accurate evaluation, buyers should send the full product view, both ends, connector area, cable direction, label, cooling connection if applicable, and installation position inside the machine.
YFR supports UV and infrared replacement solutions for printing press drying and curing systems.
For UV curing products, visit UV Lamps. For selected DryStar-type LED-UV curing applications, see LED-UV Replacement Lamp Module for Heidelberg DryStar-Type Curing Systems.
For infrared drying sections, you can also view Heidelberg Replacement Lamps and FMW IR Emitter for Printing Drying and Coating Curing.
For printing presses that use both infrared drying and UV curing, YFR can help evaluate different replacement products within the same equipment system.
Need to confirm whether your printing press uses a UV mercury lamp or a LED-UV module?
Please send us your lamp code, machine model, lamp or module photo, wavelength, power, arc length, total length, cooling method, connector type, cable direction, mounting structure, and installation position.
YFR will review the structure and provide a replacement evaluation before quotation.
Recommended product: LED-UV Replacement Lamp Module for Heidelberg DryStar-Type Curing Systems
Related category: UV Lamps for Printing, Curing and Industrial Equipment
Not always. LED-UV and mercury UV are used in different curing systems. The better choice depends on the existing press, ink system, substrate, curing requirement, cooling structure, replacement budget, and installation condition.
In most cases, no. A direct replacement is usually not possible without checking the power supply, cooling system, control interface, mounting structure, and ink compatibility. LED-UV module replacement should be evaluated as a system-related replacement, not only as a lamp change.
Mercury UV replacement usually focuses on lamp code, power, voltage, total length, arc length, cap type, and connector structure. LED-UV module replacement requires additional checks such as wavelength, power output, water cooling, cable direction, mounting holes, and control interface.
No. 395 nm UVA is common for many LED-UV ink and varnish curing applications, but the correct wavelength depends on the ink system, varnish type, substrate, and original UV curing system.
For mercury UV lamps, send the lamp code, power, voltage, total length, arc length, diameter, cap type, connector type, machine model, and photos. For LED-UV modules, send the module photo, wavelength, power output, cooling method, connector type, cable direction, mounting structure, and installation position.
Yes. YFR can support UV lamp replacement and selected LED-UV module replacement evaluation for printing press and industrial curing applications. Final compatibility should be confirmed by original lamp or module photo, machine model, drawing, and technical specification before production.
