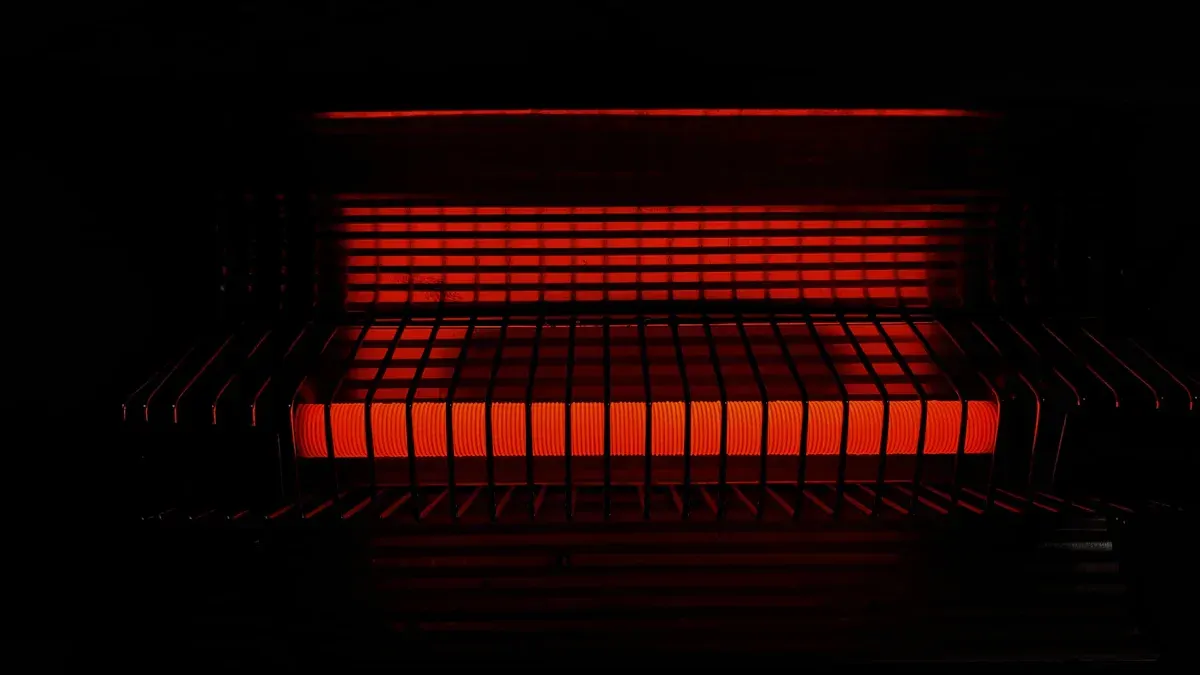

A quartz infrared lamp is a good option when equipment needs compact radiant heat, controllable output and a clean non-contact heat source. It is not automatically the best solution for every product. The decision should start with the target material and process window, not with a preferred lamp catalogue.
Quartz is the lamp envelope, not a single wavelength. Quartz lamps may contain tungsten, nickel-chromium or carbon elements and can therefore have different response, spectrum and operating characteristics.
Quartz lamps are commonly evaluated for moving webs, coatings, plastics, printing, ovens and local preheating where direct radiation can reach the target. They are particularly useful when compact zones and adjustable output are important.
Deep shadowing, highly reflective targets, strict low-surface-temperature limits or a process dominated by bulk air heating may require another emitter, hybrid airflow or a different heater geometry.
| Question | Evidence to collect | Design effect |
|---|---|---|
| What absorbs the radiation? | Material, colour, coating and moisture | Emitter family |
| How fast does it move? | Line speed and exposure time | Installed power and zone length |
| Where can lamps fit? | Envelope, distance and access | Tube and module geometry |
| How is quality measured? | Temperature and product endpoint | Control and acceptance test |
Compare short-wave, medium-wave and carbon quartz emitters.
Trial the real product at minimum, nominal and maximum line conditions. Measure uniformity, surface limits, accepted quality and response to a line stop before finalising the lamp.
Quartz lamps are one family of infrared heating products.
Direction can come from a lamp coating or an external reflector.
No. Absorption and process geometry differ by material.
No. Product quality, dwell time, distance and control also matter.
Send YFR the product, heating target, line speed and installation space for an application review.
