How to Select the Right Infrared Heating Lamp for PET Blow Molding Machines

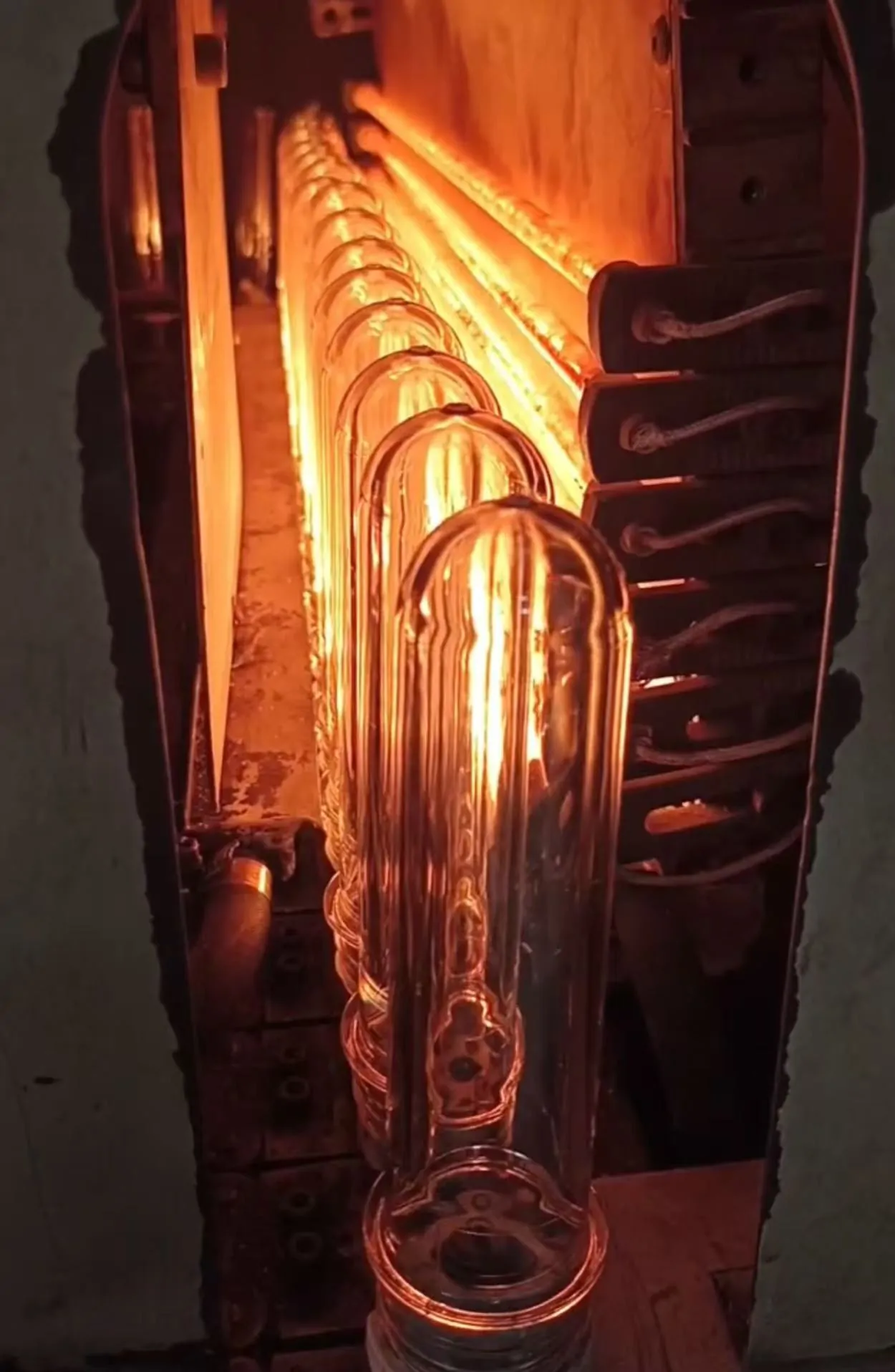

PET lamp


When I select an infrared heating lamp for PET production, I always focus on the specific needs of PET material. The right lamp ensures efficient preform heating and consistent results. I know that matching the infrared wavelength to PET absorption improves energy transfer and product quality. Advanced lamps, like the YFR Semi-White Coating Infrared Heating Lamp, help me achieve precise control and superior performance on blow molding machines.


Key Takeaways

  • Choose infrared heating lamps that match PET's absorption wavelength for efficient and uniform heating.

  • Use NIR technology to heat PET preforms faster, save energy, and improve product quality.

  • Adjust lamp power, size, and position to fit different preform shapes and production speeds.

  • Maintain lamps and reflectors regularly to ensure consistent heating and protect equipment.

  • Select lamps compatible with your machine brand and customize them to your production needs.

  • Test new lamps carefully before full use to confirm heating uniformity and bottle quality.

  • Avoid common mistakes like ignoring compatibility, overlooking energy efficiency, and neglecting maintenance.

  • Invest in advanced lamps like the YFR Semi-White Coating model for longer life, better energy savings, and superior results.


Infrared Heating Lamp in PET Blow Molding

PET Blow Molding


Role in PET Preform Heating

When I work with PET blow molding machines, I rely on the infrared heating lamp to prepare the preform for the next stage. The lamp softens the preform by increasing the voltage in the first-stage heater. This step prevents the bottle mouth from sticking together. I adjust the temperature near the bottom of the preform to remove hard lumps and ensure the base forms correctly. By changing the lamp temperature at the neck, bottom, and middle, I can eliminate uneven spots and achieve even heating. If I notice inflation defects, I raise the temperature across the entire heating zone. Proper temperature control with the infrared heating lamp is essential for stretching and forming the preform.

The heating process uses strong penetration. The preforms rotate and revolve during heating. This movement ensures fast and reliable temperature distribution. I can adjust the size of the lamps and reflective plates to fit different preform structures. An automatic exhaust device keeps the temperature constant in the drying tunnel. The adjustable width and height of the reflector plates help me heat preforms with various shapes. This flexibility ensures effective and consistent heating every time.

Tip: I always monitor the heating zones closely. Small changes in temperature can make a big difference in PET bottle quality.


NIR Technology Overview

NIR, or near-infrared, technology has changed how I approach PET blow molding. NIR heating technology stands out for its speed and energy efficiency. Only a few machine builders claim that NIR is superior to standard mid-infrared heating for PET preform heating. I have seen new machines, like those with compact NIR ovens, use NIR preform heating to achieve quick changeovers and recover blowing air. NIR technology allows me to heat preforms faster and more evenly. The wavelength of NIR matches the absorption spectrum of PET, which means I get maximum energy transfer.

NIR heating technology gives me precise control over the heating process. I can adjust the temperature quickly, which helps when I switch between different preform types. The compact design of NIR ovens saves space on the production floor. I find that NIR technology supports high-speed production lines and helps me meet strict quality standards.

  • NIR technology provides:

    • Faster heating cycles

    • Better energy savings

    • Improved performance for PET preforms

    • Flexibility for different preform sizes

    • Consistent results in high-volume production


Importance for PET Quality

I know that the quality of PET bottles depends on how well I control the heating process. Uniform heating ensures that the preform stretches evenly. This step prevents thin spots and stress cracks in the final product. When I use NIR heating technology, I can match the wavelength to the PET material. This match leads to better energy transfer and more reliable results.

Consistent heating helps me produce bottles with the right wall thickness, clarity, and strength. I avoid defects like uneven bottoms or weak necks. The infrared heating lamp protects machine components by reducing excess thermal radiation. This protection extends equipment life and lowers cooling needs. I always choose technology that supports both product quality and equipment durability.

Note: Investing in advanced NIR technology pays off in fewer rejects and higher productivity. I see the difference in every batch I produce.


Applications in PET Blow Molding

Preform Heating Process

When I work with PET stretch-blow molding, I always start by focusing on the preform heating process. This step sets the foundation for strong, clear bottles. I use NIR technology to deliver precise and uniform heating. My experience tells me that following a structured approach leads to the best results. Here is how I handle the preform heating process in PET molding systems:

  1. I adjust the distance and height of the infrared lamp racks to cover the entire preform length.

  2. I increase lamp power in small steps to heat the preform gradually.

  3. I slow down the machine cycle to give the preform enough time to soak up heat.

  4. I make sure the preforms rotate during heating. This rotation prevents uneven temperature spots.

  5. I perform a manual "feel" test by gently squeezing the heated preform. I check for uniform softness and make sure there are no hard or overly soft areas.

  6. On semi-automatic systems, I make manual adjustments based on what I observe and feel. This helps me optimize the heating process.

NIR heating gives me the control I need to match the absorption spectrum of PET. I see fewer defects and more consistent bottle quality when I follow these steps.


High-Speed Production Lines

In high-speed PET production, I rely on advanced NIR heating systems to keep up with demand. These systems allow me to heat preforms quickly and evenly, which is essential for stretch-blow molding. I notice that NIR technology reduces cycle times and boosts production efficiency. When I use NIR lamps, I can maintain stable temperatures even as the line speeds up. This stability means every bottle meets strict quality standards.

I also appreciate how NIR heating systems adapt to different preform sizes and shapes. I can switch between bottle types without losing time. The fast response of NIR lamps helps me avoid overheating or underheating, which protects both the preform and the molding equipment. In my experience, high-speed lines with NIR heating deliver reliable results batch after batch.


Industry Use Cases

I see PET stretch-blow molding systems used across many industries. Beverage companies depend on these systems to produce millions of bottles each day. Cosmetic brands need clear, strong bottles for their products. Pharmaceutical and food industries trust PET bottles for safety and durability. In each case, NIR heating plays a key role in shaping the preform into a finished bottle.

I have worked with blow molding machines that use NIR lamps to create bottles with uniform wall thickness and high clarity. These applications demand precise control over the heating process. I find that NIR systems help me meet the unique needs of each industry. Whether I am producing water bottles, juice containers, or medicine bottles, I rely on NIR heating to deliver top-quality results.

Tip: I always monitor the heating zones and adjust NIR lamp settings to match the specific requirements of each PET application. This attention to detail ensures every bottle meets customer expectations.


Benefits of Infrared Heating Lamp

Uniform Heating

When I work with PET blow molding machines, I always look for heating solutions that deliver uniform results. Uniform heating is critical because it ensures every preform receives the same amount of energy. This consistency helps me avoid defects in bottles, such as thin spots or weak areas. I notice that when the heating lamp provides a uniform temperature distribution, the PET material stretches evenly. This leads to bottles with reliable wall thickness and strength.

I rely on advanced infrared lamps to achieve this level of uniformity. The lamps focus energy directly onto the preforms, so each one heats up at the same rate. I see fewer rejects and better product quality when the heating process remains stable. Uniform heating also helps me maintain high production efficiency, especially on fast-moving lines. I can trust that every bottle will meet the required standards.

Tip: I always monitor the heating zones to ensure the temperature stays consistent across all preforms. This attention to detail pays off in the final product.


Energy Efficiency

Energy-efficient technology plays a huge role in my daily operations. I always aim to reduce energy consumption without sacrificing performance. Advanced infrared heating lamps, especially those using energy-efficient NIR heating, help me achieve this goal. These lamps deliver strong, penetrating energy that heats preforms quickly and evenly.

From my experience, machines like the J5L2 and Q3000 PET blow molding systems show how energy-efficient solutions make a difference. Both machines use advanced infrared lamps with adjustable settings for different preform structures. I have seen actual power consumption drop to just 30%–70% of the maximum installed power. This means I save a significant amount of energy during each production run. The Q3000, for example, is even called an "Energy Saving PET Blowing Machine" because of its improved energy utilization and increased production capacity.

Here are some key benefits I notice with energy-efficient infrared heating:

  • Lower operational costs due to reduced energy use

  • Consistent heating performance, even at high speeds

  • Less heat loss, which protects equipment and the work environment

  • Increased energy savings, which supports sustainability goals

I always choose energy-efficient lamps to maximize efficiency and minimize waste. This approach helps me stay competitive and responsible in the industry.


Product Quality

Product quality stands at the center of my production goals. I know that the right heating lamp directly impacts the quality of PET bottles. When I use energy-efficient infrared heating, I see bottles with clear walls, strong structure, and minimal defects. Uniform heating ensures that every bottle has the same thickness and clarity, which is essential for industries like beverages, cosmetics, and pharmaceuticals.

I also notice that energy-efficient lamps help prevent common problems such as stress cracks or uneven bottoms. The precise control over the heating process allows me to adapt quickly to different preform types and production speeds. This flexibility means I can maintain high standards, no matter the batch size or bottle design.

In my experience, investing in advanced heating technology always pays off. I achieve better product quality, higher efficiency, and greater customer satisfaction. The benefits of using the right infrared heating lamp extend throughout the entire production process, from energy savings to the final bottle on the shelf.


Equipment Protection

When I operate PET blow molding machines, I always pay close attention to equipment protection. The right infrared heating lamp does more than just heat preforms. It plays a vital role in safeguarding the entire system. I have learned that consistent and uniform heating is essential. If the lamp delivers uneven heat, the preforms may not reach the precise glass transition temperature. This can cause improper stretching and even damage the blow molding equipment.

From my experience, several features of advanced infrared heating lamps help protect the machinery:

  • Uniform Heating: I rely on lamps that provide even heat distribution. This ensures every PET preform reaches the correct temperature for stretching. When the temperature is right, the equipment operates smoothly and avoids unnecessary strain.

  • High-Quality Materials: I choose lamps made with high-purity fused quartz tubing and tungsten filaments. These materials resist rapid aging and maintain stable performance over thousands of hours.

  • Reflector Maintenance: I regularly check and clean the aluminum reflectors. Clean reflectors focus infrared energy directly onto the preforms. If reflectors become contaminated or oxidized, they scatter energy, creating hot and cold spots. These temperature fluctuations can harm both the preforms and the machine.

  • Lamp Replacement Schedule: I follow a strict replacement schedule. After 3,000 to 4,000 hours of use, I replace all lamps in a group. This practice keeps the heating system efficient and prevents uneven heating caused by aging filaments or tungsten evaporation.

  • Spectral Stability: I monitor the lamp’s infrared spectrum. As filaments age, the spectrum can shift away from PET’s peak absorption wavelength. This reduces heating efficiency and puts extra stress on the equipment.

Tip: I always keep a maintenance log for my infrared heating system. Regular cleaning and timely lamp replacement help me avoid costly repairs and downtime.

I have seen firsthand how neglecting these steps can lead to equipment failure. For example, when a lamp develops a dark film from tungsten evaporation, it reduces infrared output. This causes uneven heating and forces the machine to work harder, increasing the risk of breakdowns. By maintaining my lamps and reflectors, I extend the life of my blow molding equipment and ensure consistent production quality.

In my daily work, I treat equipment protection as a top priority. The right infrared heating lamp, combined with proper maintenance, shields my machines from damage. This approach saves money, reduces downtime, and keeps my production line running smoothly.

Selecting the Right Infrared Heating Lamp


INFRARED LAMP FOR PET BLOWING


Lamp Type and Wavelength

When I select an infrared heating lamp for PET blow molding, I always start by considering the lamp type and its wavelength. The right lamp type ensures that the energy output matches the absorption characteristics of PET material. I know that NIR technology stands out in this field. NIR lamps emit energy in a wavelength range that PET absorbs efficiently, usually between 2.7 and 3.2 micrometers. This match allows me to transfer energy directly into the preform, which leads to rapid and uniform heating.

I have found that using a lamp with a high-reflectivity ceramic coating, like the YFR Semi-White Coating Infrared Heating Lamp, maximizes energy transfer. The semi-white coating reflects over 95% of the infrared energy back onto the preform. This feature not only boosts heating efficiency but also supports energy savings. I always check that the lamp’s emission spectrum aligns with PET’s absorption peak. This step is critical for achieving consistent results, especially when I work with 100% rpet compatibility requirements or recycled PET blends.

NIR technology gives me precise control over the heating process. I can fine-tune the wavelength to match different preform types and production speeds. This flexibility helps me maintain high product quality and adapt to evolving industry standards.

Tip: I always verify the lamp’s wavelength specification before installation. A mismatch can lead to poor heating performance and increased energy consumption.


Power and Size

Selecting the correct power and size for an infrared heating lamp is essential for efficient PET blow molding. I always tailor the lamp’s power output to the thickness and weight of the preform. Thicker or heavier preforms require more heat, so I increase lamp power incrementally. This approach ensures that heat penetrates evenly through the material.

Here is how I match lamp power and size to my specific molding systems:

  1. I increase lamp power step by step for thicker preforms, ensuring even heating throughout the core.

  2. I extend the heating time by slowing down the machine cycle, allowing the preform to absorb more energy.

  3. I adjust heating zones to focus more energy on thicker sections, such as the base and body.

  4. I use digital controls on automatic systems to set precise power percentages for each zone, which lets me fine-tune heating without manual adjustments.

  5. I save heating and blowing parameter recipes in the machine’s HMI. This practice gives me repeatability and quick changeovers between different preform types.

  6. I replace lamps and reflectors after 3,000 to 4,000 hours to maintain optimal heating efficiency, as power output can decay over time.

  7. I adjust lamp size and reflective plates to fit the preform’s structure and the machine’s specifications. This step ensures uniform and effective heating across all preforms.

In my experience, machines like the J5L2 use infrared lamps with adjustable width and height, along with reflective plates, to accommodate various preform structures. The lamps rotate with the preforms, which guarantees uniform heating. I can adjust actual power consumption between 40% and 70% of the maximum, depending on the production needs. This flexibility supports precise control over heating intensity and distribution, which is critical for producing high-quality bottles.


Compatibility and Customization

I always check compatibility and customization options before choosing an infrared heating lamp for my PET molding systems. The lamp must fit seamlessly with my existing equipment and support the specific requirements of my production line. I look for lamps that offer OEM compatibility with major brands like Krones, Sipa, SMI, KHS, Side, and Sidel. This compatibility ensures that I can use the lamp as a direct replacement or upgrade without extensive modifications.

Customization is another key factor. I often need lamps tailored in length, power density, voltage, and terminal types to match different oven widths and machine specifications. The YFR Semi-White Coating Infrared Heating Lamp stands out because it offers a wide range of customization options. I can specify the exact dimensions and power settings needed for my systems, which helps me optimize heating performance and energy savings.

Advanced features like high-reflectivity ceramic coatings, ultra-fast response times, and compatibility with zonal heating systems give me even more control. These features allow me to adapt quickly to changes in preform design or production speed. I also value the ability to integrate the lamp with digital controls and recipe management systems, which streamlines my workflow and boosts overall efficiency.

Note: I always consult with my supplier to discuss customization needs. This step ensures that the lamp will deliver the best possible performance for my PET blow molding applications.


Durability and Maintenance

When I choose an infrared heating lamp for my PET blow molding machines, I always pay close attention to durability and maintenance. A durable lamp keeps my production line running smoothly and reduces downtime. I look for lamps that can withstand the demanding environment of high-speed PET production.

I have learned that standard infrared heating lamps often lose their effective energy output after 3,000 to 4,000 hours. This happens for several reasons:

  • Tungsten filaments inside the lamp evaporate over time. This creates a dark film on the inside of the quartz tube, which blocks infrared radiation and lowers heating efficiency.

  • The emission spectrum of the lamp can shift as the filament ages. This means the lamp no longer matches the absorption peak of PET, so heating becomes less effective.

  • Aluminum reflectors can become contaminated or oxidized. When this happens, they scatter infrared energy instead of focusing it on the preforms. This causes uneven heating and can lead to defects in the bottles.


To keep my system performing at its best, I follow a strict maintenance routine:

  • I replace all heating lamps in a group after 3,000 to 4,000 hours of use. This prevents a drop in product quality and keeps heating uniform.

  • I clean the reflectors regularly with isopropyl alcohol and a lint-free cloth. Sometimes, I replace the reflectors entirely to restore optimal performance.

  • I check and adjust the position of lamps and reflectors, especially when I change preform structures or bottle designs.


Tip: I always keep a maintenance log. This helps me track lamp hours and schedule replacements before problems arise.

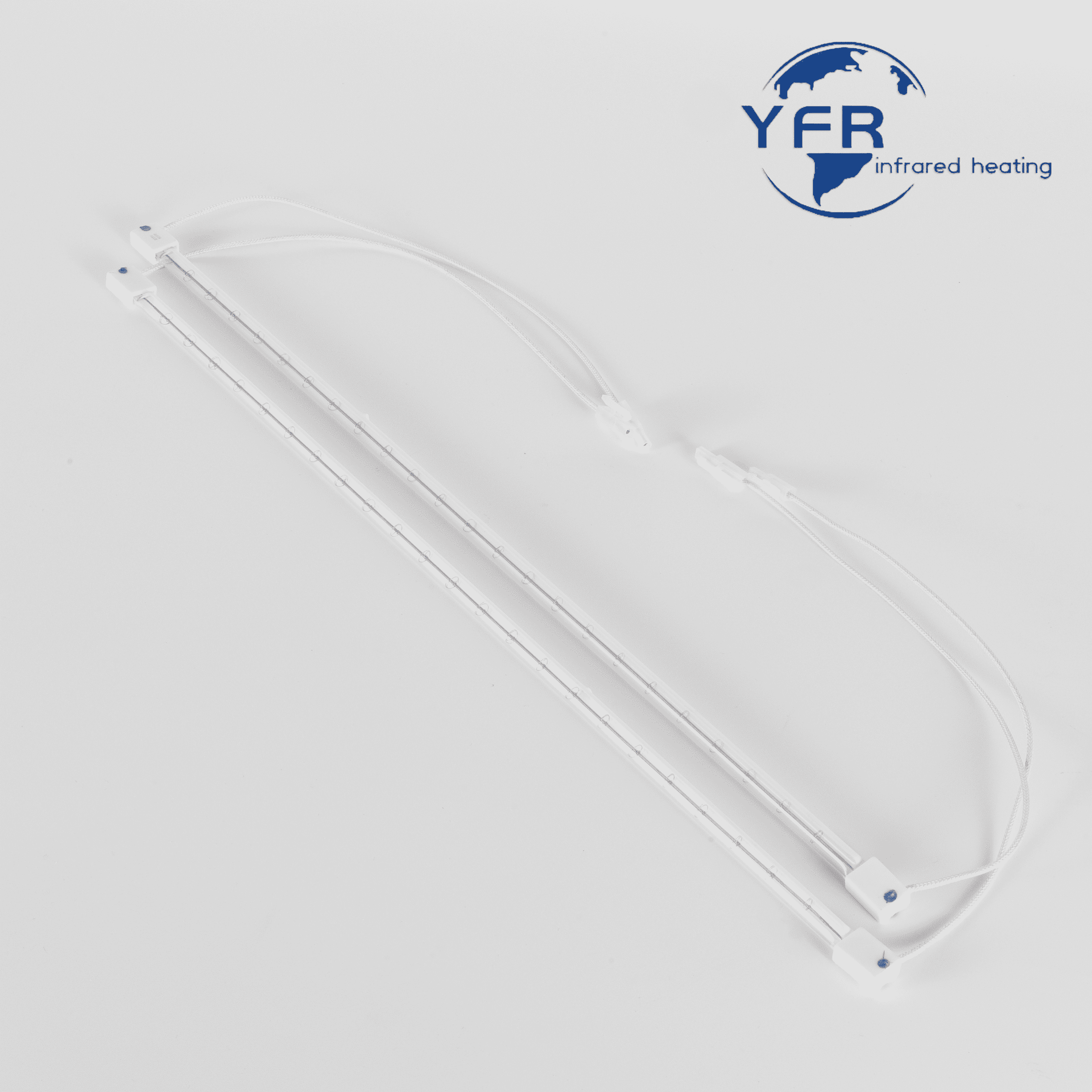

When I switched to the YFR Semi-White Coating Infrared Heating Lamp, I noticed a big improvement in durability. The high-purity fused quartz tubing and tungsten filaments give the lamp a service life of over 5,000 hours under rated conditions. The advanced ceramic semi-white coating protects the lamp from rapid aging and maintains high reflectivity, even after long periods of use. This means I spend less time on maintenance and more time producing high-quality PET bottles.

The YFR lamp’s design also reduces the buildup of dark films and keeps the emission spectrum stable. I see fewer issues with reflector contamination because the lamp’s focused energy minimizes stray radiation. With these features, I can trust that my heating system will deliver consistent results and require less frequent intervention.

In my experience, investing in a durable, low-maintenance infrared heating lamp like the YFR Semi-White Coating model pays off. I reduce operational costs, avoid unexpected downtime, and maintain top product quality. Regular maintenance remains important, but advanced lamp technology makes the process much easier and more reliable.

Step-by-Step Selection Guide

Assess Machine Needs

When I start the selection process for a new infrared heating lamp, I always assess my machine’s needs first. I look at the type of PET blow molding machine I use. I check the oven width, the number of heating zones, and the maximum preform size. I also review the speed of my production line. High-speed lines require lamps with fast response times and precise temperature control. I consider the type of PET preforms I process. Some preforms need more energy to reach the right temperature for stretching. I also think about the age and brand of my equipment. Older machines may need custom solutions to match modern NIR technology.

I make a checklist to guide my assessment:

  • Machine brand and model

  • Oven dimensions and zone layout

  • Preform size and wall thickness

  • Required heating intensity

  • Production speed and cycle time

  • Compatibility with NIR lamps

Tip: I always gather technical data from my machine’s manual. This information helps me avoid mistakes during lamp selection.


Compare Lamp Features

Once I understand my machine’s requirements, I compare the features of available NIR heating lamps. I focus on the emission wavelength. The best lamps for PET have a peak between 2.7 and 3.2 micrometers. This range matches the absorption spectrum of PET and ensures efficient energy transfer. I also look at the lamp’s coating. High-reflectivity ceramic coatings, like those on the YFR Semi-White Coating Infrared Heating Lamp, boost energy efficiency and improve heating uniformity.

I use a table to compare key features:

Feature

Why It Matters for PET Blow Molding

Emission Wavelength

Matches PET absorption for optimal heating

Reflectivity

Increases energy transfer and efficiency

Response Time

Supports fast production and temperature control

Durability

Reduces maintenance and downtime

Customization Options

Fits different oven sizes and preform types

OEM Compatibility

Ensures seamless integration with equipment

I also check if the lamp supports zonal heating. This feature lets me adjust energy output for different preform sections. I always compare the expected service life. Longer-lasting lamps reduce replacement costs and keep my production running smoothly.


Consult with Suppliers

After I narrow down my options, I consult with trusted suppliers. I share my machine specifications and production goals. I ask for technical advice on the best NIR heating lamp for my PET application. Reliable suppliers, like Yinfrared, offer expert support and can recommend lamps that match my needs. I request samples or technical datasheets to review performance data. I also discuss customization options. Some suppliers can tailor lamp length, power, and terminal types for my specific oven.

Note: I always ask about after-sales support and warranty terms. Good support helps me resolve issues quickly and keeps my production line efficient.

I sometimes request a test installation. This step lets me validate the lamp’s performance in my actual production environment. I monitor energy consumption, heating uniformity, and PET bottle quality during the trial. If the lamp meets my expectations, I proceed with a full order.

Test and Validate

After I select a suitable infrared heating lamp for my PET blow molding machine, I always test and validate its performance before full-scale production. This step helps me confirm that the lamp meets my requirements and delivers the expected results. I follow a structured approach to ensure accuracy and reliability.

  1. Install the Lamp Carefully
    I begin by installing the new infrared heating lamp according to the manufacturer’s guidelines. I check all electrical connections and make sure the lamp fits securely in the oven. I also verify that the lamp aligns with the reflectors and heating zones.

  2. Set Initial Parameters
    I use the recommended power settings and emission wavelength for PET preforms. I input these values into the machine’s control system. I make sure the lamp operates within the specified voltage and current range.

  3. Run a Controlled Test Batch
    I load a small batch of PET preforms into the machine. I monitor the heating process closely. I observe the temperature distribution across the preforms and check for uniformity. I use a handheld infrared thermometer or thermal imaging camera to measure surface temperatures.

  4. Evaluate Bottle Quality
    After heating, I blow mold the preforms into bottles. I inspect the finished bottles for wall thickness, clarity, and strength. I look for any defects such as thin spots, stress cracks, or uneven bottoms. I compare these results to bottles produced with the previous lamp.

  5. Monitor Energy Consumption
    I track the energy usage during the test run. I record the power consumption and compare it to previous data. Lower energy use with equal or better product quality indicates a successful upgrade.

  6. Adjust and Optimize
    If I notice any issues, I adjust the lamp power, heating time, or reflector position. I repeat the test until I achieve optimal results. I document all changes for future reference.

Tip: I always keep a detailed log of test results, including temperature readings, bottle measurements, and energy data. This record helps me troubleshoot problems and fine-tune the process.

Test Parameter

What I Check For

Tools I Use

Lamp Installation

Secure fit, correct alignment

Visual inspection

Temperature Uniformity

Even heating across preforms

IR thermometer, thermal cam

Bottle Quality

Wall thickness, clarity, defects

Calipers, visual check

Energy Consumption

Power usage vs. previous lamps

Power meter, machine logs

I never skip the validation step. Testing ensures that the new lamp delivers consistent, high-quality results and supports efficient production. By following this process, I protect my investment and maintain high standards in my PET blow molding operations.

Common Mistakes to Avoid

Ignoring Compatibility

When I select an infrared heating lamp for my PET blow molding machine, I always check compatibility first. I have seen many operators overlook this step. They assume any lamp will fit their system. This mistake can lead to poor heating performance or even equipment damage. Each machine model has unique requirements for lamp length, voltage, and terminal type. I always match these specifications before making a purchase.

Tip: I keep a record of my machine’s brand, model, and technical details. This habit helps me avoid costly errors and ensures a smooth installation.

I also pay attention to OEM compatibility. Some lamps, like the YFR Semi-White Coating Infrared Heating Lamp, offer direct replacements for brands such as Krones, Sipa, and Sidel. Using a compatible lamp saves time and reduces the risk of production delays.

Overlooking Energy Efficiency

Energy efficiency remains a top priority in my production process. I have learned that ignoring this factor can increase operational costs and reduce overall productivity. Some operators focus only on initial lamp price. They forget to consider long-term energy consumption. I always compare the energy efficiency ratings of different lamps.

Here is a simple table I use to evaluate options:

Lamp Model

Energy Efficiency

Estimated Savings per Year

Standard IR Lamp

Moderate

$500

YFR Semi-White IR

High

$1,200

Choosing an energy-efficient lamp, like the YFR model, helps me lower electricity bills and meet sustainability goals. I also notice that efficient lamps produce less excess heat, which protects my equipment and improves workplace safety.

Note: I always review the lamp’s reflectivity and emission wavelength. These features directly impact how much energy the lamp uses to heat PET preforms.

Neglecting Maintenance

Regular maintenance keeps my PET blow molding line running smoothly. I have seen operators neglect lamp and reflector care. This oversight leads to uneven heating, product defects, and unexpected downtime. I follow a strict maintenance schedule. I clean reflectors with isopropyl alcohol and replace lamps after 3,000 to 4,000 hours of use.

I keep a maintenance log to track lamp hours and cleaning dates. This simple practice helps me spot issues early and plan replacements before failures occur. I also inspect the lamp’s quartz tube for dark films or discoloration. If I see signs of aging, I replace the lamp immediately.

Alert: Skipping maintenance can shorten equipment life and increase repair costs. I always make maintenance a priority to protect my investment and ensure consistent product quality.

By avoiding these common mistakes, I maintain high efficiency, reduce costs, and produce top-quality PET bottles every time.

Selecting the right infrared heating lamp for PET blow molding requires careful attention to lamp type, wavelength, power, compatibility, and durability. I always compare features, consult with trusted suppliers, and test performance before making a decision. Advanced options like the YFR Semi-White Coating Infrared Heating Lamp help me achieve top efficiency and product quality.

Tip: I recommend following these steps and reaching out to industry experts for tailored advice. This approach ensures the best results for your PET production line.

FAQ

What is the ideal wavelength for PET preform heating lamps?

I always choose lamps with a peak emission between 2.7 and 3.2 micrometers. This range matches PET’s absorption spectrum. It ensures efficient energy transfer and uniform heating.

How often should I replace infrared heating lamps?

I replace lamps every 3,000 to 5,000 hours, depending on the model. The YFR Semi-White Coating Infrared Heating Lamp lasts over 5,000 hours. Regular replacement keeps heating performance consistent.

Can I use the YFR lamp with any PET blow molding machine?

Yes, I can use the YFR lamp with most major OEMs like Krones, Sipa, SMI, KHS, Side, and Sidel. I always check compatibility with my machine’s specifications before installation.

How do I know if my lamp needs maintenance?

I look for signs like uneven heating, dark films on the quartz tube, or reduced bottle quality. I keep a maintenance log and inspect lamps regularly to catch issues early.

What are the main benefits of the semi-white ceramic coating?

The semi-white ceramic coating reflects over 95% of infrared energy. I see faster, more uniform heating and lower energy costs. My equipment also stays protected from excess thermal radiation.

Can I customize the YFR lamp for my production line?

Yes, I can request custom lengths, power densities, voltages, and terminal types. Customization helps me match the lamp to my oven width and production needs.

Does the YFR lamp support zonal heating systems?

Absolutely. The YFR lamp’s fast response time and design work well with advanced zonal heating controls. I adjust heating zones for different preform types and production speeds.

How does the YFR lamp improve energy efficiency?

I notice up to 30% higher heating efficiency with the YFR lamp. The high-reflectivity coating focuses energy on the preforms, reducing waste and lowering my operational costs.


Huai’an Infrared Heating Technology is a manufacturer of Quartz IR emitters.

Product Category

Quick Links

Contact Us

Copyright © 2022 Huai'an Infrared Heating Technology. All Rights Reserved.| Sitemap  Supported By Leadong
