Set-off in the delivery pile. Sheets that look dry at the press exit but mark after stacking. Jobs that only run safely when the press speed is reduced. Coated stocks that behave differently from one batch to the next.

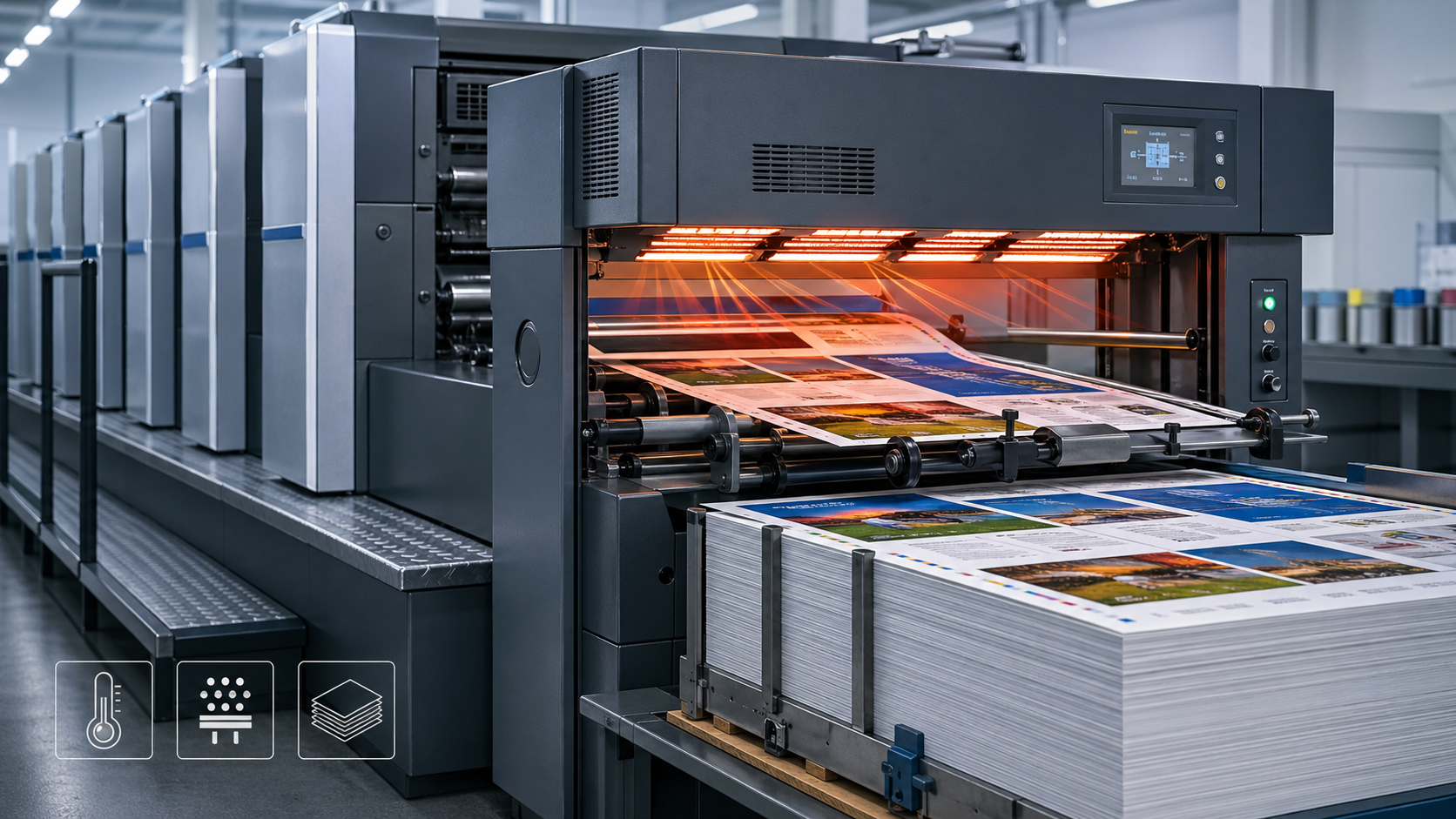

These are the situations where infrared drying for offset printing becomes a serious production topic.
The real question is not simply whether the press needs “more heat.” In offset printing, drying problems are often process-window problems. Ink, coating, substrate, press speed, air movement, delivery pile temperature, powder use, and lamp condition all influence whether the job can run safely.
Infrared can be a useful drying-control tool, but it should not be treated as a universal cure. A good IR setup supports the drying window. A poor setup can overheat the sheet, narrow the operating margin, or hide the real cause of set-off.
Offset drying is not a single event. A printed sheet may feel stable enough to handle, but the ink film and coating system may still be developing strength inside the delivery pile.
On absorptive substrates, offset inks can first set through penetration into the substrate, while final drying is completed by oxidation and polymerization. This is why surface feel alone can be misleading. A sheet may pass a quick touch test but still remain vulnerable to marking, blocking, or set-off under pile pressure.
Fogra also emphasizes that offset print quality depends on process parameters and material interactions, including substrate, ink, dampening solution, blanket, and plate. That matters because drying behavior is not isolated from the rest of the press condition.
Set-off usually appears as a visible defect, but it is often a symptom of a wider imbalance.
The problem may involve insufficient energy delivery, but it may also involve poor air evacuation, excessive ink film, incompatible coating response, high pile temperature, poor sheet separation, or a substrate that cannot tolerate the same dryer setting used on previous jobs.
This is why increasing IR output blindly can make the press look more stable for a short run, while creating new risks later in the delivery pile.
The delivery pile is where several drying risks become visible.
Pile pressure, retained moisture, trapped vapor, residual heat, and limited oxygen movement can all influence whether the printed sheet remains stable. For oxidizing inks, oxygen access is part of final ink-film development. For coated work, the coating layer may protect the surface while the ink underneath is still developing strength.
A dryer setting that looks acceptable at the sheet exit may not be acceptable after 500 or 1,000 sheets are stacked.
Aqueous coating can improve rub resistance and allow faster handling, but it also changes how the sheet behaves in the dryer and pile.
Technical guidance for sheetfed lithographic printing notes that proper drying with aqueous coating and quickset inks requires a combination of infrared energy, air movement, and air evacuation. It also notes that coating and ink do not respond in exactly the same way to IR and air.
That distinction is important. A job may not fail because the IR lamp is weak. It may fail because IR output, hot air, exhaust, coating weight, powder, and substrate temperature are not balanced.
Infrared drying is most useful when the press needs controlled energy input at a specific point in the drying process.
In offset printing, IR should be viewed as a way to recover drying margin, not as a shortcut that replaces process control.
As press speed increases, the dryer has less time to influence the sheet before delivery. If the lamp output has degraded, reflector efficiency has fallen, or the job is heavier in ink or coating than usual, the operating margin can become too narrow.
In this situation, IR can help restore a stable production window by delivering energy quickly to the printed sheet.
This does not mean every job should run at maximum IR output. The goal is to create enough drying support for stable handling, without pushing the sheet into overheating, curl, distortion, or coating defects.
For a broader diagnosis of speed-related drying issues, the related article on slow ink drying on printing presses can be used as the general problem page in the printing press cluster.
IR is useful when the bottleneck is localized.
Examples include:
| Offset printing symptom | Likely drying meaning | Where IR may help |
|---|---|---|
| Set-off appears only on heavy coverage jobs | Energy margin is too narrow for the ink film and pile condition | Controlled IR support may improve early-stage setting |
| Coated jobs need slower speed than uncoated jobs | Coating, air movement, and sheet temperature are not balanced | IR may help if air and evacuation are also adequate |
| One press section performs worse than another | Lamp aging, reflector contamination, or uneven dryer output may be involved | Lamp inspection or replacement may recover consistency |
| Sheets feel hot but still mark | Heat is present, but drying mechanism is not balanced | Wider review is needed, not simply more IR |
| Defects appear sporadically through the pile | Dryer cycling, air imbalance, or process variation may be involved | Manual setting review and output stability should be checked |
Some offset lines do not need a complete dryer rebuild. They need more stable IR output, correct replacement lamps, better reflector condition, or a more suitable balance between IR and air.
This is especially relevant for plants that run mixed work: commercial print, packaging, coated board, heavy ink coverage, and jobs requiring faster post-print handling.
The practical value of IR is not only speed. It is control. A controlled dryer gives the operator a wider and more repeatable process window.
Infrared can improve drying performance when the limiting factor is energy delivery. It cannot correct every drying-related defect.
A useful review should separate lamp-related issues from process-related issues.
IR is more likely to help when the press shows signs of insufficient or inconsistent radiant energy.
Common indicators include weak drying performance compared with previous production, uneven drying across the sheet width, higher power settings needed for the same work, or visible lamp aging.
In those cases, replacement should not be reduced to “same length and same wattage.” Physical size matters, but so do voltage, wattage density, filament design, end connections, coating or reflector type, lamp position, and the condition of the dryer housing.
A compatible replacement lamp should support the original drying function of the press. It should not simply fit into the holder.
If the sheet is hot but still unstable, IR output may not be the main limitation.
The issue may involve ink film thickness, coating weight, excessive dampening, low substrate absorbency, pile height, powder setting, or air evacuation. In that case, more IR may raise sheet temperature without solving set-off.
This is where the comparison between IR and air becomes important. For more detail on dryer-system balance, refer to infrared drying vs hot air drying for printing.
Adding or replacing IR lamps does not remove the need for process discipline.
The press still needs stable ink-water balance, correct coating application, clean reflectors, adequate air volume, good exhaust, appropriate powder use, and verified pile temperature. Prisco’s technical guidance specifically warns that dryer readouts should be verified and that air volume should not simply be reduced to control pile temperature.
This is why the best IR replacement projects are usually linked to a drying review, not only a spare-part purchase.
Offset drying decisions should be made around the finished sheet, not only around the lamp.
The key question is whether the printed sheet can move through delivery, stacking, storage, and finishing without marking or distortion.
Set-off risk can be reduced when the ink film gains enough early stability before stacking. IR can support this by adding fast radiant energy, but overheating is a real risk.
Too much heat can increase sheet curl, affect dimensional stability, change coating response, or create problems on the second side of a two-sided job.
The correct target is not maximum heat. The target is stable sheet behavior.
Sheet handling depends on more than surface dryness.
The delivery pile should be checked for temperature, blocking tendency, powder distribution, and stability after a realistic pile height is reached. Short test sheets can be useful, but they may not reveal retained heat or pressure-related marking inside a full pile.
A practical drying evaluation should include observations at the feeder, delivery, pile, and finishing stage.
Coating can make the sheet look more stable, but it can also mask incomplete drying underneath.
If the coating film forms quickly while the ink below remains vulnerable, the sheet may pass an early surface check but fail under pile pressure. That does not automatically mean the lamp is wrong. It means coating response, ink response, IR energy, air movement, and evacuation need to be reviewed together.
This is the offset-specific logic that separates a serious dryer review from a simple lamp replacement note.
Not every offset press needs an IR upgrade. Some lines only need better setup discipline, cleaning, or correct replacement parts.
The decision should be based on symptoms.
IR support is worth reviewing when the plant sees repeated drying limitations on otherwise controlled jobs.
Typical cases include reduced speed margin, heavier ink coverage, coated paperboard, faster finishing requirements, aging lamps, inconsistent dryer output, or frequent operator compensation through powder and speed reduction.
In these cases, the question is not “Can IR dry the sheet?” The better question is “Can the IR system recover a stable drying window without introducing new sheet-handling risks?”
A wider process review is needed when symptoms remain after basic checks.
Examples include set-off that changes from job to job, unstable coating response, sheet overheating, high pile temperature with poor drying, defects that appear only after stacking, or problems that follow a specific substrate rather than a specific dryer setting.
In these cases, reviewing only lamp power may lead to the wrong decision.
Lamp replacement becomes a stronger candidate when the press previously dried well under similar conditions but now requires higher settings or slower speed.
In that situation, check lamp aging, reflector contamination, connector condition, output uniformity, and whether the installed lamps still match the original dryer specification.
For press-specific replacement work, especially where lamp geometry and end fittings must match existing equipment, see Heidelberg replacement IR lamps.
A sheetfed offset plant was running a coated commercial job with dense coverage. The job could run at target speed during the first part of production, but set-off appeared after the delivery pile reached normal production height.
The first reaction was to increase IR output.
That helped for a short period, but the sheets became noticeably warmer. The operator then reduced hot air to control pile temperature. The set-off became less predictable rather than fully disappearing.
The production team saw several symptoms:
| Observation | Initial assumption | More useful interpretation |
|---|---|---|
| Set-off appeared in the pile | Not enough heat | Drying and pile behavior were not balanced |
| Higher IR reduced defects briefly | More power was needed | Energy helped, but was not the only limit |
| Sheets became too warm | Dryer was too strong | IR, air temperature, and air volume were not coordinated |
| Defects were inconsistent | Material quality was unstable | Dryer cycling, air evacuation, and pile conditions needed review |
The issue was not simply lamp power.
The line had reduced drying margin because the job combined heavy coverage, aqueous coating, limited air evacuation, and aging IR lamps. The reflector condition also reduced useful energy transfer. Increasing power compensated for part of the problem but raised sheet temperature.
The better solution was to restore useful IR output, clean the dryer area, review air volume and evacuation, and test a controlled setting window before returning to full production speed.
The plant did not need maximum IR. It needed stable IR.
After replacing aged lamps with correctly matched units and restoring the air balance, the press could run with less operator compensation. The key improvement was not a dramatic claim of “faster drying.” It was a more repeatable production window with lower set-off risk.
This is the correct way to discuss infrared drying for offset printing: as drying-control engineering, not as a simple promise that more heat solves every job.
No. Many offset jobs can run with the existing dryer setup if the ink, substrate, coating, air movement, and delivery pile conditions are stable.
Infrared becomes more relevant when the press has limited drying margin, heavier ink coverage, coated work, faster finishing requirements, or aging dryer components.
Yes, but only when insufficient or inconsistent energy delivery is part of the problem.
If set-off is caused mainly by coating mismatch, poor air evacuation, excessive ink film, substrate sensitivity, or pile conditions, IR alone may not solve it. In those cases, the dryer setup and production parameters should be reviewed together.
Infrared and hot air do different jobs.
IR delivers radiant energy quickly to the sheet. Hot air supports evaporation and removes moisture or vapor from the sheet surface when combined with proper exhaust. In many sheetfed offset applications, the best result comes from balancing IR energy, air movement, and evacuation rather than choosing one method alone.
A setup review is needed when sheets are already hot but still mark, when defects appear only in the delivery pile, when problems vary by substrate or coating, or when the press needs very different settings from previous similar jobs.
These symptoms suggest that the drying window is unstable, not simply underpowered.
Prepare the lamp specifications, press model, dryer layout, lamp length, voltage, wattage, end connection type, reflector condition, typical substrates, ink and coating type, press speed, pile temperature behavior, and the exact drying defect being observed.
Photos of the lamp, end caps, reflector housing, and installation position are also useful for confirming compatibility.
Drying setup review | Replacement lamp matching | Offset press support
YFR can help review whether your offset drying issue is mainly related to lamp aging, replacement specification, dryer output, coating coordination, or wider process balance.
For replacement projects, we can check lamp dimensions, voltage, wattage, end fittings, reflector type, and press compatibility before production.
For drying-performance discussions, we recommend sharing the press model, current lamp details, substrate, ink and coating system, press speed, and the specific symptom you are trying to solve, such as set-off, unstable sheet handling, slow finishing readiness, or reduced speed margin.
The goal is not simply to add more heat. The goal is to recover a stable drying window that fits your press, material, and production target.
