4 quick infrared heating lamp solutions for Heidelberg

users

I always see Heidelberg users searching for the best infrared heating lamp options. The top four solutions include YFR Fast Medium Wave, Heraeus Noblelight Shortwave, Double Tube, and Quartz models. Each lamp type fits specific press models and industrial needs. I look at power range, heating speed, reflector type, and durability before making a choice. These factors help me pick the right lamp for consistent production and reliable performance.

Key Takeaways

• YFR Fast Medium Wave lamps offer quick heat-up in 1-2 seconds and work well for high-speed printing and thin materials, saving energy and reducing downtime.

• Heraeus Noblelight Shortwave lamps provide very fast drying with high thermal efficiency and stable heat output, ideal for jobs needing high temperatures and consistent results.

• Double Tube Infrared lamps deliver robust, even heating for heavy-duty industrial use, with long lifespan and lower power consumption to cut operating costs.

• Quartz Infrared lamps suit demanding environments and older Heidelberg models, offering durable quartz tubes and various reflector options for stable, even heat.

• Always check lamp compatibility with your Heidelberg press model, including size, wattage, wiring, and reflector type, to avoid installation problems.

• Use the provided comparison tables and checklists to match lamp features to your production needs, balancing speed, energy use, and maintenance.

• Keep spare lamps in stock and monitor energy use and lamp hours regularly to prevent unexpected downtime and control costs.

• Consult suppliers or technicians for complex installations or custom lamp orders to ensure safe, efficient setup and optimal print quality.

1. YFR Fast Medium Wave Infrared Heating Lamp

Compatibility

Supported Models

When I look for a reliable infrared heating lamp for my Heidelberg press, I always check model compatibility first. The YFR Fast Medium Wave Infrared Heating Lamp fits a wide range of Heidelberg presses, especially the SM series. I have also seen it used as a direct replacement for Roland machines. This lamp comes in customizable lengths up to 40 inches, which means I can match it to different press sizes without hassle.

System Integration

Integrating this lamp into my existing system is straightforward. The mounting options are flexible, so I can install it in both new and older Heidelberg setups. I appreciate that the lamp supports various voltages and wattages, making it easy to upgrade or replace without changing the entire heating system.

Features

Medium Wave

The medium wave technology stands out for its balance between deep and surface heating. I get precise temperature control, usually within ±1 ℃, which is essential for consistent print quality. The lamp’s power range covers everything from 200 watts to 10,000 watts, so I can select the right output for my production needs.

Fast Response

One of the main reasons I choose this lamp is its rapid response time. It reaches full power in just 1 to 2 seconds. This fast heat-up means I can start or stop production quickly, reducing downtime and improving efficiency.

Tip: Choosing the right reflector can boost heating efficiency. I often select from clear quartz, 24K gold, or white oxide reflectors based on my application.

Use Cases

High-Speed Printing

I rely on the YFR Fast Medium Wave Infrared Heating Lamp for high-speed printing jobs. Its quick response and high power density allow me to dry inks and coatings almost instantly. This keeps my production line moving and helps me meet tight deadlines.

Thin Materials

When I print on thin materials, I need gentle but effective heating. This lamp targets the surface, so I avoid damaging delicate substrates. I use it for both mass production on conveyor belts and single-unit flash drying, depending on the job.

I have found that this infrared heating lamp offers flexible installation and energy savings. It supports both continuous and batch production, making it a versatile choice for any Heidelberg user who values speed, efficiency, and reliability.

Benefits

Energy Efficiency

When I evaluate the energy efficiency of the YFR Fast Medium Wave Infrared Heating Lamp, I always compare it to other lamp types used in Heidelberg presses. I find that this lamp reaches heating temperatures of around 900 °C in under 30 seconds. This speed helps me reduce warm-up times and save on energy costs during frequent production stops and starts.

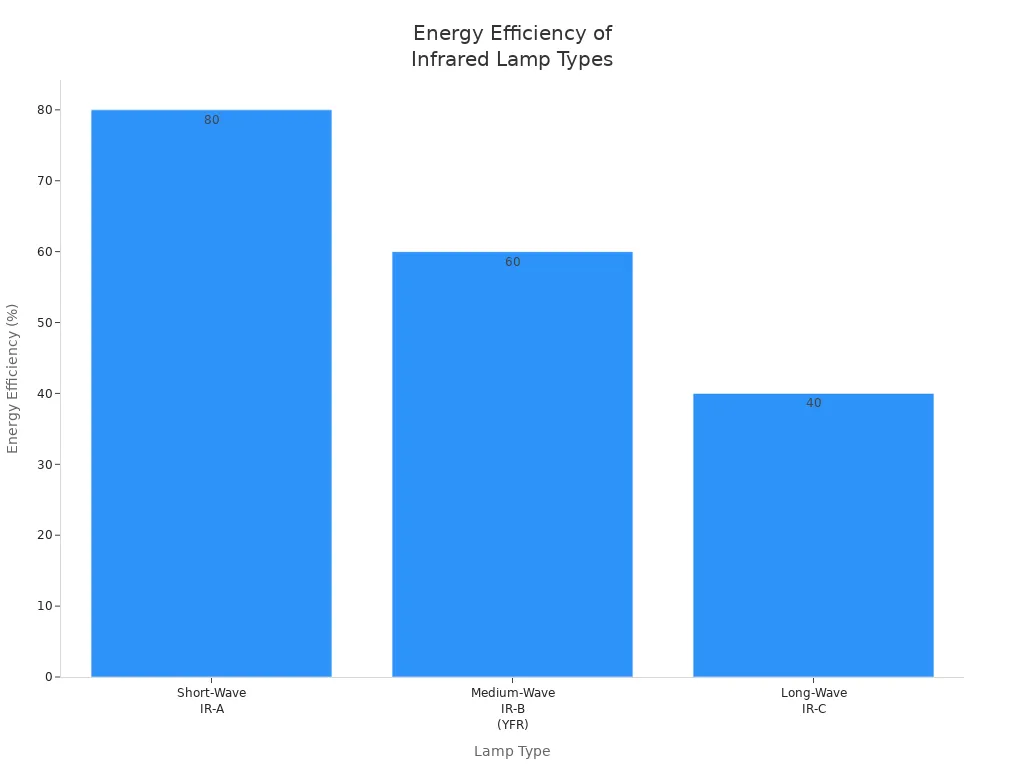

I often refer to the following table to see how the YFR lamp stacks up against short-wave and long-wave options:

I notice that the YFR medium wave lamp offers moderate energy efficiency, around 60%. While it does not reach the high efficiency of short-wave lamps, it provides a good balance between energy use and gentle heating. This makes it ideal for drying water-based coatings and sensitive materials. I choose this infrared heating lamp when I want to avoid overheating substrates but still need reliable drying performance.

Tip: I always monitor my energy consumption after installing a new lamp. The YFR model helps me keep my electricity bills predictable, especially during long production runs.

Maintenance

I value easy maintenance in any equipment I use. The YFR Fast Medium Wave Infrared Heating Lamp stands out because of its simple design and robust construction. I can replace the lamp quickly without special tools. The quartz tube resists thermal shock, so I rarely deal with unexpected failures.

Here are the main maintenance benefits I experience:

• Quick Replacement: I swap out old lamps in minutes, which keeps my downtime low.

• Long Service Life: The lamp lasts thousands of hours, even with frequent on-off cycles.

• Minimal Cleaning: The reflector options, such as gold or ceramic, resist dust buildup. I only need to wipe them down occasionally.

I recommend keeping a spare lamp on hand. This way, I never have to pause production for long if a lamp reaches the end of its life.

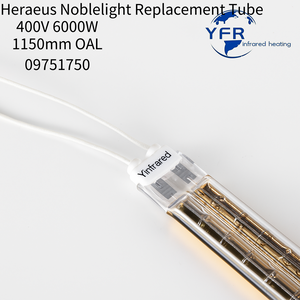

2. Heraeus Noblelight Shortwave Infrared Lamp

Compatibility

Model Fit

When I select a shortwave solution for my Heidelberg press, I always check if the lamp matches my specific model. The Heraeus Noblelight Shortwave Infrared Lamp fits directly into most Heidelberg presses, including the Speedmaster and XL series. I have used the YINFRARED Bänder Gold series as a direct replacement for both Heraeus Noblelight and Jarden systems. This compatibility means I do not need to modify my press or change wiring, which saves me time and reduces installation risks.

Retrofitting

I often work with older presses that need upgrades. The Heraeus Noblelight lamp supports a wide industrial voltage range from 220V to 480V, so I can retrofit it into almost any Heidelberg setup. The lamp’s design allows for quick swaps, and I do not need special tools. I appreciate the one-year warranty, which is the longest in the industry. This gives me confidence when I upgrade my equipment.

Features

Shortwave

Shortwave technology sets this lamp apart from other options. The lamp operates in the 0.8 to 1.4 μm wavelength range. This range delivers intense, targeted heat that penetrates coatings and inks quickly. I rely on this feature when I need rapid drying or curing. The 0.2μm 24K vacuum gold-plated reflector boosts efficiency, reflecting over 95% of the infrared energy back onto the substrate.

Rapid Heating

Speed matters in my production environment. The Heraeus Noblelight Shortwave Infrared Lamp reaches full power in just 5 to 10 seconds. Standard infrared lamps can take up to two minutes. This fast startup helps me reduce downtime and increase throughput. The lamp’s thermal efficiency reaches about 92%, which is much higher than standard infrared lamps.

Tip: I always choose shortwave lamps for jobs that demand the fastest drying times and the highest energy efficiency.

Here is a quick comparison of the key technical specifications:

Use Cases

Fast Drying

I use the Heraeus Noblelight lamp when I need to dry inks and coatings at record speed. On my Heidelberg Speedmaster XL106, the BG-2800S model increased my run rate by 18%. This improvement helps me meet tight deadlines and boost my overall productivity.

High-Temperature Needs

Some jobs require high temperatures for proper curing. The shortwave lamp delivers up to 6000W of power, making it ideal for automotive spot curing, full-coat paint lines, and UV ink drying tunnels. I select the right model based on my application:

• BG-2400: Best for automotive spot curing

• BG-3500: Ideal for full-coat paint lines

• BG-2800S: Perfect for UV ink drying tunnels

I recommend this infrared heating lamp for any Heidelberg user who needs fast, reliable, and high-temperature drying.

Advantages

Output Consistency

When I choose an infrared heating lamp for my Heidelberg press, I always look for output consistency. The Heraeus Noblelight Shortwave Infrared Lamp delivers stable performance throughout its lifespan. I notice that the lamp maintains a uniform heat output, even during long production runs. This consistency helps me avoid uneven drying or color shifts in my prints.

Here are the main reasons I trust this lamp for consistent results:

• Precise Temperature Control: The lamp holds a steady temperature, which means I get the same drying quality from the first sheet to the last.

• Uniform Heat Distribution: The shortwave technology spreads heat evenly across the substrate. I rarely see hot spots or cold patches.

• Minimal Fluctuation: I monitor my press output closely. With this lamp, I see very little variation in drying speed or ink curing.

Note: Consistent output reduces waste and rework. I save time and materials because I do not need to adjust settings during a print run.

Durability

Durability stands out as another key advantage of the Heraeus Noblelight Shortwave Infrared Lamp. I rely on equipment that can handle demanding production schedules. This lamp meets my expectations for long service life and rugged construction.

Here is what I have experienced with its durability:

1. Long Lifespan: The lamp lasts up to 10,000 hours. I can run multiple shifts without worrying about frequent replacements.

2. Shock Resistance: The robust quartz envelope protects the filament from thermal shock. I have not seen sudden failures, even with rapid on-off cycles.

3. Corrosion Protection: The gold-plated reflector resists oxidation and maintains efficiency over time. My maintenance team spends less time cleaning or replacing parts.

4. Warranty Support: The one-year warranty gives me peace of mind. If I ever encounter a defect, I know I have support from the supplier.

I recommend this infrared heating lamp for Heidelberg users who want reliable, long-lasting performance. The combination of output consistency and durability makes it a smart investment for any busy print shop.

3. Twin Tube Infrared Heating Lamp

Compatibility

Heidelberg Models

When I choose a heating solution for my Heidelberg press, I always check model compatibility first. Double Tube Infrared Heating Lamps fit a wide range of Heidelberg presses. I have used them with Speedmaster 74, 52, 102, 72, and XL105 models. These lamps meet original equipment manufacturer standards, so I can replace old lamps without worrying about fit or performance. I find that the double tube design works especially well in drying and coating units, which are critical for high-quality print jobs.

Installation

I appreciate how easy it is to install these lamps. The mounting process does not require special tools. I can swap out old lamps quickly, which keeps my downtime low. The lamps come in various lengths, from 300mm up to over 4800mm, so I can match them to different press sizes. I often select lamps with ceramic or gold reflectors to boost thermal efficiency during installation.

Features

Double Tube Design

The double tube design stands out for its robust performance. Each lamp uses a vacuum-sealed tungsten filament inside a quartz tube. This construction gives the lamp excellent heat resistance and durability. The twin tube structure provides enhanced heating, which helps me maintain consistent temperatures across the entire print area. I have noticed that the halogen gas inside the tube increases both efficiency and lifespan. The lamps resist blackening, so I get consistent brightness and energy efficiency over time.

Power Output

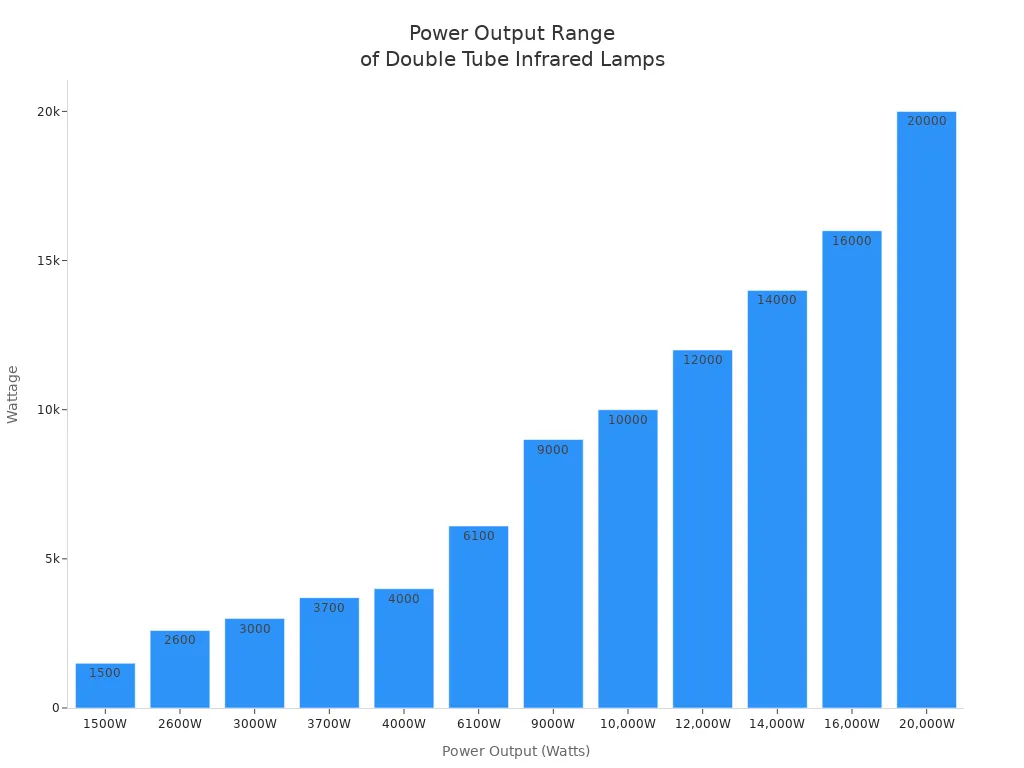

Power output matters when I select a lamp for industrial printing. Twin Tube Infrared Heating Lamps offer a wide range of power options. I can choose from 1500W for small jobs up to 20,000W for heavy-duty applications. The voltage options include 230V, 380V, 400V, 480V, and even 700V for specialized needs. I often refer to the following table to compare technical specifications:

Use Cases

Robust Heating

I rely on double tube lamps when I need robust heating for demanding jobs. The twin tube design delivers high thermal efficiency and rapid heat-up. I use these lamps for preheating my printing machines, which helps me reach optimal operating temperatures quickly. The lamps also provide consistent infrared heating during production, so I avoid temperature fluctuations that could affect print quality.

Industrial Applications

In my experience, double tube lamps excel in a variety of industrial applications. I use them for drying and curing inks, which speeds up my production line and improves print quality. These lamps also work well for film laminating, plastics forming, and glass cutting. The gold or ceramic reflectors focus the infrared heat, reducing energy loss and saving on operational costs. I have seen models like the IRP007 and IRP008 used in Heidelberg Speedmaster presses for both drying and coating units. The long service life—often over 5,000 hours—means I spend less time on maintenance and more time on production.

Tip: I always choose double tube lamps with CE certification to ensure safety and compliance in my print shop.

Benefits

Efficiency

When I evaluate heating solutions for my Heidelberg press, I always look for the most efficient option. The Double Tube Infrared Heating Lamp stands out in this area. I have seen a clear difference in power consumption compared to other lamp types. The FMW twin tube design uses about 40% less power than traditional halogen infrared lamps. This reduction in energy use helps me lower my operating costs and makes my print shop more sustainable.

I rely on the following table to compare the efficiency of different infrared lamp types for Heidelberg presses:

I notice that the twin tube design provides stable, high radiation density and even heat distribution. This means I get precise and efficient heating every time I run my press. The medium wave infrared technology matches the absorption properties of glass and other substrates, so I waste less energy and achieve better results. I also appreciate that these lamps serve as suitable replacements for Heraeus infrared heating lamps, which confirms their efficiency and compatibility with Heidelberg presses.

Tip: I always monitor my energy bills after switching to FMW twin tube lamps. The savings become clear within the first few months.

Reliability

Reliability is a top priority in my print shop. I cannot afford unexpected downtime or frequent lamp replacements. The Double Tube Infrared Heating Lamp gives me peace of mind because of its robust construction and long service life. I have used models like the IRP008 (400V, 6950W) for thousands of hours without any drop in performance.

Here are the main reasons I trust these lamps for reliable operation:

• The vacuum-sealed quartz tubes resist thermal shock and prevent blackening.

• The lamps maintain stable output, even during long production runs.

• I rarely need to perform maintenance, which keeps my workflow smooth.

• The minimum lifespan of 10,000 hours means I spend less time and money on replacements.

I recommend keeping a spare lamp on hand, but I have found that I rarely need to use it. The double tube design ensures that my infrared heating lamp delivers consistent results, even in demanding industrial environments.

4. Quartz Infrared Heating Lamp

Compatibility

Model Range

When I select a quartz infrared heating lamp for my Heidelberg press, I always check the model compatibility first. Different presses require specific lamp sizes, wattages, and wiring types. I rely on the following table to match the right lamp to my press:

I always double-check the wiring type and reflector option before ordering. This step ensures the lamp fits perfectly and delivers optimal performance.

Setup

Setting up a quartz infrared heating lamp on a Heidelberg press requires attention to wiring and reflector choices. I notice that wiring configurations vary. Series wiring has leads exiting one end, while parallel wiring has leads on both ends. Most lamps come with 500 mm lead wires, but some models use shorter leads for staggered coils. I always match the reflector type—23k gold, white oxide, or clear quartz—to my drying needs.

Features

Quartz Tube

I choose quartz tube construction for its durability and heat resistance. The quartz material withstands high temperatures and rapid heating cycles. This feature prevents thermal shock and extends the lamp’s lifespan. I also appreciate the instant on/off control, especially when using tungsten coils in short-wave and fast medium-wave lamps.

Reflector Options

Reflector choice impacts heating efficiency. I often select a 23k gold reflector for maximum energy reflection and focused heat. For broader heat distribution, I use white oxide reflectors. Clear quartz reflectors serve as secondary options when I need less intense, even heating. Each reflector type helps me tailor the lamp’s performance to my specific printing application.

Use Cases

Heavy Use

I rely on quartz infrared heating lamps for heavy-duty drying and curing tasks. These lamps handle continuous operation in demanding environments. I use them to dry inks, cure coatings, and finish materials like paper and cardboard.

Stable Performance

Stable performance matters in my print shop. Quartz infrared heating lamps deliver even heat distribution, which ensures quick and effective curing. I use them as replacement parts in infrared heating units for dryers and coater units. This reliability keeps my production line running smoothly.

• Drying and curing inks and coatings

• Supporting high-speed printing operations

• Serving as replacement parts for infrared heating units

• Ensuring even heat for consistent print quality

Tip: I always monitor lamp performance after installation. Consistent heat output means fewer print defects and less downtime.

Limitations

Compatibility

When I select a quartz infrared heating lamp for my Heidelberg press, I always check for compatibility issues. Not every lamp fits every press model. I have learned that even small differences in length, wattage, or wiring can cause installation problems. Some older Heidelberg presses require custom lamps that are no longer in regular production. I sometimes need to contact suppliers for special orders or modifications.

Here are the main compatibility challenges I face:

• Model-Specific Requirements: Each Heidelberg press has unique lamp specifications. I cannot use a lamp designed for the Speedmaster 102 in a Speedmaster 52 without risking performance issues.

• Wiring Differences: Some presses use series wiring, while others use parallel. I must match the wiring type exactly to avoid electrical faults.

• Reflector Options: Not all reflector types work with every press. For example, a gold reflector may not fit in a unit designed for ceramic reflectors.

Note: I always double-check the technical datasheet before ordering a replacement lamp. This step saves me from costly mistakes and production delays.

Initial Setup

Setting up a new quartz infrared heating lamp can take more time than I expect. I have found that installation is not always plug-and-play, especially with older presses or custom configurations. Sometimes, I need to adjust mounting brackets or re-route wiring to fit the new lamp.

The initial setup process often includes:

1. Verifying Lamp Dimensions: I measure the old lamp and compare it to the new one. Even a few millimeters of difference can affect fit.

2. Checking Electrical Ratings: I confirm that the voltage and wattage match my press requirements. Using the wrong ratings can damage both the lamp and the press.

3. Aligning Reflectors: I make sure the reflector sits correctly to maximize heating efficiency. Misalignment can lead to uneven drying or wasted energy.

4. Testing Before Production: I always run a short test cycle after installation. This step helps me catch any wiring or heating issues before starting a full print job.

Tip: I keep detailed records of lamp specifications and installation steps for each press. This habit makes future replacements much easier.

While quartz infrared heating lamps offer excellent performance, I always plan for extra time and care during selection and setup. These steps help me avoid downtime and ensure my press runs smoothly.

Infrared Heating Lamp Comparison

Features Table

When I compare infrared heating lamp options for Heidelberg presses, I always start with a side-by-side table. This approach helps me see the differences at a glance and make a quick decision.

Tip: I always print this table and keep it near my press for fast reference during maintenance or upgrades.

Model Suitability

I have tested each lamp solution on different Heidelberg presses. Here is how I match them to specific needs:

1. YFR Fast Medium Wave

• I use this lamp for high-speed jobs and thin materials. It fits most SM series presses and works well for both new and older models.

2. Heraeus Noblelight Shortwave

• I choose this lamp for the fastest drying and high-temperature curing. It integrates easily with Speedmaster and XL series presses.

3. Double Tube Infrared

• I rely on double tube lamps for heavy-duty, industrial applications. They handle long runs and deliver robust heating in drying and coating units.

4. Quartz Infrared

• I select quartz lamps for presses that need stable, even heat. They work best in demanding environments and as replacements in older units.

Note: I always check the wiring and reflector type before ordering a replacement. This step prevents installation issues.

Cost & Maintenance

I consider both upfront costs and long-term maintenance when choosing an infrared heating lamp. Here is what I have learned:

• YFR Fast Medium Wave:

• Moderate price. I spend less on energy due to fast heat-up and efficient operation. Maintenance is simple, with quick lamp swaps.

• Heraeus Noblelight Shortwave:

• Higher initial cost, but the long lifespan and high efficiency save money over time. I rarely need to replace these lamps.

• Double Tube Infrared:

• Slightly higher upfront investment. I save on maintenance because these lamps last longer and resist thermal shock.

• Quartz Infrared:

• Variable cost depending on model and reflector. Initial setup can take more time. I plan for occasional cleaning and careful installation.

I always keep a spare lamp in stock. This habit helps me avoid costly downtime and keeps my production schedule on track.

Choosing the Right Infrared Heating Lamp

Checklist

When I select an infrared heating lamp for my Heidelberg press, I always follow a clear checklist. This approach helps me avoid costly mistakes and ensures my press runs smoothly. Here is my step-by-step process:

• I confirm the lamp’s compatibility with my specific Heidelberg press model. I check the size, voltage, and wiring type.

• I match the lamp’s wavelength to the inks or coatings I use. For UV curing, I look for wavelengths like 365nm or 395nm to ensure efficient curing and high print quality.

• I evaluate the lamp’s intensity and exposure time. This step helps me achieve the right curing speed and consistent results.

• I review the lamp’s design and reflector type. I choose between gold, ceramic, or quartz reflectors based on my drying needs.

• I consider the lamp’s maintenance requirements and lifespan. I prefer lamps that last longer and require minimal cleaning.

• I select the lamp type—such as Mercury Vapor, LED, or Metal Halide—based on my substrate and ink requirements. For example, LED lamps offer energy efficiency and a longer lifespan, while mercury vapor lamps provide a broader UV wavelength range.

• I understand the differences between H-type and V-type lamps. H-type lamps have aluminum-coated reflectors for high-intensity UV light, while V-type lamps focus on energy efficiency.

Tip: I always keep a record of my lamp specifications and installation notes. This habit makes future replacements much easier.

Model Matching

Matching the right lamp to my Heidelberg press model is critical. I never assume that one lamp fits all presses. Here is how I approach model matching:

• I check the press manual or technical datasheet for recommended lamp types and specifications.

• I measure the old lamp and compare it to the new one, paying close attention to length, wattage, and wiring.

• I consult with my supplier if I have a unique or older press model. Sometimes, I need a custom lamp or special wiring.

• I verify the reflector type and mounting options to ensure a secure fit and optimal performance.

I have learned that even small differences in lamp design can affect drying speed and print quality. Careful model matching helps me avoid downtime and ensures my press operates at peak efficiency.

Production Needs

Every print shop has unique production needs. I always consider my workflow before choosing an infrared heating lamp. Here are the main factors I review:

• I determine if I need fast drying for high-speed jobs or gentle heating for delicate substrates.

• I assess the types of inks and coatings I use. Some require higher intensity or specific wavelengths for proper curing.

• I estimate my average production volume and run times. For long shifts, I choose lamps with a longer lifespan and higher efficiency.

• I factor in energy costs and maintenance schedules. Lamps with lower power consumption and easy maintenance help me control expenses.

By aligning my lamp choice with my production needs, I keep my print quality high and my operation efficient.

I rely on four top infrared heating lamp solutions for my Heidelberg presses. Each option—YFR Fast Medium Wave, Heraeus Noblelight Shortwave, Double Tube, and Quartz—offers unique strengths for different production needs. I always match lamp type and features to my press model. I use the comparison table and checklist for quick, confident decisions. For complex setups, I consult suppliers for expert advice or installation support.

Tip: Choosing the right infrared heating lamp boosts print quality and efficiency.

FAQ

What is the main advantage of using infrared heating lamps on my Heidelberg press?

I see faster drying times and improved print quality. Infrared lamps help me reduce production delays and keep my workflow efficient. I also notice lower energy costs compared to traditional drying methods.

How do I know which lamp type fits my Heidelberg model?

I always check my press manual or consult the supplier. I compare lamp length, wattage, voltage, and wiring type. If I have doubts, I ask for a compatibility chart or technical datasheet.

Can I install infrared heating lamps myself?

I usually handle basic lamp replacements. For complex installations or wiring changes, I contact a certified technician. Safety matters, so I never skip the press manual instructions.

How often should I replace my infrared heating lamp?

I track lamp hours and watch for signs of reduced performance. Most lamps last 5,000 to 10,000 hours. I keep a spare lamp ready to avoid unexpected downtime.

What reflector type should I choose?

I select gold reflectors for focused, high-efficiency heating. For broader heat, I use ceramic or white oxide reflectors. My choice depends on the drying speed and substrate sensitivity.

Are there any maintenance tips for longer lamp life?

I clean reflectors and lamp surfaces regularly. I avoid touching quartz tubes with bare hands. I also check for dust buildup and ensure proper airflow around the lamp.

Will switching to a different lamp type affect my print quality?

Yes, I notice changes in drying speed and heat distribution when I switch lamp types. I always test new lamps on a small print run before full production.

Where can I get help if I have installation or compatibility issues?

I reach out to my lamp supplier or Heidelberg service team. Many suppliers offer technical support and can guide me through troubleshooting or custom lamp orders.
