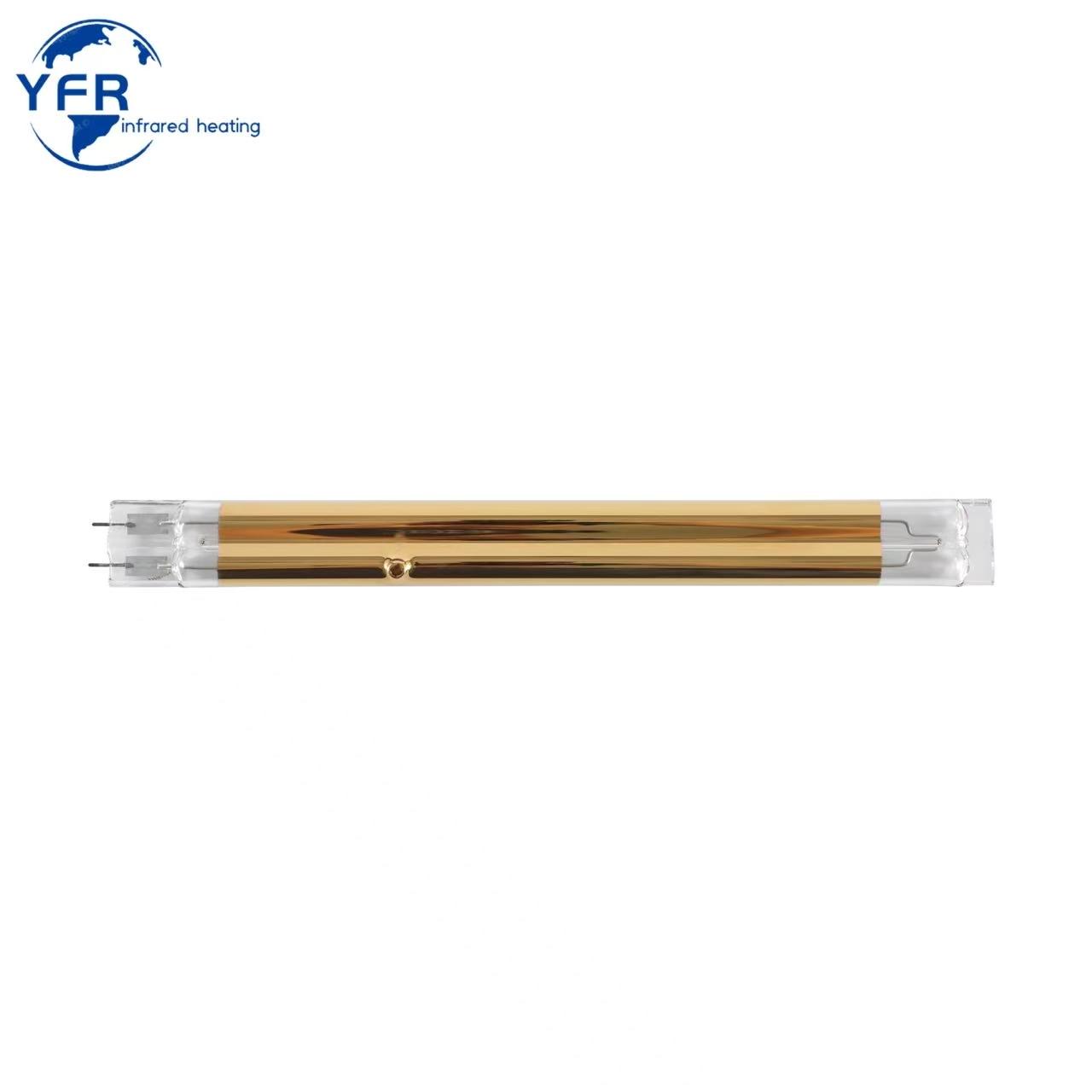

Fast-medium-wave infrared emitters can support printing quality when they are integrated with the ink, substrate, airflow and web-control conditions. The objective is not maximum lamp temperature; it is stable drying without overheating the substrate, skinning the ink, increasing curl or reducing adhesion.
Record ink or coating chemistry, film weight, solvent or water load, substrate material, colour, thickness, web speed and the required smear, blocking, adhesion or residual-moisture result.
Compare fast-medium-wave response with the product's absorption and the required control speed. Confirm heated length, reflector direction, working distance and cross-web zone requirements.
Radiation supplies heat while controlled air removes released moisture or solvent and stabilises the boundary layer.
| Input | Why it matters | Record |
|---|---|---|
| Ink load | Defines evaporation duty | Chemistry and film weight |
| Web | Sets temperature and handling limits | Material, speed and tension |
| Dryer | Controls heat and vapour removal | Power, distance and airflow |
Measure representative web or product temperature and coordinate power with speed, gaps and stops. Test edges, heavy ink coverage and heat-sensitive substrates.
Check smear resistance, blocking, adhesion, gloss, colour, curl and downstream handling at normal production speed. Record the approved recipe and repeat the trial after material or ink changes.
Review YFR replacement infrared lamps and heating modules and controls. Confirm the final lamp and dryer settings through press trials.
No. The complete drying process must be matched and validated.
Yes, when moisture or solvent must be removed from the surface.
It can be the limiting condition for drying and defects.
Use a defined power-reduction and airflow sequence to protect the substrate.
Send YFR your material, dimensions, target, cycle time and current equipment details for an application-specific review.
