An industrial infrared heating project should begin with the workpiece and process target, not with a preferred lamp model. A reliable design connects material absorption, exposure time, heater geometry, power control and temperature feedback. This checklist helps engineering and purchasing teams collect the information needed before an infrared emitter or module is specified.
Write down what the heating stage must achieve in measurable terms. Typical goals include reaching a surface temperature, removing a specified amount of moisture, making a polymer formable, activating an adhesive or completing a coating cure.
Starting, target and maximum allowable temperature
Required heating time, conveyor speed or cycle time
Acceptable temperature variation across the product
Quality requirement after heating, such as adhesion, hardness or residual moisture
Maximum temperature permitted for the substrate, fixture and surrounding equipment
Infrared performance depends on how the product absorbs radiation. Record the material, color, surface finish, thickness, shape and whether the surface changes during heating. A wet coating, for example, may absorb and release energy differently as water or solvent leaves.
For reflective metals, clear films and multi-layer assemblies, sample testing is especially valuable. A short test can reveal whether energy is being absorbed by the intended layer or reflected toward the enclosure.

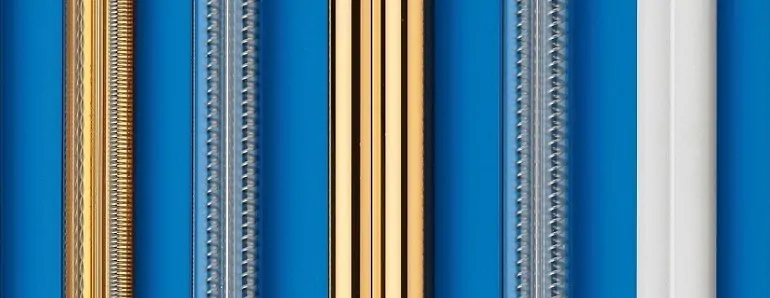

| Emitter range | Design characteristic | Typical project fit |
|---|---|---|
| Short wave | Fast response, high controllable intensity | Rapid preheating, metal and plastics processing, high-speed zones |
| Fast medium wave | Fast control with broader material absorption | Printing, coatings, film and mixed industrial processes |
| Medium wave | More gradual heating; useful for many water-based layers | Drying inks, adhesives, paper, textiles and thicker coatings |
| Long wave / ceramic | Slower response and lower surface intensity | Longer dwell processes, comfort heating and selected low-temperature duties |
The table is a starting point. Final selection should be based on the actual material, required response and available distance.
Conveyor systems must provide enough active heater length at the required line speed. Batch systems must deliver the necessary energy within the cycle time without creating damaging peaks.
Estimate available exposure time from line speed and active heater length.
Separate installed wattage from useful power reaching the workpiece.
Allow for reflector efficiency, working distance, angle and product coverage.
Check whether the process needs a flash-off, ramp and hold stage rather than one maximum-power zone.
The layout should follow the product geometry. Flat products may use parallel emitters across the web. Curved or three-dimensional parts may need angled banks, shaped emitters or independently controlled sides. Edge losses often require a different zone setting from the centre.
Confirm heated length, pitch between lamps, distance to the product, reflector shape, access for replacement and space for cables and ceramic ends. Do not place a cold end inside the area that must receive uniform heat.
Control requirements should be decided with the emitter response in mind. Fast-response lamps can be switched or modulated in small zones. Temperature feedback may use a pyrometer, thermal camera, thermocouple on a representative test part or a combination of methods.
Independent entry, centre, edge and exit zones where needed
Recipe control for different materials or product thicknesses
Power limiting during line stops
Interlocks for airflow, guards, conveyor movement and overtemperature
Repeatable measurement location and emissivity settings
Infrared transfers energy directly, but drying processes still need a path for water or solvent vapour to leave. Poor extraction can slow drying, contaminate reflectors and create an unsafe atmosphere. Hybrid infrared and hot-air systems often combine rapid radiant heating with controlled removal of the boundary layer.
Record supply voltage, phase, available current, switching method and control-panel capacity. Check lamp orientation, mounting clips, cable temperature rating, reflector cooling and enclosure materials. Maintenance staff should be able to replace a lamp without dismantling unrelated equipment.
Industrial infrared systems require guarding, electrical protection and operating procedures appropriate to their temperature and intensity. Review surface temperatures, glare, access, combustible material, ventilation and emergency stop behavior. Installation and service should be completed by qualified personnel in accordance with local requirements.
A useful test records more than the final temperature. Measure the time-temperature curve, cross-web uniformity, product quality, energy setting and response to a line stop. Keep the distance, airflow and reflector arrangement consistent so results can be transferred to production.
Temperature at defined locations and times
Residual moisture, adhesion, hardness or forming quality
Cycle time or stable conveyor speed
Power setting for each zone
Observed hot spots, edge losses or visual defects
Provide the material and dimensions, process objective, starting and target temperature, cycle time or line speed, available heating length, working distance, voltage, heated width, current equipment photographs and any known lamp data. This information allows a practical comparison of emitter type, quantity, zoning and control.
