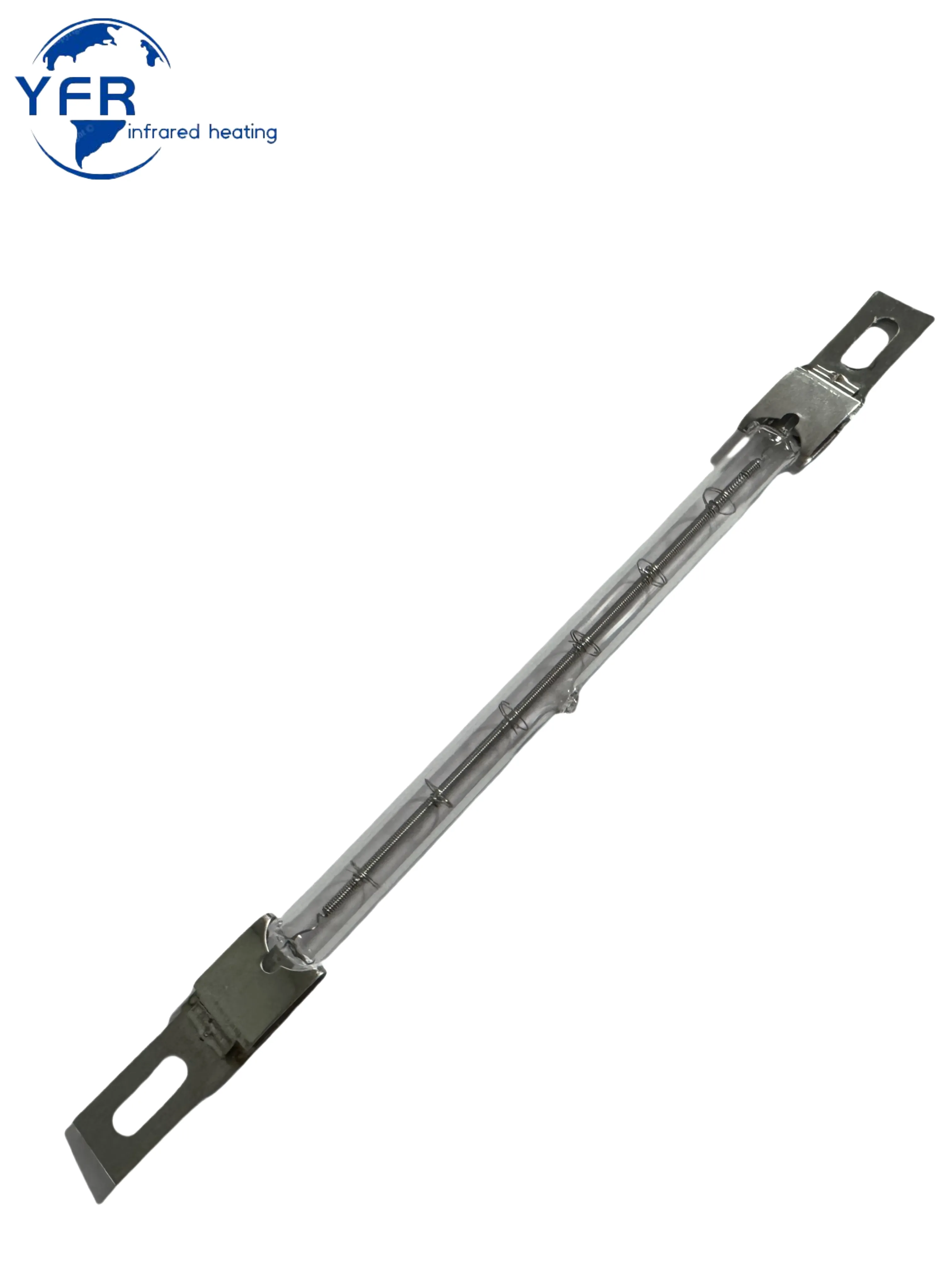

An OEM quartz infrared tube should be developed as a controlled component rather than ordered from a short description. Process duty, electrical data, geometry, reflector orientation and equipment interfaces must be translated into an approved drawing and repeatable acceptance plan.
Define the material, target temperature, heating time, working distance, heated area, motion and surrounding airflow. These inputs help determine the emitter family and installed layout before detailed tube dimensions are frozen.
Specify voltage, wattage, total length, heated length, cold ends, tube section, reflector, terminals, leads and mounting references. Mark critical dimensions and identify the orientation that matters inside the machine.
Use a first article to verify fit, electrical characteristics and process behaviour before releasing repeat production.
| Input | Why it matters | Record |
|---|---|---|
| Drawing | Creates one source of dimensional truth | Approved revision |
| First article | Verifies fit and heat delivery | Signed test record |
| Production | Maintains repeatability | Inspection and traceability |
Agree visual, dimensional and electrical checks, packaging, labelling and traceability. Process-critical characteristics should have clear tolerances and a documented method of verification.
Keep drawing revisions linked to purchase orders and approved samples. Any change to materials, terminations, reflector or heated geometry should be reviewed before it enters production.
Coordinate the emitter with YFR industrial infrared heating lamps and heating modules and controls. Confirm the final configuration with product trials and documented acceptance limits.
A sample helps, but electrical data and application requirements should also be documented.
The active zone determines where energy is delivered inside the machine.
Use one when fit, heat profile or a changed specification needs confirmation.
No. Relevant changes should follow controlled review and approval.
Send YFR your material, dimensions, target temperature, cycle time and current equipment details for an application-specific review.
